REPLACEMENT OPERATIONS

BRM-27

< UNIT REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Front Side Member (Partial Replacement)

INFOID:0000000005513914

Work after radiator core support and lower front hoodledge are removed.

Unit: mm (in)

: Vehicle front

Replacement parts

z

Front side member assembly (LH)

z

Front side member closing plate as-
sembly (LH)

JSKIA0527GB

BRM-28

< UNIT REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

Front Pillar

INFOID:0000000005513915

Work after hoodledge reinforcement is removed.

Unit: mm (in)

: Vehicle front

Replacement parts

z

Front side member assembly (RH)

z

Front side member closing plate as-
sembly (RH)

JSKIA0528GB

REPLACEMENT OPERATIONS

BRM-29

< UNIT REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

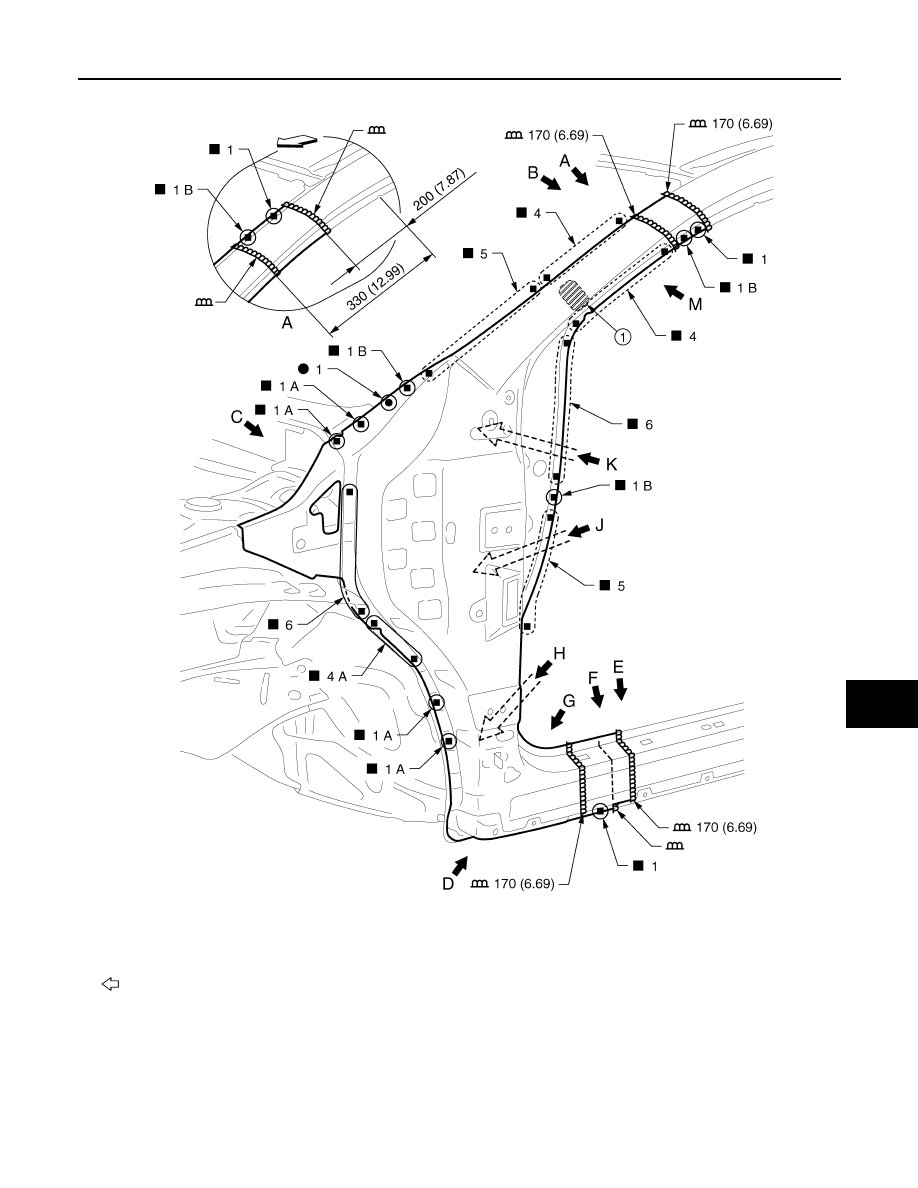

1.

Urethane foam

Unit: mm (in)

: Vehicle front

Replacement parts

z

Side body assembly (LH)

z

Side dash (LH)

z

Inner side roof rail (LH)

JSKIA0529GB

BRM-30

< UNIT REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

View B and F: Before installing outer front side body
View C: Before installing side body assembly

Unit: mm (in)

: Vehicle front

JSKIA0530GB
