Nissan Murano Z51. Manual - part 194

AV

REAR VIEW CAMERA

AV-555

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

1.

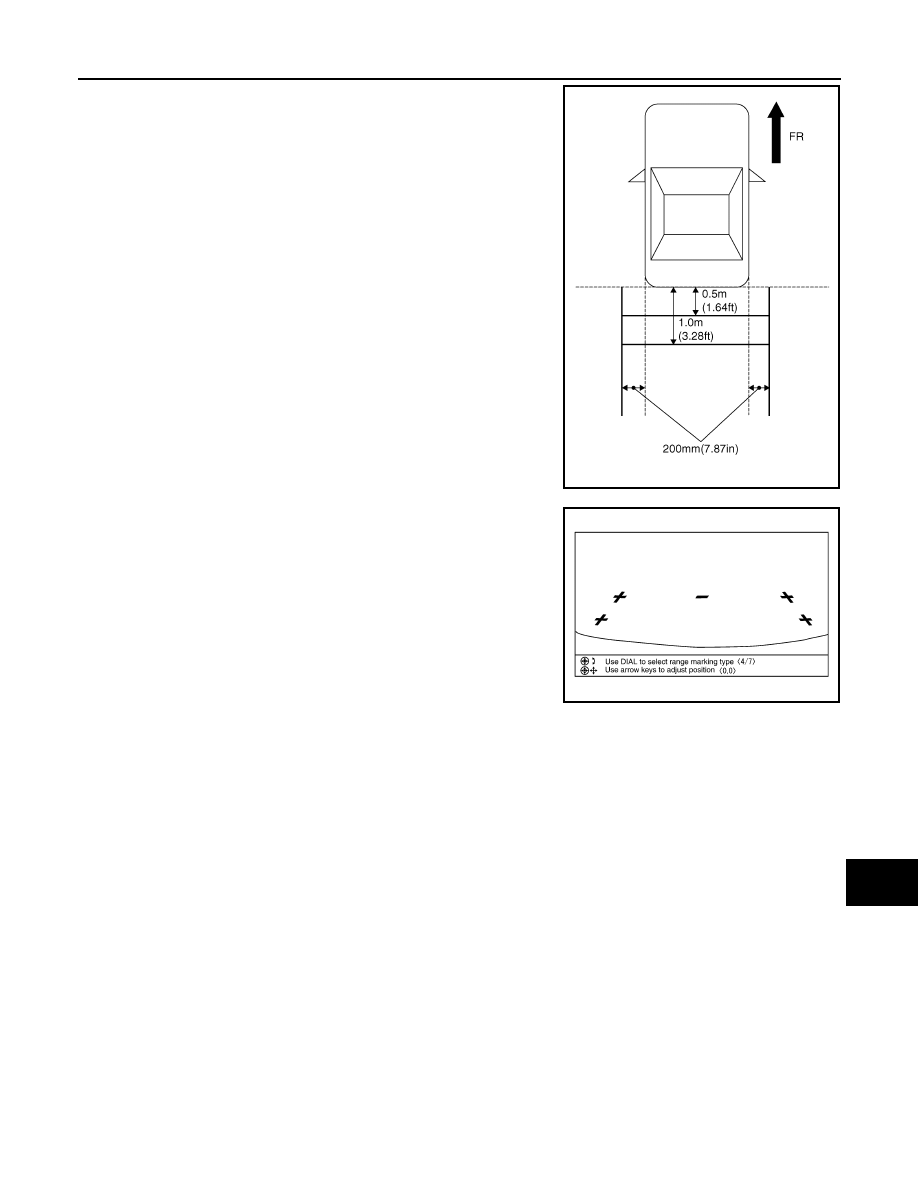

Draw lines on rearward area of the vehicle passing through the
following points: 200 mm (7.87 in) from both sides of the vehicle,
and 0.5 m (1.64 ft), 1.0 m (3.28 ft) from the rear end of the
bumper.

2.

Set into “Adjust offset of rear view camera” mode of Confirma-
tion / Adjustment mode.

3.

Rotate the center dial, and then select the guiding line pattern so
that its angle is aligned with the correction line of the rear of the
vehicle.

4.

Make fine adjustment to the correction line of the rear of the
vehicle with up/down/left/right switches so that its position is
aligned with the guiding line. Press “OK” switch and record the
adjusted guiding line position to the camera control unit.

CAUTION:

Never operate other function such as pressing BACK while writing index data.
If Confirmation/Adjustment mode does not function in the above procedure, perform one of the
following service to adjust the index again.
• Remove battery for five min. Then reconnect battery.
• Remove camera control unit connector for five min. Then reconnect camera control unit connec-

tor.

SKIB3691E

Selected pattern

: 7

Up/Down adjustment range

:

−

20 – 20

Left/Right adjustment range

:

−

20 – 20

SKIB3689E

AV-556

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITHOUT NAVIGATION]

STEERING ANGLE SENSOR

STEERING ANGLE SENSOR

Exploded View

INFOID:0000000005528657

REMOVAL

Refer to

SR-14, "Exploded View"

 (for USA and Canada) or

SR-40, "Exploded View"

 (for Mexico).

DISASSEMBLY

Removal and Installation

INFOID:0000000005528658

REMOVAL

1.

Remove spiral cable.

2.

Remove steering angle sensor from spiral cable.

INSTALLATION

Install in the reverse order of removal.

JSNIA0135ZZ

1.

Spiral cable

2.

Steering angle sensor

AV

ROOF ANTENNA

AV-557

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ROOF ANTENNA

Exploded View

INFOID:0000000005528659

Refer to

GI-4, "Components"

 for symbols in the figure.

Removal and Installation

INFOID:0000000005528660

REMOVAL

1.

Remove headlining assembly (rear) to secure work space between vehicle and headlining. Refer to

INT-

26, "NORMAL ROOF : Exploded View"

 [without sunroof] or

INT-30, "SUNROOF : Exploded View"

 [with

sunroof].

2.

Disconnect AM/FM main connector and satellite radio antenna connector.

3.

Remove antenna base & satellite radio nut, and then remove antenna base &satellite radio antenna from
roof panel.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

When Antenna base & satellite radio antenna mounting nut tightening torque is loose, be careful
about tightening torque. Antenna sensitivity becomes poor, and when it is excessive, roof panel may
become deformed.

JPNIA0786ZZ

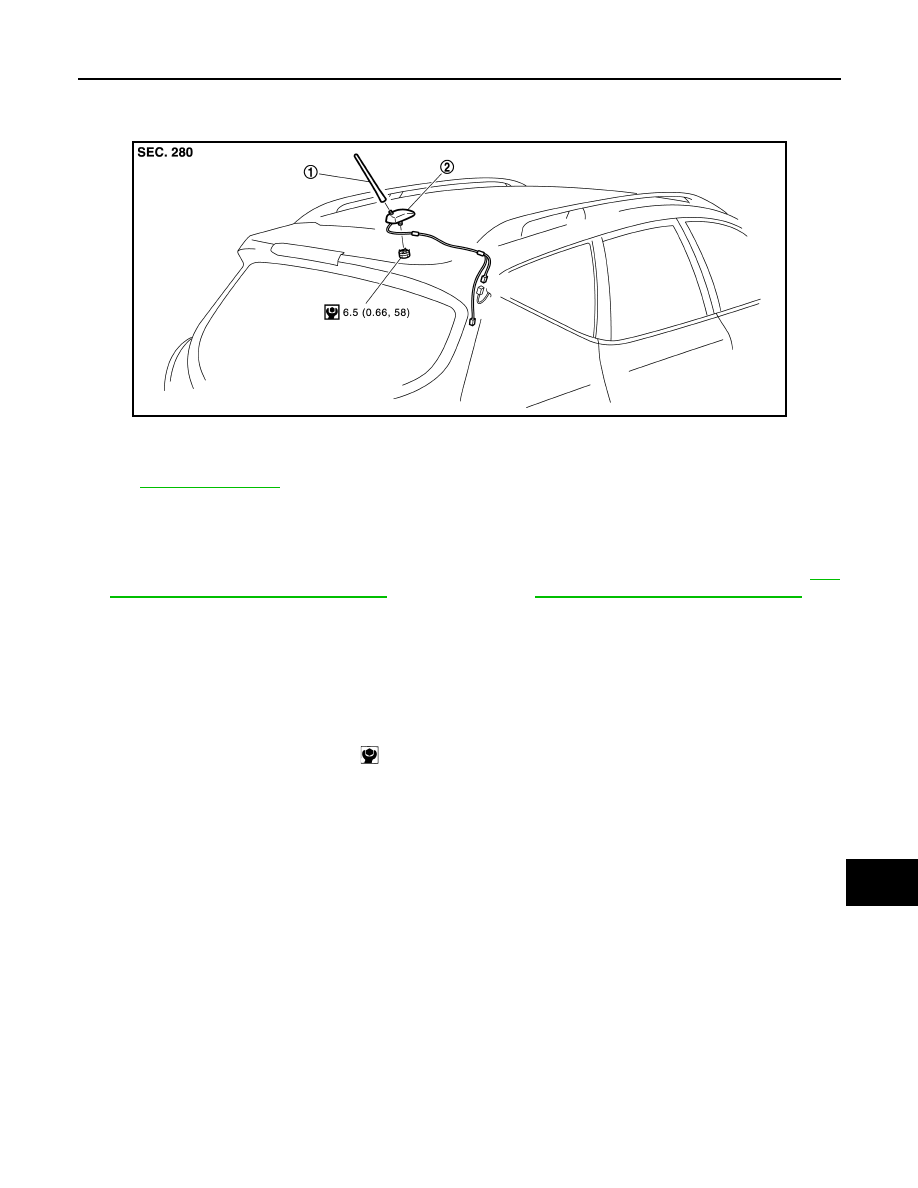

1.

Rod antenna

2.

Antenna bade & satellite radio an-
tenna

Antenna base & satellite ra-
dio antenna mounting nut

: 6.5 N·m (0.66 kg-m, 58 in-lb)

AV-558

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITHOUT NAVIGATION]

SATELLITE RADIO TUNER

SATELLITE RADIO TUNER

Exploded View

INFOID:0000000005528661

Removal and Installation

INFOID:0000000005528662

REMOVAL

1.

Remove luggage floor finisher front. Refer to

INT-34, "Exploded View"

.

2.

Remove satellite radio tuner (1) with TEL adapter unit as a sin-
gle unit from the body.

3.

Remove bracket screws, and them remove satellite tuner.

INSTALLATION

Install in the reverse order of removal.

1.

Satellite radio tuner

2.

Bracket LH

3.

TEL adapter unit

4.

Bracket RH

JPNIA0784ZZ

:

Vehicle front

JPNIA0785ZZ
