AV-478

< ECU DIAGNOSIS INFORMATION >

[BOSE AUDIO WITHOUT NAVIGATION]

CAMERA CONTROL UNIT

CAMERA CONTROL UNIT

Reference Values

INFOID:0000000005528604

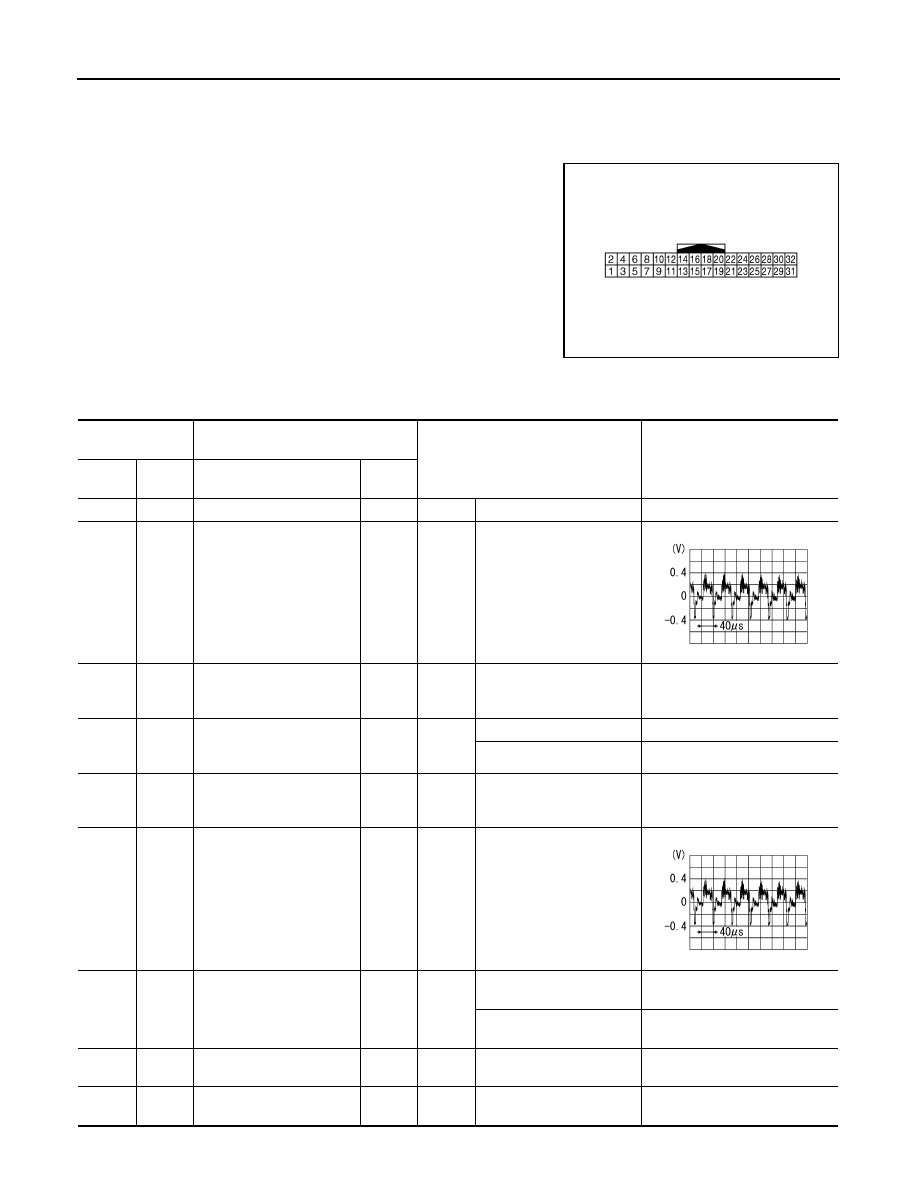

TERMINAL LAYOUT

PHYSICAL VALUES

JPNIA0007ZZ

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

5

—

Shield

—

—

—

—

6

(B)

Ground

Camera image signal

Input

Ignition

switch

ON

when rear view camera im-
age is displayed.

7

(R/W)

Ground

Rear view camera ground

—

Ignition

switch

ON

—

0  V

8

(R/L)

Ground

Camera ON signal

Output

Ignition

switch

ON

R position.

6.0 V

Other than R position.

0 V

11

Ground

Shield (camera image
ground

—

Ignition

switch

ON

—

0  V

12

(B)

11

Camera image signal

Output

Ignition

switch

ON

when rear view camera im-
age is displayed.

14

(L)

Ground

Camera-connection recog-
nition signal

Output

Ignition

switch

ON

Connected to camera con-
trol unit connector.

0 V

Not connected to camera
control unit connector.

5.0 V

17

(BR)

—

AV communication signal
(L)

Input/

Output

—

—

—

18

(Y)

—

AV communication signal
(H)

Input/

Output

—

—

—

SKIB2251J
