WT-6

< SYSTEM DESCRIPTION >

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

Component Parts Location

INFOID:0000000005514383

Component Description

INFOID:0000000005514384

1.

Transmitter

2.

BCM

3.

Tire pressure receiver

4.

Tire pressure warning check switch

5.

Low tire pressure warning lamp

A.

Wheel

B.

Dash side lower (passenger side)

C.

Instrument lower panel LH

D.

Behind instrument lower panel
(driver side)

E.

Inside combination meter

JPEIC0046ZZ

Component parts

Function

BCM (Body Control Module)

WT-7, "BCM"

.

Transmitter

WT-7, "Transmitter"

.

Tire pressure receiver

WT-7, "Tire pressure receiver"

.

Tire pressure warning check switch

WT-7, "Tire pressure warning check switch"

.

Turn signal lamp

ID registration of each wheel has been completed, turn signal lamp flashes.

COMPONENT PARTS

WT-7

< SYSTEM DESCRIPTION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

BCM

INFOID:0000000005575965

The BCM reads the air pressure signal received by the tire pressure receiver, and controls the low tire pres-
sure warning lamp and the buzzer operations. It also has a judgment function to detect a system malfunction.

Transmitter

INFOID:0000000005575966

The transmitter integrated with a valve is installed on a wheel, and transmits a detected air pressure signal by
radio wave.

Tire pressure receiver

INFOID:0000000005575967

The tire pressure receiver receives the air pressure signal transmitted by the transmitter in each wheel.

Tire pressure warning check switch

INFOID:0000000005575968

Self-diagnosis can be performed by short-circuiting the tire pressure warning check switch to the ground.(Self-
diagnosis indicates the location of the malfunction by the blinking of the low tire pressure warning lamp on the
combination meter.)

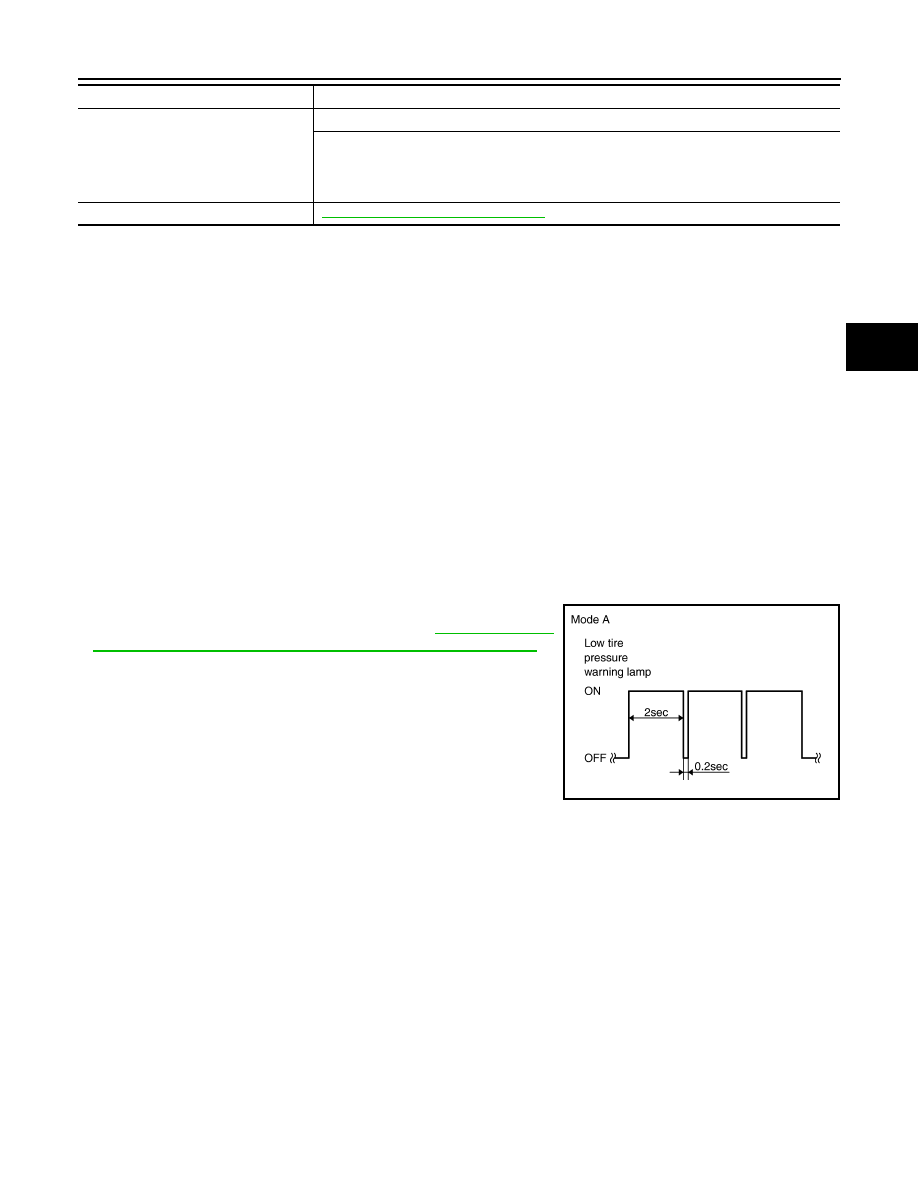

NOTE:
If low tire pressure warning lamp blinks as shown in the figure, the system is normal.
• This mode shows transmitter status is in OFF-mode.

Perform transmitter wake up operation. Refer to

WT-22, "TRANS-

MITTER WAKE UP OPERATION : Special Repair Requirement"

.

Low tire pressure warning lamp

INFOID:0000000005575969

The combination meter receives tire pressure status from the unified meter and A/C amp. via CAN communi-
cation.

Combination meter

Transmits the vehicle speed signal via CAN communication to BCM.

Receives the following signals via CAN communication to BCM.
• Tire pressure warning lamp signal
• Hazard lamp signal
• Buzzer signal

Low tire pressure warning lamp

WT-7, "Low tire pressure warning lamp"

Component parts

Function

JPEIC0031GB

WT-8

< SYSTEM DESCRIPTION >

TPMS

TPMS

TIRE PRESSURE MONITORING SYSTEM

TIRE PRESSURE MONITORING SYSTEM : System Diagram

INFOID:0000000005514381

TIRE PRESSURE MONITORING SYSTEM : System Description

INFOID:0000000005589452

DESCRIPTION

During driving, the TPMS (Tire Pressure Monitoring System) receives the signal transmitted from transmitter
installed in each wheel. The BCM (Body Control Module) of this system has pressure judgment and trouble
diagnosis functions. When the tire pressure monitoring system detects low inflation pressure or another
unusual symptom, the low tire pressure warning lamps in the combination meter comes on.

LOW TIRE PRESSURE WARNING LAMP

Uses CAN communication from the BCM to illuminate the low tire pressure warning lamp on the combination
meter.

NOTE:

182.7 kPa (1.9 kg/cm

2

, 26 psi): Standard air pressure is for 230 kPa (2.3 kg/cm

2

,33 psi) vehicles.

TIRE PRESSURE MONITORING SYSTEM : Fail-safe

INFOID:0000000005589454

FAIL-SAFE CONTROL BY DTC

BCM performs fail-safe control when any DTC are detected.

JSEIA0157GB

Condition

Low tire pressure warning lamp

Ignition switch OFF.

OFF

Ignition switch ON.

Illuminates for 1 second, then turns OFF.

Less than * kPa (* kg/cm

2

, * psi) [NOTE]

ON

Tire pressure monitoring system malfunction [Other diagnostic item]

Flashes for 1 minute, then stays illuminated.

Display contents of CONSULT

Fail-safe

Cancellation

B2013: ID DISCORD BCM-S/L

Inhibit engine cranking

Erase DTC

B2014: CHAIN OF S/L-BCM

Inhibit engine cranking

Erase DTC

B2190: NATS ANTENNA AMP

Inhibit engine cranking

Erase DTC

B2191: DIFFERENCE OF KEY

Inhibit engine cranking

Erase DTC

B2192: ID DISCORD BCM-ECM

Inhibit engine cranking

Erase DTC

B2193: CHAIN OF BCM-ECM

Inhibit engine cranking

Erase DTC

B2195: ANTI SCANNING

Inhibit engine cranking

Ignition switch ON

→

 OFF

B2557: VEHICLE SPEED

Inhibit steering lock

When normal vehicle speed signals are received from ABS actua-
tor and electric unit (control unit) for 500 ms

TPMS

WT-9

< SYSTEM DESCRIPTION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

B2560: STARTER CONT RELAY

Inhibit engine cranking

500 ms after the following CAN signal communication status be-
comes consistent
• Starter control relay signal
• Starter relay status signal

B2601: SHIFT POSITION

Inhibit steering lock

500 ms after the following signal reception status becomes consis-
tent
• Selector lever P position switch signal
• P range signal (CAN)

B2602: SHIFT POSITION

Inhibit steering lock

5 seconds after the following BCM recognition conditions are ful-
filled
• Ignition switch is in the ON position
• Selector lever P position switch signal: Except P position (battery

voltage)

• Vehicle speed: 4 km/h (2.5 MPH) or more

B2603: SHIFT POSI STATUS

Inhibit steering lock

500 ms after the following BCM recognition conditions are fulfilled
• Ignition switch is in the ON position
• Selector lever P position switch signal: Except P position (battery

voltage)

• Selector lever P/N position signal: Except P and N positions (0 V)

B2604: PNP SW

Inhibit steering lock

500 ms after any of the following BCM recognition conditions are
fulfilled
• Status  1
- Ignition switch is in the ON position
- Selector lever P/N position signal: P and N position (battery volt-

age)

- P range signal or N range signal (CAN): ON
• Status  2
- Ignition switch is in the ON position
- Selector lever P/N position signal: Except P and N positions (0 V)
- P range signal and N range signal (CAN): OFF

B2605: PNP SW

Inhibit steering lock

500 ms after any of the following BCM recognition conditions are
fulfilled
• Ignition switch is in the ON position
- Power position: IGN
- Selector lever P/N position signal: Except P and N positions (0 V)
- Interlock/PNP switch signal (CAN): OFF
• Status  2
- Ignition switch is in the ON position
- Selector lever P/N position signal: P or N position (battery volt-

age)

- PNP switch signal (CAN): ON

B2606: S/L RELAY

Inhibit engine cranking

500 ms after the following CAN signal communication status be-
comes consistent
• Steering lock relay signal (Request signal)
• Steering lock relay signal (Condition signal)

B2607: S/L RELAY

Inhibit engine cranking

500 ms after the following CAN signal communication status be-
comes consistent
• Steering lock relay signal (Request signal)
• Steering lock relay signal (Condition signal)

B2608: STARTER RELAY

Inhibit engine cranking

500 ms after the following signal communication status becomes
consistent
• Starter motor relay control signal
• Starter relay status signal (CAN)

B2609: S/L STATUS

• Inhibit engine cranking
• Inhibit steering lock

When the following steering lock conditions agree
• BCM steering lock control status
• Steering lock condition No. 1 signal status
• Steering lock condition No. 2 signal status

Display contents of CONSULT

Fail-safe

Cancellation
