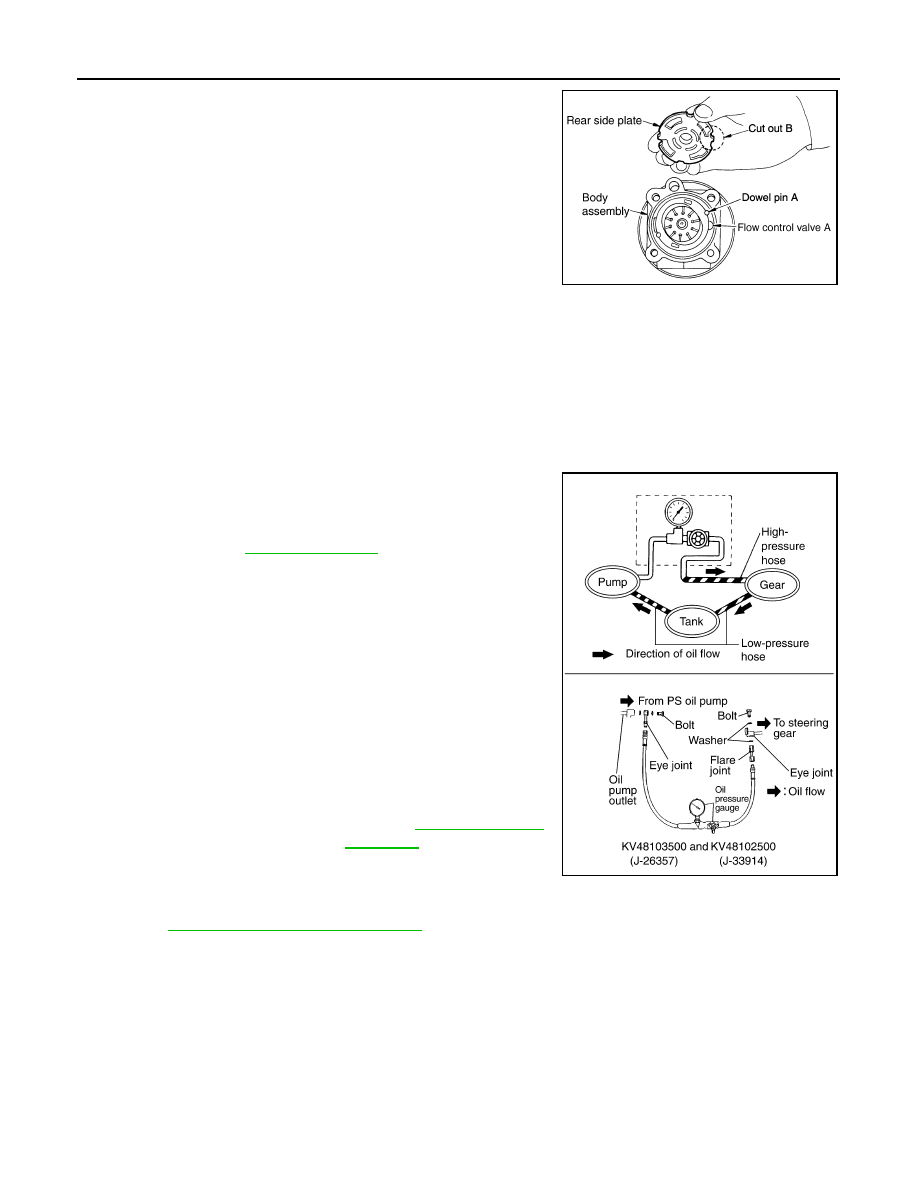

ST-42 < REMOVAL AND INSTALLATION > POWER STEERING OIL PUMP 11. Install rear side plate with dowel pin A on flow control valve A side as shown in the figure aligning with rear side plate cutout B 12. Apply recommended fluid to O-ring, and then install O-ring to body assembly. 13. Apply recommended fluid to O-ring, and then install O-ring to rear side plate. 14. Apply recommended fluid to Teflon ring, and then install Teflon ring to rear side plate. 15. Install rear cover to body assembly. 16. Apply recommended fluid to O-ring, and then install O-ring to body assembly. 17. Install suction pipe to body assembly. 18. Install rear bracket. Inspection INFOID:0000000005514490 RELIEF OIL PRESSURE CAUTION: Make sure that belt tension is normal before starting the following procedure. Connect the oil pressure gauge [SST: KV48103500 (J-26357)] . 2. Start the engine. Run the engine until oil temperature reaches ° C (122 to 176 ° F). CAUTION: • Leave the valve of the oil pressure gauge fully open while starting and running the engine. If engine is started with • Be sure to keep hose clear of belts and other parts when engine is started. 3. Fully close the oil pressure gauge valve with engine at idle and CAUTION: Never keep valve closed for 10 seconds or longer. 4. Open the valve slowly after measuring. Repair oil pump if the relief oil pressure is outside the standard. ST-39, "Disassembly and Assembly" 5. Disconnect the oil pressure gauge from hydraulic circuit. PGIA0035E Standard Relief oil pressure : Refer to . SGIA0915E |
