SE-104

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000005518232

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tool

INFOID:0000000005518233

Tool number

(Kent-Moore No.)

Tool name

Description

(J39570)
Chassis ear

Locates the noise

(J43980)
NISSAN Squeak and Rattle
Kit

Repairs the cause of noise

SIIA0993E

SIIA0994E

Tool name

Description

Engine ear

Locates the noise

Remover tool

Removes the clips, pawls and metal clips

Hook and pick tool

Removes the snap pins

SIIA0995E

JMKIA3050ZZ

JMJIA0490ZZ

FRONT SEAT

SE-105

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

REMOVAL AND INSTALLATION

FRONT SEAT

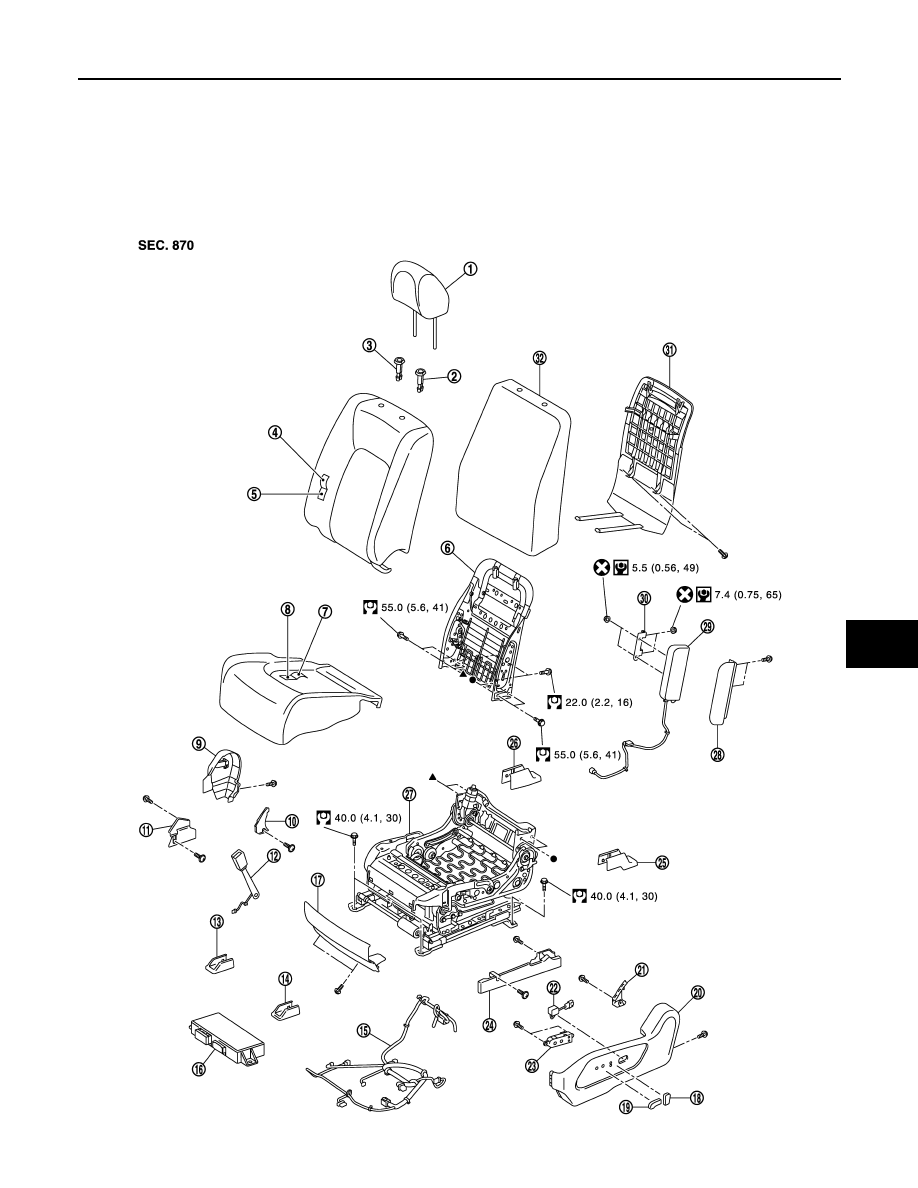

Exploded View

INFOID:0000000005518234

DRIVER'S POWER SEAT

JMJIA1418GB

SE-106

< REMOVAL AND INSTALLATION >

FRONT SEAT

DRIVER'S MANUAL SEAT

1.

Headrest

2.

Headrest holder (locked)

3.

Headrest holder (free)

4.

Seatback trim

5.

Seatback pad

6.

Seatback frame

7.

Seat cushion trim

8.

Seat cushion pad

9.

Seat cushion inner finisher outside

10. Seat cushion inner finisher inside

(right)

11.

Seat slide inner cover

12. Seat belt buckle

13. Front inner slide cover

14. Front outer slide cover

15. Seat harness

16. Seat control unit

17. Seat cushion front finisher

18. Seat reclining switch knob

19. Seat control switch knob

20. Seat cushion outer finisher outside

21. Seat cushion outer finisher inside

(left)

22. Lumbar support switch

23. Seat control switch

24. Seat slide outer cover

25. Rear outer slide cover

26. Rear inner slide cover

27. Seat cushion frame

28. Side air bag module cover

29. Side air bag module

30. Side air bag module mounting brack-

et

31. Seatback board

32. Seatback silencer

Refer to

GI-4, "Components"

 for symbols in the figure.

FRONT SEAT

SE-107

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

1.

Headrest

2.

Headrest holder (locked)

3.

Headrest holder (free)

4.

Seatback trim

5.

Seatback pad

6.

Seatback frame

7.

Lumbar support lever

8.

Seat cushion inner finisher outside

9.

Seat cushion inner finisher inside
(right)

10. Seat slide inner cover

11.

Seat cushion trim

12. Seat cushion pad

13. Seat belt buckle

14. Seat cushion frame

15. Front inner slide cover

JMJIA1416GB
