RF-92

< PRECAUTION >

PRECAUTIONS

If turning the steering wheel is required with the battery disconnected or discharged, follow the operation pro-
cedure below before starting the repair operation.

OPERATION PROCEDURE

1.

Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.

2.

Turn the push-button ignition switch to ACC position.
(At this time, the steering lock will be released.)

3.

Disconnect both battery cables. The steering lock will remain released with both battery cables discon-
nected and the steering wheel can be turned.

4.

Perform the necessary repair operation.

5.

When the repair work is completed, re-connect both battery cables. With the brake pedal released, turn
the push-button ignition switch from ACC position to ON position, then to LOCK position. (The steering
wheel will lock when the push-button ignition switch is turned to LOCK position.)

6.

Perform self-diagnosis check of all control units using CONSULT-III.

FOR MEXICO : Precaution for Procedure without Cowl Top Cover

INFOID:0000000005716202

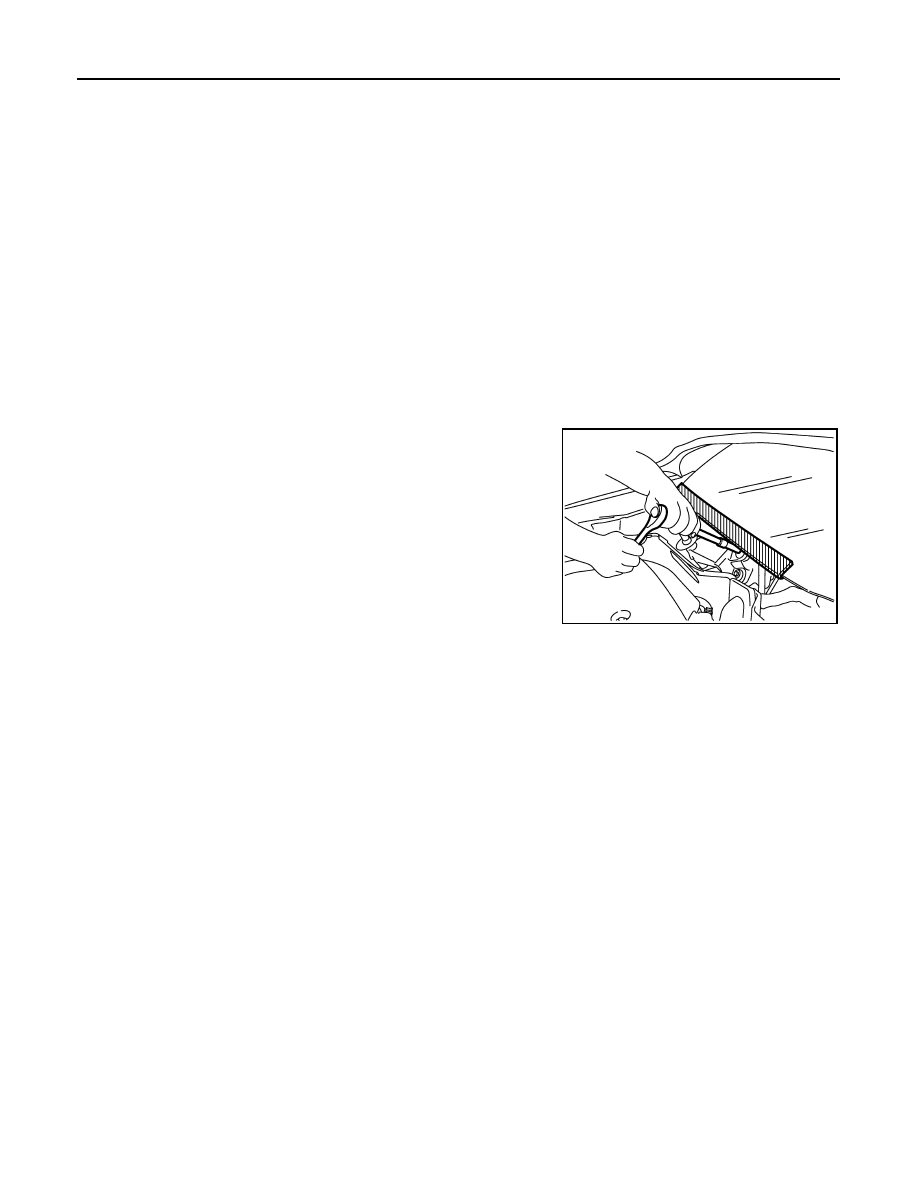

When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc.

PIIB3706J

PREPARATION

RF-93

< PREPARATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000005516862

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tool

INFOID:0000000005516863

Tool number

(Kent-Moore No.)

Tool name

Description

(J39570)
Chassis ear

Locates the noise

(J43980)
NISSAN Squeak and Rattle
Kit

Repairs the cause of noise

SIIA0993E

SIIA0994E

Tool name

Description

Engine ear

Locates the noise

Remover tool

Removes the clips, pawls and metal clips

SIIA0995E

JMKIA3050ZZ

RF-94

< REMOVAL AND INSTALLATION >

GLASS LID

REMOVAL AND INSTALLATION

GLASS LID

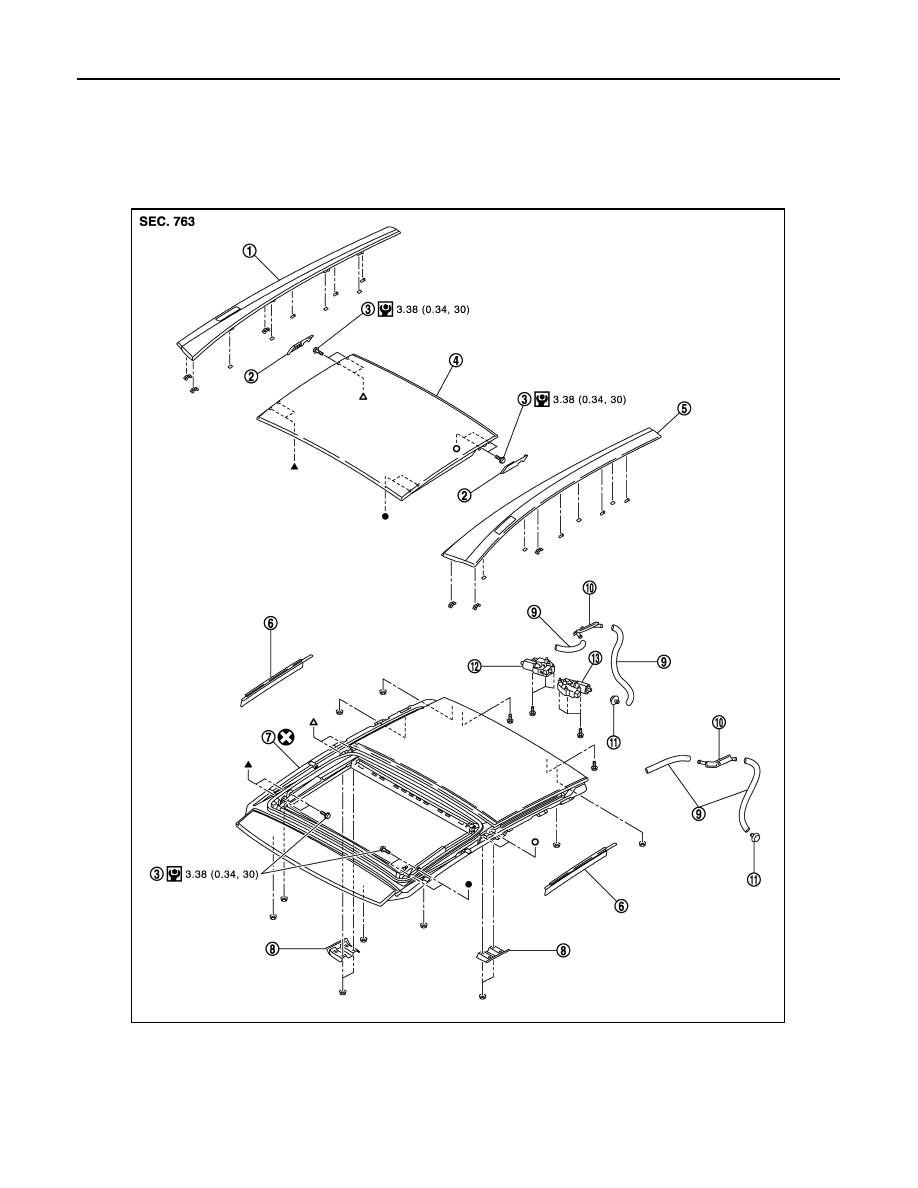

Exploded View

INFOID:0000000005516864

1.

Roof side finisher RH

2.

Rear link cover

3.

TORX bolt

4.

Glass lid

5.

Roof side finisher LH

6.

Inner blind

7.

Sunroof unit assembly

8.

Sunroof bracket

9.

Drain hose

10. Drain connector

11.

Drain plug

12. Sunroof motor assembly

JMKIA1901ZZ

GLASS LID

RF-95

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

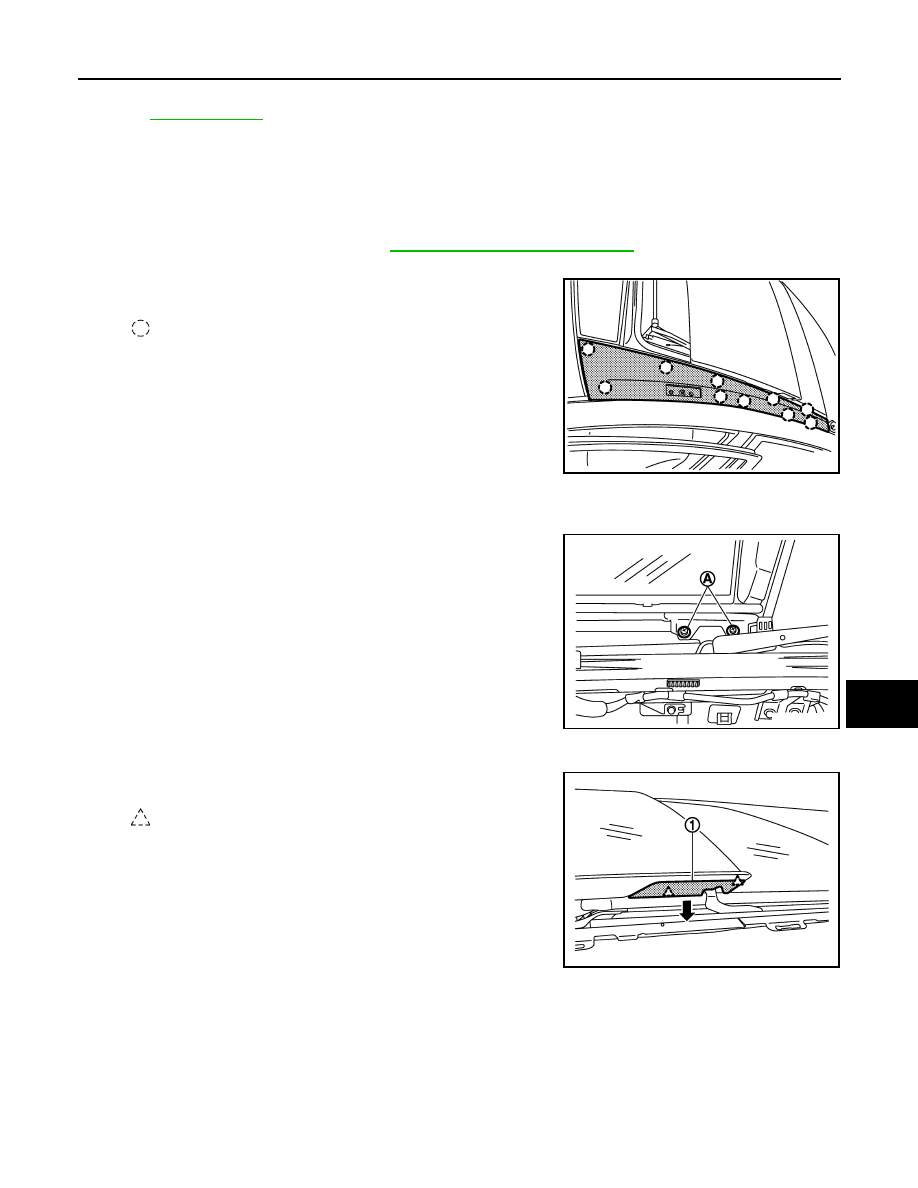

Removal and Installation

INFOID:0000000005516865

REMOVAL

CAUTION:

Always work with a helper.
1.

Remove the roof rail assembly. Refer to

EXT-29, "Removal and Installation"

.

2.

Remove the roof side finisher.
Remove the clips, and then pull out roof side finisher.

3.

Half open the glass lid.

4.

Remove the TORX bolts from inner side.
• Remove the inner blind.
• Remove the TORX bolts (A).

5.

Remove the TORX bolts from outer side.
• Remove the pawls, and then pull down rear link cover (1).

13. Sunshade motor assembly

Refer to

GI-4, "Components"

 for symbols in the figure.

: Clip

JMKIA1904ZZ

JMKIA1905ZZ

: Pawl

JMKIA1906ZZ
