POWER SUPPLY ROUTING CIRCUIT

PG-85

< DTC/CIRCUIT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

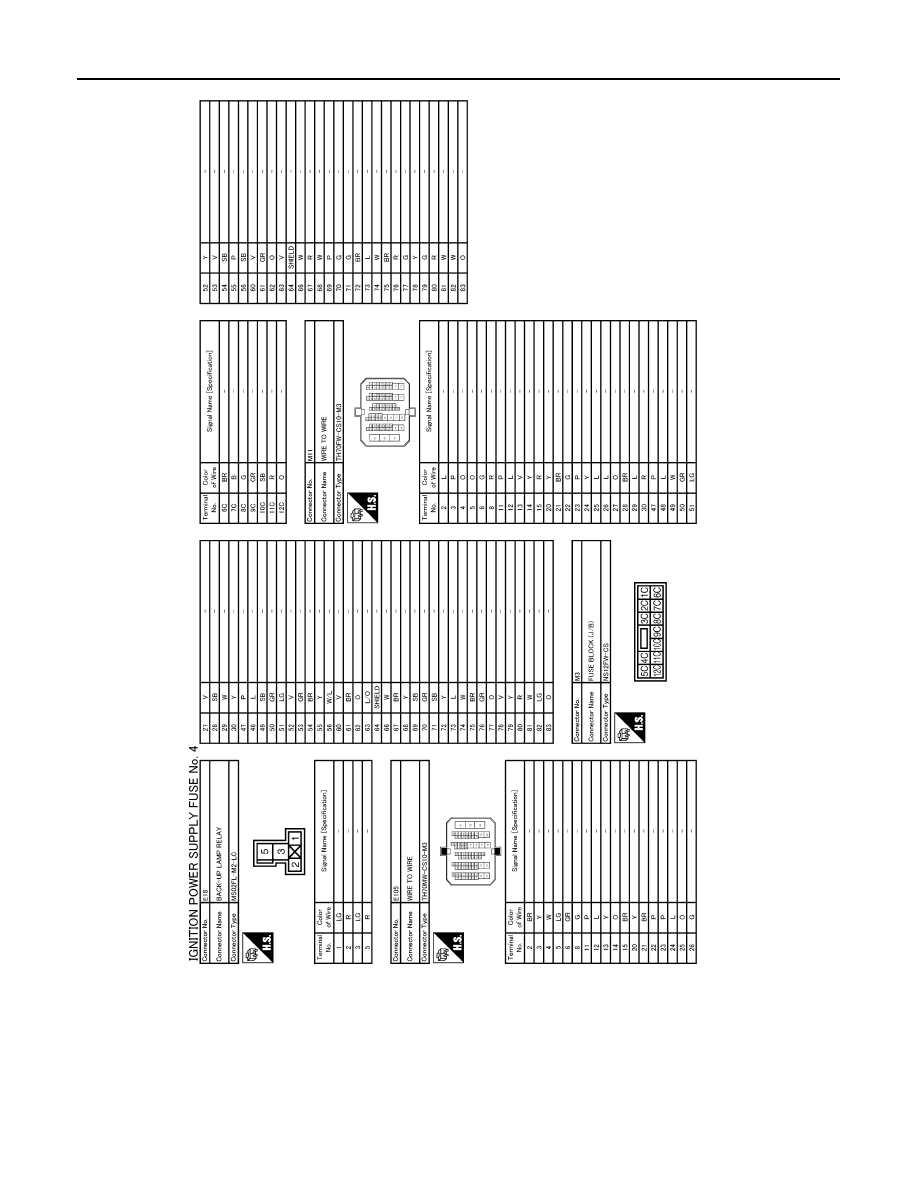

Wiring Diagram - IGNITION POWER SUPPLY FUSE No. 4 -

INFOID:0000000005516899

JCMWM3259GB

PG-86

< DTC/CIRCUIT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

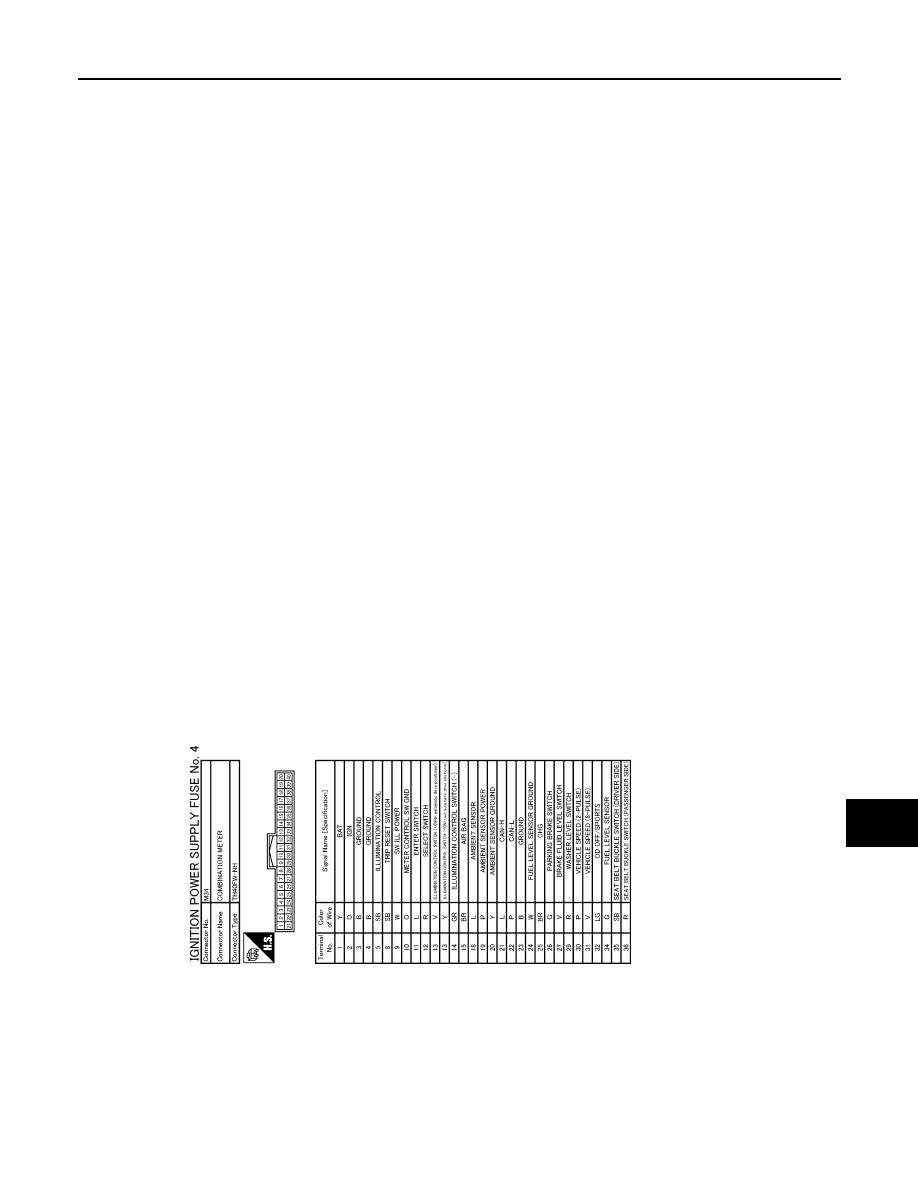

POWER SUPPLY ROUTING CIRCUIT

JCMWM4974GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-87

< DTC/CIRCUIT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JCMWM4975GB

PG-88

< DTC/CIRCUIT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

POWER SUPPLY ROUTING CIRCUIT

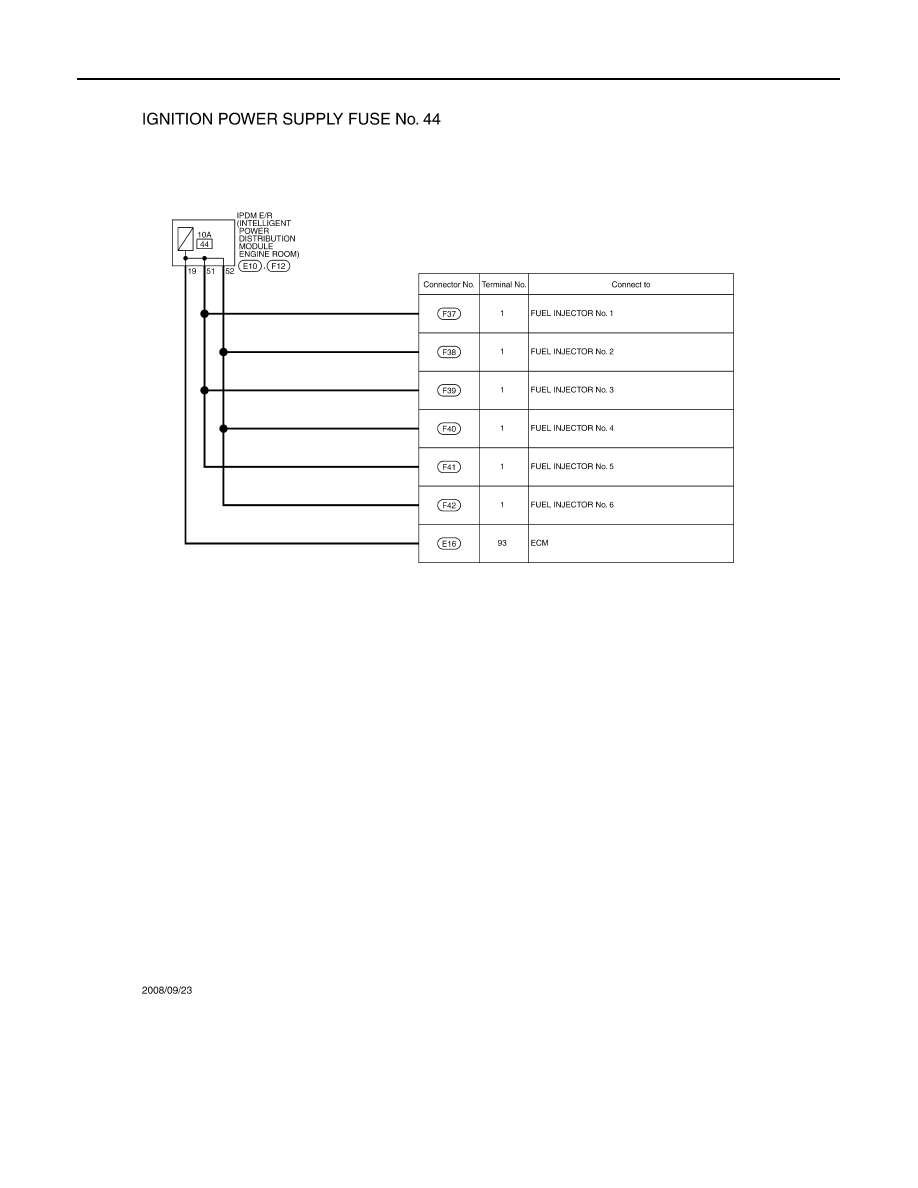

Wiring Diagram - IGNITION POWER SUPPLY FUSE No. 44 -

INFOID:0000000005516900

JCMWM3261GB
