PCS-26

< ECU DIAGNOSIS INFORMATION >

[IPDM E/R]

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

*1

: AWD models only

*2

: Only for models with steering lock unit

89

(L)

Ground

Headlamp HI (RH)

Output

Ignition
switch ON

Lighting switch OFF

0 V

• Lighting switch HI
• Lighting switch PASS

Battery voltage

90

(G)

Ground

Headlamp HI (LH)

Output

Ignition
switch ON

Lighting switch OFF

0 V

• Lighting switch HI
• Lighting switch PASS

Battery voltage

91

(R)

Ground

Parking lamp (RH)

Output

Ignition
switch ON

Lighting switch OFF

0 V

Lighting switch 1ST

Battery voltage

92

(LG)

Ground

Parking lamp (LH)

Output

Ignition
switch ON

Lighting switch OFF

0 V

Lighting switch 1ST

Battery voltage

99

(BR)

Ground

Ambient sensor ground

Input

Ignition switch ON

0 V

100

(SB)

Ground

Ambient sensor

Output

Ignition switch ON
NOTE:
Changes depending to ambient tem-
perature

101

(L)

Ground

Refrigerant pressure sen-
sor ground

Input

Engine
running

• Warm-up condition
• Idle speed

0 V

102

(B)

Ground

Refrigerant pressure sen-
sor

Input

Engine
running

• Warm-up condition
• Both A/C switch and

blower fan motor switch
ON
(Compressor operates)

1.0 - 4.0 V

103

(P)

Ground

Refrigerant pressure sen-
sor power supply

Output

Ignition switch OFF

0 V

Ignition switch ON

5.0 V

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

−

JSNIA0014GB

PCS

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

PCS-27

< ECU DIAGNOSIS INFORMATION >

[IPDM E/R]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

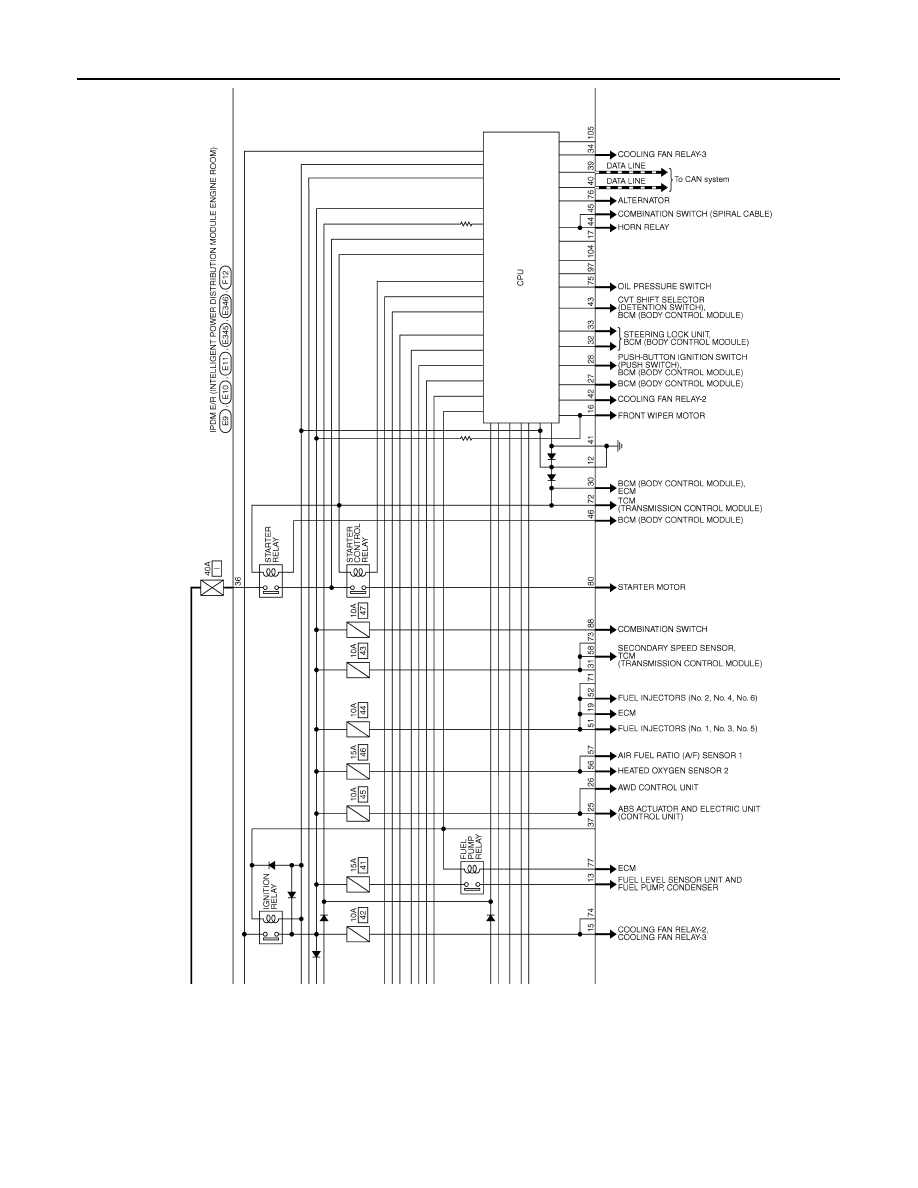

Wiring Diagram - IPDM E/R -

INFOID:0000000005516953

JCMWM4888GB

PCS-28

< ECU DIAGNOSIS INFORMATION >

[IPDM E/R]

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

JCMWM4889GB

PCS

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

PCS-29

< ECU DIAGNOSIS INFORMATION >

[IPDM E/R]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JCMWM4890GB
