PCS

RELAY CONTROL SYSTEM

PCS-3

< SYSTEM DESCRIPTION >

[IPDM E/R]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

SYSTEM DESCRIPTION

RELAY CONTROL SYSTEM

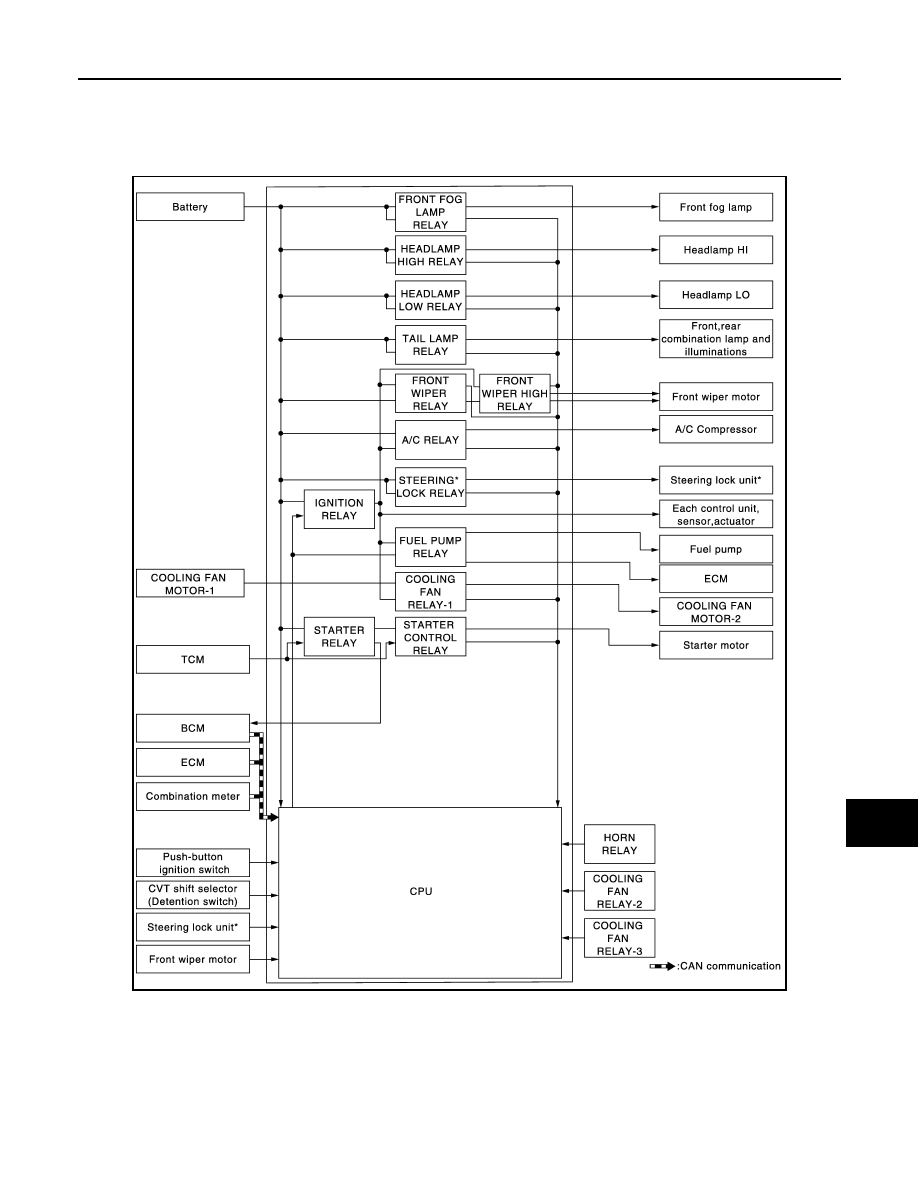

System Diagram

INFOID:0000000005516930

*: Only for models with steering lock unit.

System Description

INFOID:0000000005516931

IPDM E/R activates the internal control circuit to perform the relay ON-OFF control according to the input sig-
nals from various sensors and the request signals received from control units via CAN communication.

CAUTION:

IPDM E/R integrated relays cannot be removed.

JMMIA0286GB

PCS-4

< SYSTEM DESCRIPTION >

[IPDM E/R]

RELAY CONTROL SYSTEM

*1

: BCM controls the starter relay.

*2

: Only for models with steering lock unit.

Control relay

Input/output

Transmit unit

Control part

Reference page

• Headlamp low relay
• Headlamp high relay

• Low beam request signal
• High beam request signal

BCM (CAN)

• Headlamp low
• Headlamp high

•

EXL-8

(Xenon headlamp)

•

EXL-197

(Halogen headlamp)

Front fog lamp relay

Front fog light request signal

BCM (CAN)

Front fog lamp

•

EXL-15

(Xenon headlamp)

•

EXL-203

(Halogen headlamp)

Tail lamp relay

Position light request signal

BCM (CAN)

• Parking  lamp
• Side marker lamp
• License plate lamp
• Tail lamp

•

EXL-19

(Xenon headlamp)

•

EXL-207

(Halogen headlamp)

Illuminations

INL-11

• Front wiper relay
• Front wiper high relay

Front wiper request signal

BCM (CAN)

Front wiper

WW-5

Front wiper stop position sig-
nal

Front wiper motor

Horn relay

• Theft  warning  horn request

signal

• Horn reminder signal

BCM (CAN)

• Horn (low)
• Horn (high)

SEC-20

• Starter relay

*1

• Starter control relay

Starter control relay signal

BCM (CAN)

Starter motor

•

SEC-107

•

SEC-105

Steering lock unit condition

signal

*2

Steering lock unit

*2

Starter relay control signal

TCM

Steering lock relay

*2

Steering lock relay signal

BCM (CAN)

Steering lock unit

SEC-73

Steering lock unit condition
signal

Steering lock unit

CVT shift selector (Detention
switch) signal

CVT shift selector (Deten-
tion switch)

A/C relay

A/C compressor request sig-
nal

ECM (CAN)

A/C compressor
(magnet clutch)

•

HAC-11

(Without 7 inch dis-
play)

•

HAC-133

(With 7 inch display)

• Cooling fan relay-1
• Cooling fan relay-2
• Cooling fan relay-3

Cooling fan speed request sig-
nal

ECM (CAN)

• Cooling fan motor-

1

• Cooling fan motor-

2

EC-60

Ignition relay

Ignition switch ON signal

BCM (CAN)

Ignition relay

PCS-16

Vehicle speed signal

Combination meter (CAN)

Push-button ignition switch
signal

Push-button ignition
switch

PCS

RELAY CONTROL SYSTEM

PCS-5

< SYSTEM DESCRIPTION >

[IPDM E/R]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

Component Parts Location

INFOID:0000000005516932

1.

IPDM E/R

A.

Engine room (LH)

JPMIA0870ZZ
