Nissan Murano Z51. Manual - part 73

AV

HANDS-FREE PHONE SYSTEM

AV-71

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

HANDS-FREE PHONE SYSTEM

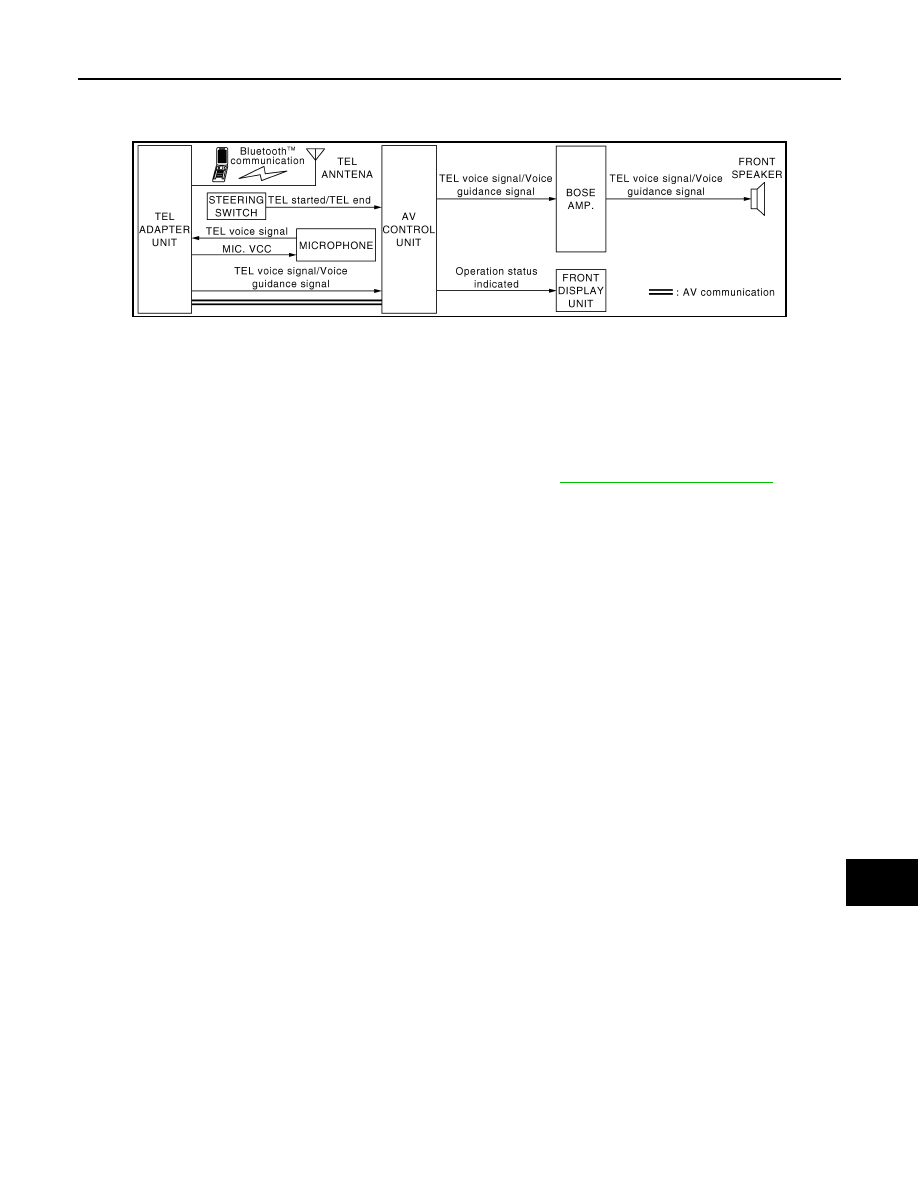

System Diagram

INFOID:0000000005528473

System Description

INFOID:0000000005528474

• TEL adapter unit is controlled with AV communication from AV control unit.
• The connection between portable telephone and TEL adapter unit is performed with Bluetooth

™

 communi-

cation.

• The voice guidance signal is input from the TEL adapter unit to the AV control unit and output via BOSE

amp. to the front door speaker when operating the cellular phone.

• TEL adapter unit has the on board self-diagnosis function. Refer to

AV-91, "Diagnosis Description"

.

WHEN RECEIVING A CALL

TEL voice signal received with the portable telephone is input from TEL antenna via TEL adapter unit to AV
control unit with Bluetooth

™

 communication and output via BOSE amp. to the front door speaker. The opera-

tion is performed with the steering switch or voice recognition function (TEL operation only).

WHEN A CALL IS TRANSMITTED

Speech sounds (TEL voice signal) are input from the microphone to the TEL adapter unit. It is input from the
TEL antenna via Bluetooth

™

 communication to the portable telephone. It is transmitted to the phone on the

other side. The operation is performed with the steering switch or voice recognition function (TEL operation
only).

JSNIA1076GB

AV-72

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITHOUT NAVIGATION]

HANDS-FREE PHONE SYSTEM

Component Parts Location

INFOID:0000000005528475

1.

Center speaker

2.

Front squawker LH

3.

Front door speaker LH

4.

Rear door speaker LH

5.

Rear speaker LH

6.

Satellite radio tuner

7.

TEL adapter unit

8.

BOSE amp.

9.

Woofer

10. Rear view camera

11. Camera control unit

12. Rear speaker RH

13.

Antenna base (antenna amp. and sat-
ellite antenna)

14. Rear door speaker RH

15. Rear display unit

16. Front door speaker RH

17. Front squawker RH

18. Microphone

19. Steering angle sensor

20. Steering switch

21. Auxiliary input jacks

22. Video distributor

23. iPod connector

24. DVD player

25. iPod adapter

26. Preset switch

27. AV control unit

28. Multifunction switch

29. Front display unit

A.

Luggage floor finisher is removed con-
dition

B.

Luggage floor finisher is removed con-
dition

C.

Luggage side finisher lower RH is re-
moved condition

D.

Spiral cable part

E.

Console rear finisher is removed con-
dition

F.

Console finisher is removed condition

JSNIA1097ZZ

AV

HANDS-FREE PHONE SYSTEM

AV-73

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Component Description

INFOID:0000000005528476

Part name

Description

AV CONTROL UNIT

• Inputs TEL voice signal or voice guidance signal from TEL adapter unit and

outputs it to BOSE amp. during reception.

• Connects with TEL adapter unit and AV communication and controls hands

free phone system.

FRONT DISPLAY UNIT

• Display image is controlled by the serial communication from AV control unit.
• Inputs RGB image signal (RGB, RGB area and RGB synchronizing) from AV

control unit and displays the status of hands free phone system.

BOSE AMP.

Inputs TEL voice signal or voice guidance signal from AV control unit and outputs
it to front speaker.

FRONT DOOR SPEAKER

Outputs the TEL voice signal or voice guidance signal from BOSE amp.

FRONT SQUAWKER

PRESET SWITCH

• Adjust the sound when using hands-free phone system.
• The operation signal is transmitted to the AV control unit via AV communica-

tion.

STEERING SWITCH

• The hands-free phone system can be operated.
• Steering switch signal (operation signal) is output to AV control unit.

MICROPHONE

• Uses when operating the hands-free phone.
• Outputs Mic. signal (TEL voice signal) to the TEL adapter unit.
• The power (Mic. power supply) is supplied from the TEL adapter unit.

TEL ADAPTER UNIT

• Receives the steering switch signal (operation signal) from the steering switch.
• Inputs the TEL voice signal from TEL antenna during reception and outputs it

to the AV control unit.

• Inputs the TEL voice signal from microphone during speech recognition and

outputs it to the TEL antenna.

• Controlled by AV communication transmitted from AV control unit.

TEL ANTENNA

Connects with the portable telephone via Bluetooth

™

 and communicates the TEL

voice signal.

AV-74

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITHOUT NAVIGATION]

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

Diagnosis Description

INFOID:0000000005528477

MULTIFUNCTION SWITCH AND PRESET SWITCH SELF-DIAGNOSIS FUNCTION

The ON/OFF operation (continuity) of each switch in the multifunction switch and preset switch can be
checked.

Self-Diagnosis Mode

• Press the “BACK” switch and the “

” switch of the 8-direction

switches within 10 seconds after turning the ignition switch from
OFF to ACC and hold them for 3 seconds or more. Then the
buzzer sounds, all indicators of the preset switch illuminate, and
the self-diagnosis mode starts.

• The continuity of each switch at the ON position can be checked

by pressing the switch. The buzzer sounds if the switch is normal.
NOTE:
The disk eject switch cannot be checked.

Finishing Self-diagnosis Mode

Self-diagnosis mode is canceled when the ignition switch is turned OFF.

MULTI AV SYSTEM ON BOARD DIAGNOSIS FUNCTION

• The AV control unit diagnosis function starts up with multifunction switch operation and the AV control unit

performs a diagnosis for each unit in the system during the on board diagnosis.

• Perform a CONSULT-III diagnosis if the on board diagnosis does not start, e.g., if the screen does not dis-

play anything, the multifunction switch does not function, etc.

ON BOARD DIAGNOSIS

Description

• The trouble diagnosis function has a self-diagnosis mode for conducting trouble diagnosis automatically and

a confirmation/adjustment mode for operating manually.

• Self-diagnosis mode performs the AV control unit diagnosis and the connection diagnosis between each of

the units that make up the system, and it indicates the results to the display.

• The confirmation/adjustment mode allows the technician to check, modify or adjust the vehicle signals and

set values, as well as to monitor the system error records and system communication status. The checking,
modifying or adjusting generally requires human intervention and judgment (the system cannot make judg-
ment automatically).

On Board Diagnosis Item

JSNIA1072GB

Mode

Description

Self-Diagnosis

• AV control unit diagnosis
• Perform the connection diagnosis between each of the units.
