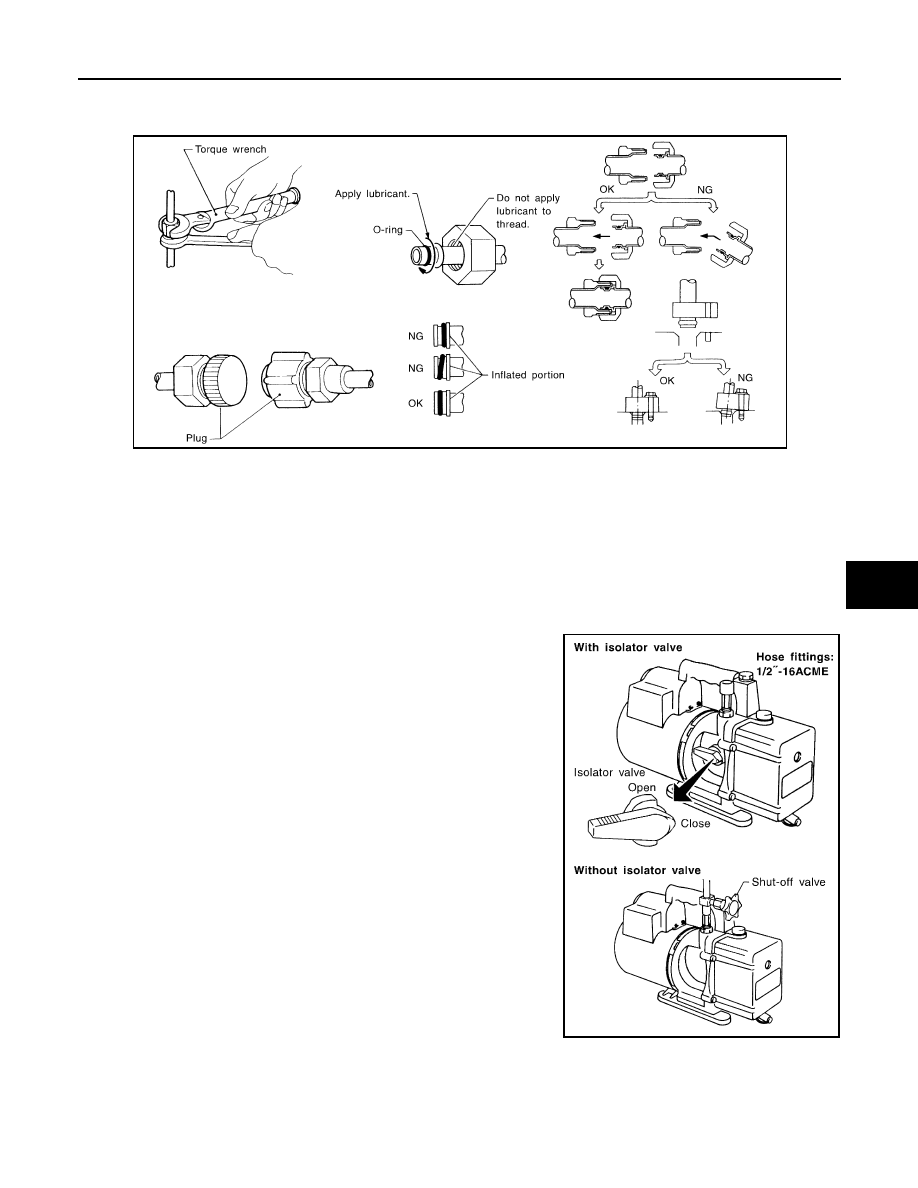

HAC-250 < PRECAUTION > [WITH 7 INCH DISPLAY] PRECAUTIONS The new and former refrigerant connections use different O-ring configurations. Never confuse O- O-Ring Part Numbers and Specifications WARNING: Check that all refrigerant is discharged into the recycling equipment and the pressure in the system is CAUTION: Observe the following when replacing or cleaning refrigerant cycle components. to do so will cause lubricant to enter the low-pressure chamber. • Always use a torque wrench and a back-up wrench when connecting tubes. Never remove the seal caps of pipes and other components until just before required for connection. • Allow components stored in cool areas to warm to working area temperature before removing seal caps. This prevents condensation from forming inside A/C components. • Thoroughly remove moisture from the refrigeration system before charging the refrigerant. apply lubricant to threaded portion. • O-ring must be closely attached to the groove portion of tube. installed to tube correctly. Connection type Piping connection point Part number QTY O-ring size New Low-pressure flexible hose to low-pressure pipe 92474 N8210 1 φ 19 High-pressure pipe to condenser pipe assembly (Outlet) 92471 N8210 1 φ 8 Condenser pipe assembly (Inlet) to high-pressure flexible 92472 N8210 1 φ 12 Condenser assembly to condenser pipe as- Inlet 92472 N8210 1 φ 12 Outlet 92471 N8210 1 φ 8 Low-pressure pipe to expansion valve 92473 N8210 1 φ 16 High-pressure pipe to expansion valve 92471 N8210 1 φ 8 Compressor to low-pressure flexible hose 92474 N8210 1 φ 19 Compressor to high-pressure flexible hose 92472 N8210 1 φ 12 Liquid tank to condenser assembly Inlet 92471 N8210 1 φ 8 Outlet 1 Former Refrigerant pressure sensor to liquid tank J2476 89956 1 φ 10 Expansion valve to evaporator pipe assembly Inlet 92475 71L00 1 φ 12 Outlet 92475 72L00 1 φ 16 Evaporator to evaporator pipe assembly Inlet 92475 71L00 1 φ 12 Outlet 92475 72L00 1 φ 16 Name : NISSAN A/C System Oil Type S |
