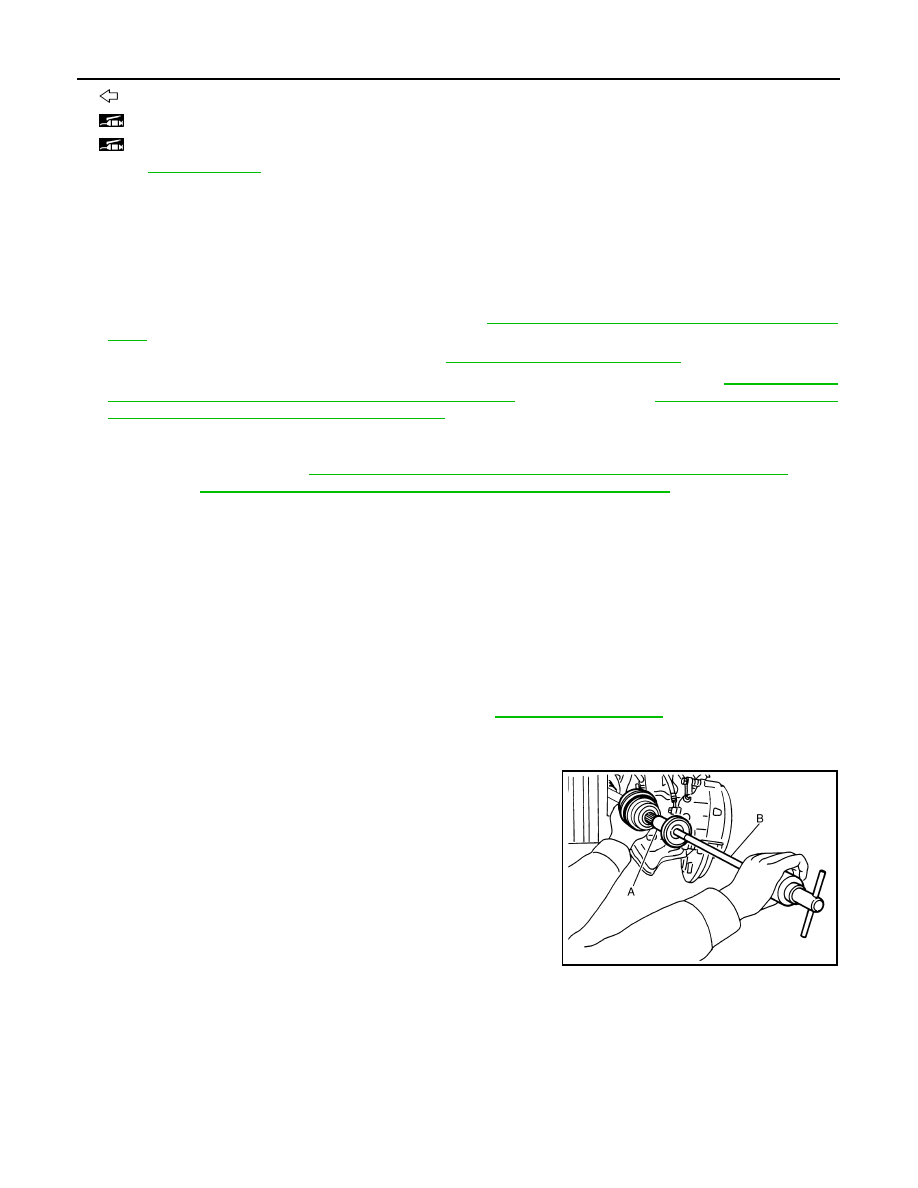

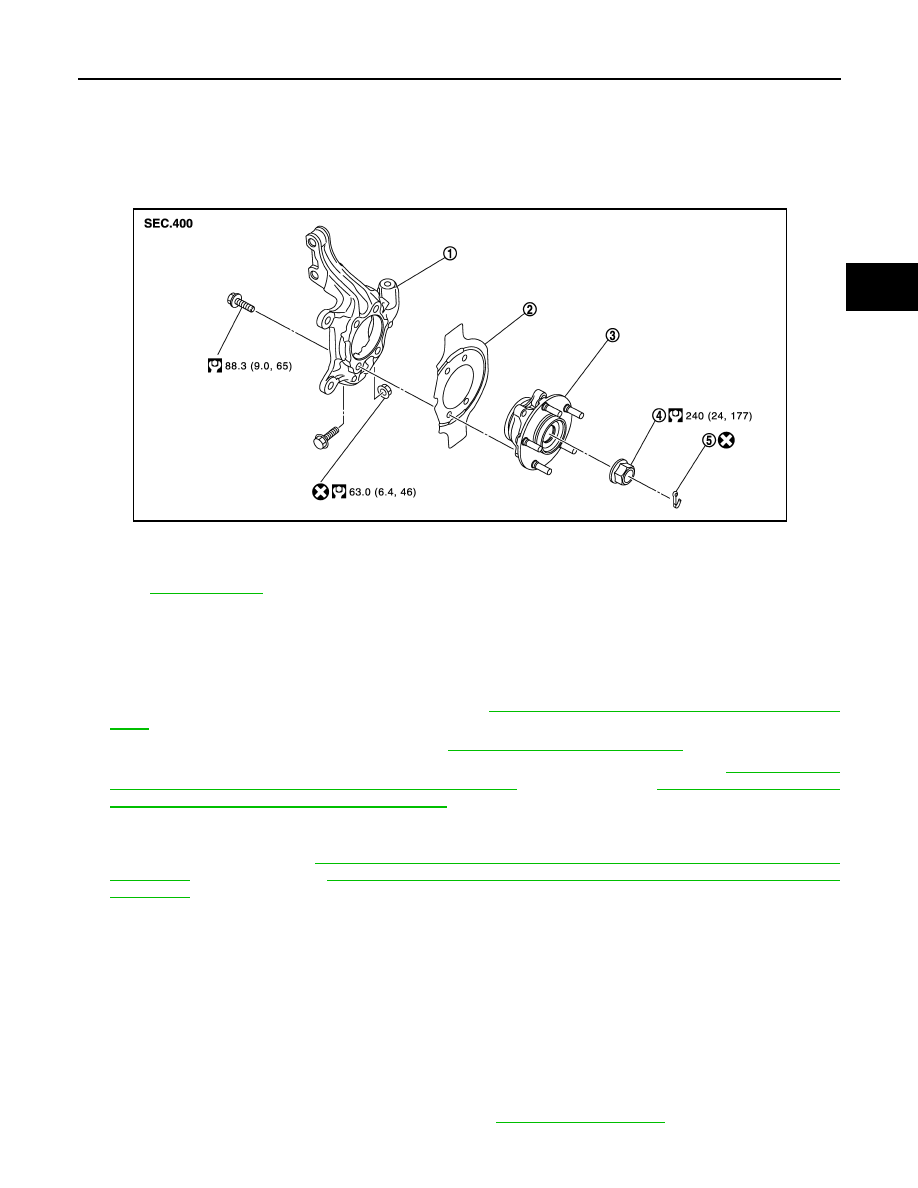

FRONT WHEEL HUB AND KNUCKLE FAX-11 < REMOVAL AND INSTALLATION > [2WD] C E F G H I J K L M A B FAX N O P REMOVAL AND INSTALLATION FRONT WHEEL HUB AND KNUCKLE Exploded View INFOID:0000000009717894 Removal and Installation INFOID:0000000009717895 REMOVAL 1. Remove tires with power tool. 2. Remove wheel sensor and sensor harness. Refer to BRC-123, "FRONT WHEEL SENSOR : Exploded . 3. Remove lock plate from strut assembly. Refer to BR-22, "FRONT : Exploded View" . 4. Remove caliper assembly. Hang caliper assembly not to interfere with work. Refer to CALIPER ASSEMBLY (1 PISTON TYPE) : Exploded View" (1 PISTON TYPE), ASSEMBLY (2 PISTON TYPE) : Exploded View" (2 PISTON TYPE). CAUTION: Never depress brake pedal while brake caliper is removed. 5. Remove disc rotor. Refer to BR-39, "BRAKE CALIPER ASSEMBLY (1 PISTON TYPE) : Removal and (1 PISTON TYPE), BR-43, "BRAKE CALIPER ASSEMBLY (2 PISTON TYPE) : Removal and (2 PISTON TYPE). 6. Remove cotter pin, and then loosen wheel hub lock nut with power tool. 7. Patch wheel hub lock nut with a piece of wood. Hammer the wood to disengage wheel hub and bearing CAUTION: • Never place drive shaft joint at an extreme angle. Also be careful not to overextend slide joint. parts. NOTE: 8. Remove wheel hub lock nut. 9. Remove strut assembly from steering knuckle. Refer to . 1. Steering knuckle 2. Splash guard 3. Wheel hub and bearing assembly 4. Wheel hub lock nut 5. Cotter pin Refer to JPDIF0274GB |
