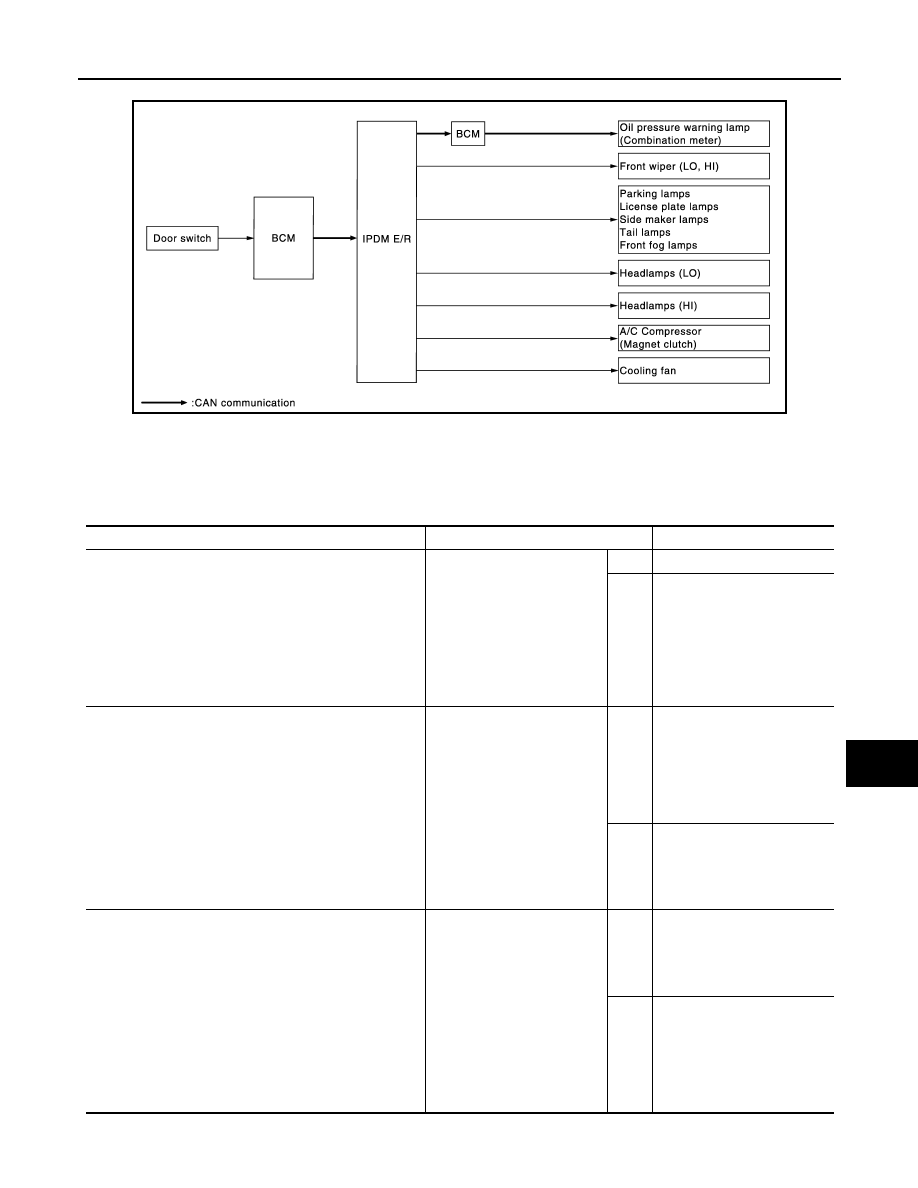

EXL-216 < SYSTEM DESCRIPTION > [HALOGEN TYPE] DIAGNOSIS SYSTEM (IPDM E/R) DIAGNOSIS SYSTEM (IPDM E/R) Diagnosis Description INFOID:0000000010092781 AUTO ACTIVE TEST Description In auto active test mode, the IPDM E/R sends a drive signal to the following systems to check their operation. Operation Procedure 1. Close the hood and lift the wiper arms from the windshield. (Prevent windshield damage due to wiper 2. Turn the ignition switch OFF. 3. Turn the ignition switch ON, and within 20 seconds, press the front door switch (driver side) 10 times. CAUTION: Close passenger door. 4. Turn the ignition switch ON within 10 seconds. After that the horn sounds once and the auto active test 5. The oil pressure warning lamp starts blinking when the auto active test starts. 6. After a series of the following operations is repeated 3 times, auto active test is completed. NOTE: CAUTION: • If auto active test mode cannot be actuated, check door switch system. Refer to AUTOMATIC BACK DOOR : Component Function Check" • Do not start the engine. Inspection in Auto Active Test Mode When auto active test mode is actuated, the following 6 steps are repeated 3 times. Operation Inspection location Operation 1 Oil pressure warning lamp Blinks continuously during operation of auto active test 2 Front wiper LO for 5 seconds → HI for 5 seconds 3 • Parking lamps 10 seconds 4 Headlamps LO ⇔ HI 5 times 5 A/C compressor (magnet clutch) ON ⇔ OFF 5 times 6 Cooling fan LO for 5 seconds → MID for 3 seconds → HI for 2 seconds |
