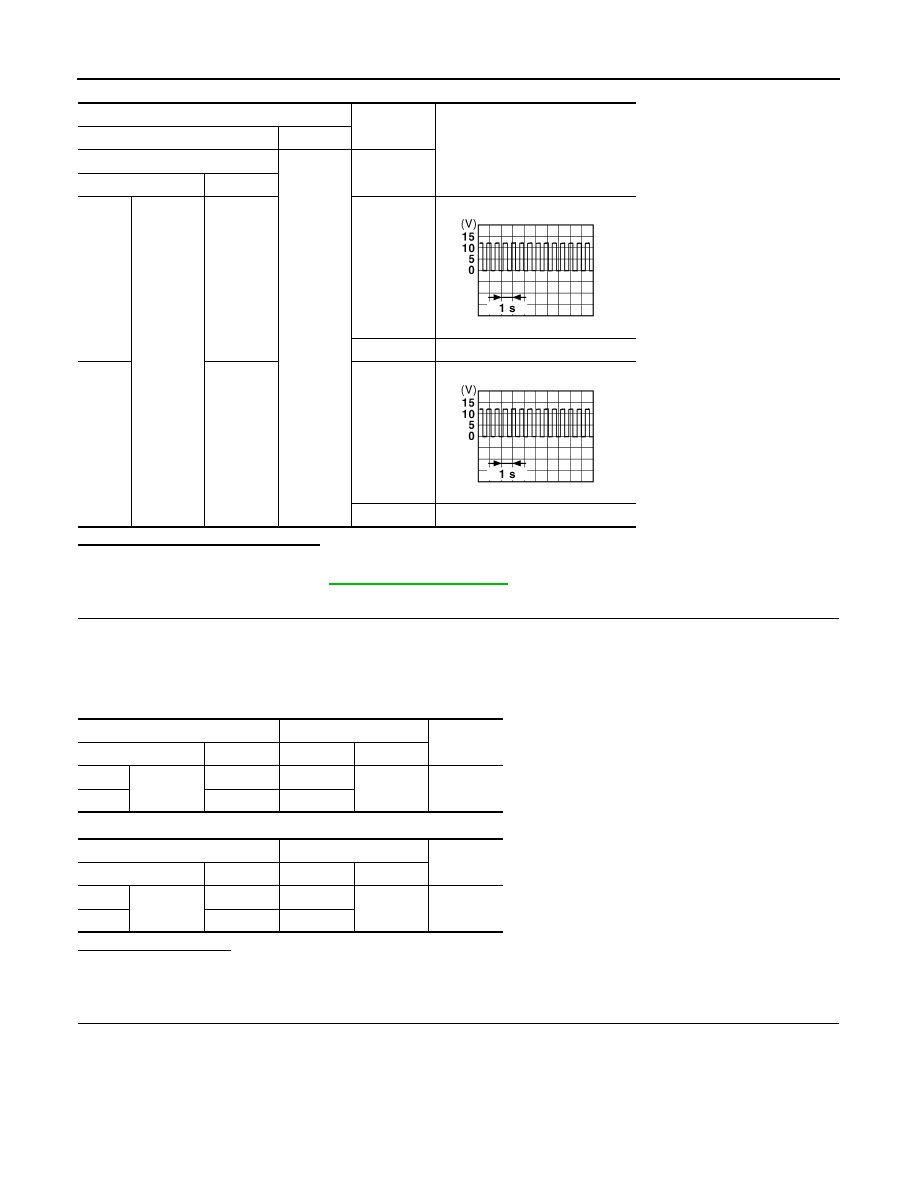

EXL-48 < DTC/CIRCUIT DIAGNOSIS > [XENON TYPE] FRONT SIDE MARKER LAMP CIRCUIT 2. Turn the ignition switch ON. 3. Select “EXTERNAL LAMPS” of IPDM E/R active test item. 4. With operating the test items, check the voltage between the IPDM E/R harness connector and the Is the measurement value normal? YES >> GO TO 5. NO >> Replace IPDM E/R. 5. CHECK FRONT SIDE MARKER LAMP OPEN CIRCUIT 1. Turn the ignition switch OFF. 2. Disconnect IPDM E/R connector. 3. Check continuity between the IPDM E/R harness connector and the front side marker lamp harness con- Does continuity exist? YES >> GO TO 6. NO >> Repair the harnesses or connectors. 6. CHECK FRONT SIDE MARKER LAMP GROUND OPEN CIRCUIT Check continuity between the front side marker lamp harness connector and the ground. Does continuity exist? YES >> Replace the front combination lamp. NO >> Repair the harnesses or connectors. Terminals Test item Voltage (Approx.) (+) ( − ) IPDM E/R Ground EXTERNAL LAMPS Connector Terminal RH E346 91 TAIL Battery Off 0 V LH 92 TAIL Battery Off 0 V IPDM E/R Front side marker lamp Continuity Connector Terminal Connector Terminal RH E346 91 E315 2 Existed LH 92 E314 2 Front side marker lamp Ground Continuity Connector Terminal RH E315 1 Existed LH E314 1 |
