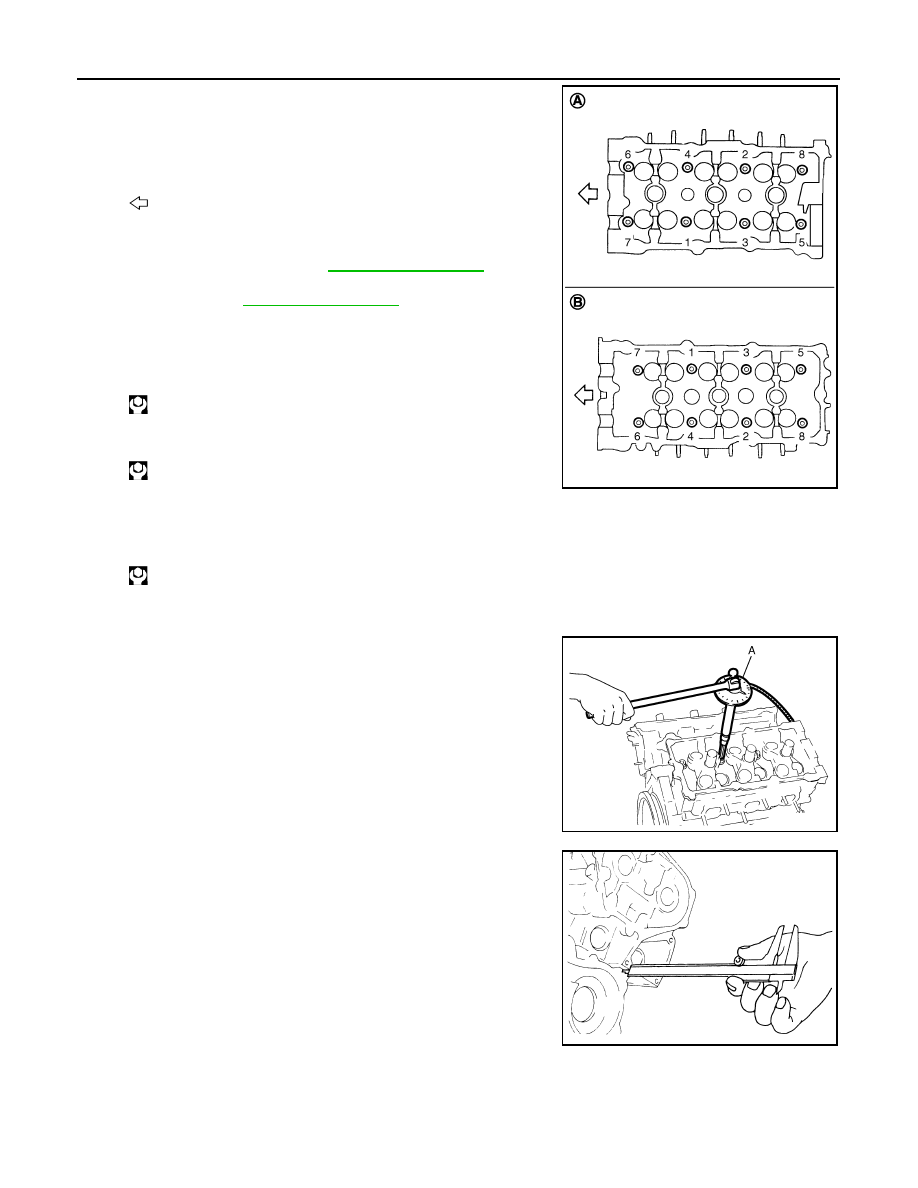

EM-114 < UNIT DISASSEMBLY AND ASSEMBLY > CYLINDER HEAD 3. Install cylinder head follow the steps below to tighten cylinder CAUTION: • If cylinder head bolts reused, check their outer diameters before installation. Refer to . • Before installing cylinder head, inspect cylinder head dis- tortion. Refer to . a. Apply new engine oil to threads and seat surfaces of cylinder b. Tighten all cylinder head bolts. c. Completely loosen all cylinder head bolts. CAUTION: In step “c”, loosen bolts in the reverse order of that indicated in the figure. d. Tighten all cylinder head bolts. e. Turn all cylinder head bolts 103 degrees clockwise (angle tightening). CAUTION: Check the tightening angle by using the angle wrench [SST: tor plate. f. Turn all cylinder head bolts 103 degrees clockwise again (angle 4. After installing cylinder head, measure distance between front • If measured value is out of the standard, reinstall cylinder head. 5. Install in the reverse order of removal after this step. A : Bank 1 B : Bank 2 : Engine front : 98.1 N·m (10 kg-m, 72 ft-lb) : 0 N·m (0 kg-m, 0 ft-lb) : 39.2 N·m (4.0 kg-m, 29 ft-lb) JPBIA0172ZZ JPBIA0175ZZ Standard : 14.1 - 14.9 mm (0.555 - 0.587 in) EMQ0662D |
