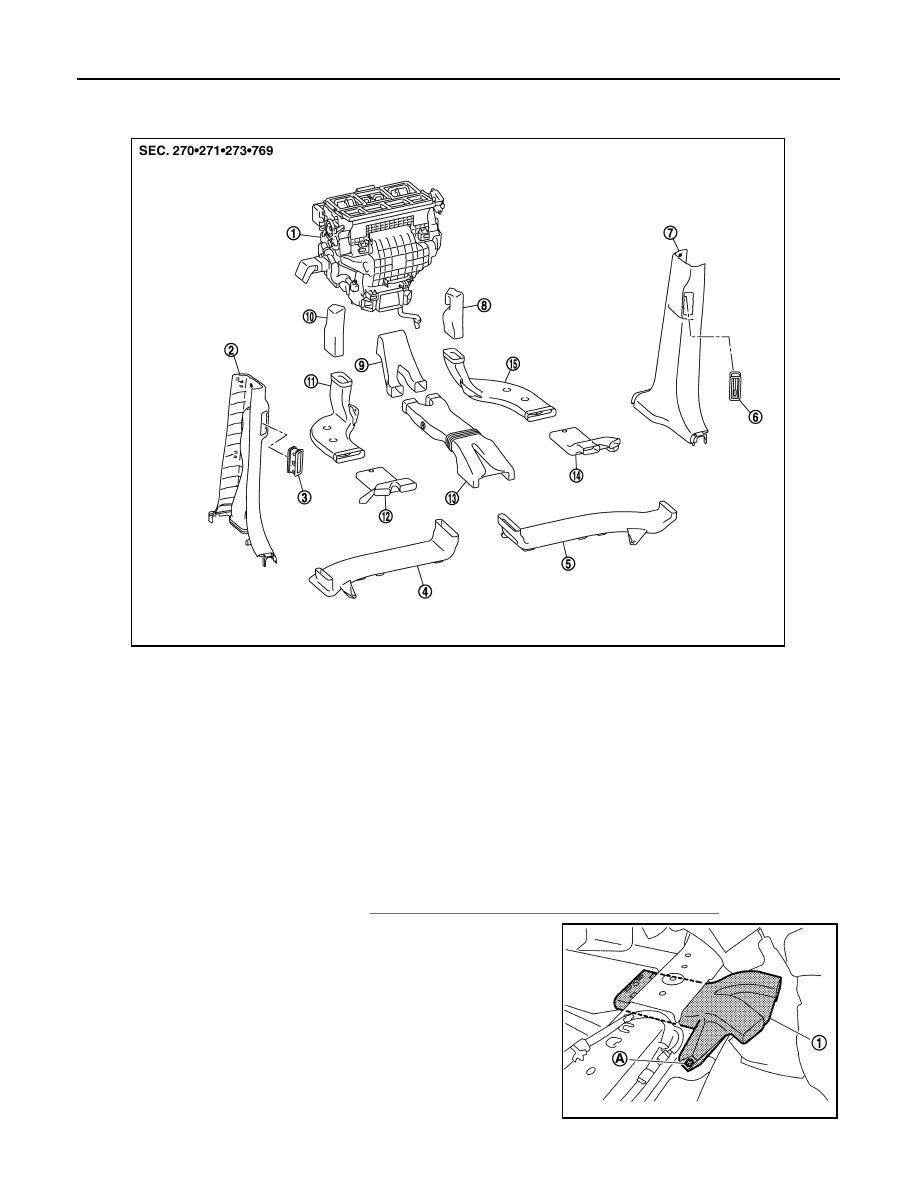

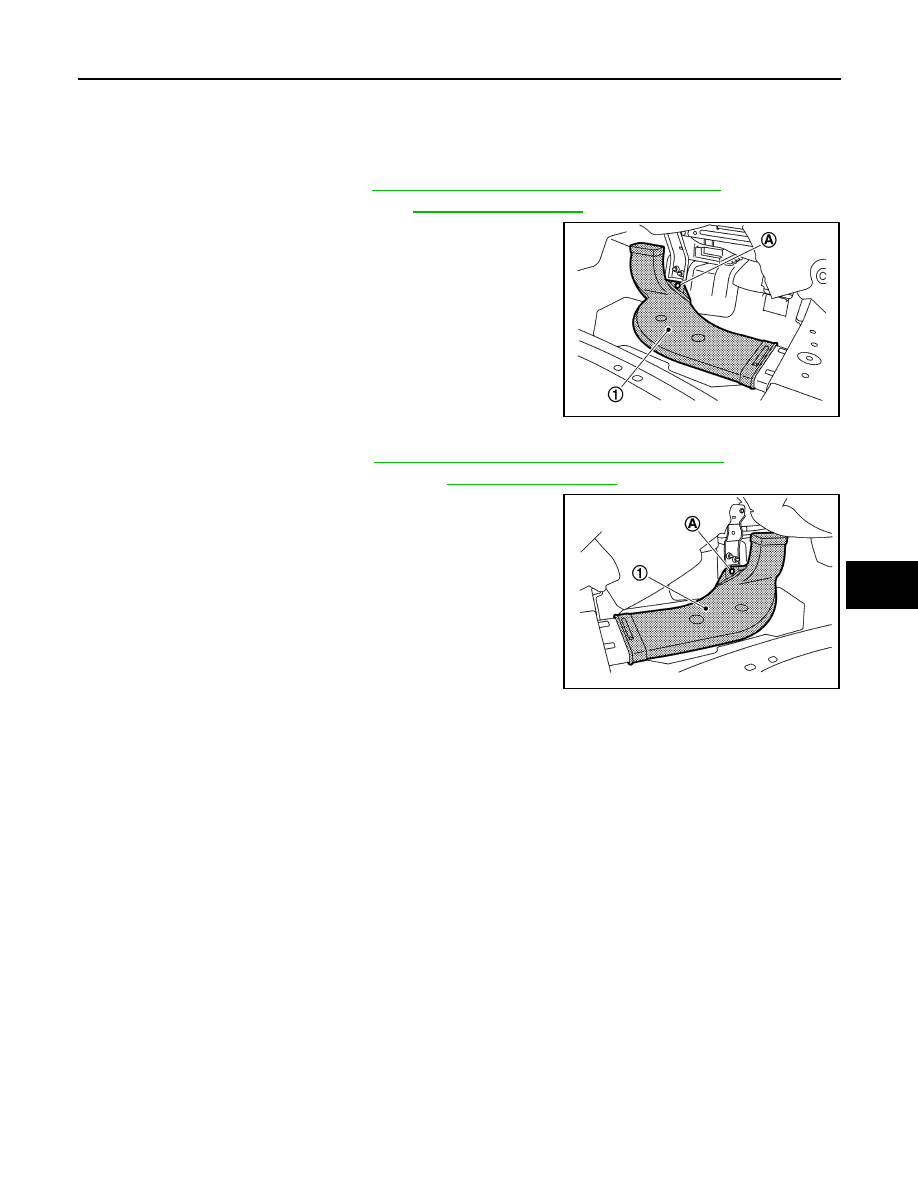

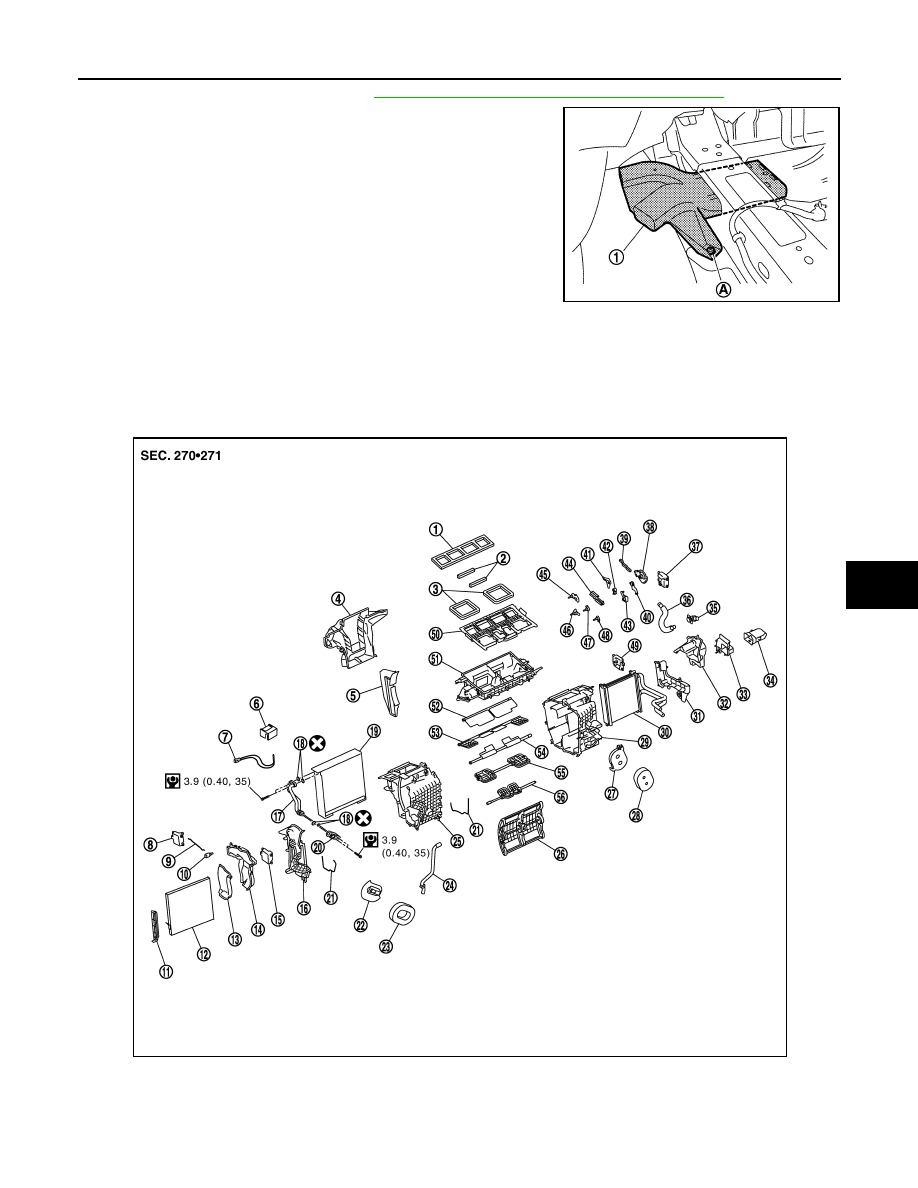

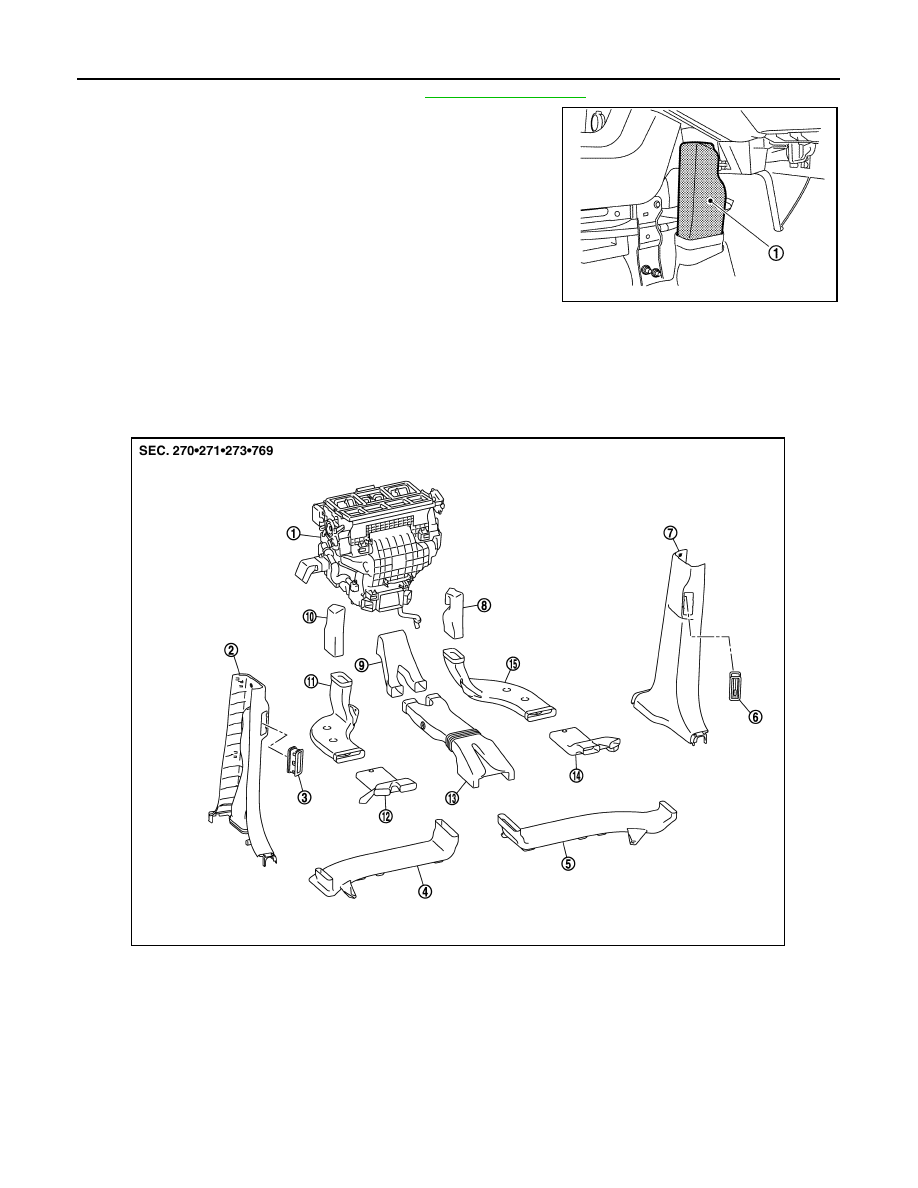

VTL-128 < REMOVAL AND INSTALLATION > [WITH 7 INCH DISPLAY] DUCT AND GRILLE 1. Remove instrument lower cover RH. Refer to 2. Remove rear foot duct 1 RH (1). INSTALLATION Install in the reverse order of removal. REAR FOOT DUCT 2 REAR FOOT DUCT 2 : Exploded View INFOID:0000000009721209 JPIIA0596ZZ 1. Heater & cooling unit assembly 2. Rear ventilator duct 4 3. Rear ventilator grille LH 4. Rear ventilator duct 3 LH 5. Rear ventilator duct 3 RH 6. Rear ventilator grille RH 7. Rear ventilator duct 4 8. Rear foot duct 1 RH 9. Rear ventilator duct 1 10. Rear foot duct 1 LH 11. Rear foot duct 2 LH 12. Rear foot duct 3 LH 13. Rear ventilator duct 2 14. Rear foot duct 3 RH 15. Rear foot duct 2 RH JPIIA0457ZZ |
