4WD CONTROL UNIT

DLN-31

< ECU DIAGNOSIS INFORMATION >

[TRANSFER: TY21C]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

NOTE:
If some DTCs are displayed at the same time, refer to

DLN-30, "DTC Inspection Priority Chart"

.

C1209

MODE SW

DLN-47, "DTC Description"

C1210

ENGINE SIGNAL 1

DLN-50, "DTC Description"

P1804

CONTROL UNIT

DLN-51, "DTC Description"

P1808

VHCL SPEED SEN-ABS

DLN-52, "DTC Description"

P1809

CONTROL UNIT

DLN-53, "DTC Description"

P1811

BATTERY VOLTAGE

DLN-54, "DTC Description"

P181B

INCOMP SELF SHUT

DLN-57, "DTC Description"

P181D

ENGINE SYSTEM

DLN-60, "DTC Description"

P181F

INCOMP CALIBRATION

DLN-61, "DTC Description"

U1000

CAN COMM CIRCUIT

DLN-62, "DTC Description"

U1010

CONTROL UNIT (CAN)

DLN-63, "DTC Description"

DTC

Display Item

Reference

DLN-32

< WIRING DIAGRAM >

[TRANSFER: TY21C]

4WD SYSTEM

WIRING DIAGRAM

4WD SYSTEM

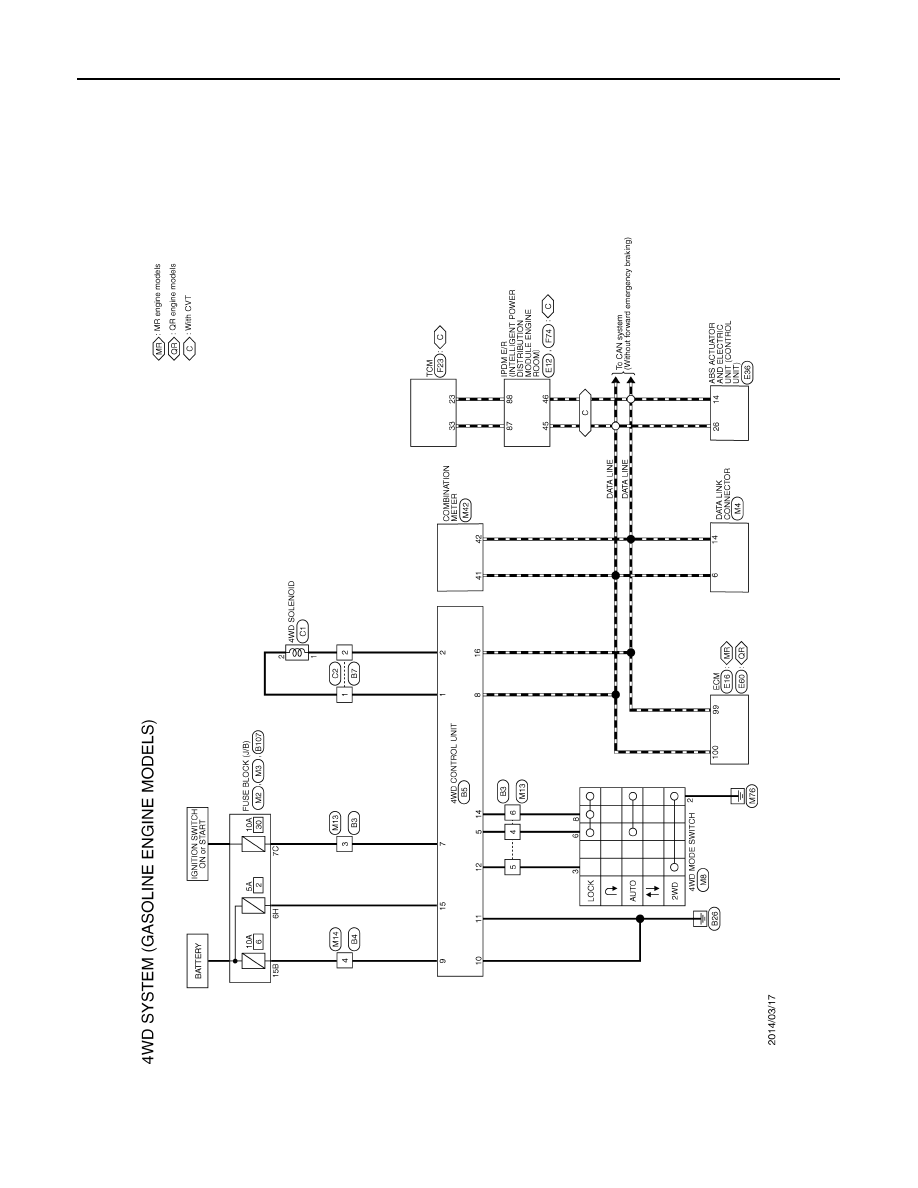

Wiring Diagram

INFOID:0000000010991975

JRDWC2858GB

4WD SYSTEM

DLN-33

< WIRING DIAGRAM >

[TRANSFER: TY21C]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

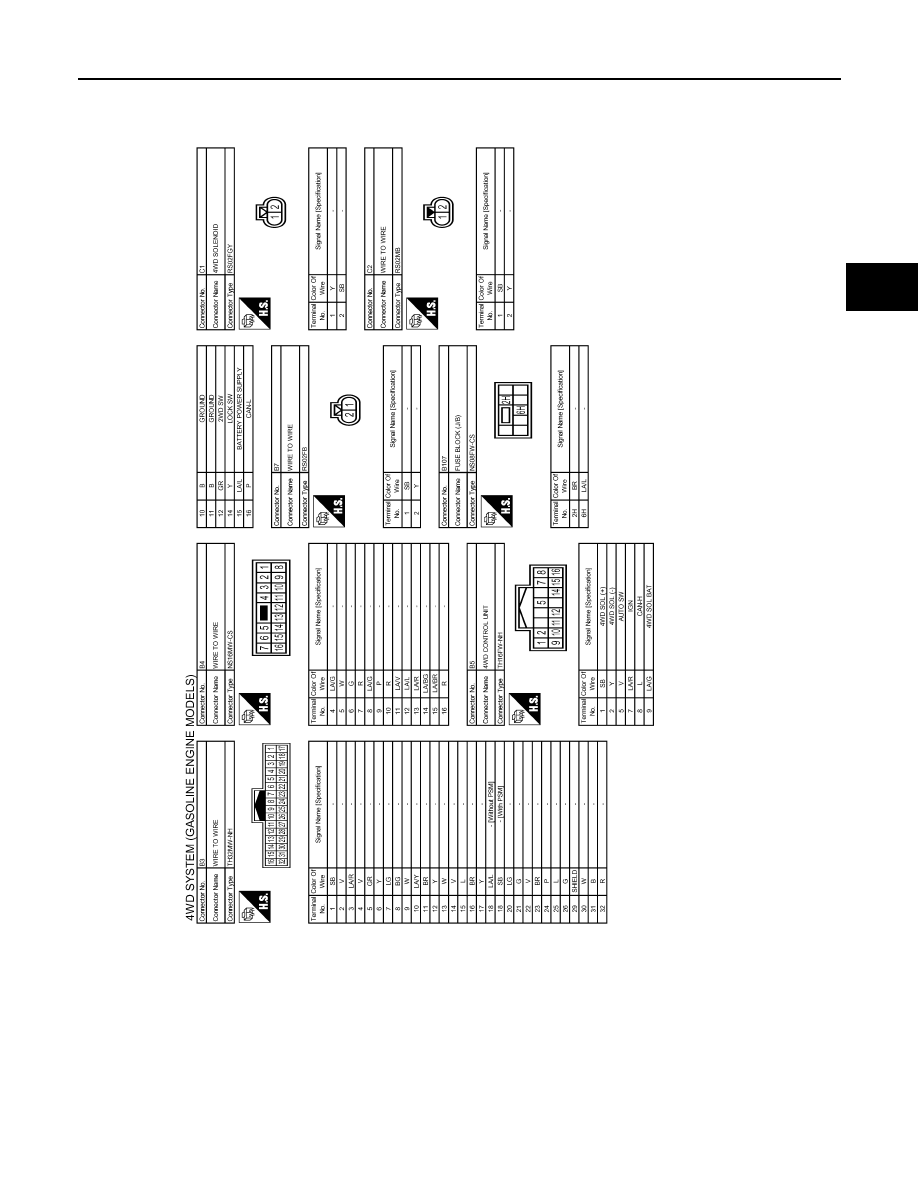

JRDWC2859GB

DLN-34

< WIRING DIAGRAM >

[TRANSFER: TY21C]

4WD SYSTEM

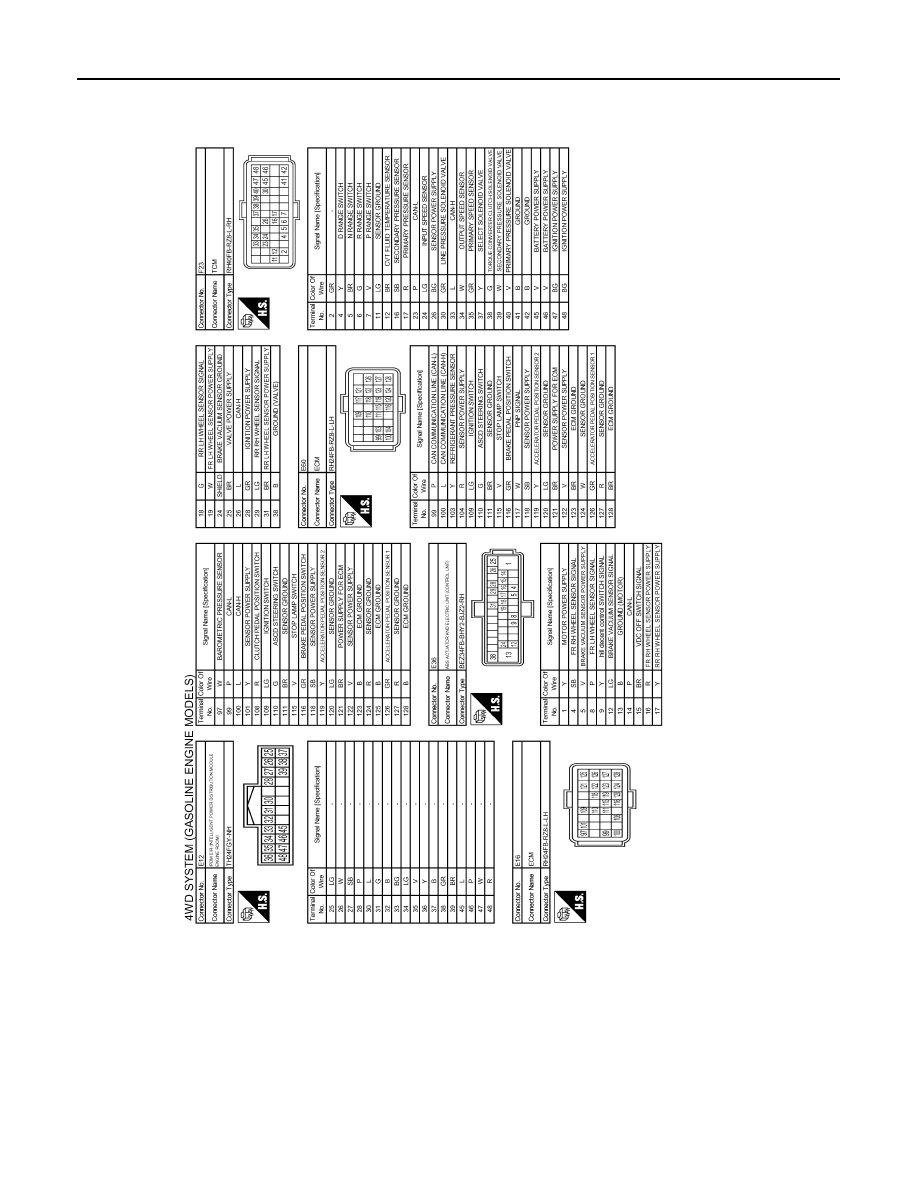

JRDWC2860GB
