REMOVAL

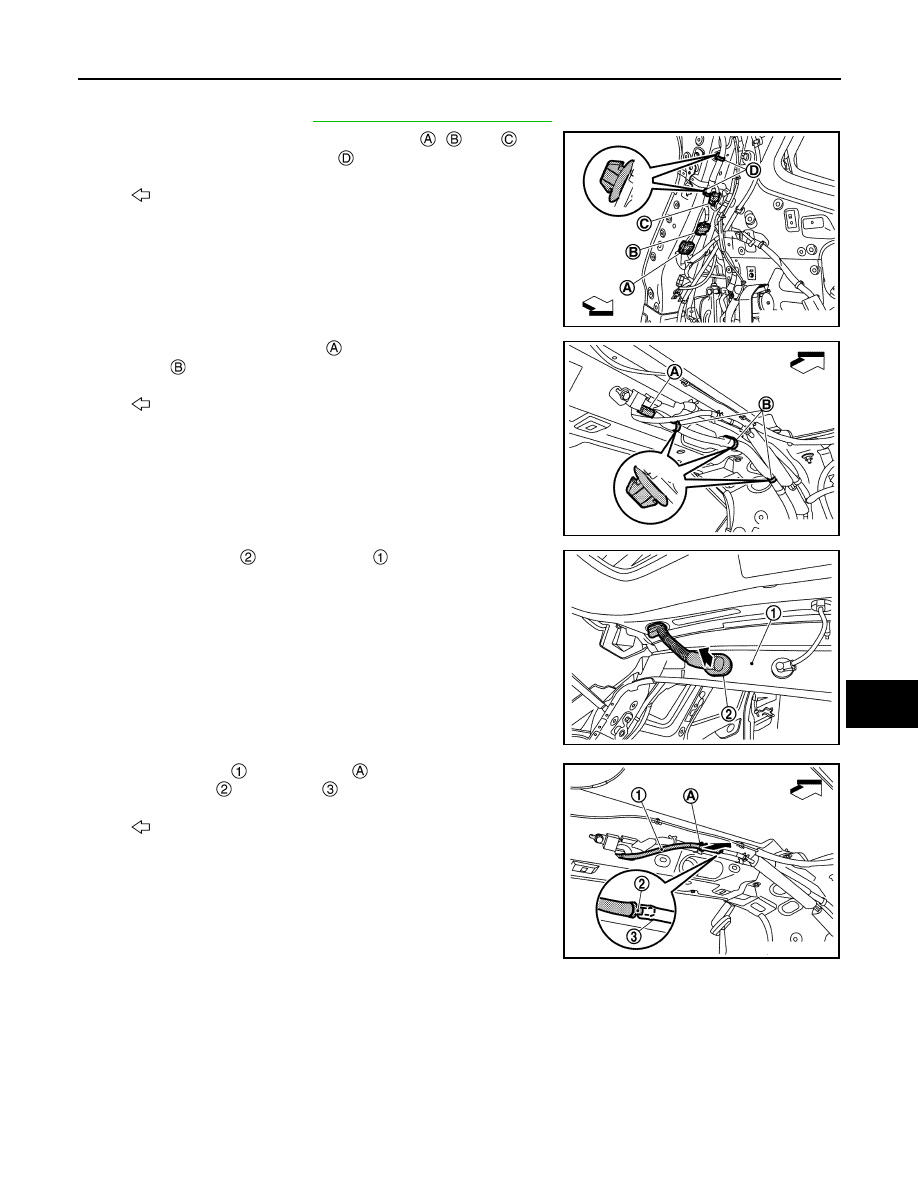

1.

Remove headlining. Refer to

INT-37, "Removal and Installation"

.

2.

Disconnect back door harness connectors

,

 and

, and

then remove harness fixing clips

.

3.

Disconnect harness connector

, and then remove harness fix-

ing clips

.

4.

Remove grommet

 from roof panel

, and then pull out back

door harness from vehicle body.

5.

Remove air tube

 from tube clip

, and then disconnect tube

joint connector

 and air tube

 (with around view monitor).

: Vehicle front

JMKIB3115ZZ

: Vehicle front

JMKIB3116ZZ

JMKIB3117ZZ

: Vehicle front

JMKIB3118ZZ

DLK-762

< REMOVAL AND INSTALLATION >

[TYPE 3]

BACK DOOR

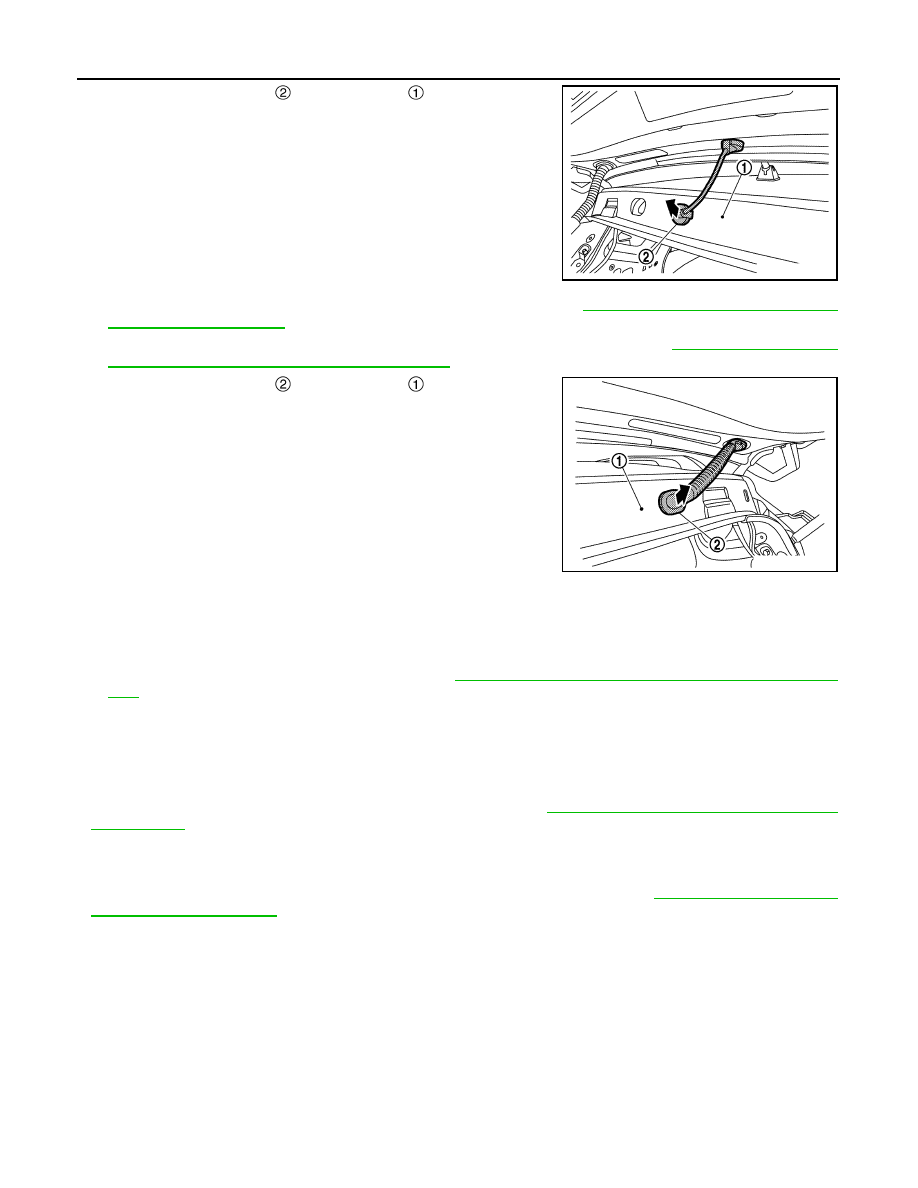

6.

Remove tube grommet

 from roof panel

, and then pull out

air tube from vehicle body.

7.

Disconnect rear washer tube A and rear washer tube B. Refer to

WW-102, "REAR WASHER TUBE :

Removal and Installation"

.

8.

Disconnect rear view camera washer tube (with around view monitor). Refer to

WW-103, "REAR CAM-

ERA WASHER TUBE : Removal and Installation"

.

9.

Remove tube grommet

 from roof panel

, and then pull out

rear washer tube B and rear camera washer tube from vehicle
body.

10. Support back door with the proper material to prevent it from falling.

WARNING:

Bodily injury may occur if no supporting rod is holding the back door open when removing the
back door stay.

11. Remove back door stay from back door. Refer to

DLK-765, "BACK DOOR STAY : Removal and Installa-

tion"

.

12. Remove back door hinge mounting nuts of back door and remove back door assembly.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• After installation, perform the fitting adjustment. Refer to

DLK-763, "BACK DOOR ASSEMBLY :

Adjustment"

.

• After installation, check whether harness is not pinched. If harness is pinched, pull harness down-

ward lightly.

• After installation, apply touch-up paint (the body color) onto the head of door hinge mounting nuts.
• After installation, check that door opens and closes normally. Refer to

DLK-762, "BACK DOOR

ASSEMBLY : Inspection"

.

BACK DOOR ASSEMBLY : Inspection

INFOID:0000000010728570

1.

Open and close the back door. Check that door hinge rotation portion moves smoothly.

JMKIB3119ZZ

JMKIB3120ZZ

BACK DOOR

DLK-763

< REMOVAL AND INSTALLATION >

[TYPE 3]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

2.

Check back door hinge rotating part for poor lubrication. Apply
body grease if necessary.

BACK DOOR ASSEMBLY : Adjustment

INFOID:0000000010728571

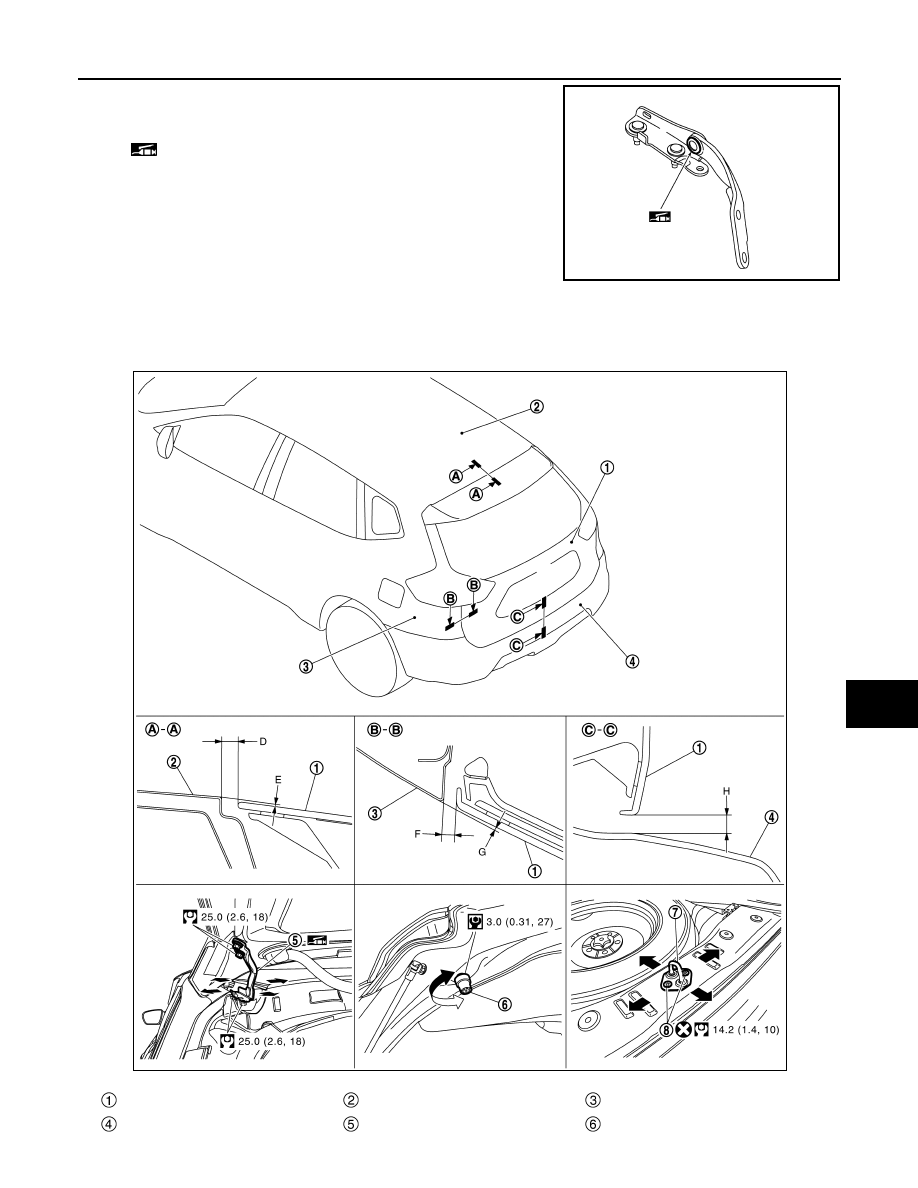

FITTING ADJUSTMENT

: Body grease

JMKIB3113ZZ

Back door assembly

Roof panel

Body side outer panel

Rear bumper fascia

Back door hinge

Bumper rubber

JMKIB3480GB

DLK-764

< REMOVAL AND INSTALLATION >

[TYPE 3]

BACK DOOR

Fitting Adjustment Standard

Check the clearance and the surface height between back door and each part by seeing and touching.
If the clearance and the surface height are out of specification, adjust them according to the procedures
shown below.

When back door is reused.

Unit: mm [in]

When back door is replaced.

Unit: mm [in]

Fitting Adjustment Procedure

1.

Loosen back door hinge mounting nuts of back door side.

2.

Loosen bumper rubber.

3.

Remove luggage rear plate mask. Refer to

INT-41, "LUGGAGE REAR PLATE : Removal and Installation"

.

4.

Loosen back door striker mounting TORX bolts.

5.

Position back door lock assembly and engage back door striker. Check back door lock assembly and back
door striker for looseness.

6.

Adjust the clearance and surface height of back door according to the fitting standard dimension by back
door hinge and bumper rubber.

Back door striker

TORX bolt

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

: Body grease

Portion

Standard

Difference

(LH/RH,

MAX)

 Back door – Roof panel

 –

D

Clearance

5.0 – 9.0

[0.197 – 0.354]

—

E

Surface height

(

−

3.0) – (+1.0)

[(

−

0.118) – (+0.039)]

—

Back door – Body side outer
panel


 –

F

Clearance

3.0 – 7.0

[0.118 – 0.276]

<2.0

[0.079]

G

Surface height

(

−

3.0) – (+1.0)

[(

−

0.118) – (+0.039)]

—

Back door – Rear bumper
fascia

 –

H

Clearance

5.5 – 9.5

[0.217 – 0.374]

—

Portion

Standard

Difference

(LH/RH,

MAX)

 Back door – Roof panel

 –

D

Clearance

5.1 – 9.1

[0.201 – 0.358]

—

E

Surface height

(

−

2.0) – (+2.0)

[(

−

0.079) – (+0.079)]

—

Back door – Body side outer
panel


 –

F

Clearance

2.5 – 6.5

[0.098 – 0.256]

<2.0

[0.079]

G

Surface height

(

−

3.3) – (+0.7)

[(

−

0.130) – (+0.028)]

—

Back door – Rear bumper
fascia

 –

H

Clearance

5.7 – 9.7

[0.224 – 0.382]

—
