SYSTEM (INTELLIGENT KEY SYSTEM)

DLK-53

< SYSTEM DESCRIPTION >

[TYPE 1]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

• Shift position: Other than P position
• Registered Intelligent Key is not detected inside the vehicle.
• When BCM receives Intelligent Key button operation via remote keyless entry receiver.
• When BCM receives door request switch signal from door request switch.
• After 15 seconds are passed since the engine start information is displayed.

When Ignition Switch is Turned From ON to OFF.

• After several seconds are passed since the engine start information is displayed.

INFORMATION DISPLAY (COMBINATION METER) : Intelligent Key Low Battery
Warning

INFOID:0000000010708043

DESIGN/PURPOSE

Information display warns the driver that Intelligent Key battery level is low.
NOTE:
Information display does not display when Intelligent Key battery is discharged.

SYNCHRONIZATION WITH MASTER WARNING LAMP

No applicable

SYSTEM DIAGRAM

SIGNAL PATH

• When Intelligent Key receives request signal from inside key antenna or outside key antenna, transmits key

ID signal is transmitted from Intelligent Key to remote keyless entry receiver.

• BCM receives key ID signal via remote keyless entry receiver and detects that Intelligent Key battery level is

low.

• When BCM detects that ignition switch is ON, meter display signal is transmitted by BCM to combination

meter via CAN communication.

• When combination meter receives meter display signal, Intelligent Key low battery warning displays.

WARNING/INDICATOR OPERATIONG CONDITION

Symbol

Message

Key Battery Low

JMKIB1397ZZ

JMKIB3597GB

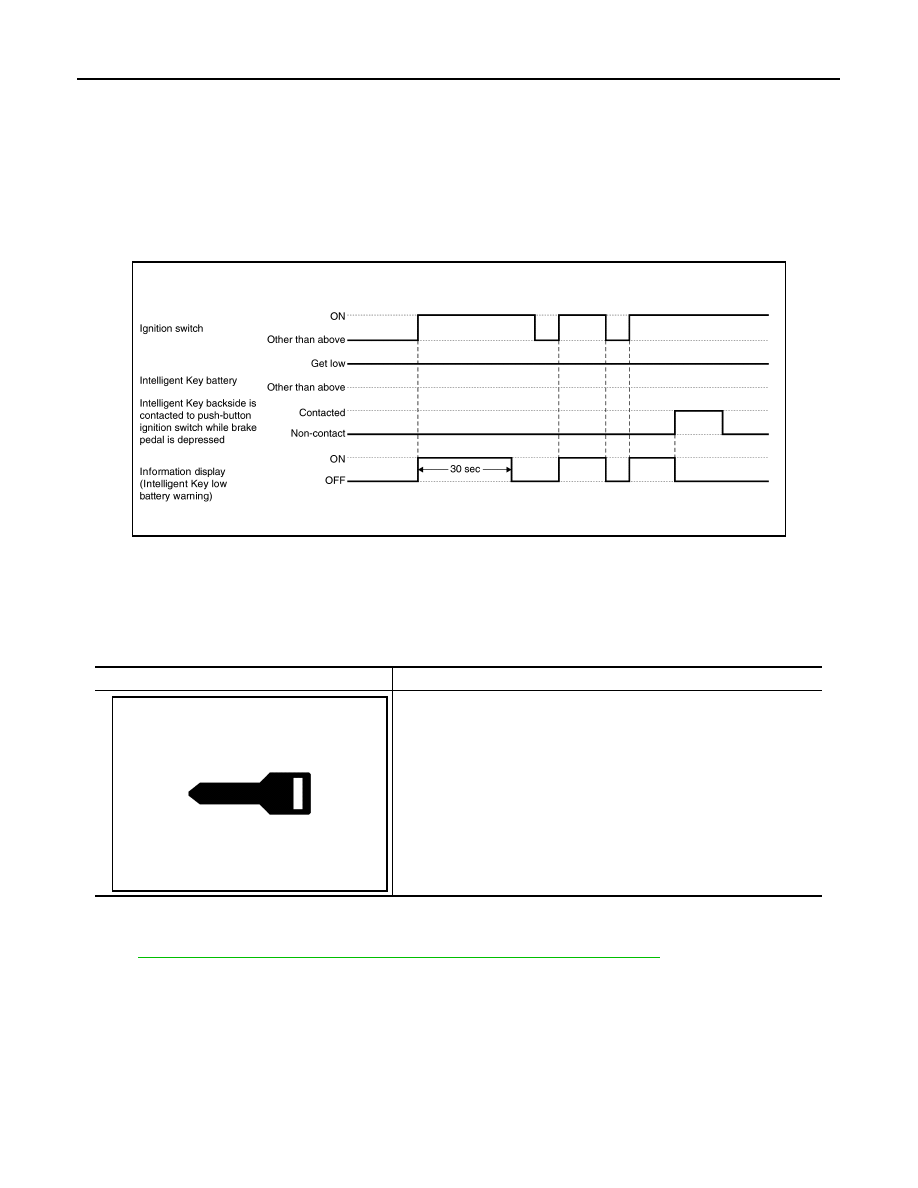

DLK-54

< SYSTEM DESCRIPTION >

[TYPE 1]

SYSTEM (INTELLIGENT KEY SYSTEM)

When all of the following conditions are satisfied.
• Ignition switch is in ON position.
• Intelligent Key battery level is low.

WARNING/INDICATOR CANCEL CONDITION

When any of the following conditions are satisfied.
• After 30 seconds are passed since the Intelligent Key low battery warning is displayed
• Ignition switch is in a position other than ON.
• When Intelligent Key backside is contacted to push-button ignition switch while brake pedal is depressed.

TIMING CHART

INFORMATION DISPLAY (COMBINATION METER) : Intelligent Key System Malfunc-
tion

INFOID:0000000010708044

DESIGN/PURPOSE

Information display warns the driver that Intelligent Key system malfunctions or that engine cannot be started.

SYNCHRONIZATION WITH MASTER WARNING LAMP

Synchronization is applied.
Refer to

MWI-47, "WARNING LAMPS/INDICATOR LAMPS : Master Warning Lamp"

.

JMKIB1406GB

Symbol

Message

Key System Error
See Owner’s Manual

JMKIB1398ZZ

SYSTEM (INTELLIGENT KEY SYSTEM)

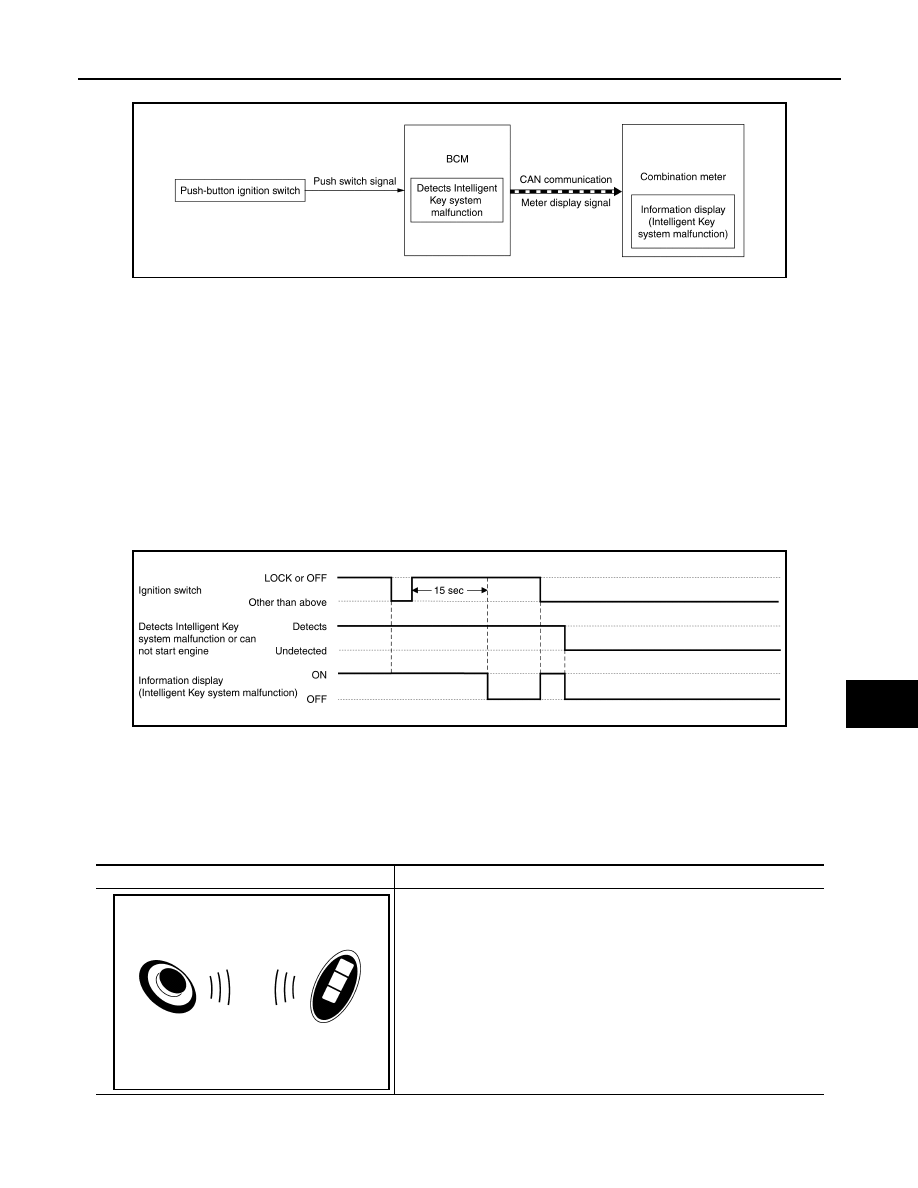

DLK-55

< SYSTEM DESCRIPTION >

[TYPE 1]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

SYSTEM DIAGRAM

SIGNAL PATH

• When BCM detects that Intelligent Key system malfunctions or that the engine cannot be started, meter dis-

play signal is transmitted by BCM to combination meter via CAN communication.

• When combination meter receives meter display signal, Intelligent Key system malfunction displays.

WARNING/INDICATOR OPERATING CONDITION

When any of the following conditions are satisfied.
• The engine cannot be started.
• Intelligent Key system malfunction is detected.

WARNING/INDICATOR CANCEL CONDITION

When any of the following conditions are satisfied.
• Intelligent Key system malfunction or engine non-start status is resolved.
• Ignition switch is turned to LOCK or OFF, and 15 seconds are passed.

TIMING CHART

INFORMATION DISPLAY (COMBINATION METER) : Key ID Verification Information

INFOID:0000000010708045

DESIGN/PURPOSE

If the system cannot detect a registered Intelligent Key inside the vehicle, it informs the driver that it is neces-
sary for the vehicle to detect a registered Intelligent Key.

SYNCHRONIZATION WITH MASTER WARNING LAMP

No applicable

JMKIB1417GB

JMKIB1418GB

Symbol

Message

–

JMKIB1887ZZ

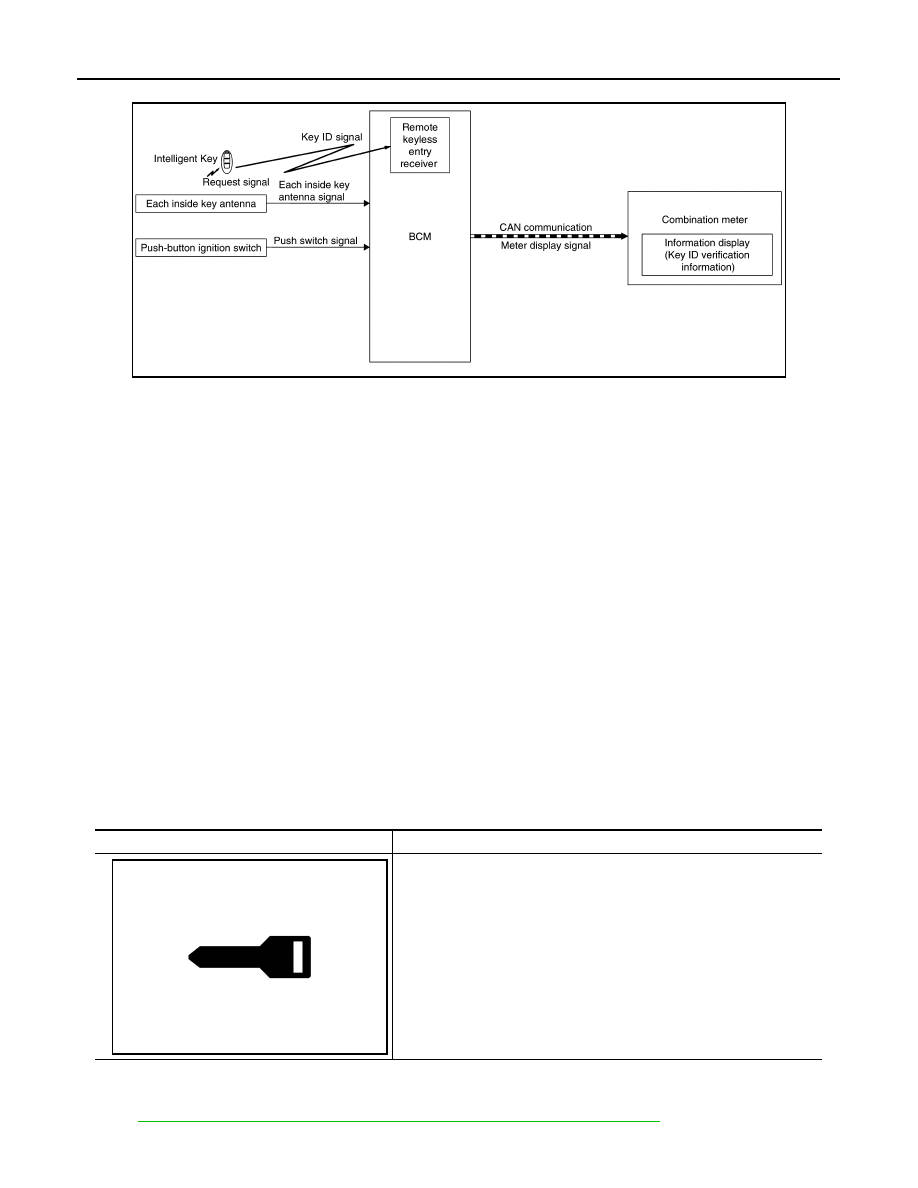

DLK-56

< SYSTEM DESCRIPTION >

[TYPE 1]

SYSTEM (INTELLIGENT KEY SYSTEM)

SYSTEM DIAGRAM

SIGNAL PATH

• BCM activates inside key antenna and checks that Intelligent Key is in vehicle, when push-button ignition

switch operation is performed while ignition switch position is LOCK.

• When BCM does not detect a registered Intelligent Key in vehicle, meter display signal is transmitted by

BCM to combination meter via CAN communication.

• When combination meter receives meter display signal, key ID warning displays.
• After 5 seconds are passed since the key ID warning is displayed, key ID verification information displays.

WARNING/INDICATOR OPERATIONG CONDITION

When all of the following conditions are satisfied.
• Ignition switch: LOCK position
• Push-button ignition switch operation is performed.
• Registered Intelligent Key is not detected inside the vehicle.

WARNING/INDICATOR CANCEL CONDITION

When any of the following conditions are satisfied.
• After 25 seconds are passed since the key ID verification information is displayed.
• When all door is locked with Intelligent Key or door request switch
• Lock the doors after all doors are closed
• When Intelligent Key backside is contacted to push-button ignition switch while brake pedal is depressed.

INFORMATION DISPLAY (COMBINATION METER) : Key ID Warning

INFOID:0000000010708046

DESIGN/PURPOSE

Information display warns the driver that Intelligent Key is not detected in vehicle.

SYNCHRONIZATION WITH MASTER WARNING LAMP

Synchronization is applied.
Refer to

MWI-47, "WARNING LAMPS/INDICATOR LAMPS : Master Warning Lamp"

.

JMKIB3598GB

Symbol

Message

Key ID Incorrect
