REPLACEMENT OPERATIONS

BRM-217

< REMOVAL AND INSTALLATION >

[FOR RUSSIA]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

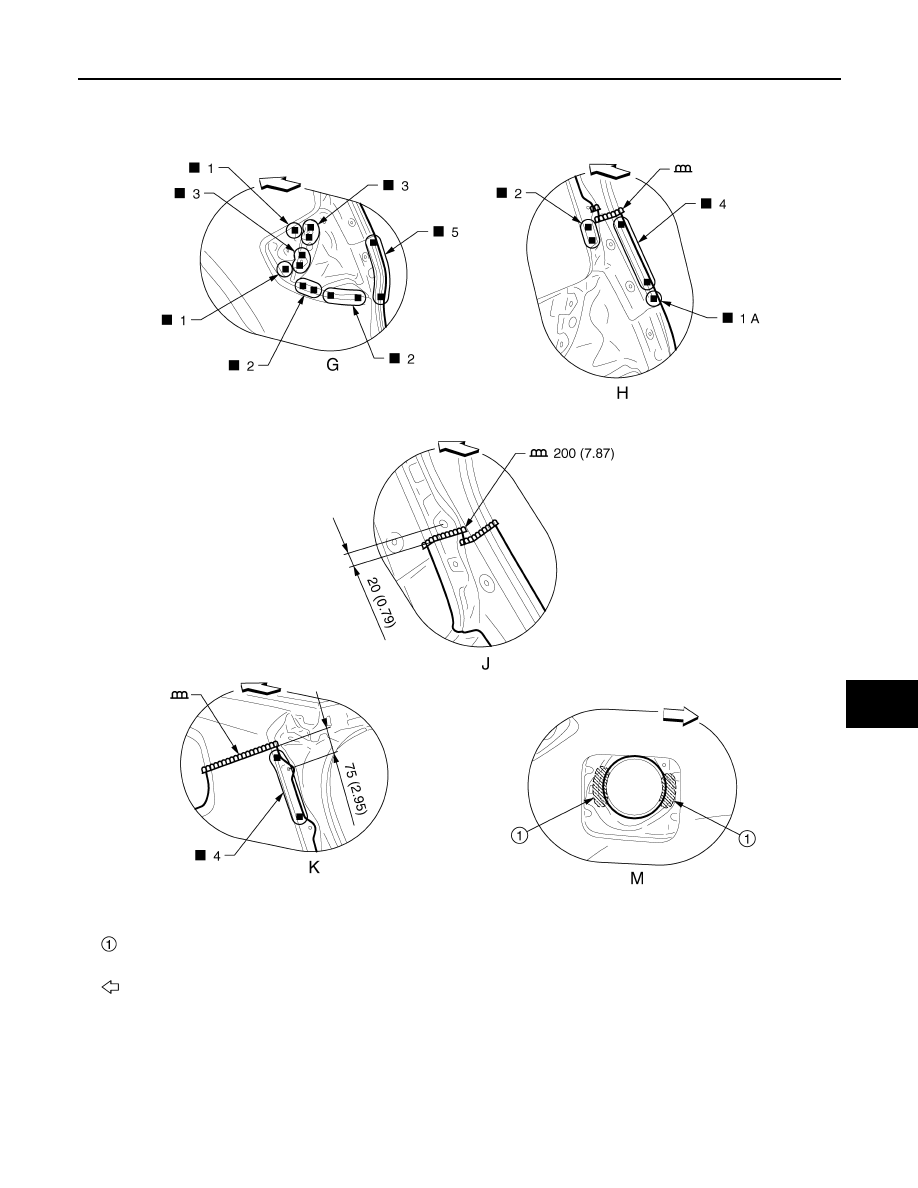

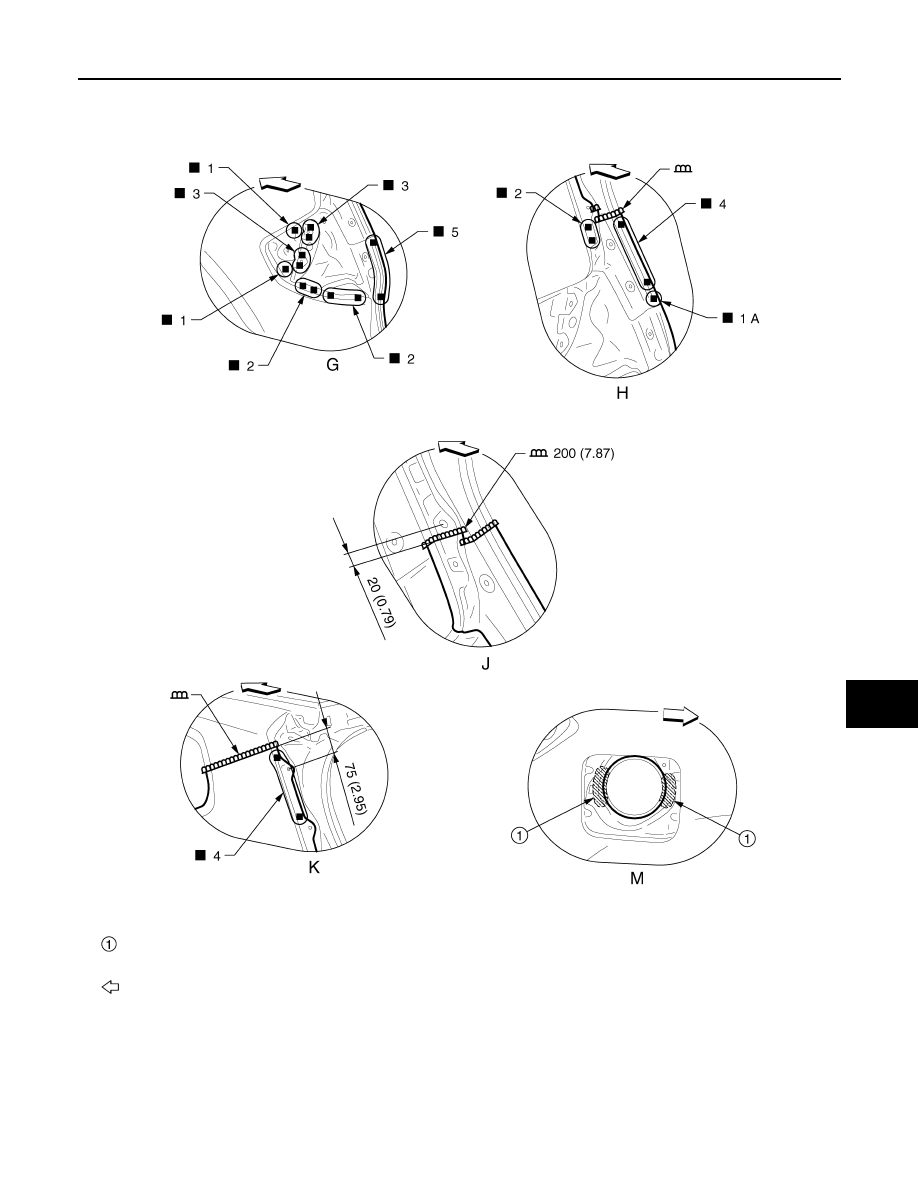

View J: Before installing rear fender
View M: Right side rear fender

Adhesive

Unit: mm (in)

: Vehicle front

JSKIA3865GB

BRM-218

< REMOVAL AND INSTALLATION >

[FOR RUSSIA]

REPLACEMENT OPERATIONS

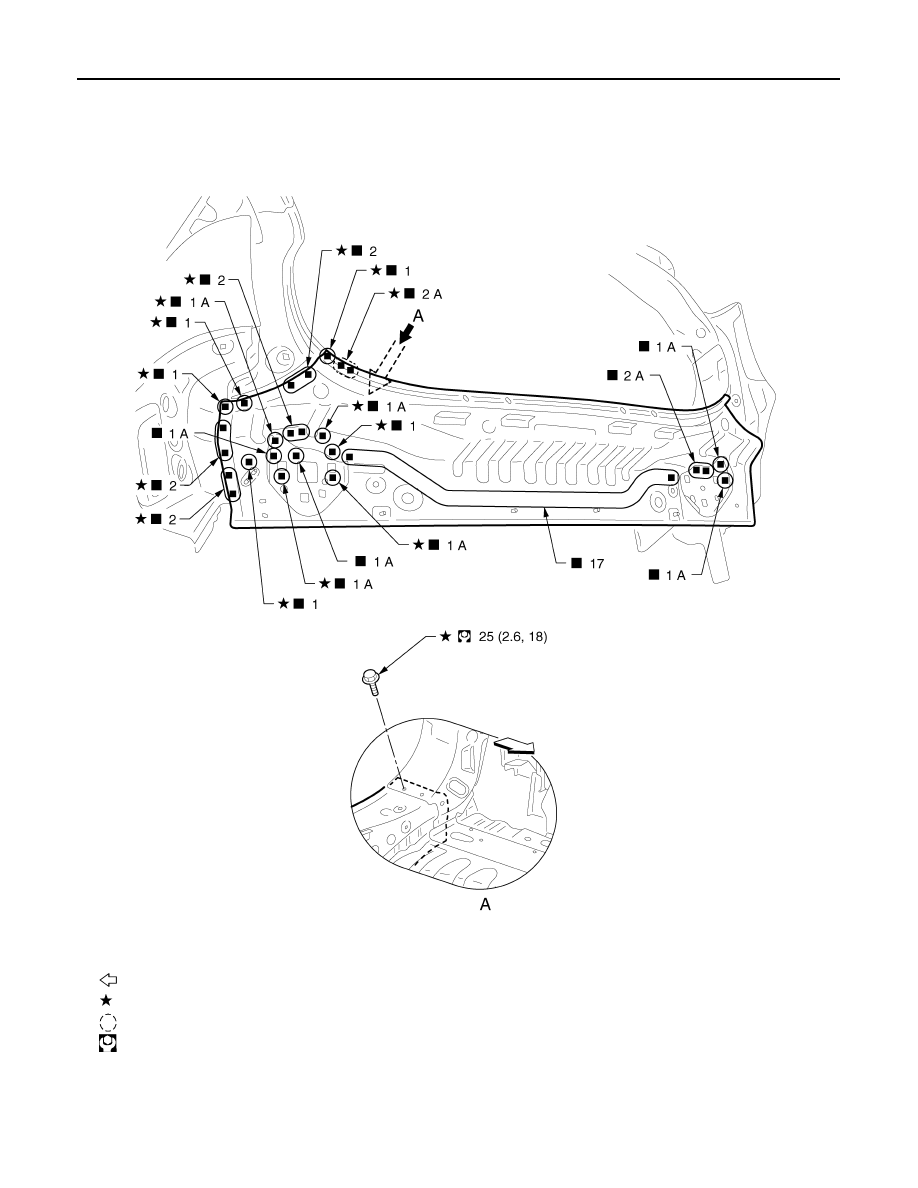

Rear Panel

INFOID:0000000010843620

: Vehicle front

: Welding method, the number of welding points, and the tightening torque apply to both side of the vehicle.

: Weld the parts onto the back of the component part.

: N·m (kg-m, ft-lb)

Replacement part

z

Upper rear panel

JSKIA4614GB

REPLACEMENT OPERATIONS

BRM-219

< REMOVAL AND INSTALLATION >

[FOR RUSSIA]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

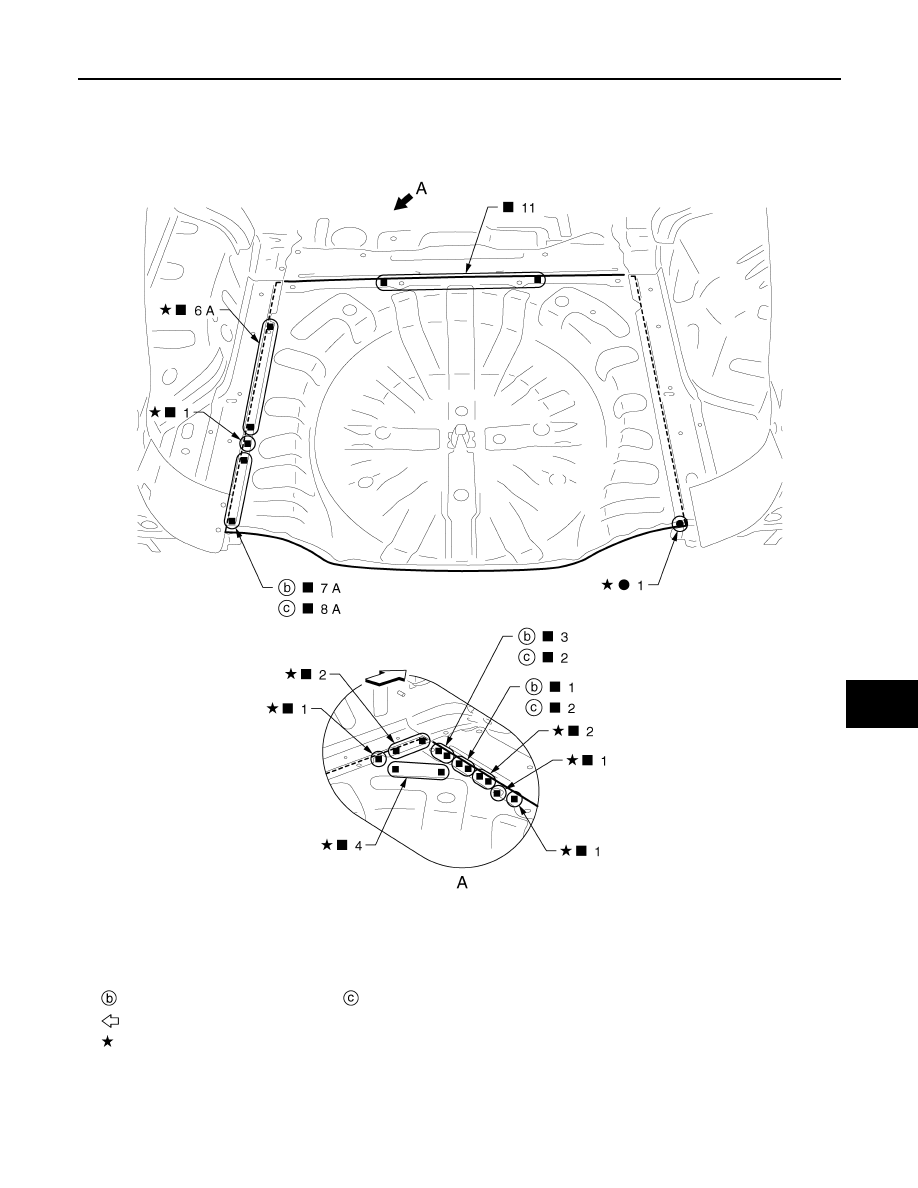

Rear Floor Rear

INFOID:0000000010843621

Work after rear panel is removed.

Left side

Right side

: Vehicle front

: Welding method and the number of welding points apply to both side of the vehicle.

Replacement part

z

Rear floor rear

JSKIA3869ZZ

BRM-220

< REMOVAL AND INSTALLATION >

[FOR RUSSIA]

REPLACEMENT OPERATIONS

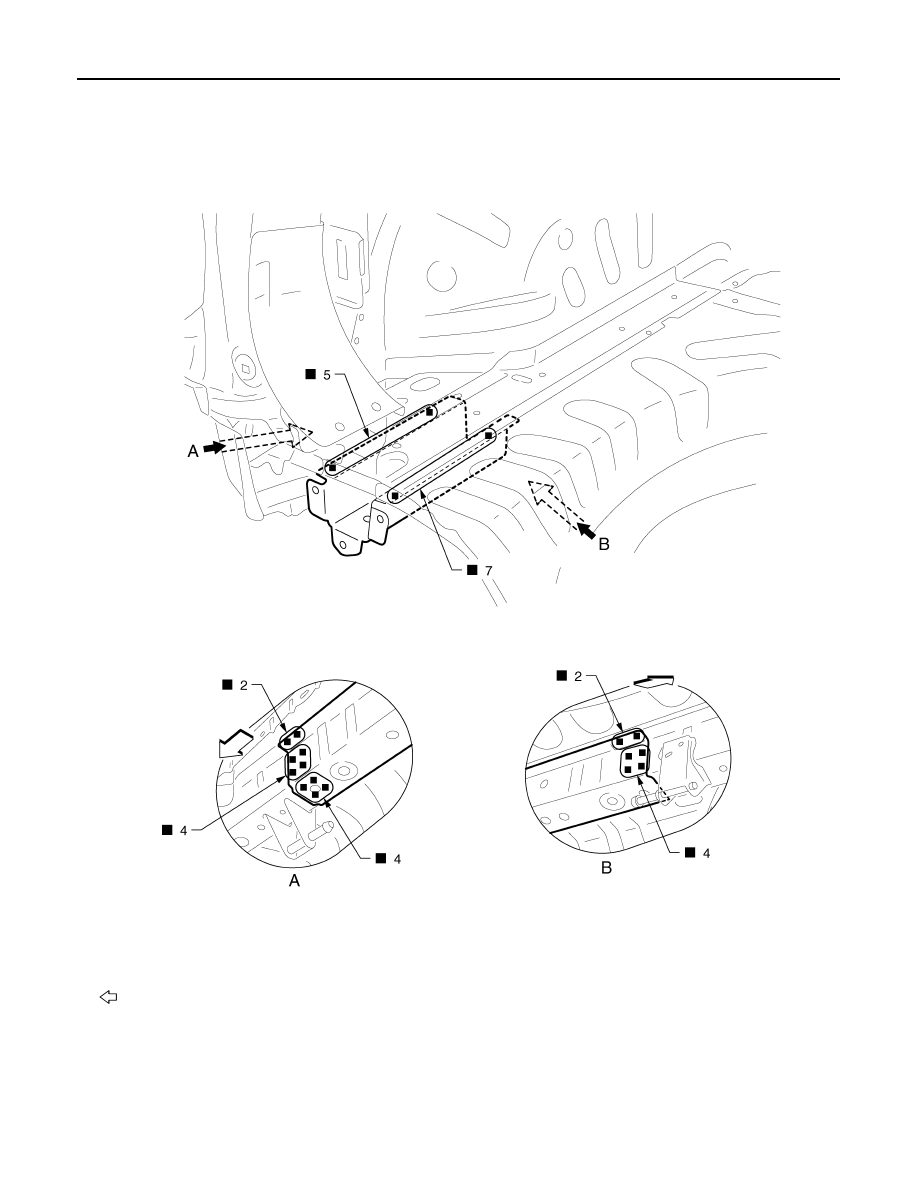

Rear Side Member Extension (SUV Models)

INFOID:0000000010843622

Work after rear panel is removed.

Rear Side Member Extension (Wagon Models)

INFOID:0000000010843623

Work after rear panel is removed.

: Vehicle front

Replacement part

z

Rear side member extension

JSKIA3872ZZ
