CONTROL CABLE

CONTROL CABLE

MR20DD

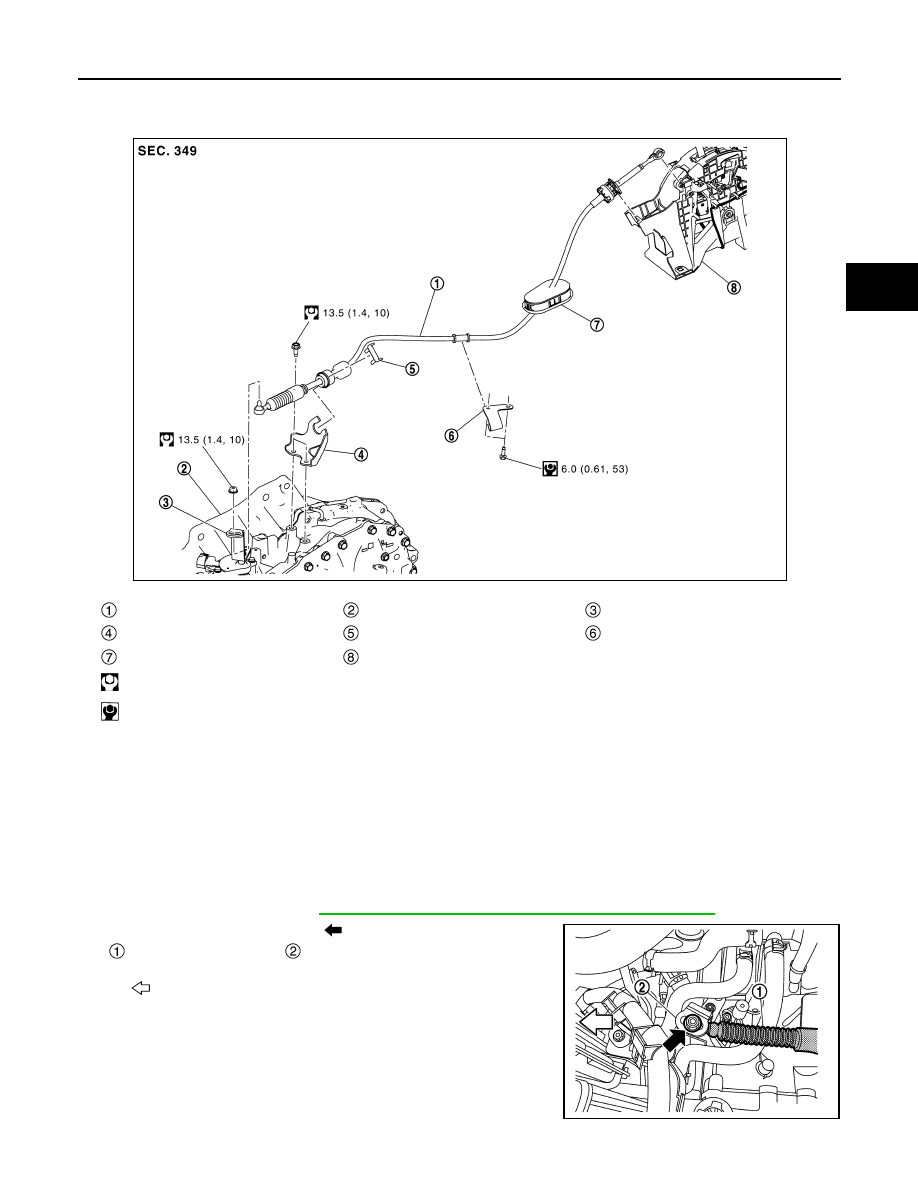

MR20DD : Exploded View

INFOID:0000000010622592

MR20DD : Removal and Installation

INFOID:0000000010622593

REMOVAL

CAUTION:

• Always apply the parking brake before performing removal and installation.
• Be careful not to cut your hand on heat insulator edges.
1.

Turn ignition switch OFF.

2.

Shift the selector lever to “P” position.

3.

Remove battery tray. Refer to

PG-148, "EXCEPT FOR R9M : Removal and Installation"

.

Control cable

Lock plate

Transaxle assembly

Manual lever

Bracket A

Bracket B

Grommet

CVT shift selector assembly

: N·m (kg-m, ft-lb)

: N·m (kg-m, in-lb)

JSDIA5630GB

CONTROL CABLE

TM-407

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

4.

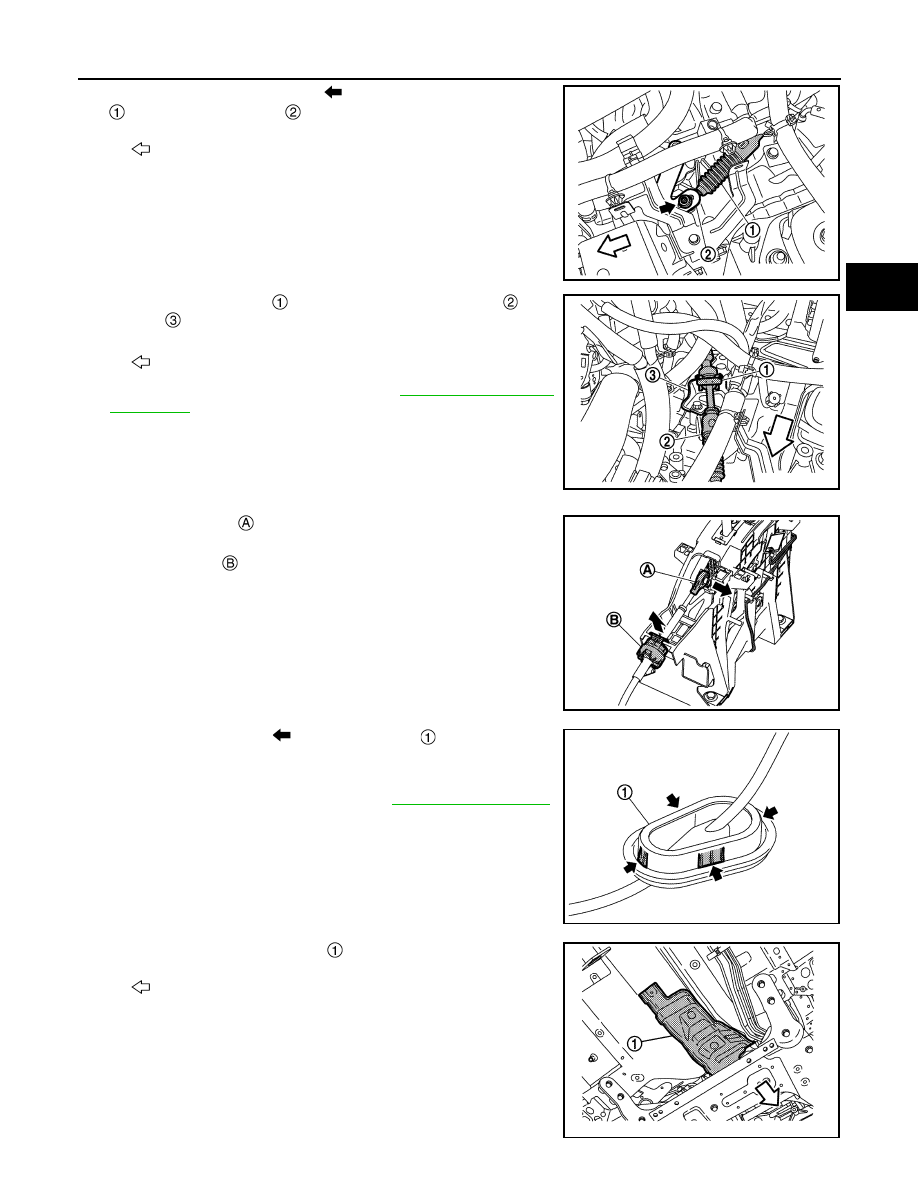

Remove the control cable nut (

) and remove the control cable

 from the manual lever

.

5.

Remove the lock plate

 and remove the control cable

 from

bracket .

6.

Remove the center console. Refer to

IP-25, "Removal and

Installation"

.

7.

Disconnect the tip

 of control cable from the CVT shift selector

assembly.

8.

Remove socket

 from CVT shift selector assembly.

CAUTION:

Never damage pawl of socket.

9.

Disengage the pawls (

) of the grommet

, and pull down-

wards to remove.

10. Lift up the vehicle.

11. Remove the exhaust front tube. Refer to

EX-6, "Exploded View"

.

12. Remove the heat plate fixtures

.

: Vehicle front

JSDIA5183ZZ

: Vehicle front

JSDIA5184ZZ

JSDIA5661ZZ

JSDIA5182ZZ

: Vehicle front

JSDIA5214ZZ

TM-408

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

CONTROL CABLE

13. Remove the control cable

 from bracket

.

14. Remove the control cable from the vehicle.

INSTALLATION

Note the followings and install in the reverse order of removal.

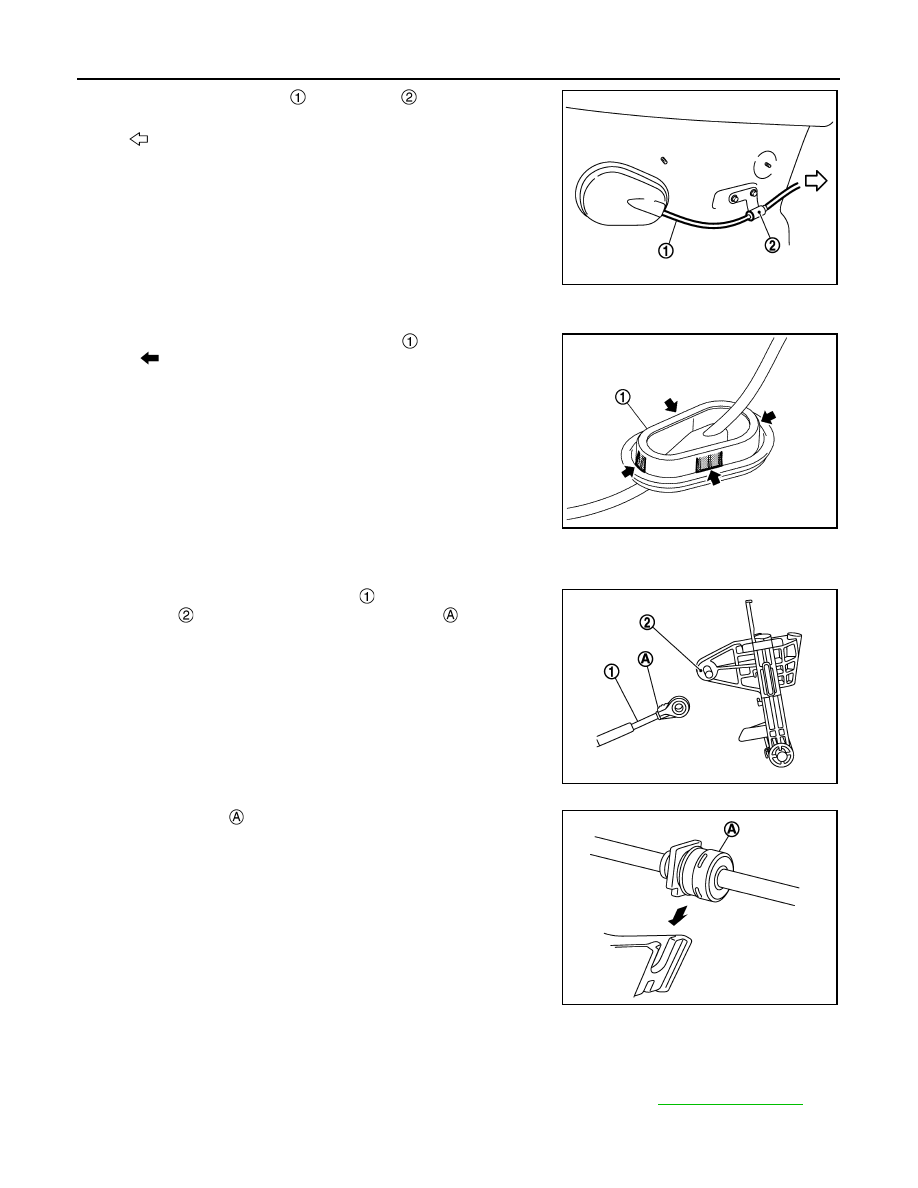

• From below the vehicle, press the grommet

 into place until the

pawls (

) make a click sound.

CAUTION:

• Place the grommet on the floor, then fasten it in place from

below the vehicle.

• Check that pulling down on the grommet does not discon-

nect it.

• Pay attention to the following when connecting the control cable to the CVT shift selector.
1.

Shift the selector lever and Manual lever to “P” position.

2.

When connecting the control cable

 to the CVT shift selector

assembly

, face the grooved surface of the rib

 up and insert

the control cable until it stops.

3.

Install the socket

 onto the CVT shift selector assembly.

CAUTION:

• Place the socket onto the CVT shift selector assembly,

then fasten it in place from above.

• Check that the pulling on the socket does not disconnect

it.

MR20DD : Inspection

INFOID:0000000010622594

INSPECTION AFTER INSTALLATION

Check the CVT position. If a malfunction is found, adjust the CVT position. Refer to

TM-308, "Inspection"

.

QR25DE

: Vehicle front

JPDIA0107ZZ

JSDIA5182ZZ

JPDIA0609ZZ

JSDIA1810ZZ

CONTROL CABLE

TM-409

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

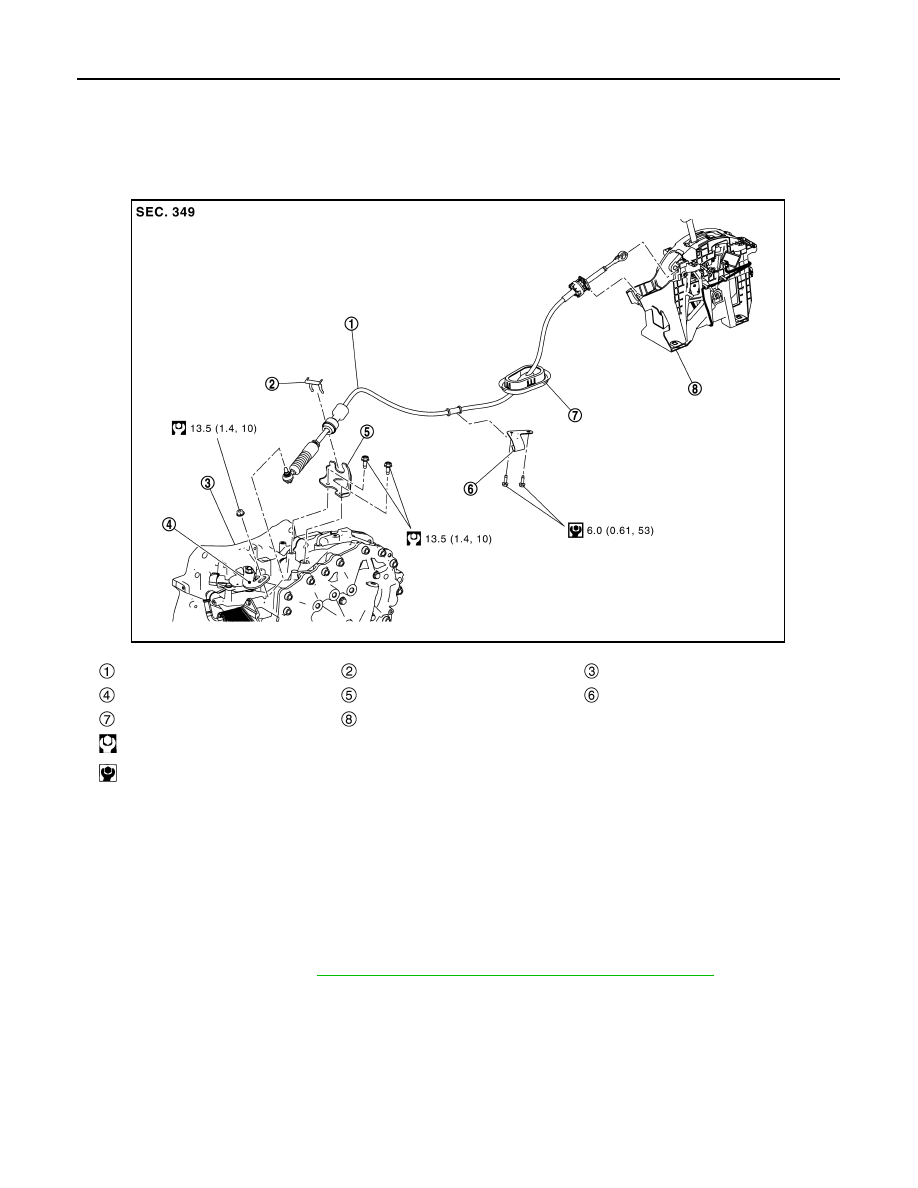

QR25DE : Exploded View

INFOID:0000000010622595

QR25DE : Removal and Installation

INFOID:0000000010622596

REMOVAL

CAUTION:

• Always apply the parking brake before performing removal and installation.
• Be careful not to cut your hand on heat insulator edges.

1.

Turn ignition switch OFF.

2.

Shift the selector lever to “P” position.

3.

Remove battery tray. Refer to

PG-148, "EXCEPT FOR R9M : Removal and Installation"

.

4.

Remove the control cable nut (

) and remove the control cable

 from the manual lever

.

Control cable

Transaxle assembly

Manual lever

Bracket A

Lock plate

Bracket B

Grommet

CVT shift selector assembly

: N·m (kg-m, ft-lb)

: N·m (kg-m, in-lb)

JSDIA5365GB

: Vehicle front

JSDIA4147ZZ
