REAR SEAT BELT WARNING LAMP DOES NOT TURN OFF

SBC-27

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

I

J

K

L

M

A

B

SBC

N

O

P

REAR SEAT BELT WARNING LAMP DOES NOT TURN OFF

Diagnosis Procedure

INFOID:0000000010926561

1.

CHECK DTC OF “AIR BAG DIAGNOSIS SENSOR UNIT”

Check DTC in “Self Diagnosis Result” mode of “Air bag diagnosis sensor unit” using CONSULT.
Is DTC detected?

YES

>> Perform the trouble diagnosis related to the detected DTC. Refer to

SRC-18, "DTC Index"

.

NO

>> GO TO 2.

2.

CHECK DTC OF “COMBINATION METER”

Check DTC in “Self Diagnosis Result” mode of “METER/M&A” using CONSULT.
Is DTC detected?

YES

>> Perform the trouble diagnosis related to the detected DTC. Refer to

MWI-105, "DTC Index"

.

NO

>> GO TO 3.

3.

CHECK HARNESS CONNECTOR

Check the harness connector for disconnection, looseness or damage.

Is the inspection result normal?

YES

>> GO TO 4.

NO-1

>> Damage: Replace malfunctioning parts.

NO-2

>> Disconnection or looseness: Securely lock the connector.

4.

CHECK WIRING HARNESS

Check the wiring harness externals.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace malfunctioning parts.

5.

CHECK REAR SEAT BELT BUCKLE SWITCH

Check the applicable rear seat belt buckle switch. Refer to

SBC-20, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Replace seat belt buckle switch.

6.

REPLACE AIR BAG DIAGNOSIS SENSOR UNIT

Replace air bag diagnosis sensor unit.
Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 7.

7.

REPLACE COMBINATION METER

Replace combination meter. Refer to

MWI-151, "Removal and Installation"

.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 8.

8.

INTERMITTENT INCIDENT

Refer to

GI-44, "Intermittent Incident"

.

>> INSPECTION END

SE-1

BODY INTERIOR

C

D

E

F

G

H

I

K

L

M

SECTION

SE

A

B

SE

N

O

P

CONTENTS

SEAT

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

3

Precautions for Removing Battery Terminal  .............

3

Service Notice  ...........................................................

4

Precaution for Work  ..................................................

4

PREPARATION ............................................

6

PREPARATION ...................................................

6

Commercial Service Tool  ..........................................

6

CLIP LIST  ............................................................

7

Clip List  .....................................................................

7

SYSTEM DESCRIPTION  ..............................

8

COMPONENT PARTS  ........................................

8

POWER SEAT SYSTEM  .............................................

8

POWER SEAT SYSTEM : Component Parts Lo-
cation .......................................................................
..

8

LUMBAR SUPPORT SYSTEM ....................................

8

LUMBAR SUPPORT SYSTEM : Component
Parts Location  .........................................................
..

8

HEATED SEAT SYSTEM  ............................................

9

HEATED SEAT SYSTEM : Component Parts Lo-
cation .......................................................................
..

9

Power Seat Switch  ....................................................

9

Lumbar Support Switch .............................................

9

SYSTEM .............................................................

11

POWER SEAT SYSTEM  ...........................................

11

POWER SEAT SYSTEM : System Description  ......

11

LUMBAR SUPPORT SYSTEM ..................................

11

LUMBAR SUPPORT SYSTEM : System Descrip-
tion ...........................................................................

11

HEATED SEAT SYSTEM  ..........................................

11

HEATED SEAT SYSTEM : System Description ......

11

WIRING DIAGRAM  ......................................

12

POWER SEAT CONTROL SYSTEM  ................

12

Wiring Diagram ........................................................

12

LUMBAR SUPPORT SYSTEM  .........................

20

LHD ............................................................................

20

LHD : Wiring Diagram ..............................................

20

RHD ............................................................................

22

RHD : Wiring Diagram  .............................................

23

HEATED SEAT SYSTEM ..................................

26

LHD ............................................................................

26

LHD : Wiring Diagram ..............................................

26

RHD ............................................................................

28

RHD : Wiring Diagram  .............................................

29

SYMPTOM DIAGNOSIS  ..............................

32

SQUEAK AND RATTLE TROUBLE DIAG-
NOSES ..............................................................

32

Work Flow ................................................................

32

Inspection Procedure ...............................................

34

Diagnostic Worksheet ..............................................

36

REMOVAL AND INSTALLATION  ...............

38

FRONT SEAT ....................................................

38

Exploded View .........................................................

38

Removal and Installation  .........................................

41

SEATBACK ................................................................

41

SEATBACK : Disassembly and Assembly  ..............

41

SE-2

SEAT CUSHION ........................................................

46

SEAT CUSHION : Disassembly and Assembly ......

46

SEAT CUSHION FINISHER ......................................

48

SEAT CUSHION FINISHER : Disassembly and
Assembly ...............................................................
.

48

SECOND SEAT (SLIDING TYPE)  .....................

52

Exploded View  ........................................................

52

Removal and Installation  ........................................

54

ARMREST .................................................................

55

ARMREST : Removal and Installation ....................

55

ARMREST : Disassembly and Assembly  ...............

57

SEATBACK ...............................................................

58

SEATBACK : Disassembly and Assembly ..............

58

SEAT CUSHION ........................................................

63

SEAT CUSHION : Disassembly and Assembly ......

63

SEAT CUSHION FINISHER ......................................

65

SEAT CUSHION FINISHER : Disassembly and
Assembly ...............................................................
.

65

THIRD SEAT ......................................................

69

Exploded View  ........................................................

69

Removal and Installation .........................................

70

SEATBACK ...............................................................

72

SEATBACK : Disassembly and Assembly ..............

72

SEAT CUSHION  ........................................................

74

SEAT CUSHION : Disassembly and Assembly  ......

74

ASSIST STAY  ...........................................................

77

ASSIST STAY : Removal and Installation ..............

77

ASSIST STAY : Disposal  ........................................

78

POWER SEAT SWITCH ....................................

79

Removal and Installation .........................................

79

LUMBAR SUPPORT SWITCH  ..........................

80

Removal and Installation .........................................

80

HEATED SEAT SWITCH ...................................

81

Removal and Installation .........................................

81

PRECAUTIONS

SE-3

< PRECAUTION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000010713110

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the “SRS AIR BAG” and
“SEAT BELT” of this Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precautions for Removing Battery Terminal

INFOID:0000000011051375

• With the adoption of Auto ACC function, ACC power is automatically supplied by operating the intelligent key

or remote keyless entry or by opening/closing the driver side door. In addition, ACC power is supplied even
after the ignition switch is turned to the OFF position, i.e. ACC power is supplied for a certain fixed time.

• When disconnecting the 12V battery terminal, turn off the ACC

power before disconnecting the 12V battery terminal, observing
“How to disconnect 12V battery terminal” described below.
NOTE:
Some ECUs operate for a certain fixed time even after ignition
switch is turned OFF and ignition power supply is stopped. If the
battery terminal is disconnected before ECU stops, accidental DTC
detection or ECU data damage may occur.

•  For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be detected.

•  After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

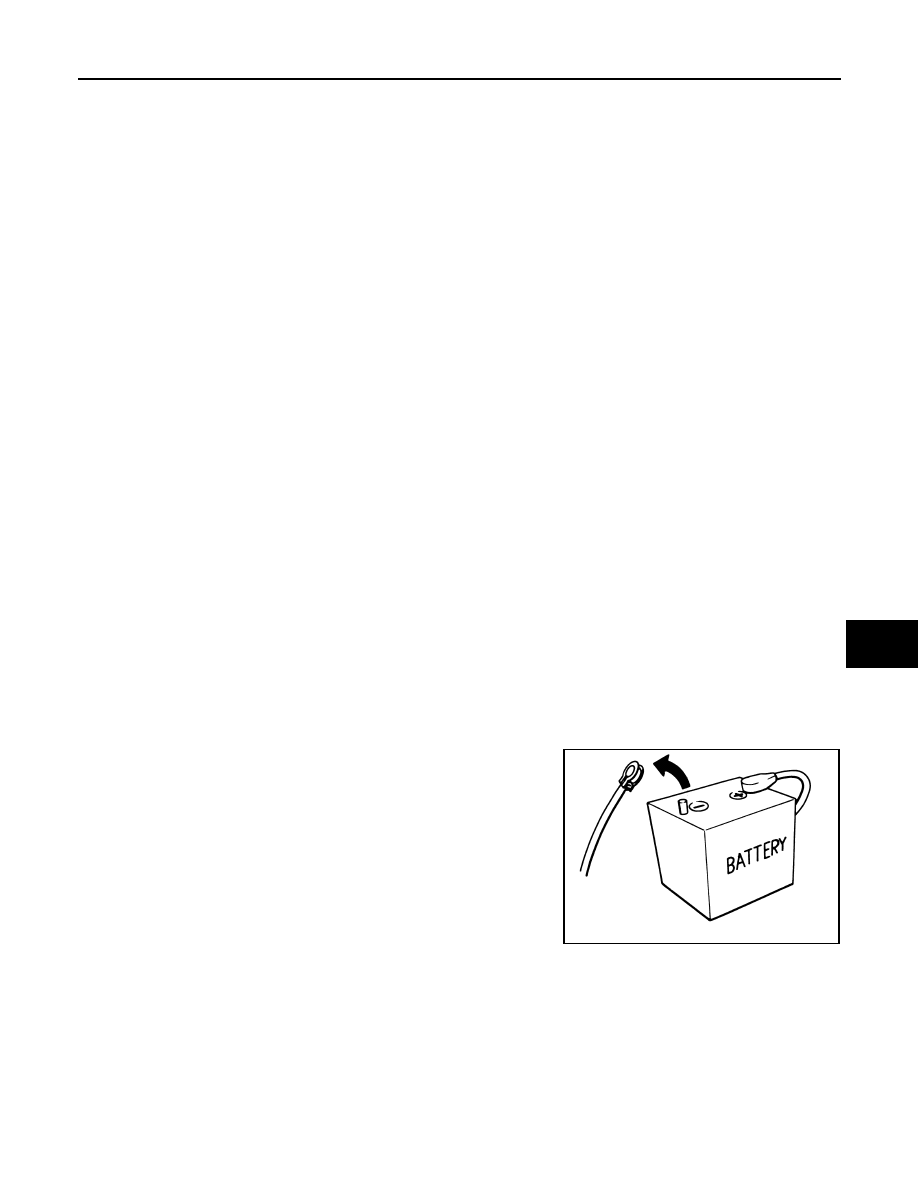

HOW TO DISCONNECT 12V BATTERY TERMINAL

Disconnect 12V battery terminal according to Instruction 1 or Instruction 2 described below.
For vehicles parked by ignition switch OFF, refer to Instruction 2.

INSTRUCTION 1

1.

Open the hood.

SEF289H















содержание   ..  1786  1787  1788  1789   ..
