PG-146

< REMOVAL AND INSTALLATION >

BATTERY TRAY

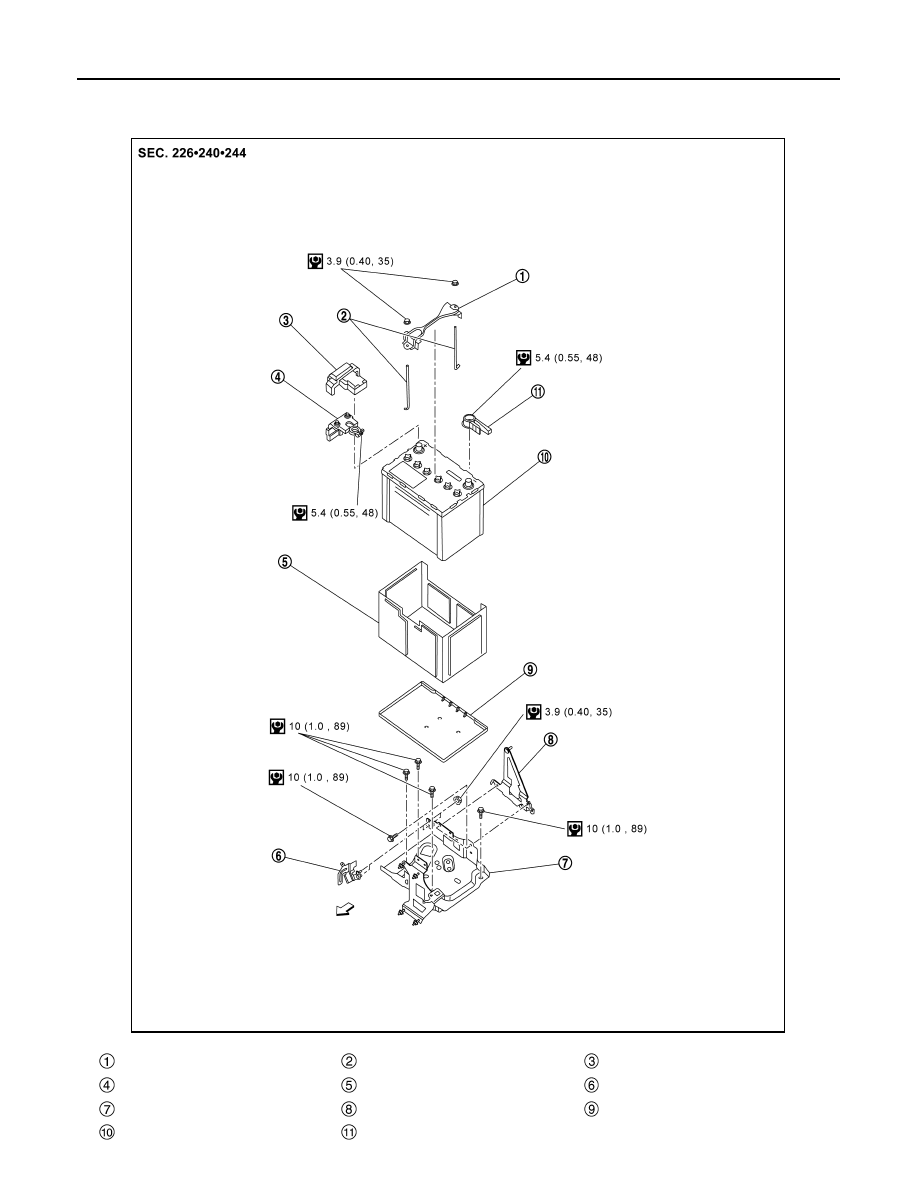

EXCEPT FOR R9M : Exploded View

INFOID:0000000010763414

MR20DD engine models

Battery fix frame

Battery fix rod

  Battery positive terminal cover

Battery terminal with fusible link

Battery cover

Battery tray harness clamp

Battery tray

TCM mounting bracket

Battery under cover

Battery

Battery negative terminal

JSMIA1856GB

PG

BATTERY TRAY

PG-147

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

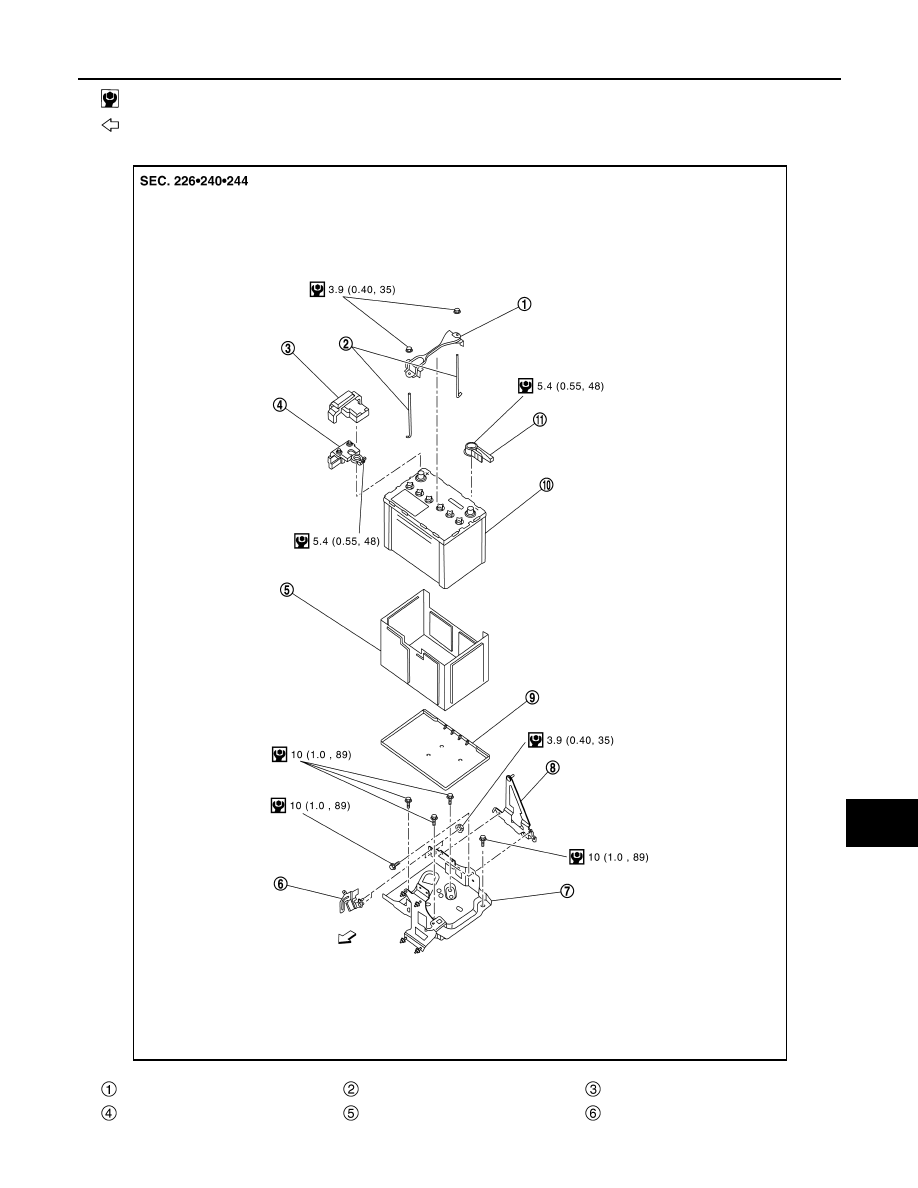

QR25DE engine models

: N·m (kg-m, in-lb)

: Vehicle front

Battery fix frame

Battery fix rod

  Battery positive terminal cover

Battery terminal with fusible link

Battery cover

Battery tray harness clamp

JSMIA1723GB

PG-148

< REMOVAL AND INSTALLATION >

BATTERY TRAY

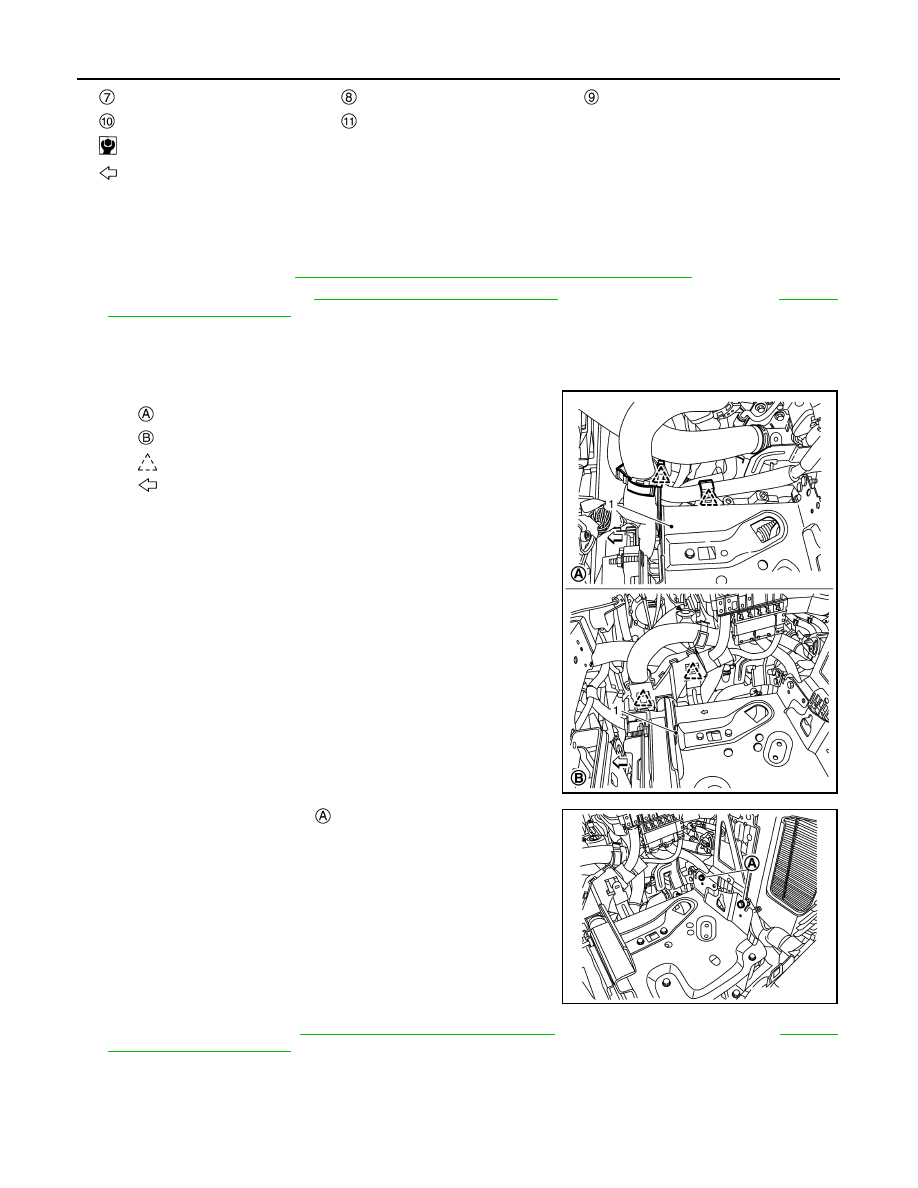

EXCEPT FOR R9M : Removal and Installation

INFOID:0000000010709239

REMOVAL

1.

Remove battery. Refer to :

PG-142, "EXCEPT FOR R9M : Removal and Installation"

.

2.

Remove air duct. Refer to :

EM-31, "Removal and Installation"

 (MR20DD engine models) or

EM-175,

"Removal and Installation"

 (QR25DE engine models).

3.

Remove battery tray under cover.

4.

Remove barometric pressure sensor. (If equipped)

5.

Disengage wiring harness fixing pawls from battery tray.

6.

Remove TCM mounting bolts

 from battery tray.

7.

Remove ECM. Refer to :

EC-430, "Removal and Installation"

 (MR20DD engine models) or

EC-806,

"Removal and Installation"

 (QR25DE engine models).

Battery tray

TCM mounting bracket

Battery under cover

Battery

Battery negative terminal

: N·m (kg-m, in-lb)

: Vehicle front

: MR20DD engine models

: QR25DE engine models

: QR25DE engine models

: Vehicle front

JSMIA1725ZZ

JSMIA1726ZZ

PG

BATTERY TRAY

PG-149

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

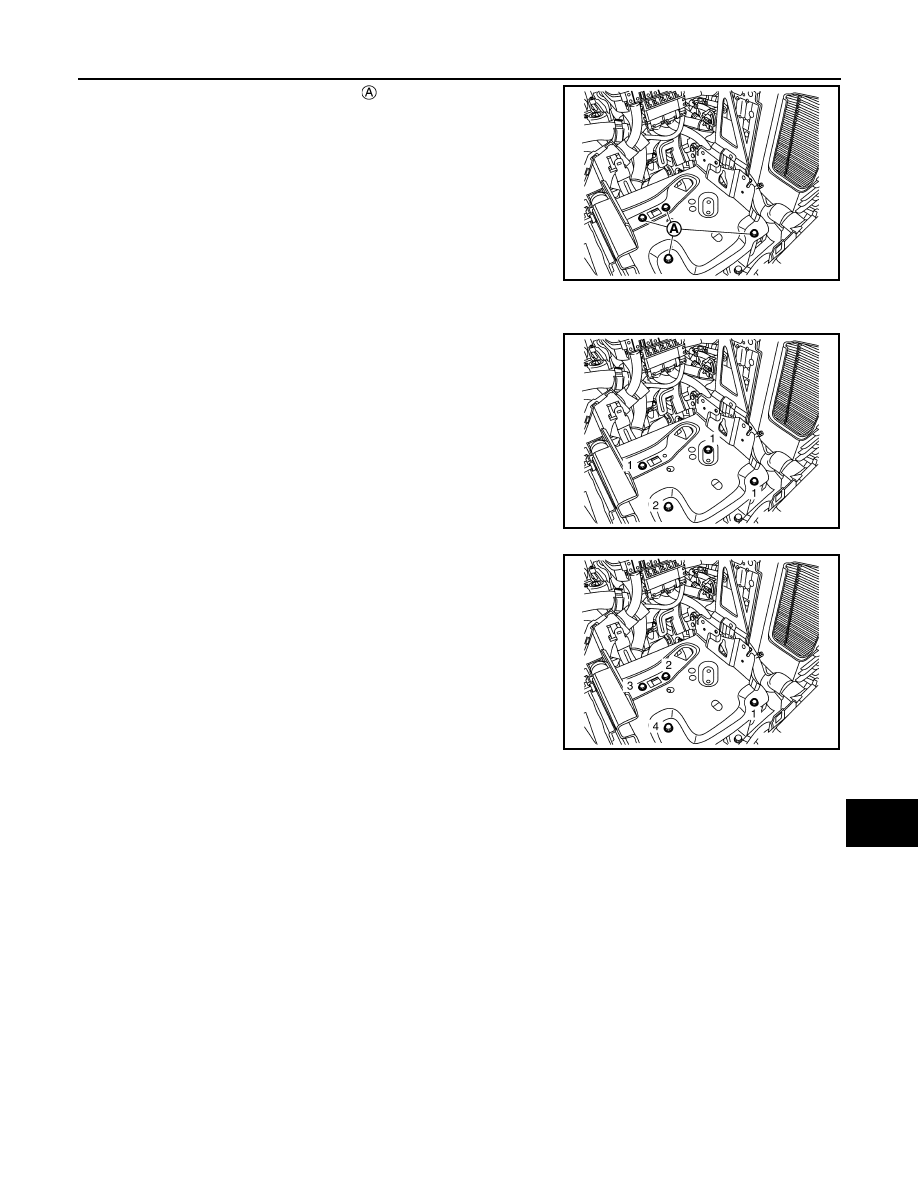

8.

Remove battery tray mounting bolts

.

INSTALLATION

1.

Install bolts to battery tray.
(MR20DD engine models)
• Temporarily tighten bolts 1.
• Tighten bolt 2 to the specified torque.
• Tighten bolts 1 to the specified torque.

(QR25DE engine models)
• Temporarily tighten bolt 1.
• Tighten bolts to the specified torque in the order of 2

→

3

→

4.

• Tighten bolt 1 to the specified torque.

2.

Install in the reverse order of removal.

JSMIA1728ZZ

JSMIA1776ZZ

JSMIA1777ZZ
