PG-126

< BASIC INSPECTION >

BATTERY INSPECTION

3.

Read load tester voltage when specified discharging current flows through battery for 15 seconds.

Is the voltage 9.6 V or more?

YES

>> Ready for use.

NO

>> GO TO 7.

7.

QUICK CHARGE

1.

Perform quick charge. Time required: 45 min. Refer to

PG-136, "Quick Charge"

.

2.

Perform capacity test.

>> GO TO 13.

8.

 QUICK CHARGE

1.

Perform quick charge. Refer to

PG-136, "Quick Charge"

.

2.

Perform capacity test.

>> GO TO 9.

9.

CAPACITY TEST

1.

Test using load tester.

2.

Check battery type and determine the specified current using the table.

Discharging Current (Load Tester)

46B24L/R

135

55B24L/R

55B24L(S)

50D23L/R

150

55D23L/R

180

80D23L/R

195

65D26L/R

80D26L/R

75D31L/R

210

95D31L/R

240

115D31L/R

025 [YUASA type code]

027 [YUASA type code]

285

110D26L/R

300

95E41L/R

067 [YUASA type code]

325

130E41L/R

330

096 [YUASA type code]

375

Type

Current (A)

Type

Current (A)

28B19L/R

90

34B19L/R

99

46B24L/R

135

55B24L/R

55B24L(S)

50D23L/R

150

55D23L/R

180

PG

BATTERY INSPECTION

PG-127

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

3.

Read load tester voltage when specified discharging current flows through battery for 15 seconds.

Is the voltage 9.6 V or more?

YES

>> Ready for use.

NO

>> GO TO 10.

10.

CHECKING SPECIFIC GRAVITY

1.

Check specific gravity. Refer to

PG-121, "EXCEPT FOR R9M : How to Handle Battery"

.

2.

Perform recharge. Refer to

PG-136, "Quick Charge"

.

NOTE:
If battery temperature rises above 55

°

C (131

°

F), stop charging. Always charge battery when its tempera-

ture is below 55

°

C (131

°

F).

3.

Perform capacity test.

>> GO TO 13.

11.

 STANDARD CHARGE

NOTE:
“STANDARD CHARGE” is recommended if the vehicle is in storage after charging.
1.

Perform standard charge. Refer to

PG-135, "Standard Charge"

.

2.

Perform capacity test.

>> GO TO 13.

12.

 SLOW CHARGE

1.

Perform slow charge. Refer to

PG-134, "Slow Charge"

.

2.

Perform capacity test.

>> GO TO 13.

13.

CAPACITY TEST

1.

Test using load tester.

2.

Check battery type and determine the specified current using the table.

Discharging Current (Load Tester)

80D23L/R

195

65D26L/R

80D26L/R

75D31L/R

210

95D31L/R

240

115D31L/R

025 [YUASA type code]

027 [YUASA type code]

285

110D26L/R

300

95E41L/R

067 [YUASA type code]

325

130E41L/R

330

096 [YUASA type code]

375

Type

Current (A)

Type

Current (A)

28B19L/R

90

34B19L/R

99

PG-128

< BASIC INSPECTION >

BATTERY INSPECTION

3.

Read load tester voltage when specified discharging current flows through battery for 15 seconds.

Is the voltage 9.6 V or more?

YES

>> Ready for use.

NO

>> Replace battery.

46B24L/R

135

55B24L/R

55B24L(S)

50D23L/R

150

55D23L/R

180

80D23L/R

195

65D26L/R

80D26L/R

75D31L/R

210

95D31L/R

240

115D31L/R

025 [YUASA type code]

027 [YUASA type code]

285

110D26L/R

300

95E41L/R

067 [YUASA type code]

325

130E41L/R

330

096 [YUASA type code]

375

Type

Current (A)

PG

FUSE INSPECTION

PG-129

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

FUSE INSPECTION

How To Check

INFOID:0000000010709231

• If fuse is blown, be sure to eliminate cause of malfunction before

installing new fuse.

• Use fuse of specified rating. Never use fuse of more than specified

rating.

• Do not partially install fuse; always insert it into fuse holder prop-

erly.

• Remove fuse for “ELECTRICAL PARTS (BAT)” if vehicle is not

used for a long period of time.

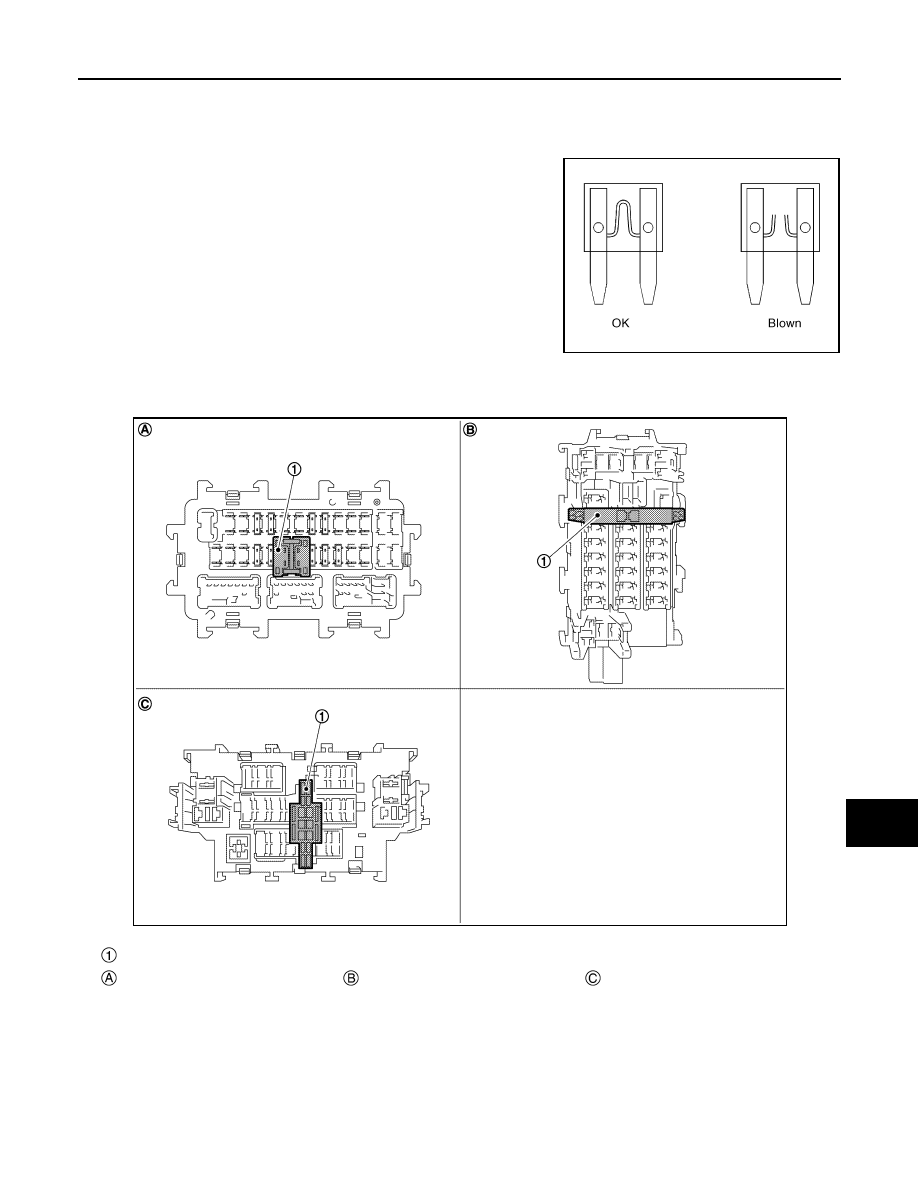

EXTENDED STORAGE FUSE SWITCH (IF EQUIPPED)

The following switch may be mounted on the fuse block (Junction Box) for transportation and storage.

Remove the extended storage fuse switch if it causes the interference when checking fuses.

How To Extended Storage Fuse Switch ON/OFF

CAUTION:

• Turn the ignition switch OFF when operating the extended storage fuse switch.
• Under normal conditions, keep the extended storage fuse switch in ON state. Never operate the

extended storage fuse switch except when necessary.

CEL083

Extended storage fuse switch

Type  A

Type  B

Type  C

JSMIA0793ZZ
