INSTRUMENT PANEL ASSEMBLY

IP-47

< REMOVAL AND INSTALLATION >

[RHD MODELS]

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

c.

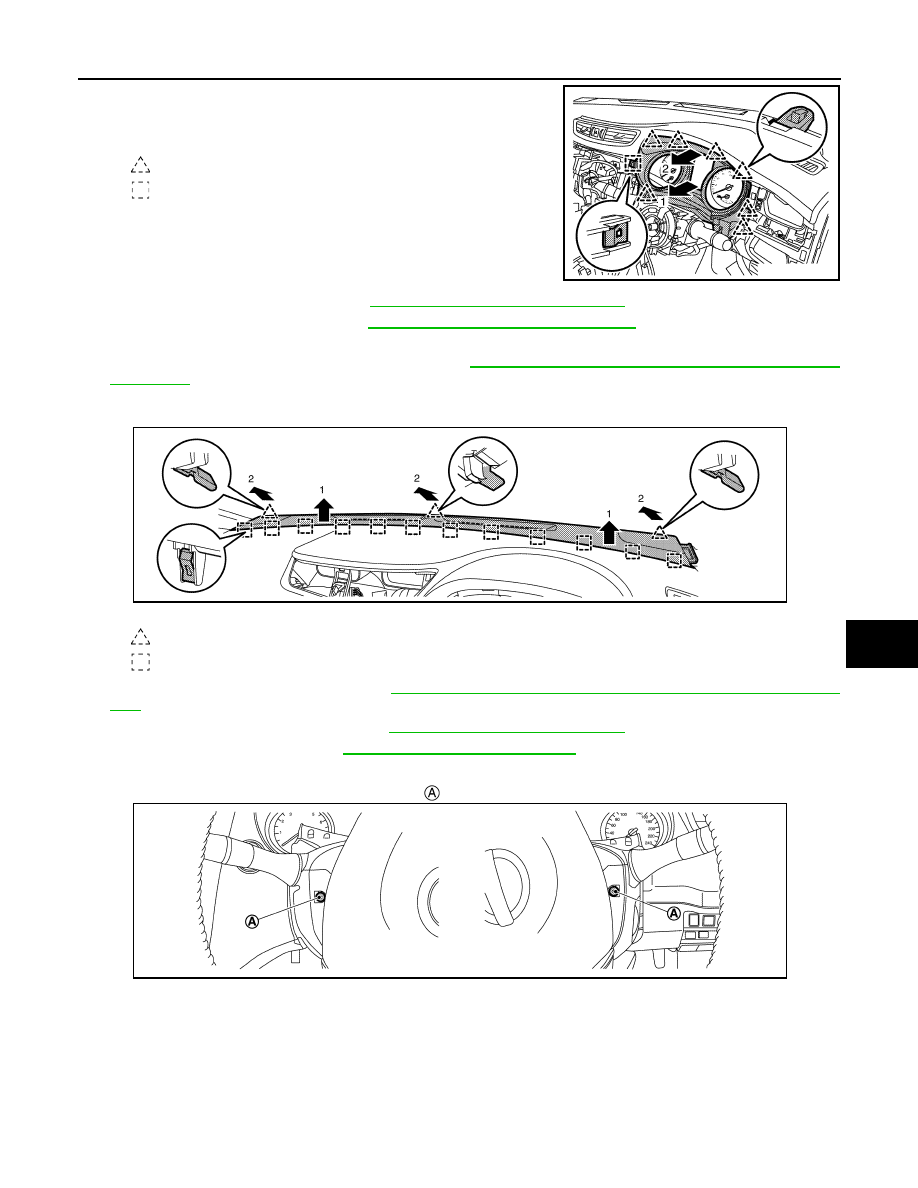

Disengage fixing pawls and metal clip, and then remove cluster
lid A according to numerical order 1

→

2 indicated by arrows as

shown in the figure.

21. Remove combination meter. Refer to

MWI-151, "Removal and Installation"

.

22. Remove sunload sensor. Refer to

HAC-129, "Removal and Installation"

 (AUTOMATIC AIR CONDI-

TIONER). (if equipped)

23. Remove front pillar garnish LH and RH. Refer to

INT-23, "FRONT PILLAR GARNISH : Removal and

Installation"

.

24. Disengage fixing pawls and metal clips, and then remove instrument garnish according to numerical order

1

→

2 indicated by arrows as shown in the figure.

25. Remove center ventilator grille. Refer to

VTL-8, "CENTER VENTILATOR GRILLE : Removal and Installa-

tion"

.

26. Remove driver air bag module. Refer to

SR-19, "Removal and Installation"

.

27. Remove steering wheel. Refer to

ST-12, "Removal and Installation"

.

28. Remove steering column cover.

a.

Remove steering column cover fixing screws

.

: Pawl

: Metal clip

JMJIA9755ZZ

: Pawl

: Metal clip

JMJIA9752ZZ

JMJIA9738ZZ

IP-48

< REMOVAL AND INSTALLATION >

[RHD MODELS]

INSTRUMENT PANEL ASSEMBLY

b.

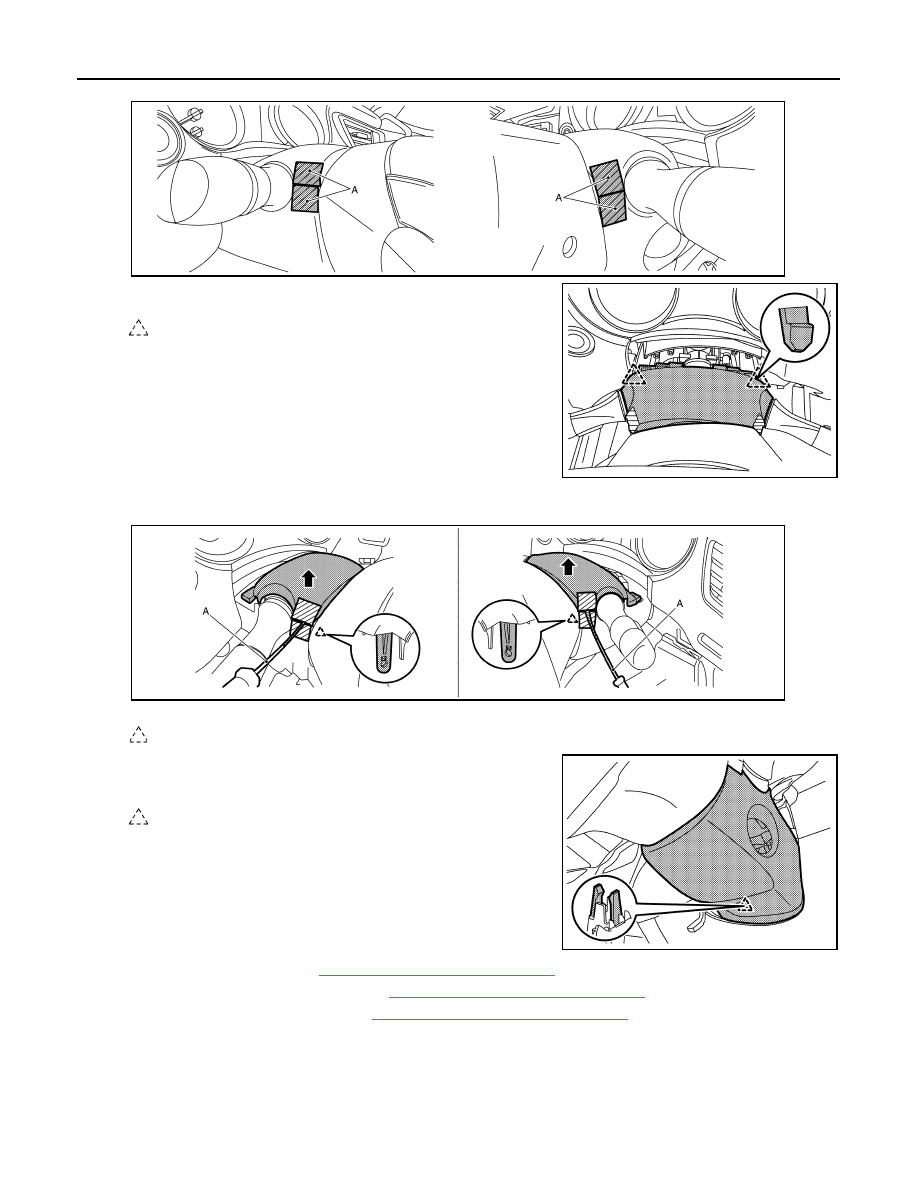

Apply protective tape (A) on the part to protect it from damage.

c.

Disengage fixing pawls from steering column cover front side.

d.

Disengage fixing pawls using a remover tool (A), and then remove steering column cover upper by arrow
as shown in the figure.

e.

Disengage fixing pawl, and then remove steering column cover
lower.

29. Remove spiral cable. Refer to

SR-23, "Removal and Installation"

.

30. Remove steering angle sensor. Refer to

BRC-222, "Removal and Installation"

.

31. Remove combination switch. Refer to

BCS-122, "Removal and Installation"

: Pawl

JMJIA9739ZZ

JMJIA9744ZZ

: Pawl

: Pawl

JMJIA9820ZZ

JMJIA9743ZZ

INSTRUMENT PANEL ASSEMBLY

IP-49

< REMOVAL AND INSTALLATION >

[RHD MODELS]

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

32. Remove passenger air bag module mounting bolts

.

33. Disconnect passenger air bag module harness connector

.

CAUTION:

• For installing/removing the passenger air bag module har-

ness connector, insert a thin screwdriver wrapped in tape
into notch, lift lock and remove the connector.

• Install the connector with lock raised, and push lock into

the connector.

• After installing the connector, check that the lock is

pushed securely into it.

34. Remove instrument panel assembly.

a.

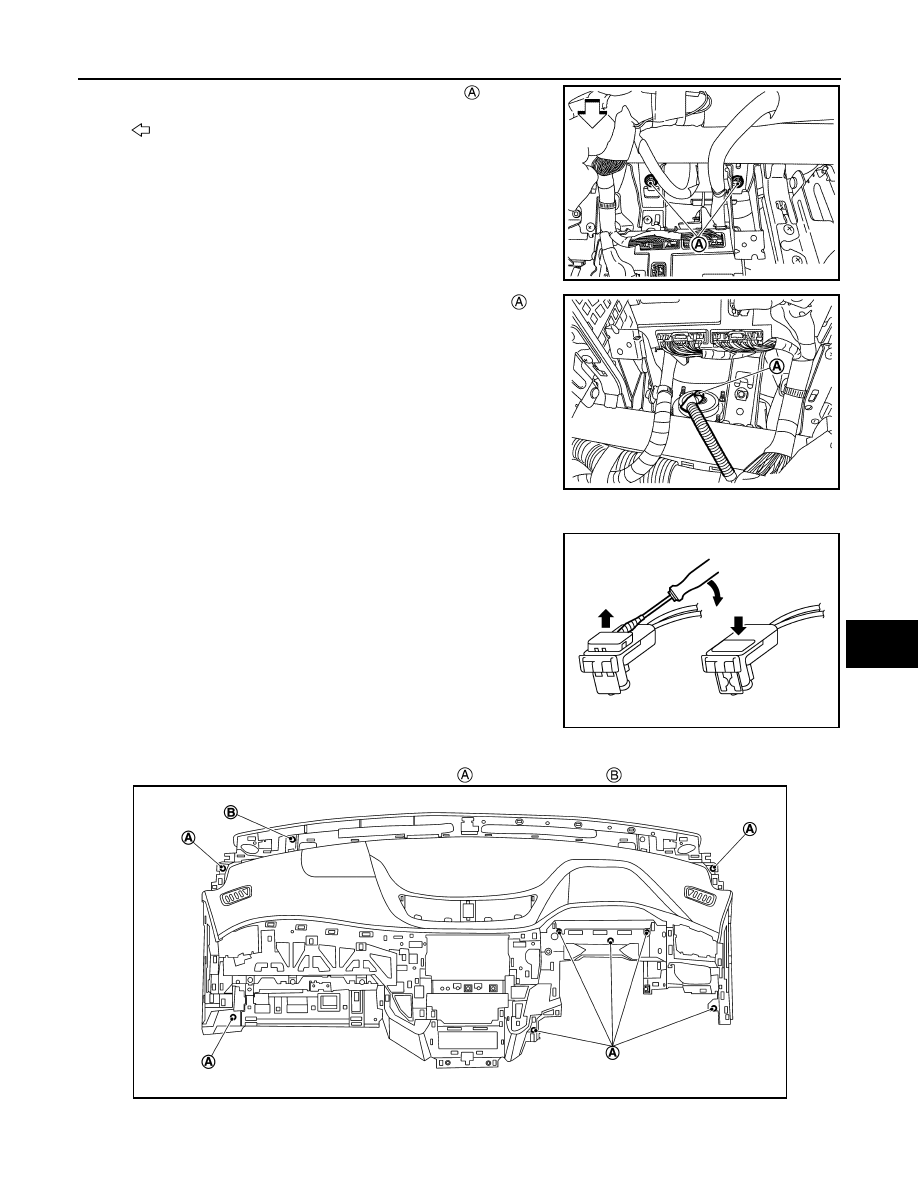

Remove instrument panel assembly fixing screws

 and mounting bolt

.

: Vehicle front

JMJIA9626ZZ

JMJIA9627ZZ

PHIA0953J

JMJIA9778ZZ

IP-50

< REMOVAL AND INSTALLATION >

[RHD MODELS]

INSTRUMENT PANEL ASSEMBLY

b.

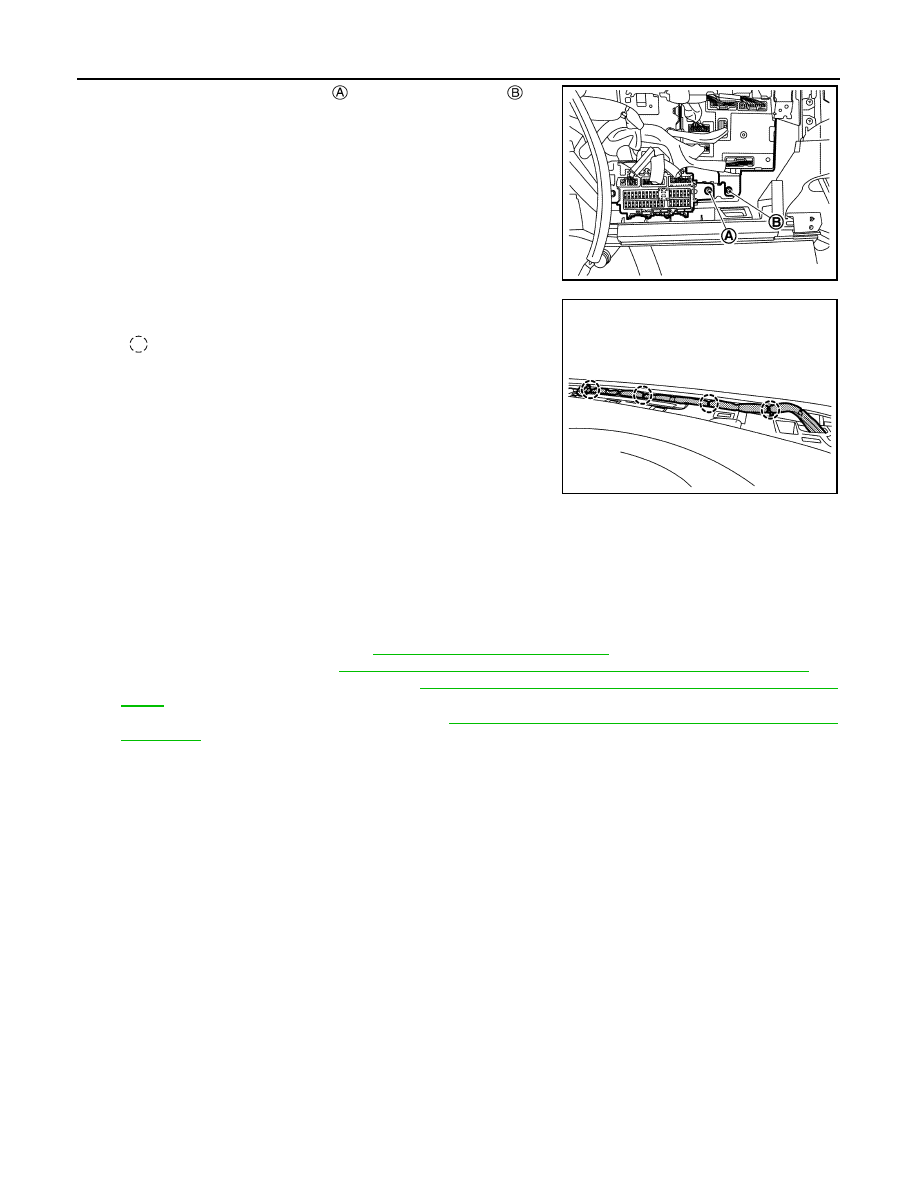

Remove fuse block fixing screw

 and BCM fixing screw

.

c.

Disengage sunload sensor harness fixing clips. (if equipped)

d.

Disconnect harness connectors of front pillar LH and RH portions.

e.

Disengage harness fixing clips and remove harness from instrument panel assembly.

f.

Remove instrument panel assembly from passenger door opening portion.

CAUTION:

• Cover shift selector upper surface with a shop cloth to prevent it from being damaged.
• When removing instrument panel assembly, 2 workers are required to prevent it from dropping.

35. Remove the following parts after removing instrument panel assembly.

• Passenger air bag module: Refer to

SR-26, "Removal and Installation"

.

• Center ventilator duct: Refer to

VTL-10, "CENTER VENTILATOR DUCT : Removal and Installation"

.

• Side defroster grille (LH and RH): Refer to

VTL-12, "SIDE DEFROSTER GRILLE : Removal and Instal-

lation"

.

• Side defroster nozzle (LH and RH): Refer to

VTL-11, "SIDE DEFROSTER NOZZLE : Removal and

Installation"

.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Never reuse the steering wheel mounting bolt after removal, replace with the new bolt.
• Never reuse the passenger air bag module mounting bolts after removal, replace with the new bolts.

JMJIA9784ZZ

: Clip

JMJIA9785ZZ
