CONDENSER

HA-175

< REMOVAL AND INSTALLATION >

[R9M (FOR RUSSIA)]

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

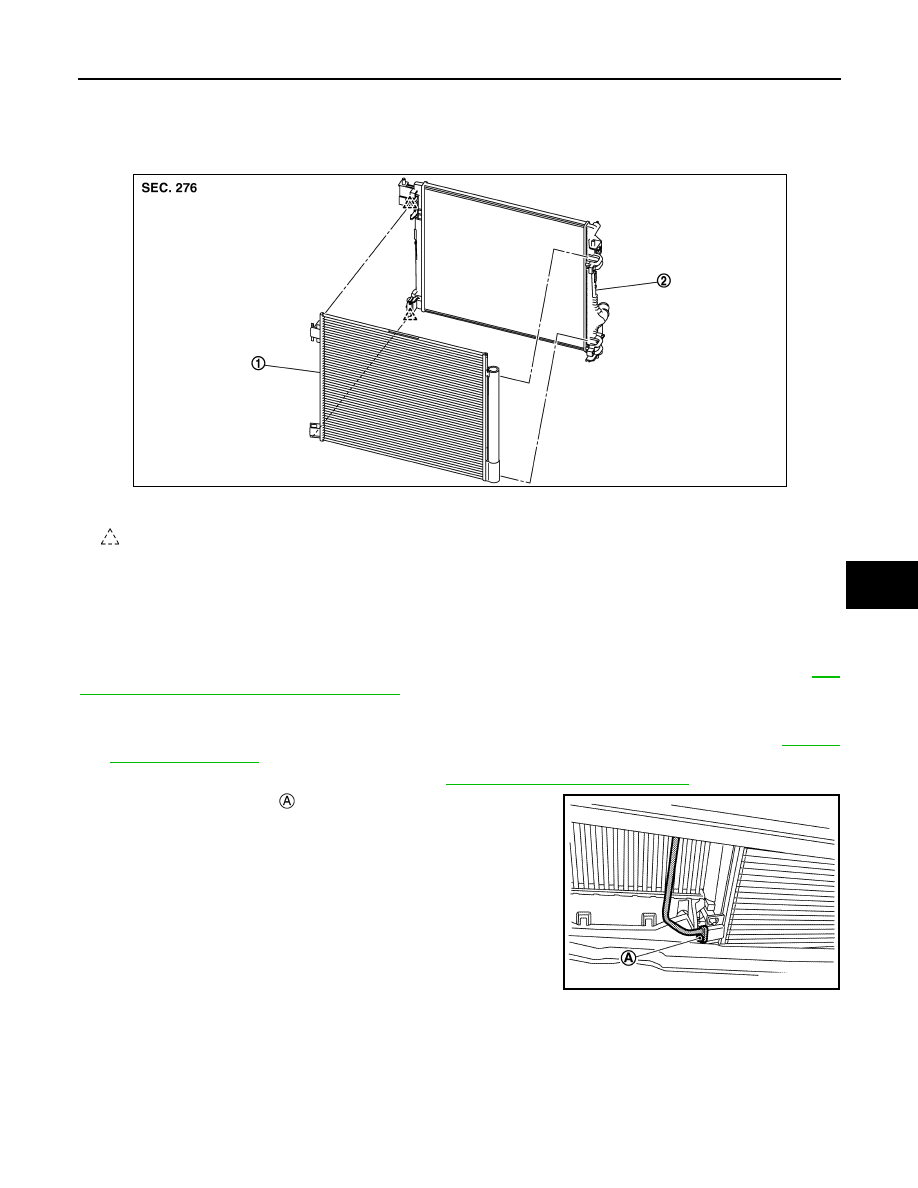

CONDENSER

Exploded View

INFOID:0000000011007759

CONDENSER

CONDENSER : Removal and Installation

INFOID:0000000011007760

CAUTION:

Perform lubricant return operation before each refrigeration system disassembly. However, if a large
amount of refrigerant or lubricant is detected, never perform lubricant return operation. Refer to

HA-

159, "Perform Lubricant Return Operation"

.

REMOVAL

1.

Use a refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant. Refer to

HA-157,

"Recycle Refrigerant"

.

2.

Remove front bumper fascia assembly. Refer to

EXT-15, "Removal and Installation"

.

3.

Remove mounting bolt

, and then disconnect high-pressure

pipe 1 from the condenser & liquid tank assembly.

CAUTION:

Cap or wrap the joint of the A/C piping and condenser with
suitable material such as vinyl tape to avoid the entry of air.

1.

Condenser & liquid tank assembly

2.

Radiator

: Pawl

JMIIA3533ZZ

JMIIA3743ZZ

HA-176

< REMOVAL AND INSTALLATION >

[R9M (FOR RUSSIA)]

CONDENSER

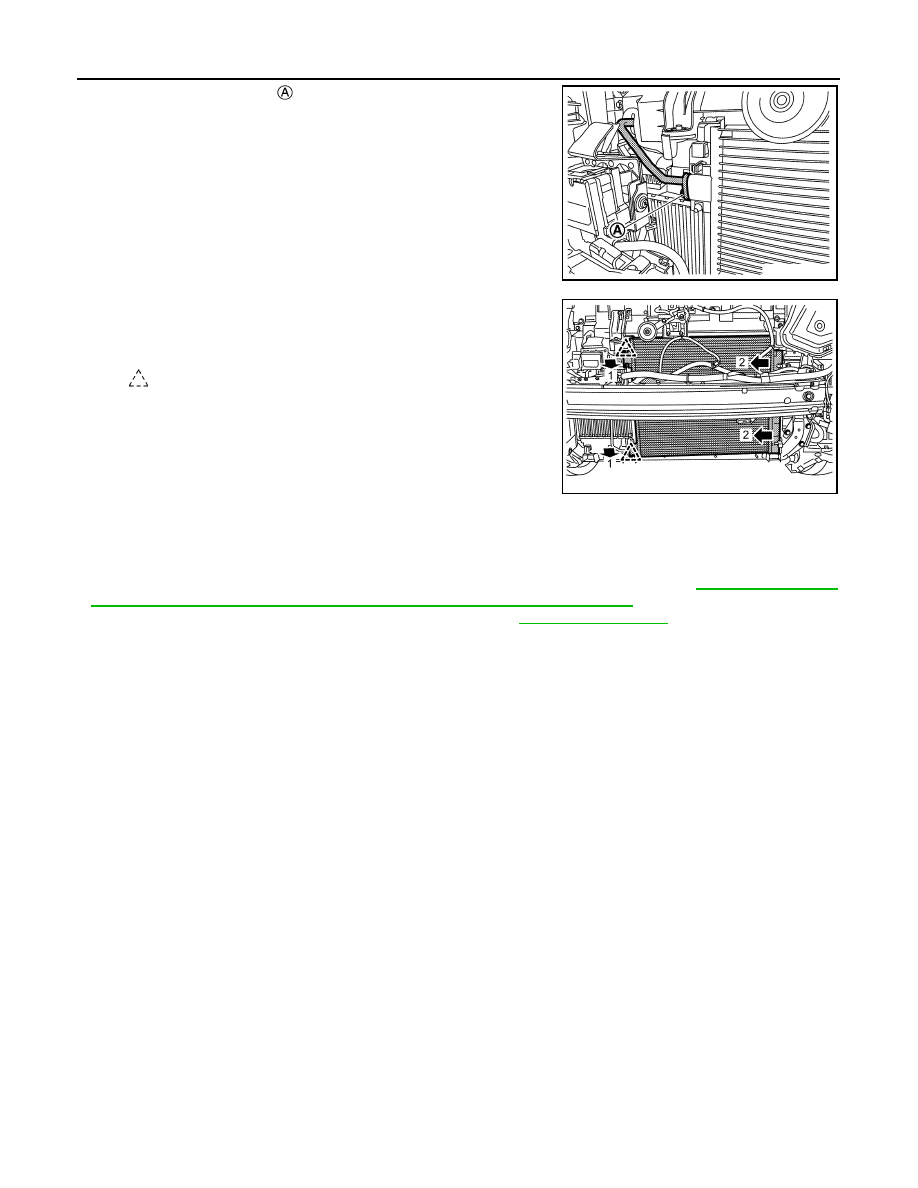

4.

Remove mounting bolt

, and then disconnect high-pressure

pipe 2 from the condenser & liquid tank assembly.

CAUTION:

Cap or wrap the joint of the A/C piping and condenser with
suitable material such as vinyl tape to avoid the entry of air.

5.

Disengage fixing pawls, and then remove the condenser from
the vehicle according to numerical order 1

→

2 indicated by

arrows as shown in the figure.

CAUTION:

Never damage core surface of condenser.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Replace O-rings with new ones. Then apply compressor oil to them when installing.
• Perform lubricant adjusting procedure before installing new condenser. Refer to

HA-159, "Lubricant

Adjusting Procedure for Components Replacement Except Compressor"

.

• Check for leakages when recharging refrigerant. Refer to

HA-155, "Leak Test"

.

JMIIA3742ZZ

: Pawl

JMIIA3744ZZ

A/C UNIT ASSEMBLY

HA-177

< REMOVAL AND INSTALLATION >

[R9M (FOR RUSSIA)]

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

A/C UNIT ASSEMBLY

Exploded View

INFOID:0000000011007761

REMOVAL

DISASSEMBLY

1.

Cap

2.

Steering member

3.

Instrument stay LH

4.

Instrument stay RH

5.

A/C unit assembly

6.

Drain hose

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

JMIIA3519GB

HA-178

< REMOVAL AND INSTALLATION >

[R9M (FOR RUSSIA)]

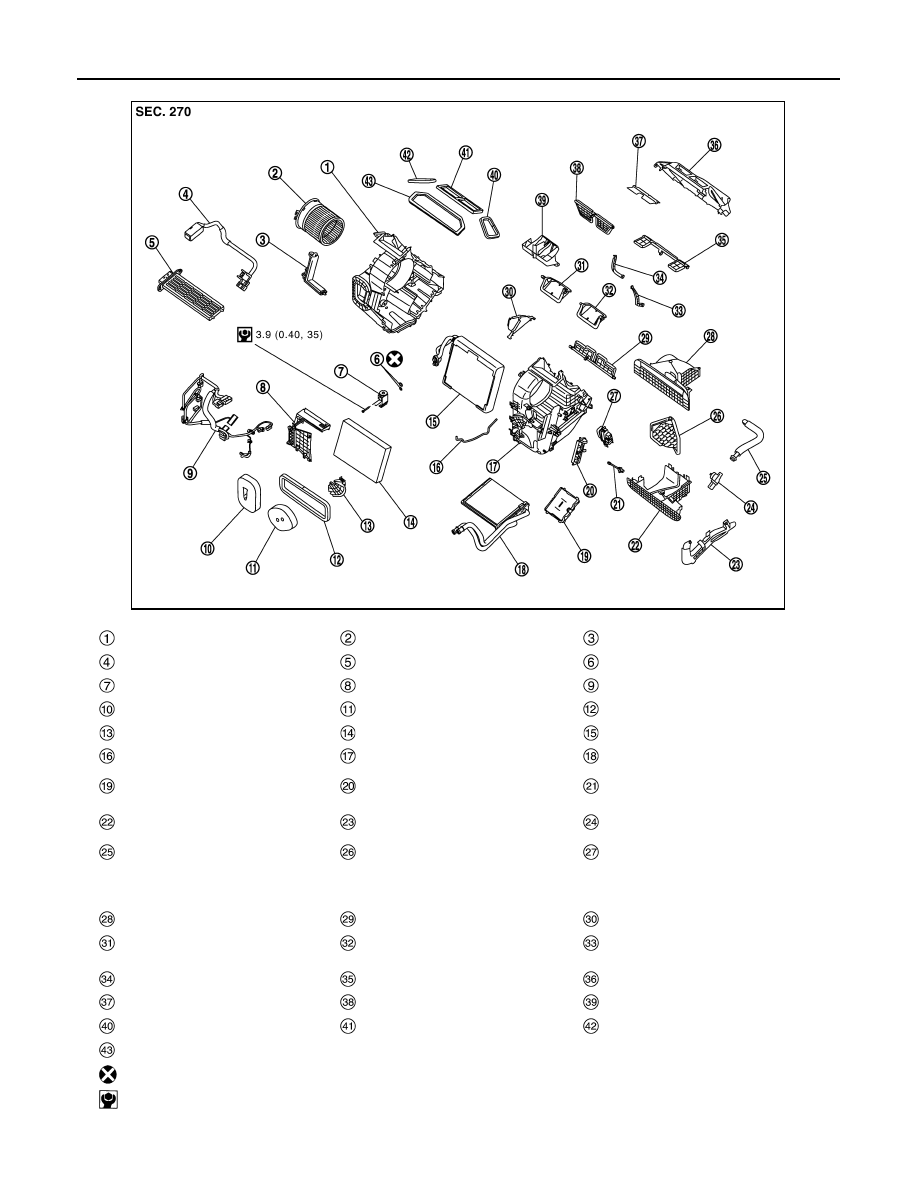

A/C UNIT ASSEMBLY

A/C UNIT ASSEMBLY

A/C unit case RH

Blower motor assembly

Filter cover RH

Sub harness

PTC heater

O-ring

Expansion valve

Main case center

Sub harness

Cooler packing

Heater pipe packing

Intake packing

Heater pipe clamp

Air conditioner filter

Evaporator assembly

Case packing

A/C unit case LH

Heater core

A/C auto amp.
(automatic air conditioning)

Filter cover LH

Intake sensor

Intake box case lower

Heater pipe cover

Aspirator
(automatic air conditioning)

Aspirator duct
(automatic air conditioning)

Intake door

Power transistor
(automatic air conditioning)
Fan control amplifier
(manual air conditioning)

Intake box case upper

Foot door

Plate case center

Air mix door RH

Air mix door LH

Center ventilator door·center ventila-
tor & defroster door rod

Foot door & mode door rod

Side ventilator door

Main case rear

Mode door

Center ventilator & defroster door

Air guide case

Side ventilator packing LH

Center ventilator packing

Side ventilator packing RH

Defroster packing

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

JMIIA3520GB
