GW-58

< REMOVAL AND INSTALLATION >

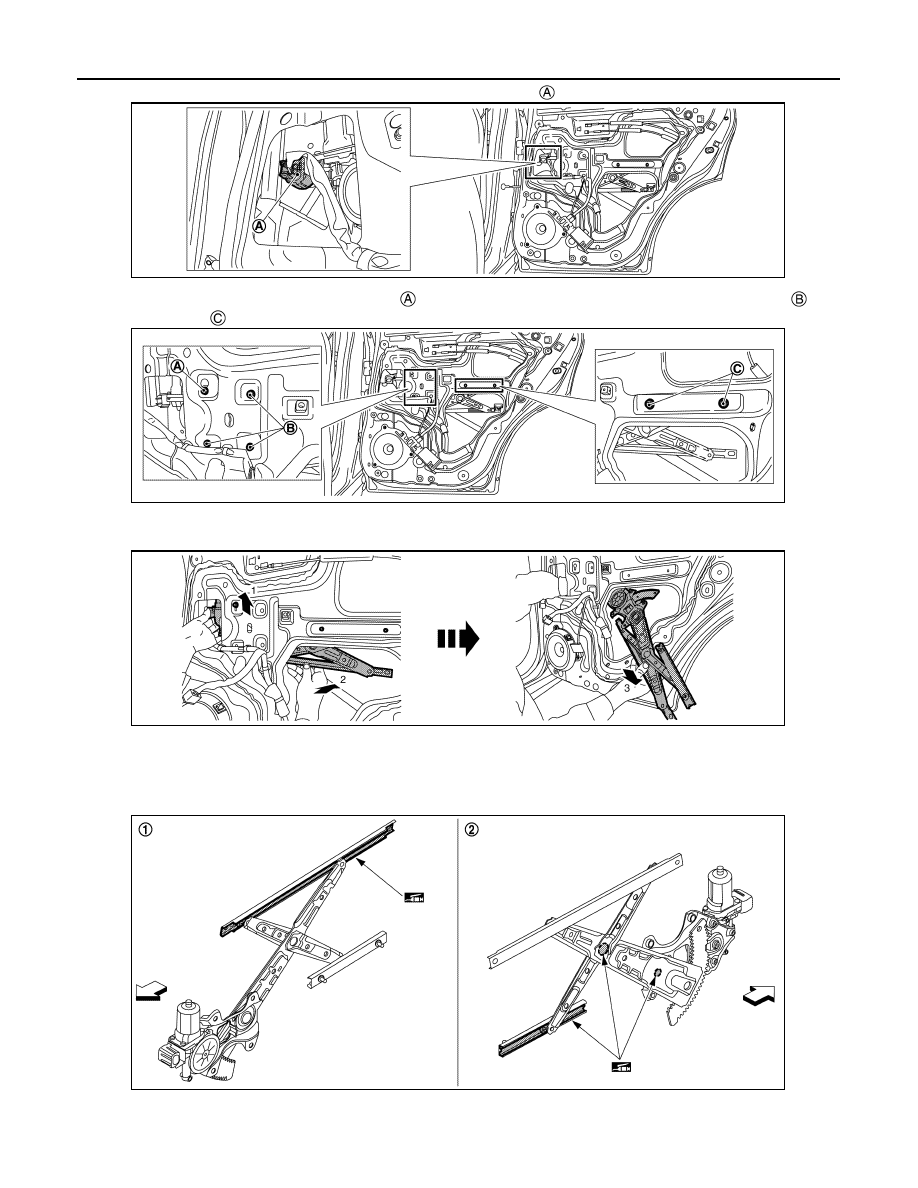

REAR DOOR REGULATOR

2.

Disconnect rear door power window motor harness connector

.

3.

Loosen rear door regulator mounting bolt

, and then remove rear door regulator mounting bolts

 and

mounting nuts

.

4.

Remove rear door regulator according to numerical order 1

→

3 indicated by the arrows as shown in the

figure.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Check rear door regulator parts for lubrication. If necessary, apply body grease.

JMKIB3174ZZ

JMKIB3175ZZ

JMKIB3176ZZ

JMKIB3204ZZ

REAR DOOR REGULATOR

GW-59

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

• Tighten rear door regulator mounting bolts and nuts to the specified torque. Refer to

GW-57,

"Exploded View"

.

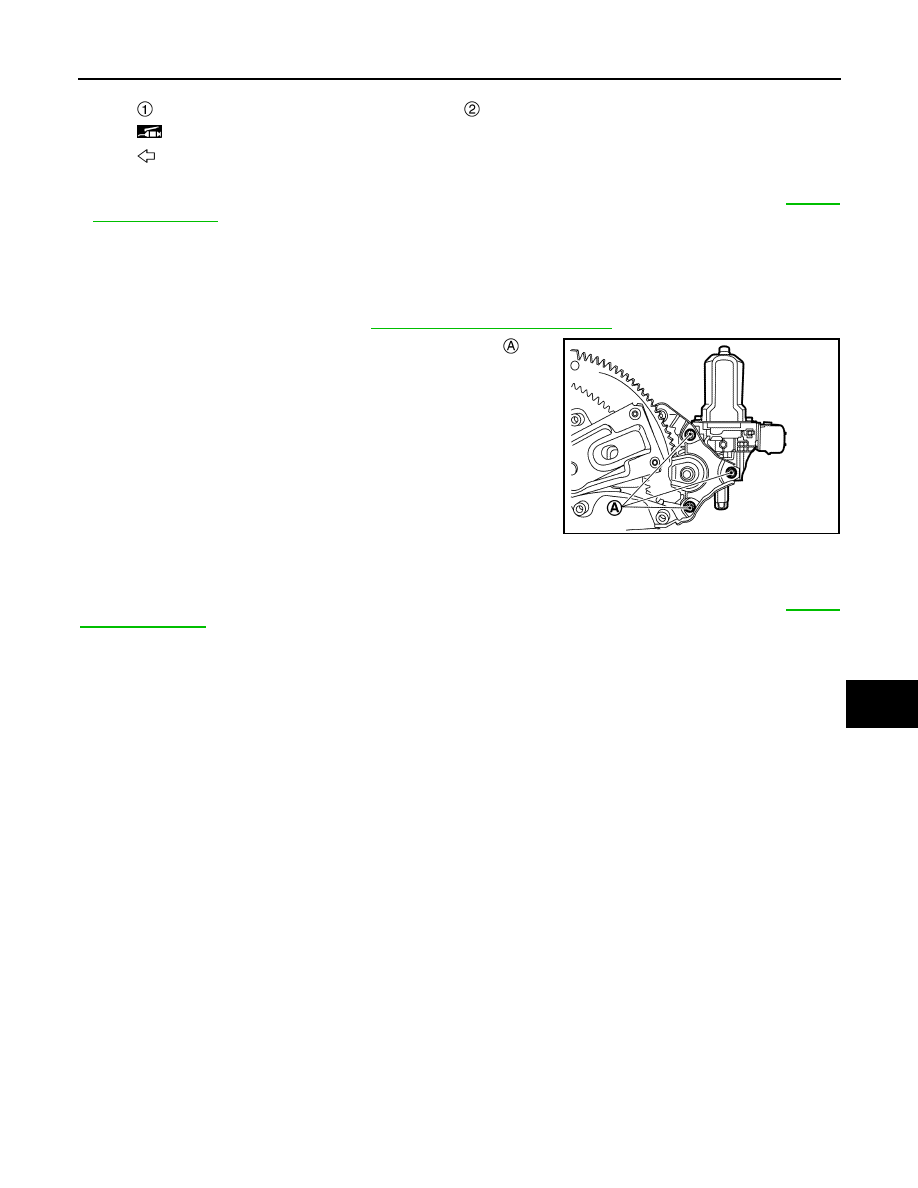

Disassembly and Assembly

INFOID:0000000010755124

DISASSEMBLY

1.

Remove rear door regulator. Refer to

GW-57, "Removal and Installation"

.

2.

Remove rear door power window motor mounting bolts

, and

then remove rear door power window motor.

ASSEMBLY

Note the following item, and then assemble in the reverse order of disassembly.

CAUTION:

Tighten rear door power window motor mounting bolts to the specified torque. Refer to

GW-57,

"Exploded View"

.

Inspection and Adjustment

INFOID:0000000010755125

FITTING INSPECTION

• Check that the glass is fit securely into the sash groove.
• Lower the glass slightly [approximately 10 to 20 mm (0.394 to 0.787 in)], and check that the clearance to the

sash is parallel. Loosen the regulator mounting bolts, guide rail mounting bolts, and glass and guide rail
mounting bolts to correct the glass position if the clearance between the glass and sash is not parallel.

Door finisher side

Door panel side

: Body grease

: Vehicle front

JMKIB3177ZZ

HA-1

VENTILATION, HEATER & AIR CONDITIONER

C

D

E

F

G

H

J

K

L

M

SECTION

HA

A

B

HA

N

O

P

CONTENTS

HEATER & AIR CONDITIONING SYSTEM

R9M (EXCEPT FOR RUSSIA)

PRECAUTION ...............................................

6

PRECAUTIONS ...................................................

6

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

6

Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect .....................................

6

Precaution for Procedure without Cowl Top Cover

......

7

Precautions for Removing Battery Terminal  .............

7

Precautions For Refrigerant System Service  ............

8

Service Equipment  ..................................................

10

PREPARATION ...........................................

12

PREPARATION ..................................................

12

Commercial Service Tools .....................................

12

Sealant or/and Lubricant  .........................................

13

SYSTEM DESCRIPTION  .............................

15

COMPONENT PARTS  .......................................

15

Component Parts Location ......................................

15

SYSTEM .............................................................

16

System Diagram ......................................................

16

System Description  .................................................

16

BASIC INSPECTION  ...................................

17

DIAGNOSIS AND REPAIR WORKFLOW  .........

17

Work Flow  ...............................................................

17

REFRIGERANT ..................................................

19

Description ..............................................................

19

Leak Test  ................................................................

19

Recycle Refrigerant .................................................

20

Charge Refrigerant ..................................................

21

LUBRICANT .......................................................

22

Description ..............................................................

22

Inspection ................................................................

22

Perform Lubricant Return Operation  .......................

22

Lubricant Adjusting Procedure for Components
Replacement Except Compressor ...........................

22

Lubricant Adjusting Procedure for Compressor
Replacement ...........................................................

23

PERFORMANCE TEST  ....................................

25

Inspection ................................................................

25

SYMPTOM DIAGNOSIS  ..............................

27

REFRIGERATION SYSTEM SYMPTOMS ........

27

Trouble Diagnosis For Unusual Pressure ................

27

Symptom Table  .......................................................

27

NOISE ................................................................

29

Symptom Table  .......................................................

29

REMOVAL AND INSTALLATION  ...............

30

COMPRESSOR .................................................

30

Exploded View .........................................................

30

Removal and Installation  .........................................

30

Inspection ................................................................

31

COOLER PIPE AND HOSE  ..............................

32

Exploded View .........................................................

32

HIGH-PRESSURE FLEXIBLE HOSE  ........................

32

HIGH-PRESSURE FLEXIBLE HOSE : Removal
and Installation  ........................................................

32

LOW-PRESSURE FLEXIBLE HOSE .........................

33

LOW-PRESSURE FLEXIBLE HOSE : Removal
and Installation  ........................................................

33

INTERNAL HEAT EXCHANGER PIPE  .....................

34

INTERNAL HEAT EXCHANGER PIPE : Removal
and Installation  ........................................................

34

HIGH-PRESSURE PIPE 1  .........................................

35

HA-2

HIGH-PRESSURE PIPE 1 : Removal and Installa-
tion ..........................................................................

35

HIGH-PRESSURE PIPE 2 .........................................

36

HIGH-PRESSURE PIPE 2 : Removal and Installa-
tion ..........................................................................

36

REFRIGERANT PRESSURE SENSOR ....................

36

REFRIGERANT PRESSURE SENSOR : Remov-
al and Installation ....................................................

36

CONDENSER ....................................................

38

Exploded View  ........................................................

38

CONDENSER ............................................................

38

CONDENSER : Removal and Installation  ..............

38

A/C UNIT ASSEMBLY .......................................

40

Exploded View  ........................................................

40

A/C UNIT ASSEMBLY  ..............................................

42

A/C UNIT ASSEMBLY : Removal and Installation ...

43

EVAPORATOR .........................................................

45

EVAPORATOR : Removal and Installation  ............

45

HEATER CORE .........................................................

46

HEATER CORE : Removal and Installation  ...........

46

EXPANSION VALVE .................................................

46

EXPANSION VALVE : Removal and Installation ....

47

SERVICE DATA AND SPECIFICATIONS
(SDS) ...........................................................

48

SERVICE DATA AND SPECIFICATIONS
(SDS) ..................................................................

48

Compressor ............................................................

48

Lubricant .................................................................

48

Refrigerant ..............................................................

48

Engine Idling Speed  ...............................................

48

Belt Tension ............................................................

48

MR20DD

PRECAUTION .............................................

49

PRECAUTIONS  .................................................

49

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................

49

Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect  ..................................

49

Precaution for Procedure without Cowl Top Cover ...

50

Precautions for Removing Battery Terminal  ...........

50

Precautions For Refrigerant System Service ..........

51

Service Equipment  .................................................

54

PREPARATION ...........................................

56

PREPARATION  .................................................

56

Special Service Tool  ...............................................

56

Commercial Service Tools ....................................

57

Sealant or/and Lubricant .........................................

58

SYSTEM DESCRIPTION  ...........................

60

COMPONENT PARTS .......................................

60

Component Parts Location  .....................................

60

SYSTEM ............................................................

61

System Diagram  .....................................................

61

System Description  .................................................

61

BASIC INSPECTION ..................................

62

DIAGNOSIS AND REPAIR WORKFLOW .........

62

Work Flow  ...............................................................

62

REFRIGERANT .................................................

64

Description ..............................................................

64

Leak Test  ................................................................

64

Recycle Refrigerant  ................................................

66

Charge Refrigerant  .................................................

66

LUBRICANT ......................................................

68

Description ..............................................................

68

Inspection ................................................................

68

Perform Lubricant Return Operation .......................

68

Lubricant Adjusting Procedure for Components
Replacement Except Compressor  ..........................

68

Lubricant Adjusting Procedure for Compressor
Replacement ...........................................................

69

PERFORMANCE TEST .....................................

71

Inspection ................................................................

71

SYMPTOM DIAGNOSIS  ............................

73

REFRIGERATION SYSTEM SYMPTOMS  ........

73

Trouble Diagnosis For Unusual Pressure  ...............

73

Symptom Table .......................................................

73

NOISE ................................................................

75

Symptom Table .......................................................

75

REMOVAL AND INSTALLATION ..............

76

COMPRESSOR  .................................................

76

Exploded View  ........................................................

76

Removal and Installation .........................................

76

Inspection ................................................................

77

COOLER PIPE AND HOSE ...............................

78

Exploded View  ........................................................

78

LOW-PRESSURE FLEXIBLE HOSE ........................

78

LOW-PRESSURE FLEXIBLE HOSE : Removal
and Installation ........................................................

78

HIGH-PRESSURE FLEXIBLE HOSE .......................

80

HIGH-PRESSURE FLEXIBLE HOSE : Removal
and Installation ........................................................

80

HIGH-PRESSURE PIPE  ............................................

81
