FRONT DOOR GLASS

3.

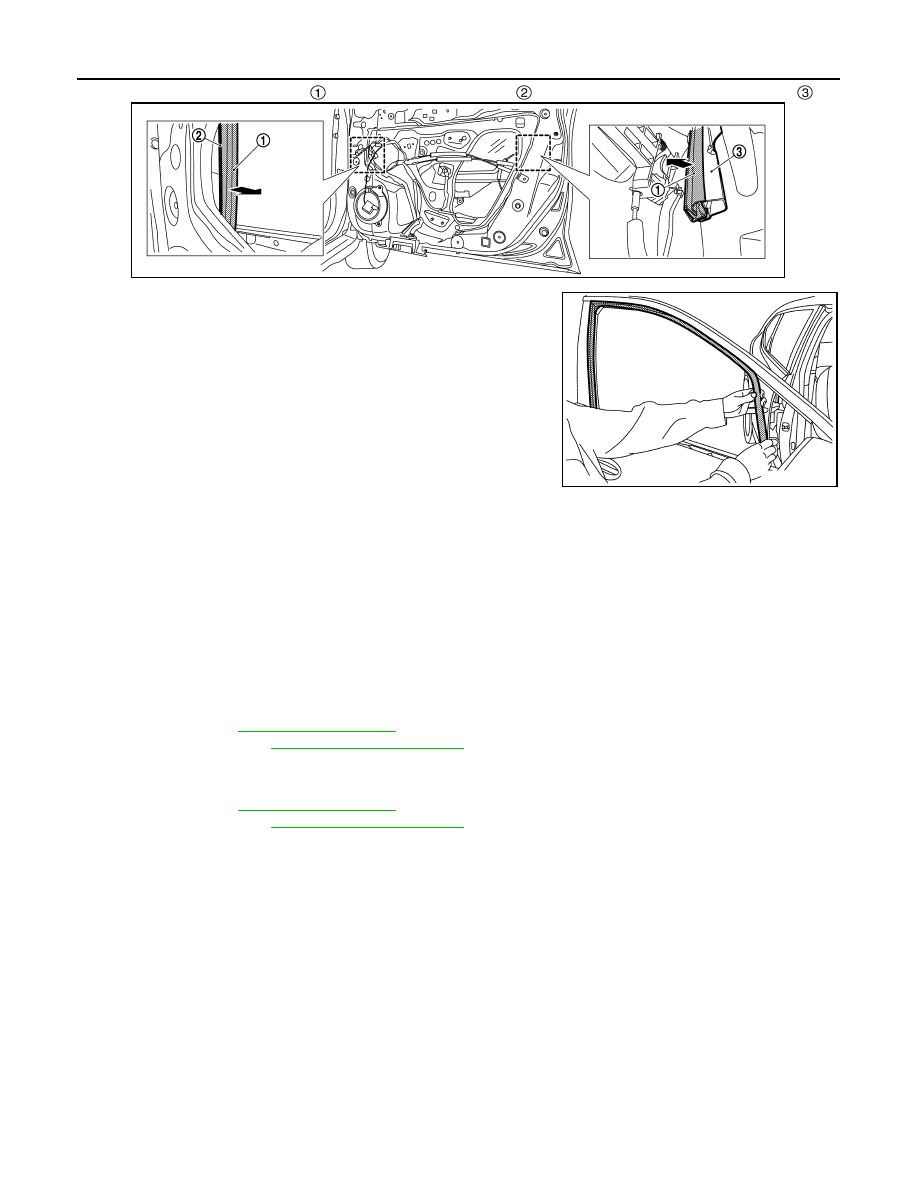

Remove front door glass run

 from front door lower sash

 and front door sash (door panel side)

.

4.

Remove front door glass run from front door panel.

CAUTION:

Front door glass run should be pulled out slowly.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Make sure that front door glass run are engaged to front door lower sash and front door sash (door

panel side).

• To prevent trouble, make sure front door glass run needs to engaged to front door lower sash and

front door sash (door panel side).

Inspection and Adjustment

INFOID:0000000010755111

SYSTEM INITIALIZATION

• Description. Refer to

PWC-33, "Description"

.

• Work procedure. Refer to

PWC-33, "Work Procedure"

.

CHECK ANTI-PINCH FUNCTION

• Description. Refer to

PWC-34, "Description"

.

• Work procedure. Refer to

PWC-34, "Work Procedure"

.

FITTING INSPECTION

• Check that front door glass is fit securely into the sash groove.
• Lower front door glass slightly [approximately 10 to 20 mm (0.394 to 0.787 in)], and check that the clearance

to the sash is parallel. Loosen the regulator mounting bolts, guide rail mounting bolts, and glass and guide
rail mounting bolts to correct the glass position if the clearance between the glass and sash is not parallel.

JMKIB3140ZZ

JMKIB3141ZZ

FRONT DOOR REGULATOR

GW-47

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

FRONT DOOR REGULATOR

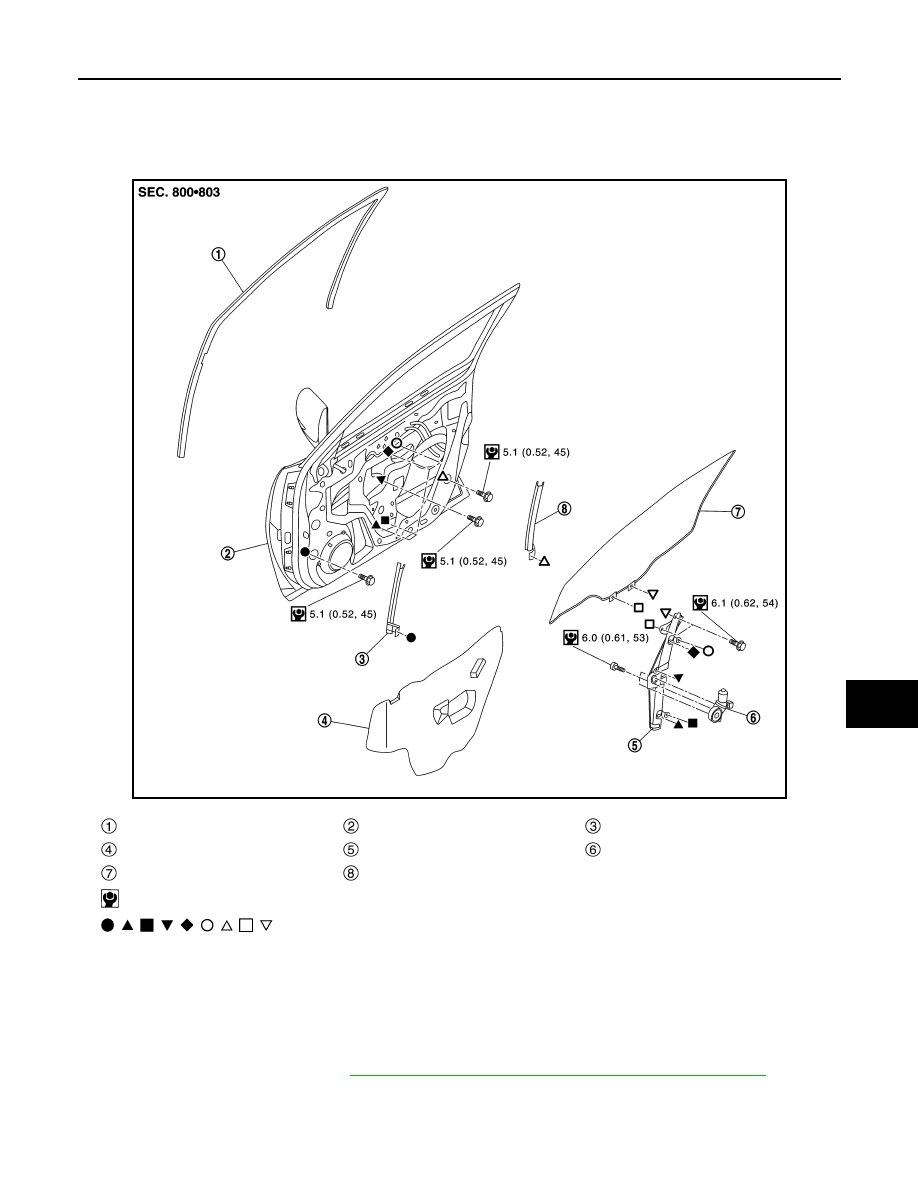

Exploded View

INFOID:0000000010755112

RHD models

Removal and Installation

INFOID:0000000010755113

REMOVAL

CAUTION:

Never damage front door glass and front door panel.
1.

Remove front door glass. Refer to

GW-38, "FRONT DOOR GLASS : Removal and Installation"

.

JMKIB3180GB

Front door glass run

Front door panel

Front door lower sash

Front door sealing screen

Front door regulator

Front door power window motor

Front door glass

Front door glass run lower sash

: N·m (kg-m, in-lb)

,

,

,

,

,

,

,

,

: Indicates that the part is connected at points with same symbol in actual vehicle.

GW-48

< REMOVAL AND INSTALLATION >

FRONT DOOR REGULATOR

2.

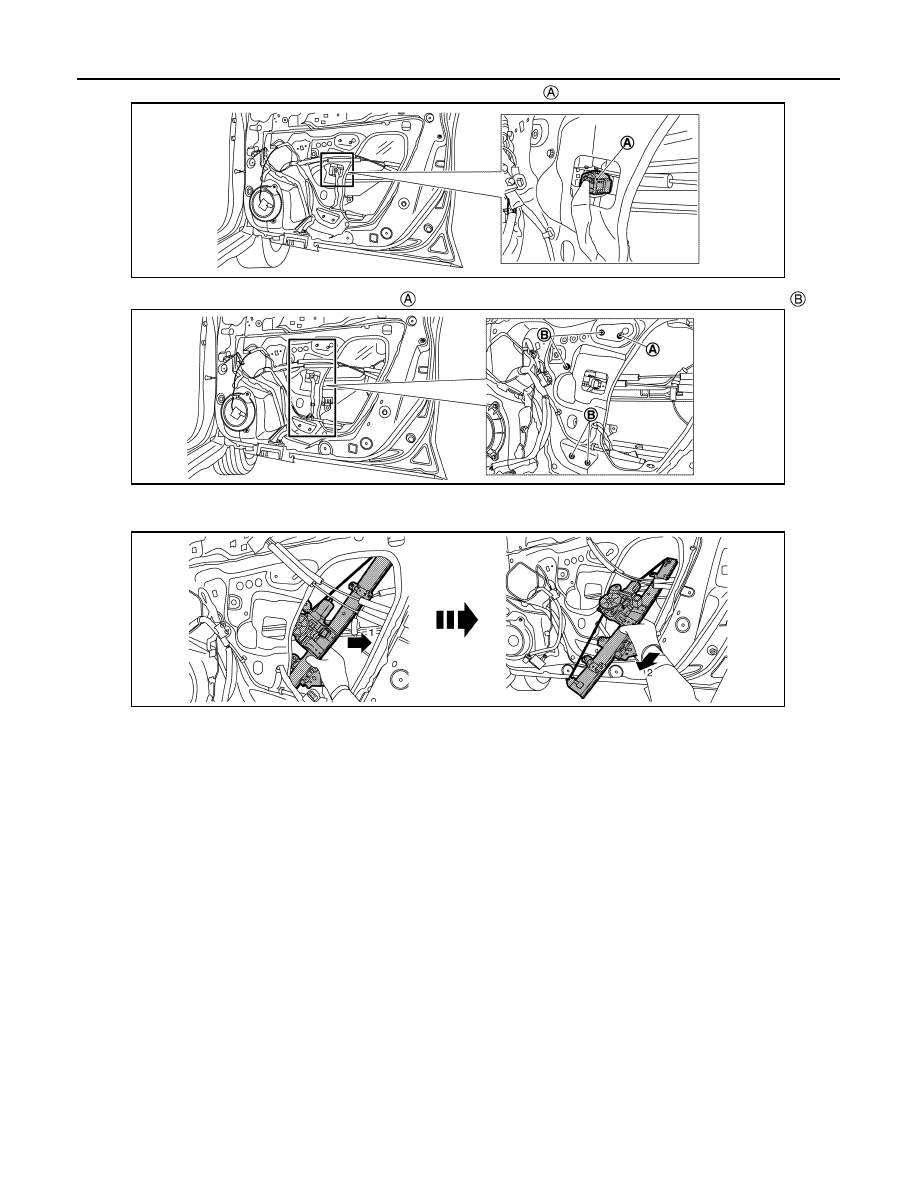

Disconnect front door power window motor harness connector

.

3.

Loosen front door regulator mounting bolt

, and then remove front door regulator mounting bolts

.

4.

Remove front door regulator according to numerical order 1

→

2 indicated by the arrows as shown in the

figure.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

JMKIB3143ZZ

JMKIB3144ZZ

JMKIB3145ZZ

FRONT DOOR REGULATOR

GW-49

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

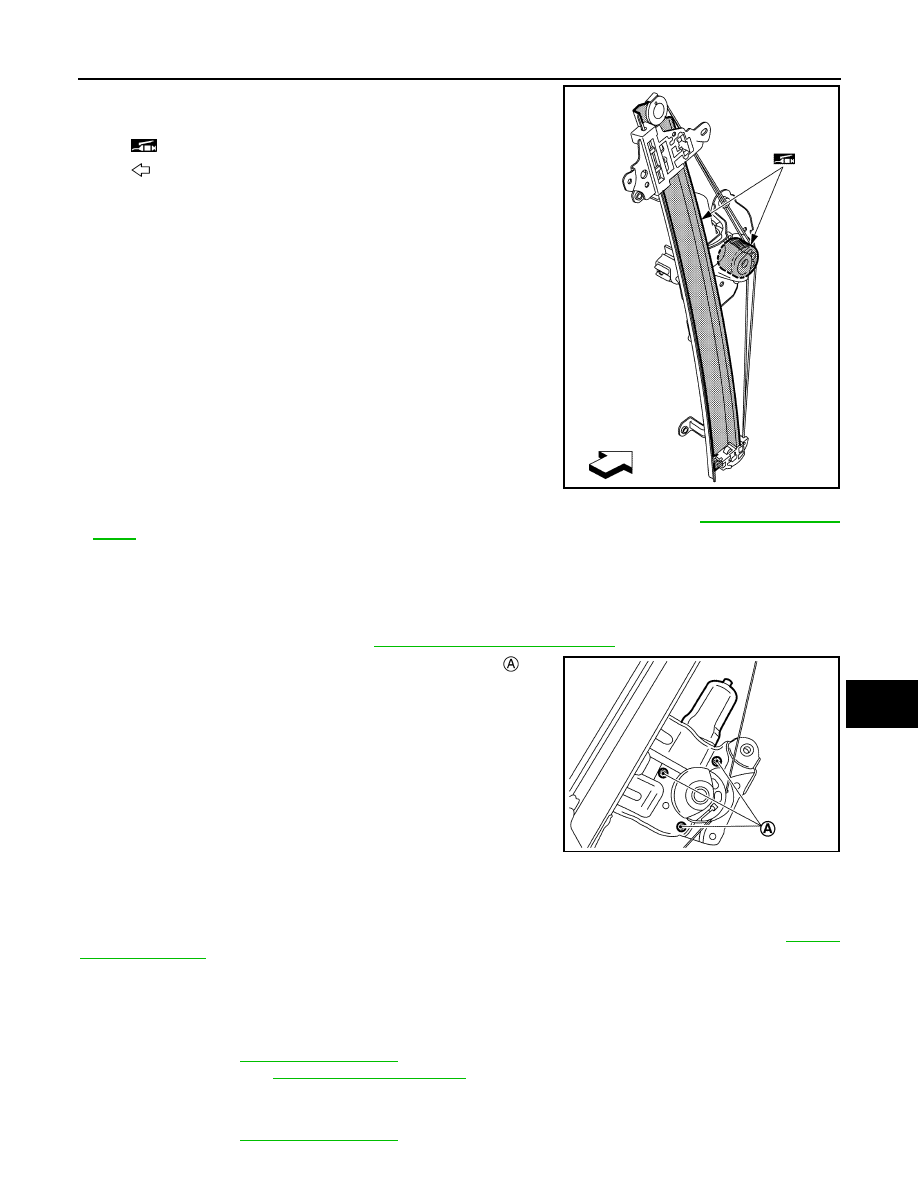

• Check front door regulator parts for lubrication. If necessary,

apply body grease.

• Tighten front door regulator mounting bolts to the specified torque. Refer to

GW-47, "Exploded

View"

.

Disassembly and Assembly

INFOID:0000000010755114

DISASSEMBLY

1.

Remove front door regulator. Refer to

GW-47, "Removal and Installation"

.

2.

Remove front door power window motor mounting bolts

, and

then remove front door power window motor.

ASSEMBLY

Note the following item, and then assemble in the reverse order of disassembly.

CAUTION:

Tighten front door power window motor mounting bolts to the specified torque. Refer to

GW-47,

"Exploded View"

.

Inspection and Adjustment

INFOID:0000000010755115

SYSTEM INITIALIZATION

• Description. Refer to

PWC-33, "Description"

.

• Work procedure. Refer to

PWC-33, "Work Procedure"

.

CHECK ANTI-PINCH FUNCTION

• Description. Refer to

PWC-34, "Description"

.

: Body grease

: Vehicle front

JMKIB3203ZZ

JMKIB3146ZZ
