SQUEAK AND RATTLE TROUBLE DIAGNOSES

EXT-11

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

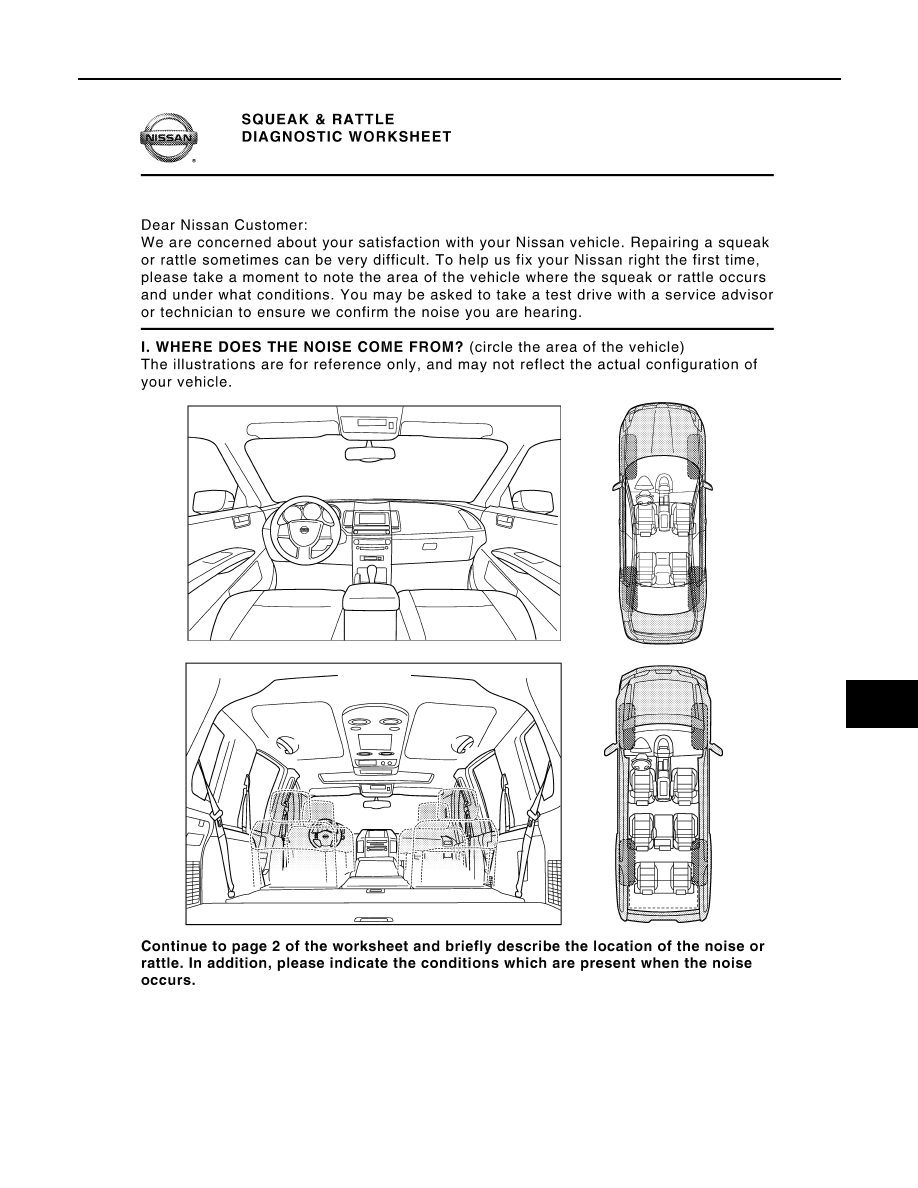

Diagnostic Worksheet

INFOID:0000000010787435

PIIB8740E

EXT-12

< SYMPTOM DIAGNOSIS >

SQUEAK AND RATTLE TROUBLE DIAGNOSES

PIIB8742E

BODY EXTERIOR PAINT COLOR

EXT-13

< VEHICLE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

VEHICLE INFORMATION

BODY EXTERIOR PAINT COLOR

Body Exterior Paint Color

INFOID:0000000011046231

NOTE:

• 2M: 2-Coat Metallic

• 2P: 2-Coat pearl

• 2S: 2-Coat solid

• 3P: 3-Coat pearl

• 2PM: 2-Coat Pearl metallic

Component

Color code

BAX6

BEAN

BEAR

BG41

BK23

BKAD

BQAB

BRAQ

Description

Red

Dark Ol-

ive

Orange

Black

Silver

Gray

White

Dark

Blue

Paint type

 note

2S

2PM

2PM

2P

2M

2M

3P

2M

Hard clear
coat

×

×

×

×

–

–

–

×

Door mirror cover

Body color

BAX6

BEAN

BEAR

BG41

BK23

BKAD

BQAB

BRAQ

Front grille

Chromium
plate

Cr

Cr

Cr

Cr

Cr

Cr

Cr

Cr

Bumper fascia

Body color

BAX6

BEAN

BEAR

BG41

BK23

BKAD

BQAB

BRAQ

Fillet  molding

Material  color

–

–

–

–

–

–

–

–

Door outside handle

Chromium
plate

Cr

Cr

Cr

Cr

Cr

Cr

Cr

Cr

Rear spoiler (Side)

Black

G01

G01

G01

G01

G01

G01

G01

G01

Rear spoiler (Upper)

Body color

BAX6

BEAN

BEAR

BG41

BK23

BKAD

BQAB

BRAQ

Back door finisher

Chromium
plate

Cr

Cr

Cr

Cr

Cr

Cr

Cr

Cr

Back door

Body color

BAX6

BEAN

BEAR

BG41

BK23

BKAD

BQAB

BRAQ

Sill  cover

Material  color

–

–

–

–

–

–

–

–

Side  guard  molding

Material  color

–

–

–

–

–

–

–

–

JSKIA4358ZZ

EXT-14

< REMOVAL AND INSTALLATION >

FRONT BUMPER

REMOVAL AND INSTALLATION

FRONT BUMPER

Exploded View

INFOID:0000000010787436

Front bumper side bracket RH

Front bumper stay RH

Front bumper reinforcement

Front bumper energy absorber

Headlamp washer cover RH

Front bumper finisher RH
(without front fog lamp)

Front bumper finisher RH
(with front fog lamp)

Front bumper molding

Front bumper finisher LH
(with front fog lamp)

JMKIB3752GB
