COMPONENT PARTS

COMPONENT PARTS

Component Parts Location

INFOID:0000000010318116

Electric Parking Brake Control Module

INFOID:0000000010318117

• The parking brake actuator is controlled by the signals from the

parking brake switch, sensors, and units.
NOTE:
The parking brake is released and applied by controlling the park-
ing brake actuator.

• When a malfunction is detected, the system enters fail-safe mode.

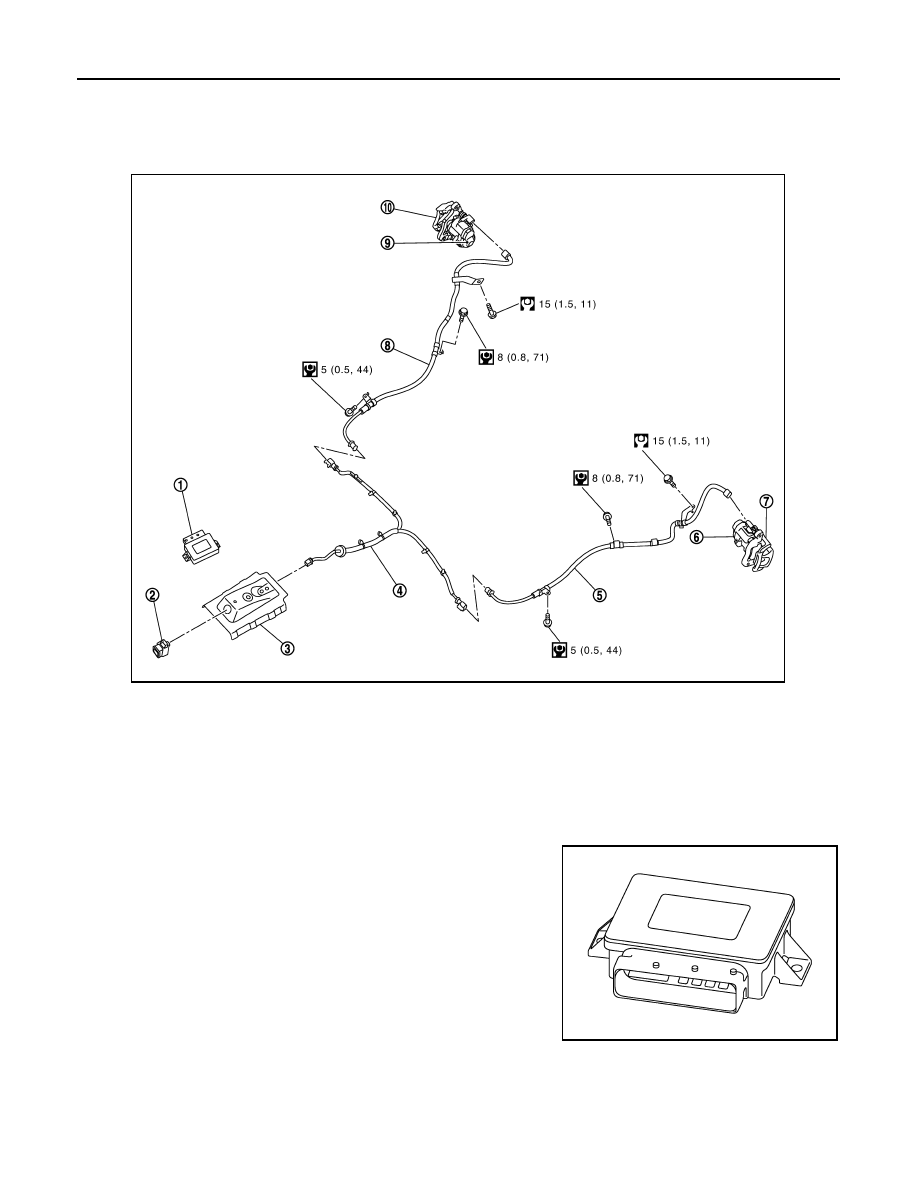

1.

Electric parking brake contre unit

2.

Electric parking brake switch

3.

Body inferior parking brake gate

4.

Electric parking brake IN/OUT har-
ness

5.

Electric parking brake harness RL

6.

Electric parking brake actuator RL

7.

Caliper RL

8.

Electric parking brake harness RR

9.

Electric parking brake actuator RR

10. Caliper RR

E1FIA0163ZZ

E1FIA0160ZZ

COMPONENT PARTS

PB-11

< SYSTEM DESCRIPTION >

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

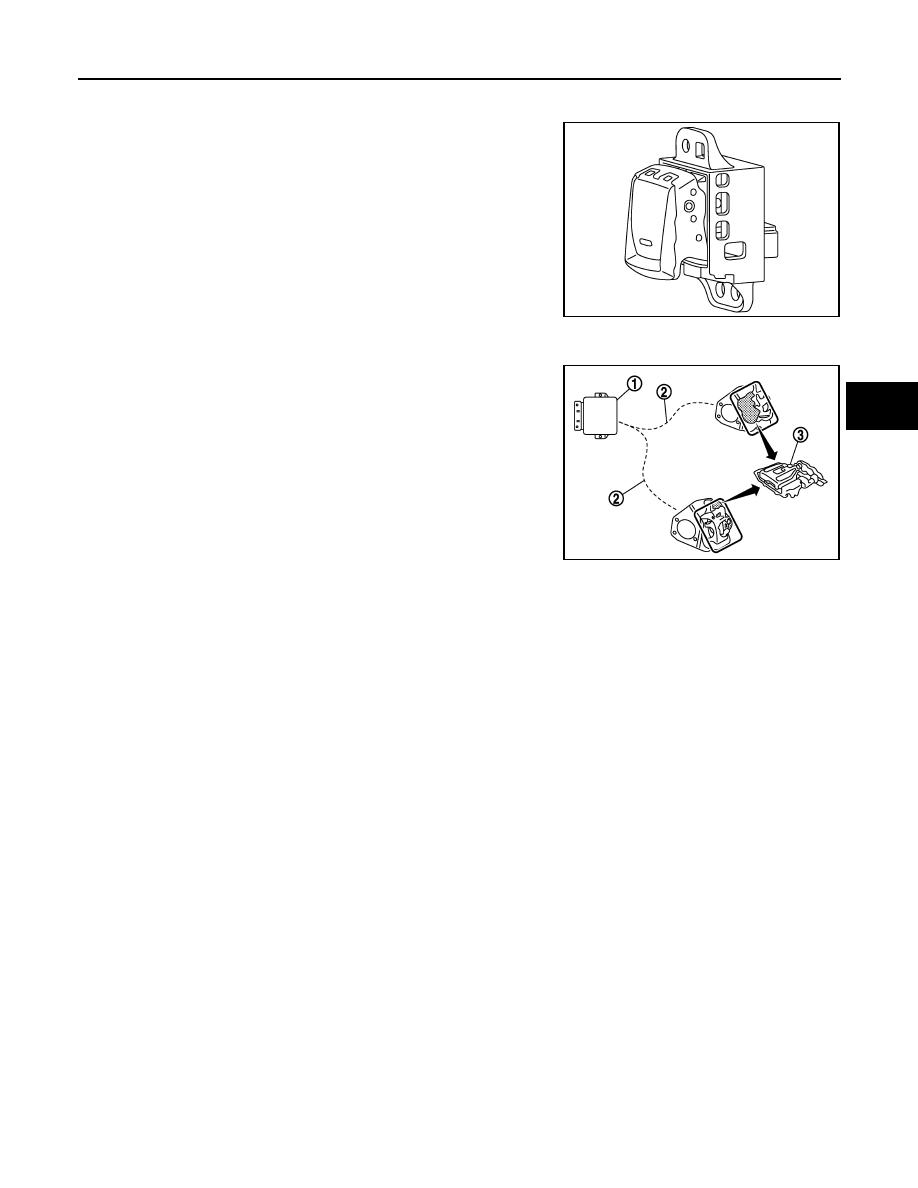

Parking Brake Switch

INFOID:0000000010318118

• Pulling the parking brake switch applies the parking brake.
• Pressing the parking brake switch releases the parking brake.
• When the parking brake is applied, the parking brake switch indica-

tor turns ON. In addition, it turns OFF when the parking brake is
released.

Parking Brake Actuator

INFOID:0000000010318119

• The electric parking brake control unit (1) sends the signal form the

harness (2) to the electric parking brake actuators (3) to apply and
release the parking brake.

E1FIA0159ZZ

E1FIA0161ZZ

PB-12

< SYSTEM DESCRIPTION >

SYSTEM

SYSTEM

System Description

INFOID:0000000010318120

• When the parking brake is being operated, the electric parking brake indicator lamp in the combination meter

and the parking brake switch indicator turn ON.

• When the parking brake is released, electric parking brake indicator lamp in the combination meter and the

parking brake switch indicator turn OFF.

• This sends the parking brake switch operation signal to the electric parking brake control module.
• The electric parking brake control module drives the motor in the parking brake actuator.
• The motor generates the rotational starting torque, which is transmitted to the rear calipers to apply and

release the parking brake.

• When a malfunction occurs in the system, the Parking brake warning lamp (yellow) turn ON and the function

for entering the fail-safe status is held.

• When parking brake switch is pulled/pushed during system malfunction, electric parking brake indicator

lamp blinks and Parking brake warning lamp (red) turns ON when electric parking brake cannot be operated.
It restricts braking and release operations of electric parking brake.

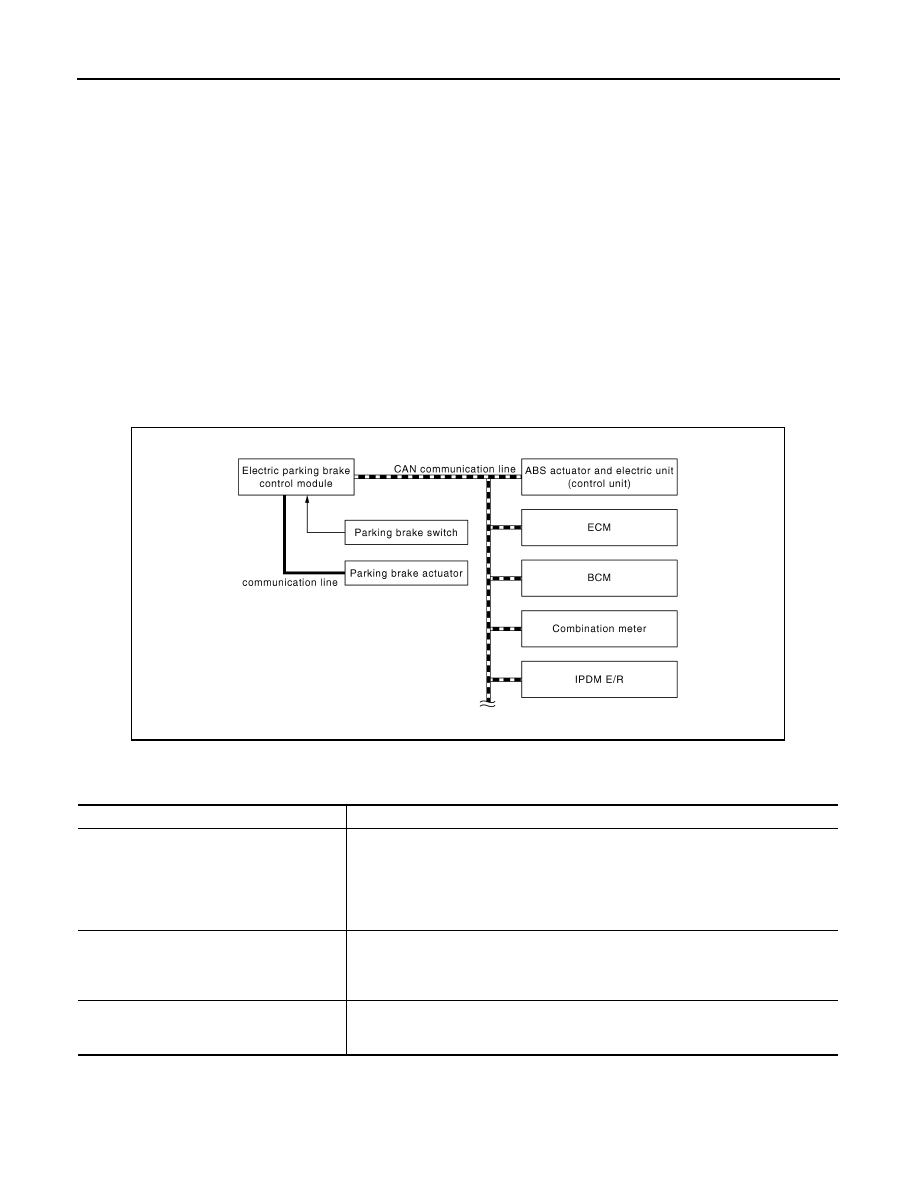

SYSTEM DIAGRAM

INPUT SIGNAL AND OUTPUT SIGNAL

Major signal transmission between each unit via communication lines is shown in the following table.

E1FIA0162GB

Component

Signal description

ABS actuator and electric unit (control unit)

Mainly transmits the following signals to electric parking brake control module via CAN
communication.
• Rear LH wheel speed signal
• Rear RH wheel speed signal
• Front LH wheel speed signal
• Front RH wheel speed signal

ECM

Mainly transmits the following signals to electric parking brake control module via CAN
communication.
• Accelerator pedal position signal
• Engine RPM signal

IPDM E/R

Mainly transmits the following signal to electric parking brake control module via CAN
communication.
• Power switch ON signal

SYSTEM

PB-13

< SYSTEM DESCRIPTION >

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

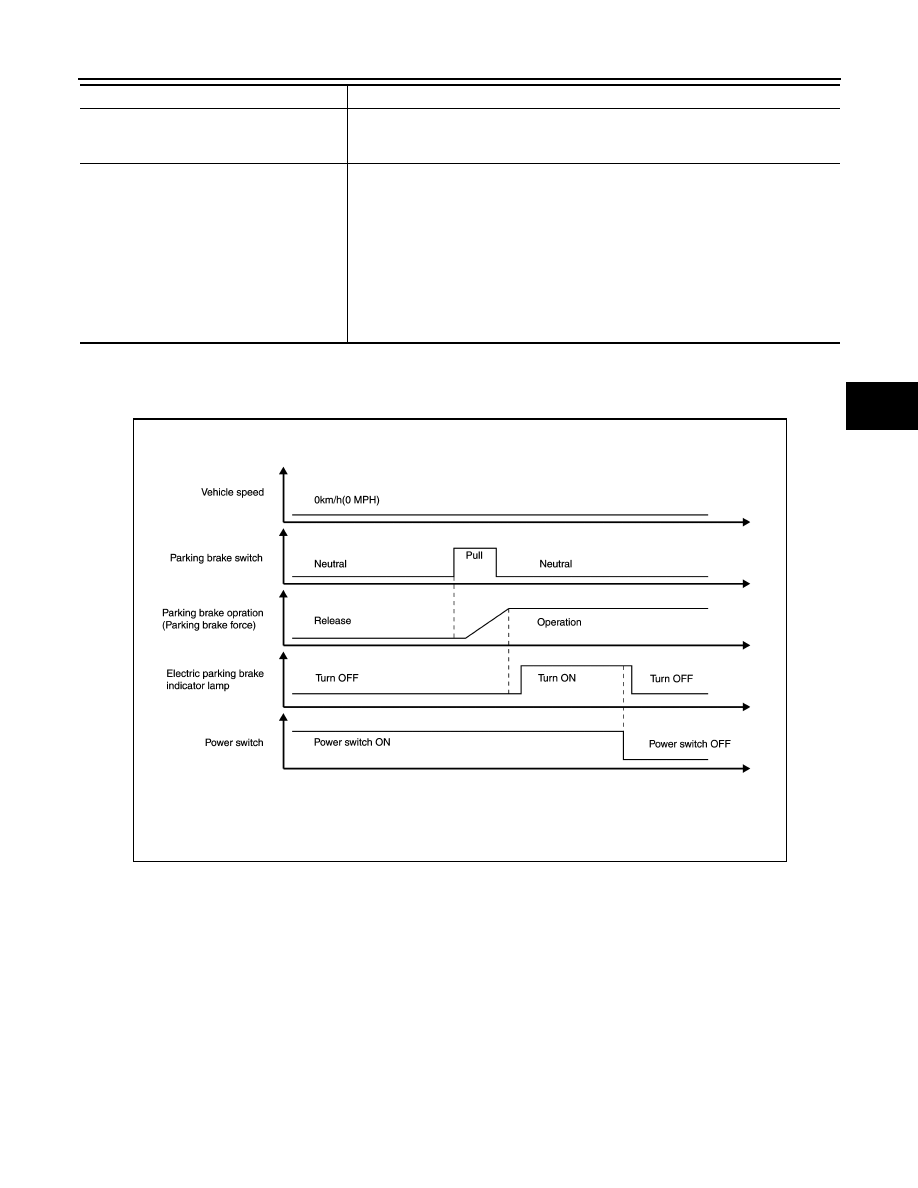

ELECTRIC PARKING BRAKE OPERATION

Normal Operation

• When the parking brake switch is pulled while the vehicle is stopped, the parking brake begins to be applied.
• When the parking brake braking force reaches the prescribed value, the electric parking brake indicator

lamp turns ON.

• When the power switch is turned OFF, the electric parking brake indicator lamp turns ON for few minutes

until vehicle sleep.

Normal Release (power switch ON)

BCM

Mainly transmits the following signal to electric parking brake control module via CAN
communication.
• Stop lamp switch signal

Combination meter

Mainly transmits the following signal to electric parking brake control module via CAN
communication.
• Seat belt buckle switch signal (driver side)
Mainly receives the following signals from electric parking brake control module via
CAN communication.
• Parking brake warning signal
• Electric parking brake indicator lamp signal
• AT/CVT:

Mainly transmit the following signal to electric parking brake control module via CAN
communicatoin.

- Shift position

Component

Signal description

JSFIA1103GB
