BR-64

< REMOVAL AND INSTALLATION >

[RHD]

BRAKE PIPING

FRONT : Hydraulic Piping

INFOID:0000000010305453

FRONT : Removal and Installation

INFOID:0000000010305454

REMOVAL

CAUTION:

Never spill or splash brake fluid on painted surfaces. Brake fluid may seriously damage paint. Wipe it
off immediately and wash with water if it gets on a painted surface.
1.

Remove tires.

2.

Drain brake fluid. Refer to

BR-55, "Draining"

.

3.

Loosen the flare nut with a flare nut wrench and separate the brake tube from the hose.

CAUTION:

• Never scratch the flare nut and the brake tube.
• Never bend sharply, twist or strongly pull out the brake hoses and tubes.
• Cover open end of brake tubes and hoses when disconnecting to prevent entrance of dirt.

4.

Remove the union bolt and remove the brake hose from the brake caliper assembly.

5.

Remove the lock plate and remove the brake hose.

INSTALLATION

CAUTION:

Never spill or splash brake fluid on painted surfaces. Brake fluid may seriously damage paint. Wipe it
off immediately and wash with water if it gets on a painted surface.
1.

Assemble the union bolt and the copper washer to the brake hose.

CAUTION:

Never reuse the copper washer.

1.

Brake booster

2.

Master cylinder assembly

3.

Front disc brake

4.

ABS actuator and electric unit (con-
trol unit)

5.

Connector

6.

Rear disc brake

A.

Brake tube

B.

Brake hose

 : Flare nut

 : Union bolt

 : Connector

JPFIA0079ZZ

BRAKE PIPING

BR-65

< REMOVAL AND INSTALLATION >

[RHD]

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

2.

Align the brake hose pin to the projection (A) of the brake caliper
assembly and tighten the union bolt (1) to the specified torque.

3.

Install the brake tube to the brake hose, temporarily tighten the
flare nut by hand until it does not rotate further, and fix the brake
hose to the bracket with the lock plate.

CAUTION:

Check that all brake hoses and tubes are not twisted and
bent.

4.

Tighten the flare nut to the specified torque with a flare nut
torque wrench.

CAUTION:

Never scratch the flare nut and the brake tube.

5.

Refill with new brake fluid and perform the air bleeding. Refer to

BR-56, "Bleeding Brake System"

.

CAUTION:

Never reuse drained brake fluid.

6.

Install tires.

FRONT : Inspection

INFOID:0000000010305455

INSPECTION AFTER INSTALLATOIN

1.

Check the brake hoses and tubes for the following: no scratches; no twist and deformation; no interfer-
ence with other components when steering the steering wheel; no looseness at connections.

2.

Depress the brake pedal with a force of 785 N (80 kg, 176 lb) and hold down the pedal for approximately
5 seconds with the engine running. Check for any fluid leakage.

CAUTION:

Retighten the applicable connection to the specified torque and repair any abnormal (damaged,
worn or deformed) part if any brake fluid leakage is present.

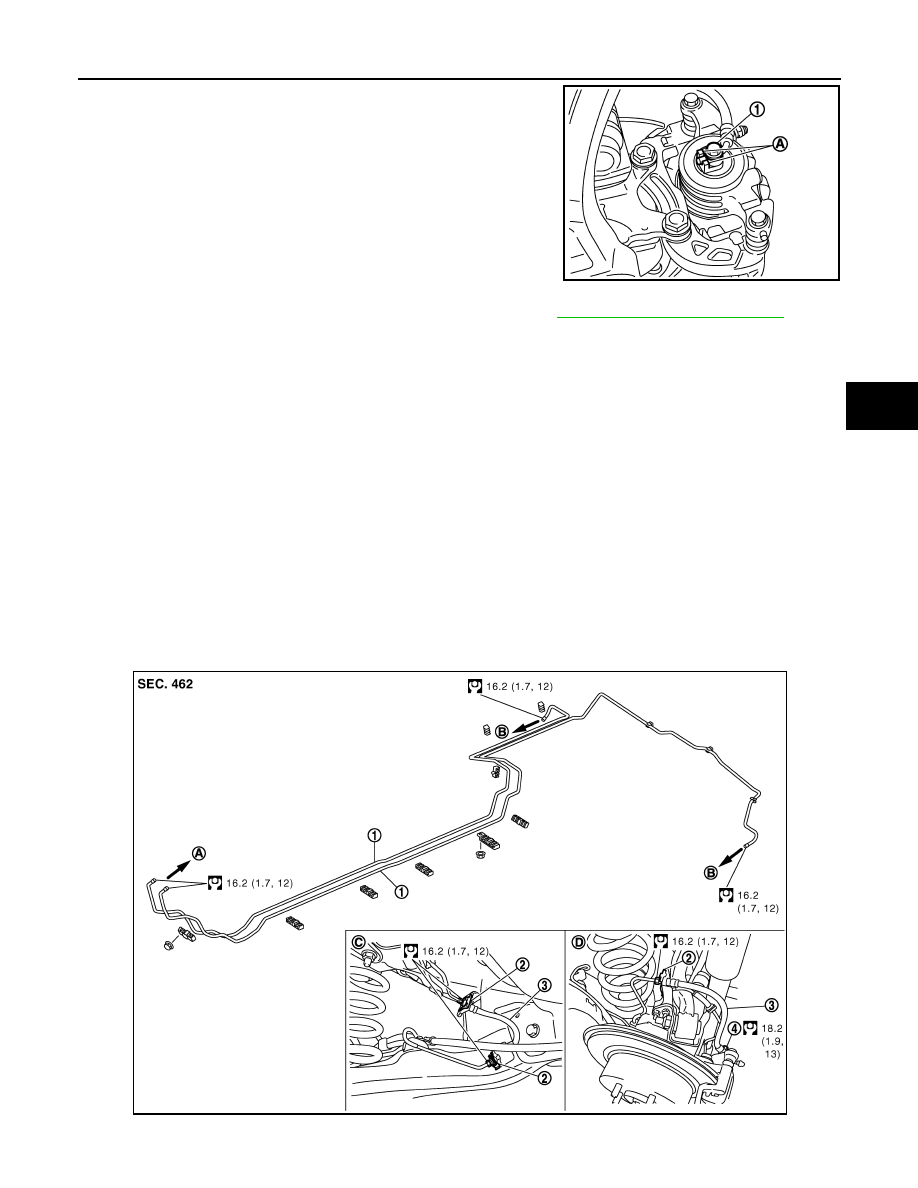

REAR

REAR : Exploded View

INFOID:0000000010305456

JPFIA0099ZZ

JPFIA0077GB

BR-66

< REMOVAL AND INSTALLATION >

[RHD]

BRAKE PIPING

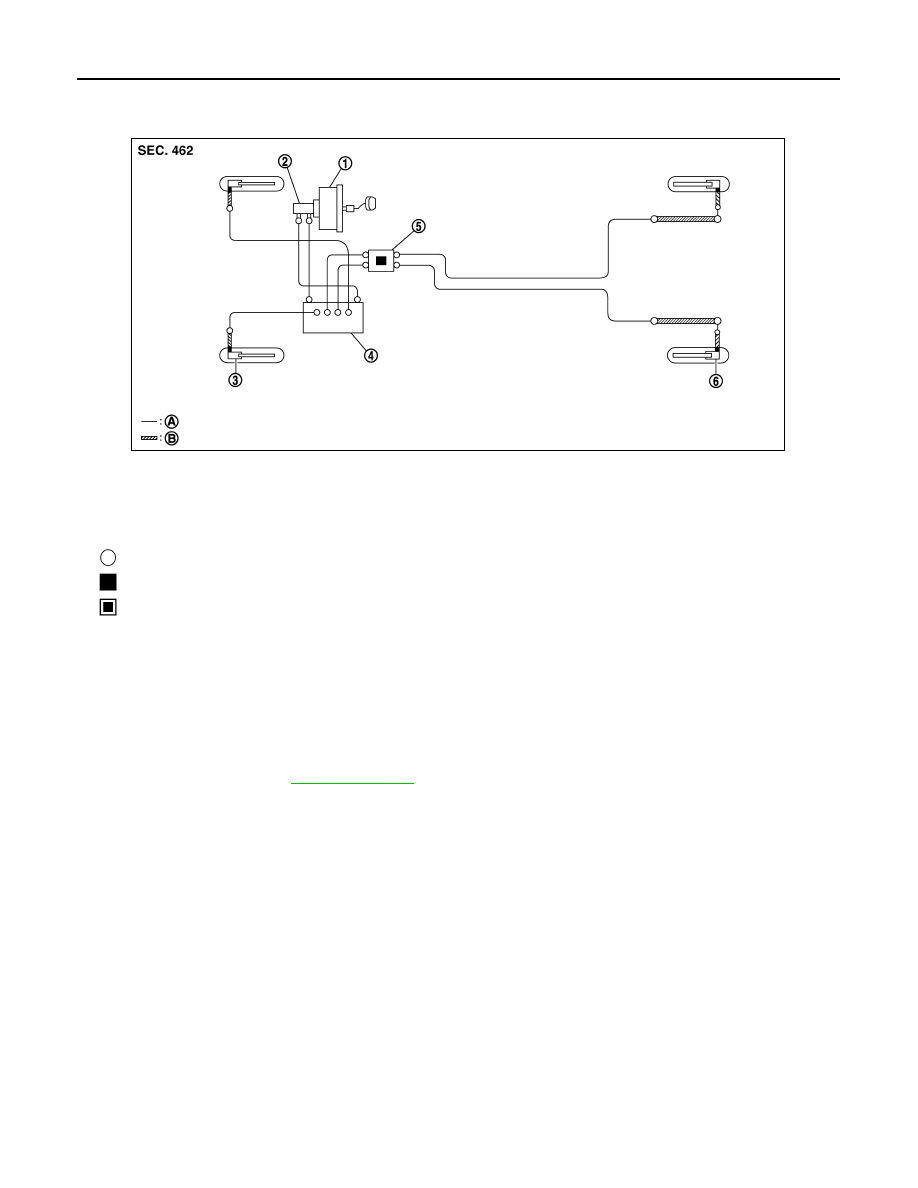

REAR : Hydraulic Piping

INFOID:0000000010305457

REAR : Removal and Installation

INFOID:0000000010305458

REMOVAL

CAUTION:

Never spill or splash brake fluid on painted surfaces. Brake fluid may seriously damage paint. Wipe it
off immediately and wash with water if it gets on a painted surface.
1.

Remove tires.

2.

Drain brake fluid. Refer to

BR-55, "Draining"

.

3.

Loosen the flare nut with a flare nut wrench and separate the brake tube from the hose.

CAUTION:

• Never scratch the flare nut and the brake tube.
• Never sharply bend, twist or strongly pull the brake hoses and tubes.
• Cover the open end of brake tubes and hoses when disconnecting to prevent entrance of dirt.

4.

Remove the union bolt and remove the brake hose from the brake caliper assembly.

5.

Remove the lock plate and remove the brake hose from the vehicle.

INSTALLATION

CAUTION:

Never spill or splash brake fluid on painted surfaces. Brake fluid may seriously damage paint. Wipe it
off immediately and wash with water if it gets on a painted surface.

1.

Brake tube

2.

Lock plate

3.

Brake hose

4.

Union bolt

A.

To front brake tube

B.

To rear brake hose

C.

Floor side

D.

Caliper side

Refer to

GI-4, "Components"

 for symbols in the figure.

1.

Brake booster

2.

Master cylinder assembly

3.

Front disc brake

4.

ABS actuator and electric unit (con-
trol unit)

5.

Connector

6.

Rear disc brake

A.

Brake tube

B.

Brake hose

 : Flare nut

 : Union bolt

 : Connector

JPFIA0079ZZ

BRAKE PIPING

BR-67

< REMOVAL AND INSTALLATION >

[RHD]

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

1.

Assemble the union bolt and the copper washer to the brake hose.

CAUTION:

Never reuse copper washer.

2.

Install the brake hose L-pin by aligning it with the brake caliper
assembly positioning hole, and tighten the union bolt (1) to the
specified torque.

3.

Connect the hose to the brake tube, temporarily tighten the flare
nut by hand until it does not rotate further, and fix the brake hose
to the bracket with the lock plate.

CAUTION:

Check that the brake hoses and tubes are not twisted and
bent.

4.

Tighten the flare nut to the specified torque with a flare nut
torque wrench.

CAUTION:

Never scratch the flare nut and the brake tube.

5.

Refill with new brake fluid and perform the air bleeding. Refer to

BR-56, "Bleeding Brake System"

.

CAUTION:

Never reuse drained brake fluid.

6.

Install tires.

REAR : Inspection

INFOID:0000000010305459

INSPECTION AFTER REMOVAL

1.

Check the brake hoses and tubes for the following: no scratches; no twist and deformation; no interfer-
ence with other components when steering the steering wheel; no looseness at connections.

2.

Depress the brake pedal with a force of 785 N (80 kg, 176 lb) and hold down the pedal for approximately
5 seconds with the engine running. Check for any fluid leakage.

CAUTION:

Retighten the applicable connection to the specified torque and repair any abnormal (damaged,
worn or deformed) part if any brake fluid leakage is present.
