PREPARATION

PREPARATION

Commercial Service Tool

INFOID:0000000010305341

Tool name

Description

Pin punch
a: 4 mm (0.16 in) dia.

Removing and installing reservoir tank
pin

NT410

BR-8

< PERIODIC MAINTENANCE >

[LHD]

BRAKE PEDAL

PERIODIC MAINTENANCE

BRAKE PEDAL

Inspection and Adjustment

INFOID:0000000010305342

INSPECTION

Brake Pedal Height

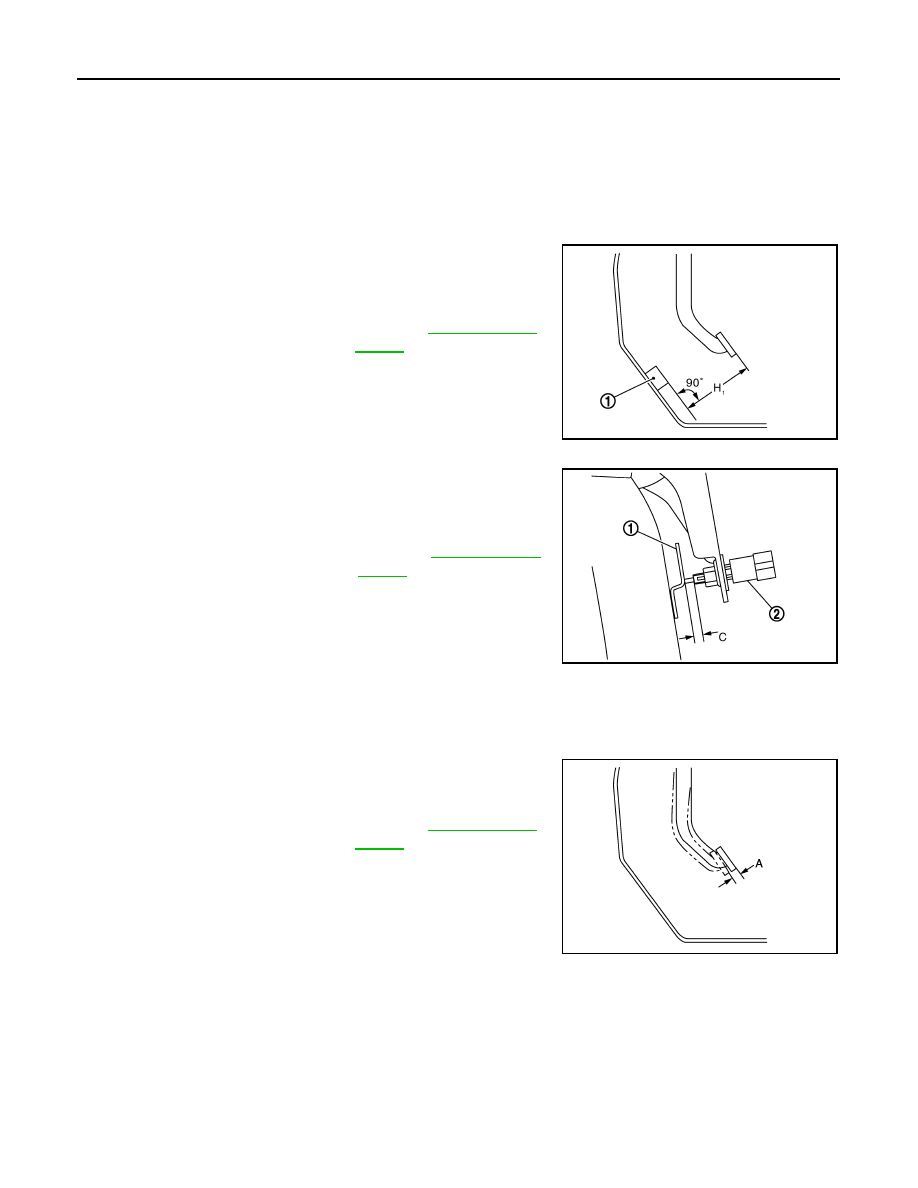

Check the height (H

1

) between the accelerator pedal stopper (1) and

the brake pedal upper surface.

CAUTION:

Remove the floor trim.

ASCD brake Switch and Stop Lamp Switch

Check the clearance (C) between bracket (1) and ASCD brake
switch/stop lamp switch (2) threaded end.

CAUTION:

The stop lamp must be turned off when the brake pedal is
released.
NOTE:
Pull the brake pedal pad to make the clearance between bracket and ASCD brake switch/stop lamp switch
threaded end.

Brake Pedal Play

Press the brake pedal. Check the brake pedal play (A).

Depressed Brake Pedal Height

Standard

Brake pedal height (H

1

)

: Refer to

BR-47, "Brake

Pedal"

.

JPFIA0119ZZ

Standard

Clearance (C) between
bracket and ASCD brake
switch/stop lamp switch
threaded end

: Refer to

BR-47, "Brake

Pedal"

.

JPFIA0206ZZ

Standard

Pedal play (A)

: Refer to

BR-47, "Brake

Pedal"

.

JPFIA0121ZZ

BRAKE PEDAL

BR-9

< PERIODIC MAINTENANCE >

[LHD]

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

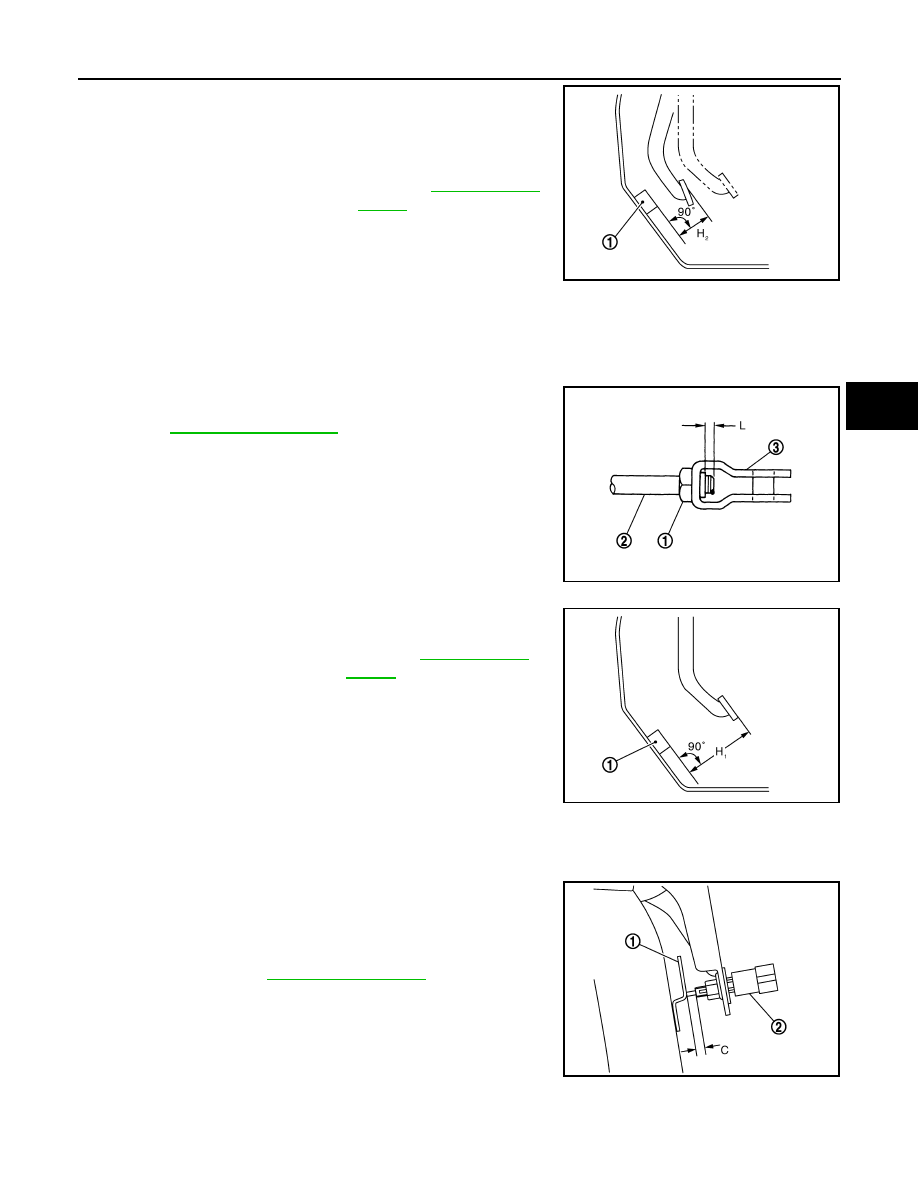

Check the height between the accelerator pedal stopper (1) and the
brake pedal upper surface (H

2

) when depressing the brake pedal at

490 N (50 kg, 110 lb) while turning engine ON.

CAUTION:

Remove the floor trim.

ADJUSTMENT

Brake Pedal Height

1.

Disconnect the harness connector from ASCD brake switch and stop lamp switch.

2.

Turn the ASCD brake switch and stop lamp switch 45

°

 counterclockwise.

3.

Loosen the input rod lock nut (1). Adjust the brake pedal to the
specification. Tighten the input rod lock nut to the specification.
Refer to

BR-29, "Exploded View"

.

CAUTION:

The threaded end of the input rod (2) must project to the
inner side (L) of the clevis (3).

ASCD brake Switch and Stop Lamp Switch

1.

Disconnect the harness connector from ASCD brake switch and stop lamp switch.

2.

Turn the ASCD brake switch and stop lamp switch 45

°

 counterclockwise.

3.

Press-fit ASCD brake switch/stop lamp switch (2) until ASCD
brake switch/stop lamp switch hits the bracket (1) 45

°

 clockwise.

CAUTION:

• The clearance (C) between the bracket and ASCD brake

switch/stop lamp switch threaded end must be the speci-
fied value. Refer to

BR-47, "Brake Pedal"

.

• The stop lamp must be turned off when the brake pedal is

released.

Brake Pedal Play

1.

Disconnect the harness connector from ASCD brake switch and stop lamp switch.

2.

Turn the ASCD brake switch and stop lamp switch 45

°

 counterclockwise.

Standard

Depressed brake pedal
height (H

2

)

: Refer to

BR-47, "Brake

Pedal"

.

JPFIA0120ZZ

JPFIA0003ZZ

Standard

Brake pedal height (H

1

)

: Refer to

BR-47, "Brake

Pedal"

.

JPFIA0119ZZ

JPFIA0206ZZ

BR-10

< PERIODIC MAINTENANCE >

[LHD]

BRAKE PEDAL

3.

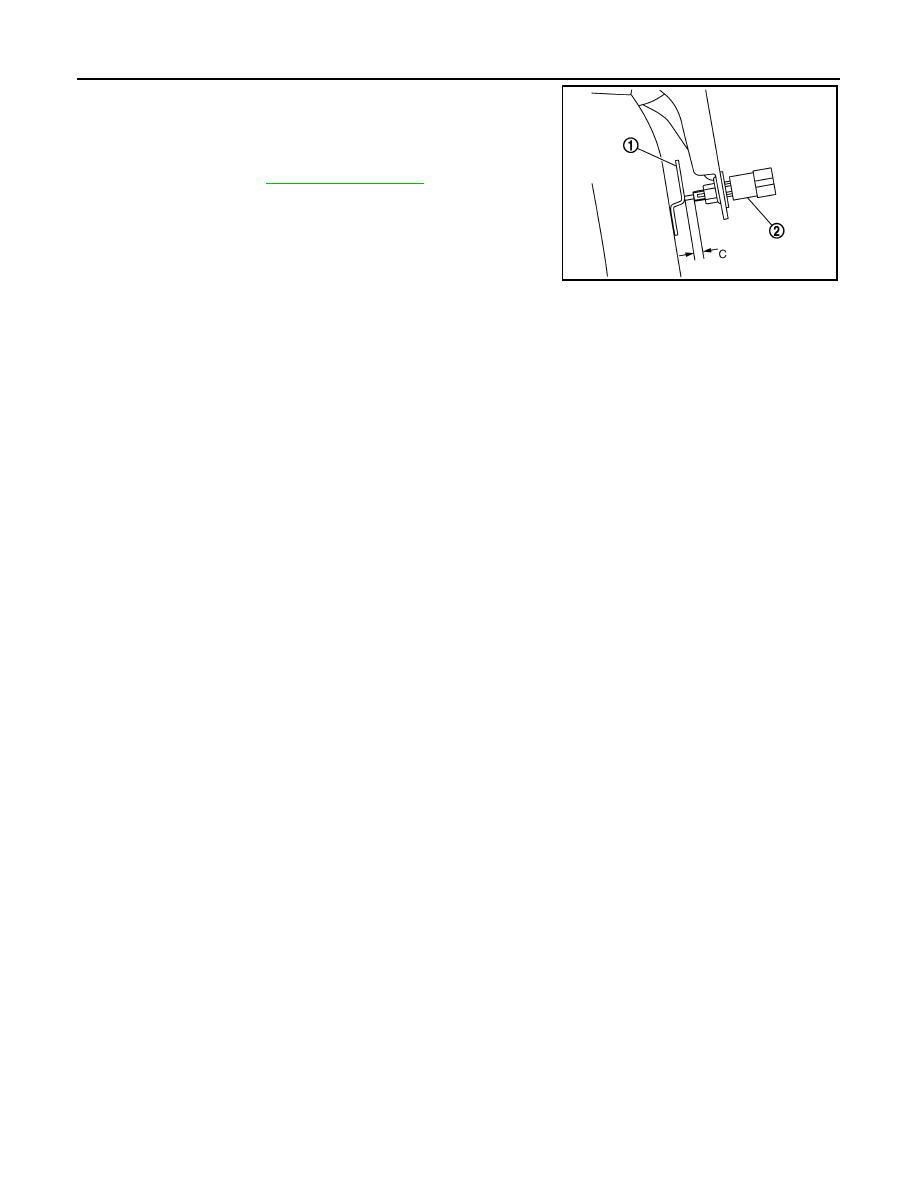

Press-fit ASCD brake switch/stop lamp switch (2) until ASCD
brake switch/stop lamp switch hits the bracket (1) 45

°

 clockwise.

CAUTION:

• The clearance (C) between the bracket and ASCD brake

switch/stop lamp switch threaded end must be the speci-
fied value. Refer to

BR-47, "Brake Pedal"

.

• The stop lamp must be turned off when the brake pedal is

released.

JPFIA0206ZZ
