WT-18
< ECU DIAGNOSIS INFORMATION >
[WITH TPMS]

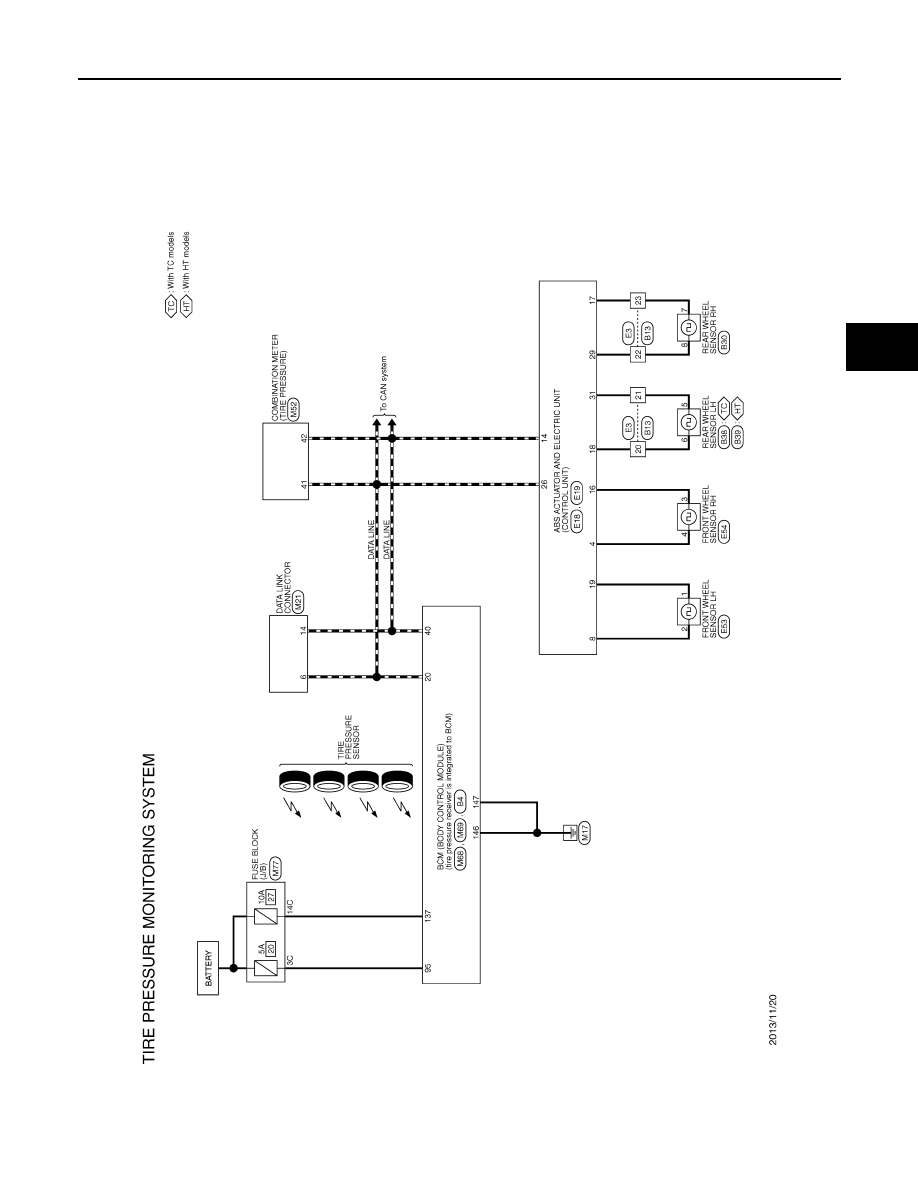

TIRE PRESSURE MONITORING SYSTEM
ECU DIAGNOSIS INFORMATION
TIRE PRESSURE MONITORING SYSTEM
Reference Value
INFOID:0000000010417793
VALUES ON THE DIAGNOSIS TOOL
CAUTION:
The reference values in the table below come from the control unit calculation data. The normal values
may in some cases be displayed even though the power circuit (harness) is open or shorted.
NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.
Monitor item
Data monitor
Condition
Reference values for normal operation
VHCL SPEED SE
Drive the vehicle.
Vehicle speed (km/h) or (MPH)
AIR PRESS FL
• Drive at a speed of 40 km/h (25 MPH)
or more then drive normally for 10 min-
utes.
• Turn the ignition switch ON and use the
activation tool to transmit the registra-
tion signal.
Tire pressure (kPa), (kgf/cm
2
) or (Psi)
AIR PRESS FR
AIR PRESS RR
AIR PRESS RL
LOW TIRE PRESSURE W/L
Ignition switch ON
Low tire pressure warning lamp ON: On
Low tire pressure warning lamp OFF: Off
BUZZER 2
Ignition switch ON
Combination meter buzzer ON: On
Combination meter buzzer OFF: Off
TIRE TEMPERATURE FL
Ignition switch ON
Indicates tire temperature of front left tire (
°
C)
TIRE TEMPERATURE FR
Ignition switch ON
Indicates tire temperature of front right tire (
°
C)
TIRE TEMPERATURE RR
Ignition switch ON
Indicates tire temperature of rear right tire (
°
C)
TIRE TEMPERATURE RL
Ignition switch ON
Indicates tire temperature of rear left tire (
°
C)
HAZARD
Ignition switch ON
Hazard lamp ON: On
Hazard lamp OFF: Off
WARNING AIR PRESSURE FL
Ignition switch ON
Indicates warning air pressure front left tire (kPa),
(kgf/cm
2
) or (Psi)
WARNING AIR PRESSURE FR
Ignition switch ON
Indicates warning air pressure front right tire (kPa),
(kgf/cm
2
) or (Psi)
WARNING AIR PRESSURE RR
Ignition switch ON
Indicates warning air pressure rear right tire (kPa),
(kgf/cm
2
) or (Psi)
WARNING AIR PRESSURE RL
Ignition switch ON
Indicates warning air pressure rear left tire (kPa), (kgf/
cm
2
) or (Psi)
SET AIR PRESSURE 1 FL
Ignition switch ON
Reference pressure front left tire (kPa), (kgf/cm
2
) or
(Psi)
SET AIR PRESSURE 1 FR
Ignition switch ON
Reference pressure front right tire (kPa), (kgf/cm
2
) or
(Psi)
SET AIR PRESSURE 1 RR
Ignition switch ON
Reference pressure rear right tire (kPa), (kgf/cm
2
) or
(Psi)
SET AIR PRESSURE 1 RL
Ignition switch ON
Reference pressure rear left tire (kPa), (kgf/cm
2
) or
(Psi)
SET AIR PRESSURE 2 FL
Ignition switch ON
Tire pressure calculated by reference temperature
front left tire (kPa), (kgf/cm
2
) or (Psi)
SET AIR PRESSURE 2 FR
Ignition switch ON
Tire pressure calculated by reference temperature
front right tire (kPa), (kgf/cm
2
) or (Psi)
