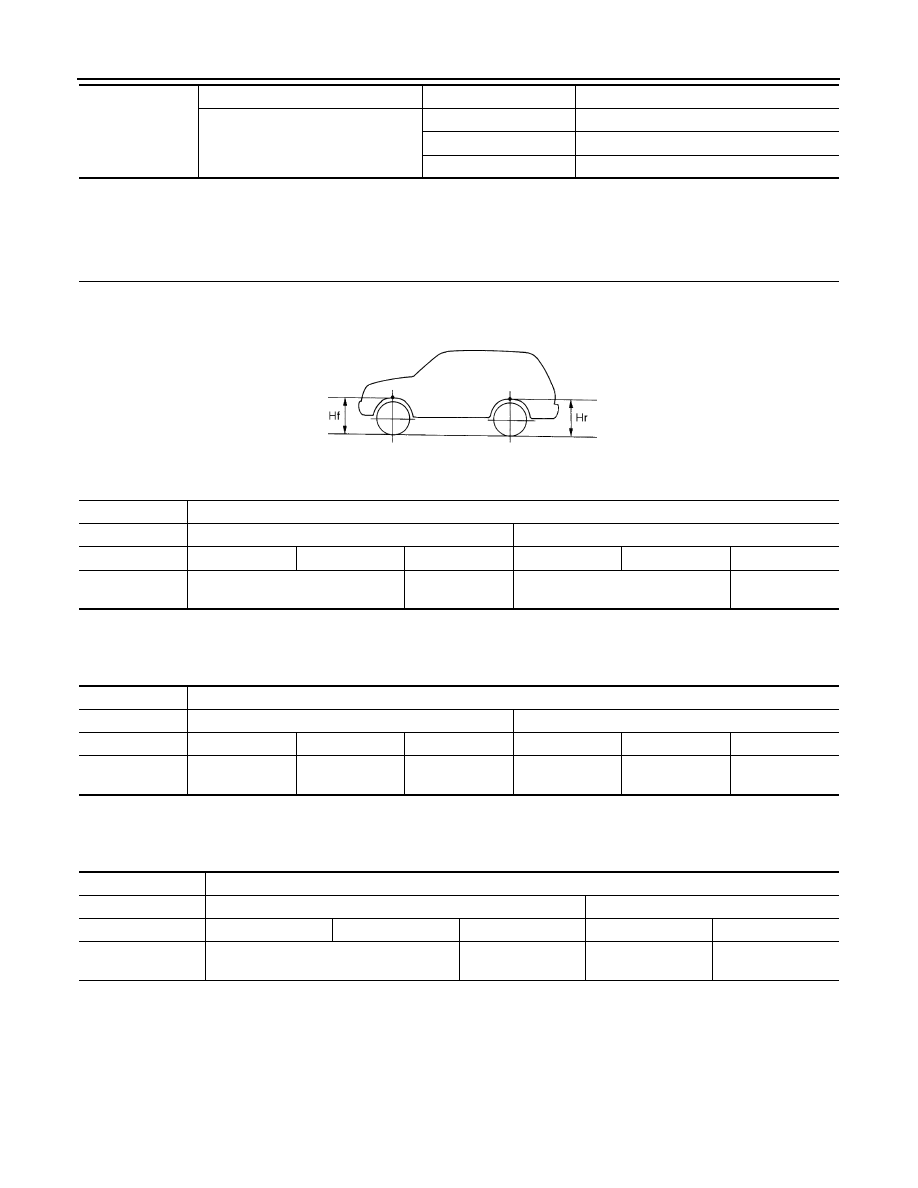

SERVICE DATA AND SPECIFICATIONS (SDS) RSU-21 < SERVICE DATA AND SPECIFICATIONS (SDS) C D F G H I J K L M A B RSU N O P SERVICE DATA AND SPECIFICATIONS (SDS) SERVICE DATA AND SPECIFICATIONS (SDS) Wheel Alignment INFOID:0000000010297281 TC models For Europe / SAF / GOM Measure value under unladen* conditions. *: 90% fuel. Engine coolant and lubricant are full. Spare tire, jack, hand tools and mats are in designated positions. Russie Measure value under unladen* conditions. *: 90% fuel. Engine coolant and lubricant are full. Spare tire, jack, hand tools and mats are in designated positions. Australia Measure value under unladen* conditions. *: 90% fuel. Engine coolant and lubricant are full. Spare tire, jack, hand tools and mats are in designated positions. HT models For Europe / SAF / GOM Tire size 215/65R16 215/60R17 225/45R19 Camber Minimum –0 ° 25 ′ (–0.42 ° ) Nominal –0 ° 55 ′ (–0.92 ° ) Maximum –1 ° 25 ′ (–1.42 ° ) Total toe-in Distance Nominal In 1.8 mm (0.07 in) Angle Minimum In 0 ° 05 ′ (0.08 ° ) Nominal In 0 ° 10 ′ (0.17 ° ) Maximum In 0 ° 15 ′ (0.25 ° ) Tire size 215/65R16 215/60R17 225/45R19 Camber Minimum –0 ° 25 ′ (–0.42 ° ) Nominal –0 ° 55 ′ (–0.92 ° ) Maximum –1 ° 25 ′ (–1.42 ° ) Total toe-in Distance Nominal In 1.7 mm (0.07 in) Angle Minimum In 0 ° 05 ′ (0.08 ° ) Nominal In 0 ° 10 ′ (0.17 ° ) Maximum In 0 ° 15 ′ (0.25 ° ) Tire size 215/65R16 215/60R17 225/45R19 Camber Minimum –0 ° 25 ′ (–0.42 ° ) Nominal –0 ° 55 ′ (–0.92 ° ) Maximum –1 ° 25 ′ (–1.42 ° ) Total toe-in Distance Nominal In 1.9 mm (0.07 in) Angle Minimum In 0 ° 05 ′ (0.08 ° ) Nominal In 0 ° 10 ′ (0.17 ° ) Maximum In 0 ° 15 ′ (0.25 ° ) Tire size 215/65R16 215/60R17 225/45R19 Camber Minimum –1 ° 00 ′ (–1.00 ° ) Nominal –1 ° 30 ′ (–150 ° ) Maximum –2 ° 00 ′ (–2.00 ° ) |
