FRONT DRIVE SHAFT

FAX-31

< UNIT DISASSEMBLY AND ASSEMBLY >

[2WD]

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

UNIT DISASSEMBLY AND ASSEMBLY

FRONT DRIVE SHAFT

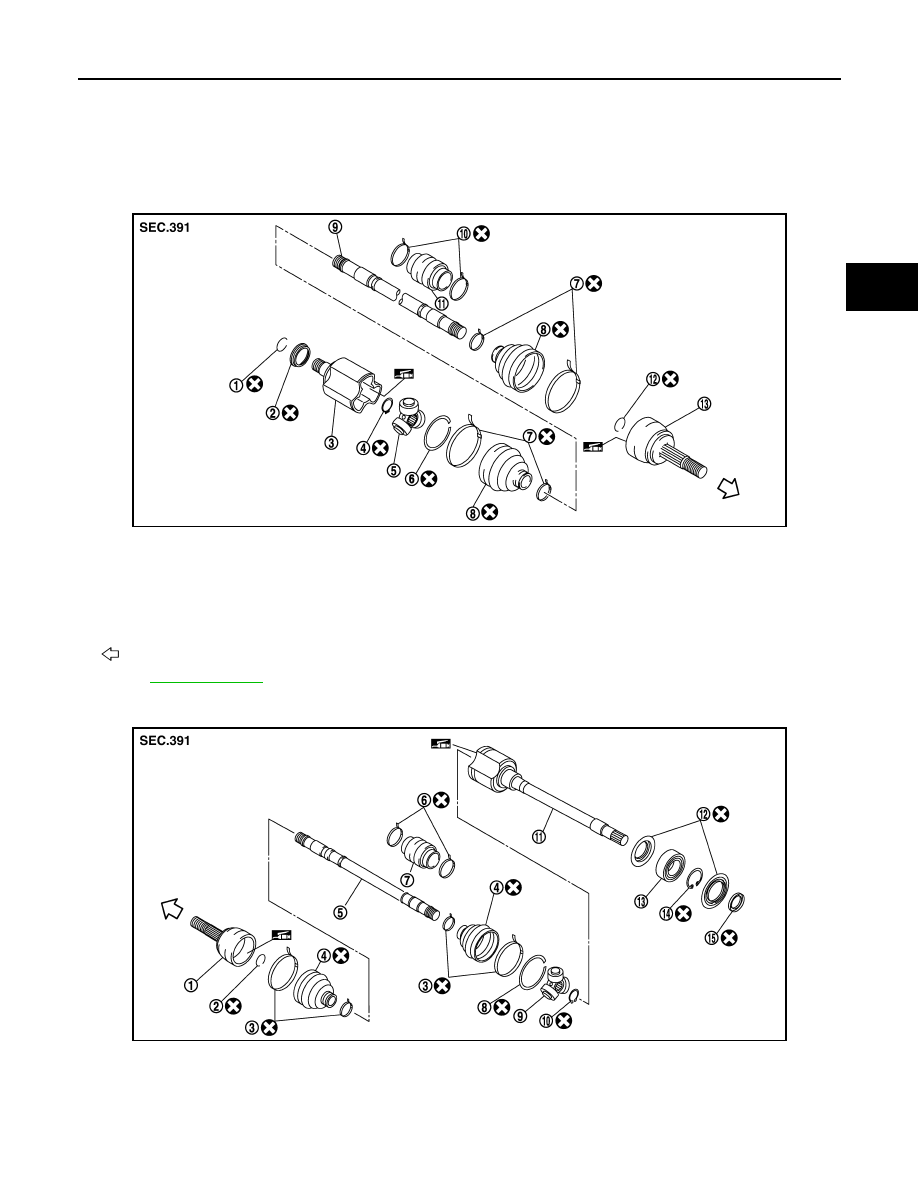

Exploded View

INFOID:0000000010435861

LHD models

RHD models - HRA2DDT, MR20DD, K9K, MR16DDT

JPDIF0047ZZ

1.

Circular clip

2.

Dust shield

3.

Housing

4.

Snap ring

5.

Spider assembly

6.

Stopper ring

7.

Boot band

8.

Boot

9.

Shaft

10. Damper band

11.

Dynamic damper

12. Circular clip

13. Joint sub-assembly

Wheel side

Refer to

GI-4, "Components"

 for symbols in the figure.

JPDIF0045ZZ

1.

Joint sub-assembly

2.

Circular clip

3.

Boot band

4.

Boot

5.

Shaft

6.

Damper band

7.

Dynamic damper

8.

Stopper ring

9.

Spider assembly

10. Snap ring

11.

Housing assembly

12. Dust shield

FAX-32

< UNIT DISASSEMBLY AND ASSEMBLY >

[2WD]

FRONT DRIVE SHAFT

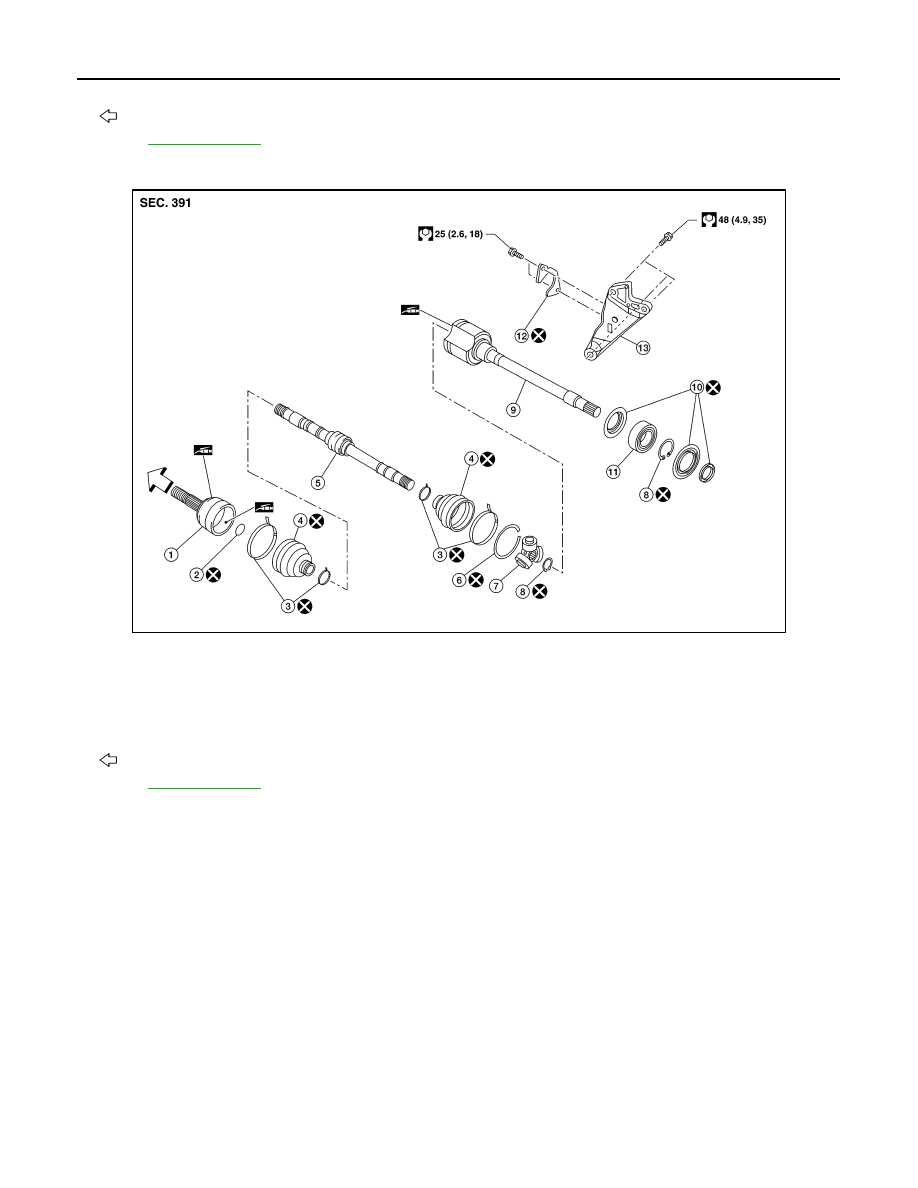

RHD models - R9M

Disassembly and Assembly

INFOID:0000000011722644

DISASSEMBLY

Transaxle Side

1.

Housing on the side of transaxle cannot be disassembled. When removing boot, perform procedure 1 to 5
on the wheel side first. And then remove dynamic damper and band (left side).

2.

Remove boot bands, then remove boots from housing assembly, and remove boot from shaft after the
above service.

3.

Remove dust shield from housing assembly.

4.

Remove circular clip from housing assembly (left side).

5.

Clean old grease on housing assembly with paper towels.

Support Bearing

13. Support bearing

14. Snap ring

15. Dust shield

: Wheel side

Refer to

GI-4, "Components"

 for symbols in the figure.

AWDIA1159ZZ

1.

Joint sub-assembly

2.

Circular clip

3.

Boot band

4.

Boot

5.

Shaft

6.

Stopper ring

7.

Spider assembly

8.

Snap ring

9.

Housing assembly

10. Dust shield

11.

Support bearing

12. Plate

13. Support bearing bracket

: Wheel side

Refer to

GI-4, "Components"

 for symbols in the figure.

FRONT DRIVE SHAFT

FAX-33

< UNIT DISASSEMBLY AND ASSEMBLY >

[2WD]

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

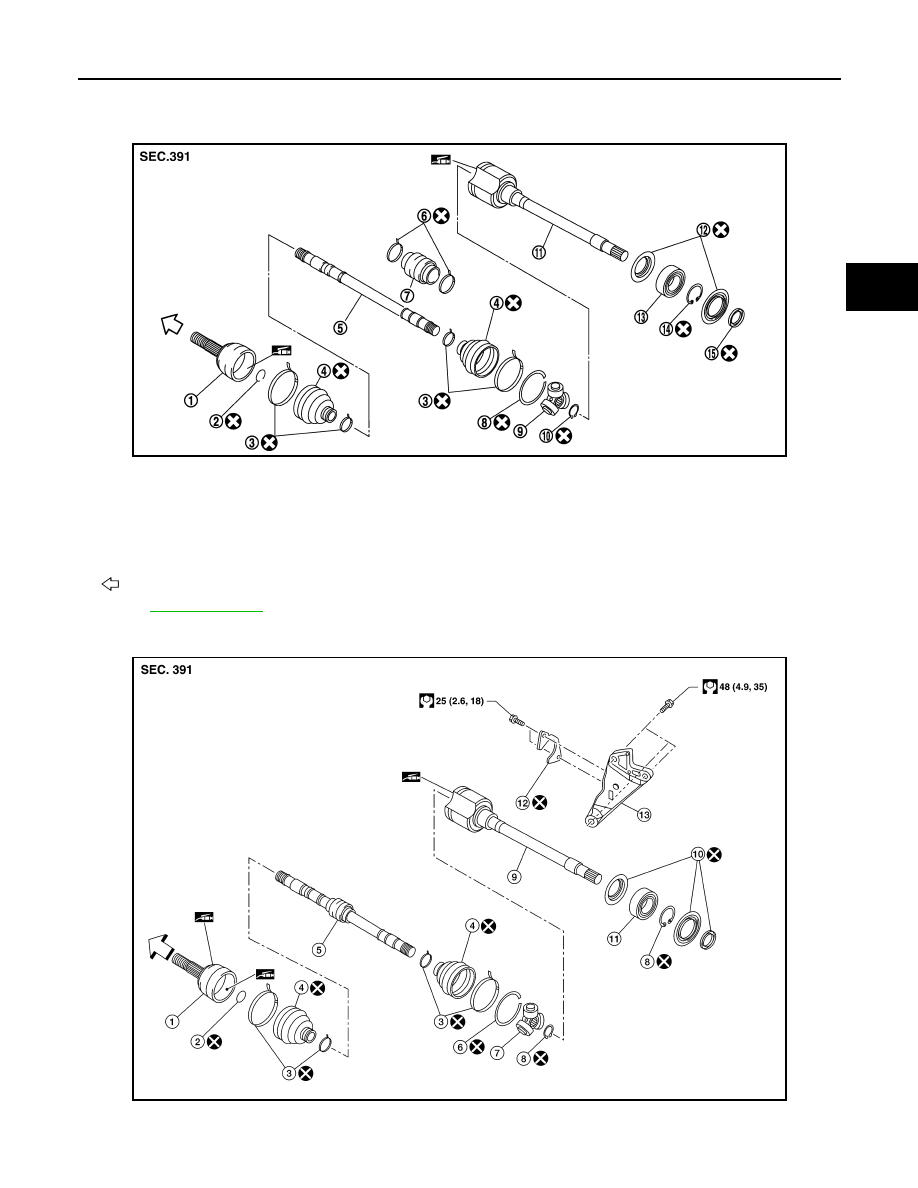

Exploded View (RH)

INFOID:0000000010435863

HRA2DDT, MR20DD, K9K

R9M

JPDIF0045ZZ

1.

Joint sub-assembly

2.

Circular clip

3.

Boot band

4.

Boot

5.

Shaft

6.

Damper band

7.

Dynamic damper

8.

Stopper ring

9.

Spider assembly

10. Snap ring

11.

Housing assembly

12. Dust shield

13. Support bearing

14. Snap ring

15. Dust shield

: Wheel side

Refer to

GI-4, "Components"

 for symbols in the figure.

AWDIA1159ZZ

FAX-34

< UNIT DISASSEMBLY AND ASSEMBLY >

[2WD]

FRONT DRIVE SHAFT

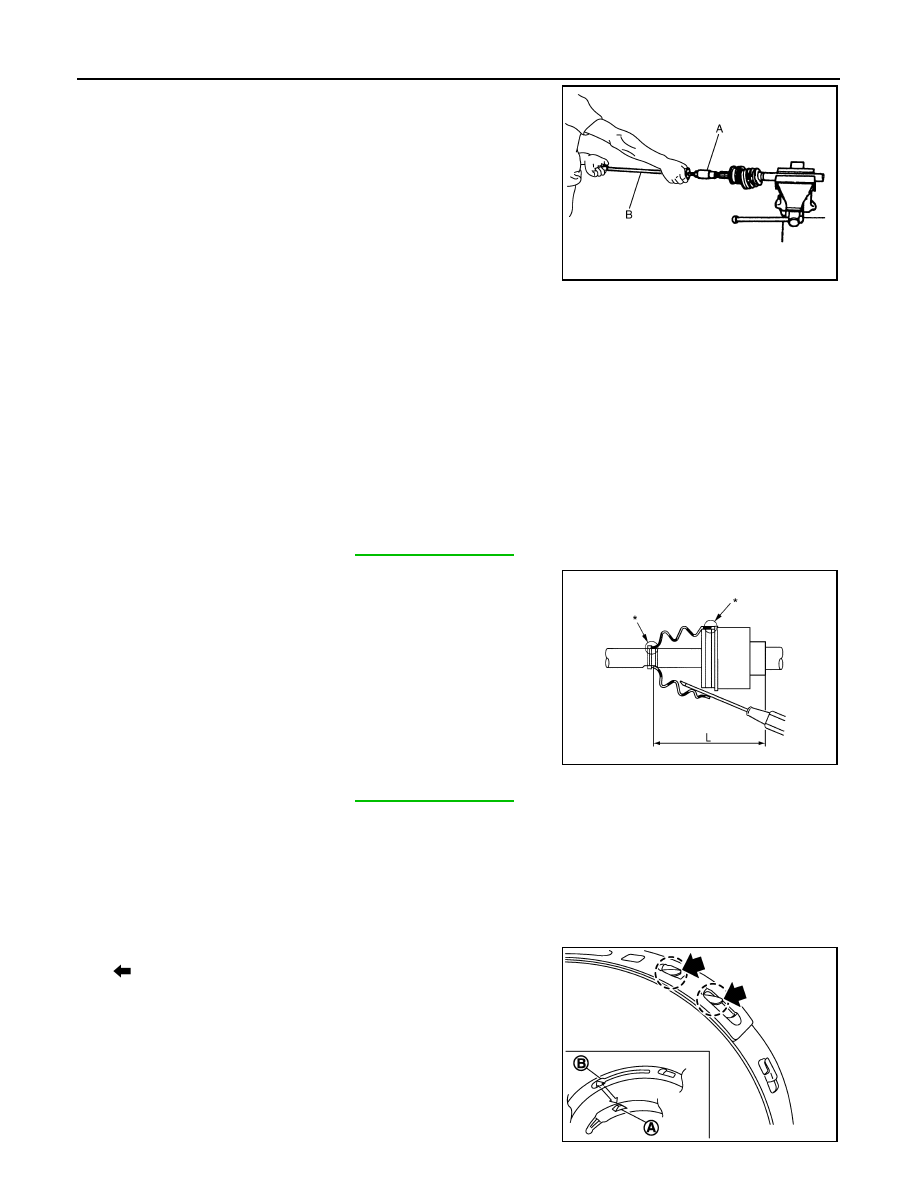

3.

Screw the drive shaft puller (A) 30 mm (1.18 in) or more into the
thread of joint sub-assembly, and pull joint sub-assembly with a
sliding hammer (B) from shaft.

CAUTION:

• If joint sub-assembly cannot be removed after five or

more unsuccessful attempts, replace shaft and joint sub
assembly as a set.

• Align sliding hammer and drive shaft and remove them by

pulling directory.

4.

Remove circular clip from shaft.

5.

Remove boot from shaft.

6.

Clean old grease on joint sub-assembly with paper towels while
rotating ball cage.

ASSEMBLY

Transaxle Assembly Side

1.

Wrap serration on housing assembly with tape to protect boot from damage. Install new boot and boot
bands to housing assembly.

CAUTION:

Never reuse boot and boot band.

2.

Remove the tape wrapped around the serration on housing assembly.

3.

Apply specified amount grease to the housing assembly.

4.

Install boot securely into grooves (indicated by “*” marks) shown
in the figure.

CAUTION:

If grease adheres to the boot mounting surface (with “*”
mark) on shaft or housing, boot may be removed. Remove
all grease from the surface.

5.

To prevent from deformation of the boot, adjust the boot installa-
tion length to the value shown below (L) by inserting the suitable
tool into the inside of boot from the large diameter side of boot
and discharging inside air.

CAUTION:

• If the boot installation length exceeds the standard, it may cause breakage in boot.
• Be careful not to touch the inside of the boot with the tip of tool.

6.

Install new larger and smaller boot bands securely.

CAUTION:

Never reuse boot band.

7.

Put boot band in the groove on drive shaft boot. Then fit pawls
(

) into holes to temporary installation.

NOTE:
For the large diameter side, fit projection (A) and guide slit (B) at
first.

JPDIF0015ZZ

Standard

Grease amount

: Refer to

FAX-37, "Drive Shaft"

.

Standard

Boots installed
length (L)

: Refer to

FAX-37, "Drive Shaft"

.

JPDIF0032ZZ
