< PERIODIC MAINTENANCE >

[TRANSFER: TY30A]

TRANSFER OIL

PERIODIC MAINTENANCE

TRANSFER OIL

Inspection

INFOID:0000000010288332

OIL LEAKAGE

Check transfer surrounding area (oil seal, drain plug, filler plug, and transfer case, etc.) for oil leakage.

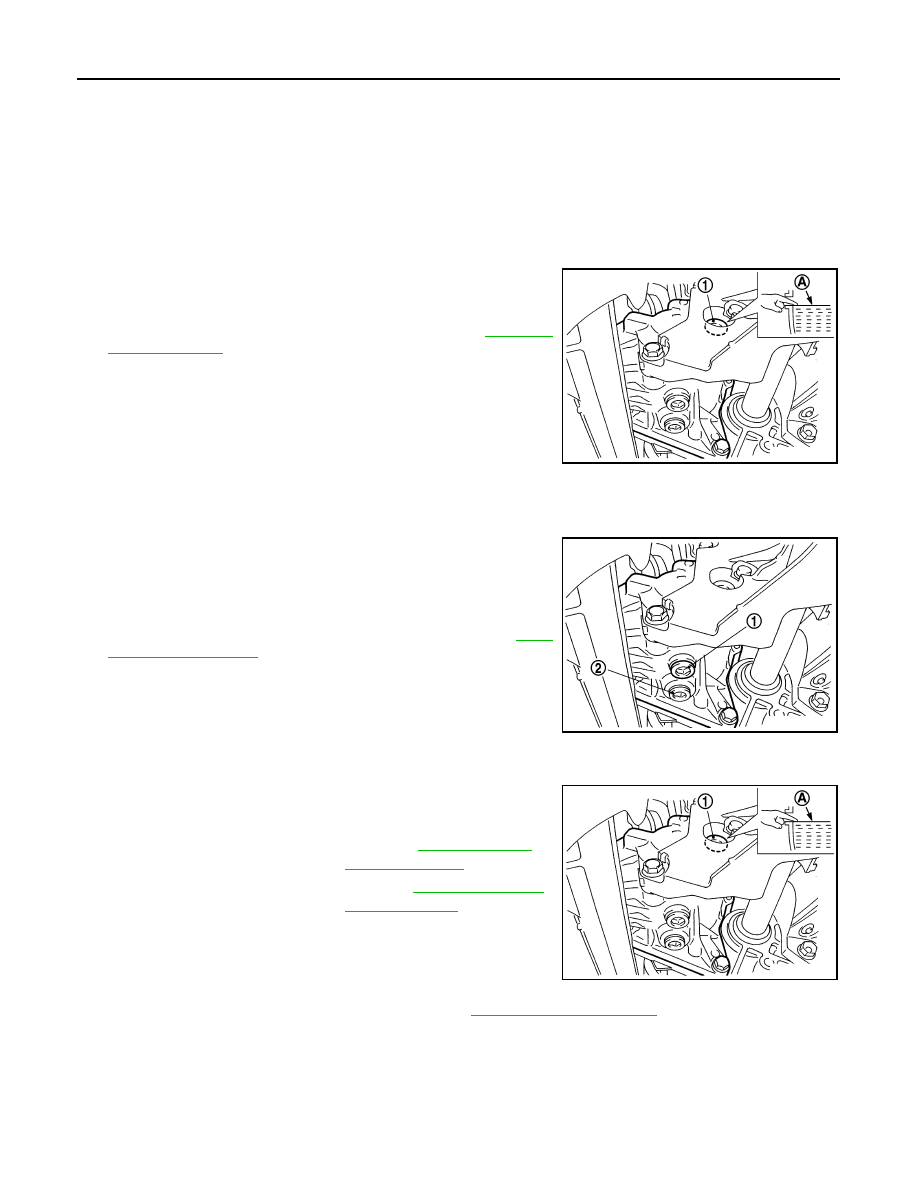

OIL LEVEL

1.

Remove filler plug (1) and gasket. Then check that oil is filled up
(A) from mounting hole for the filler plug.

2.

Before installing filler plug, set a new gasket. Install filler plug on
transfer and tighten to the specified torque. Refer to

DLN-157,

"Exploded View"

 .

CAUTION:

Never reuse gaskets.

Draining

INFOID:0000000010288333

1.

Run the vehicle to warm up the transfer unit sufficiently.

2.

Stop the engine and remove drain plug (1) and gaskets to drain
the transfer oil.

CAUTION:

Never remove tooth contact test hole plug (2).

3.

Before installing drain plug, set a new gasket. Install drain plug
on transfer and tighten to the specified torque. Refer to

DLN-

157, "Exploded View"

 .

CAUTION:

Never reuse gaskets.

Refilling

INFOID:0000000010288334

1.

Remove filler plug (1) and gasket. Then fill oil up to mounting
hole (A) for the filler plug.

CAUTION:

Carefully fill the oil. (Fill up for approximately 3 minutes.)

2.

Leave the vehicle for 3 minutes. Then check oil level again.

3.

Before installing filler plug, set a new gasket. Install filler plug on
transfer and tighten to the specified torque. Refer to

DLN-157, "Exploded View"

 .

CAUTION:

Never reuse gasket.

SDIA3060J

SDIA3059J

Oil grade and viscosity

: Refer to

MA-59, "Fluids

and Lubricants"

.

Oil capacity

: Refer to

DLN-97, "General

Specifications"

.

SDIA3060J

AWD CONTROL UNIT

DLN-153

< REMOVAL AND INSTALLATION >

[TRANSFER: TY30A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

REMOVAL AND INSTALLATION

AWD CONTROL UNIT

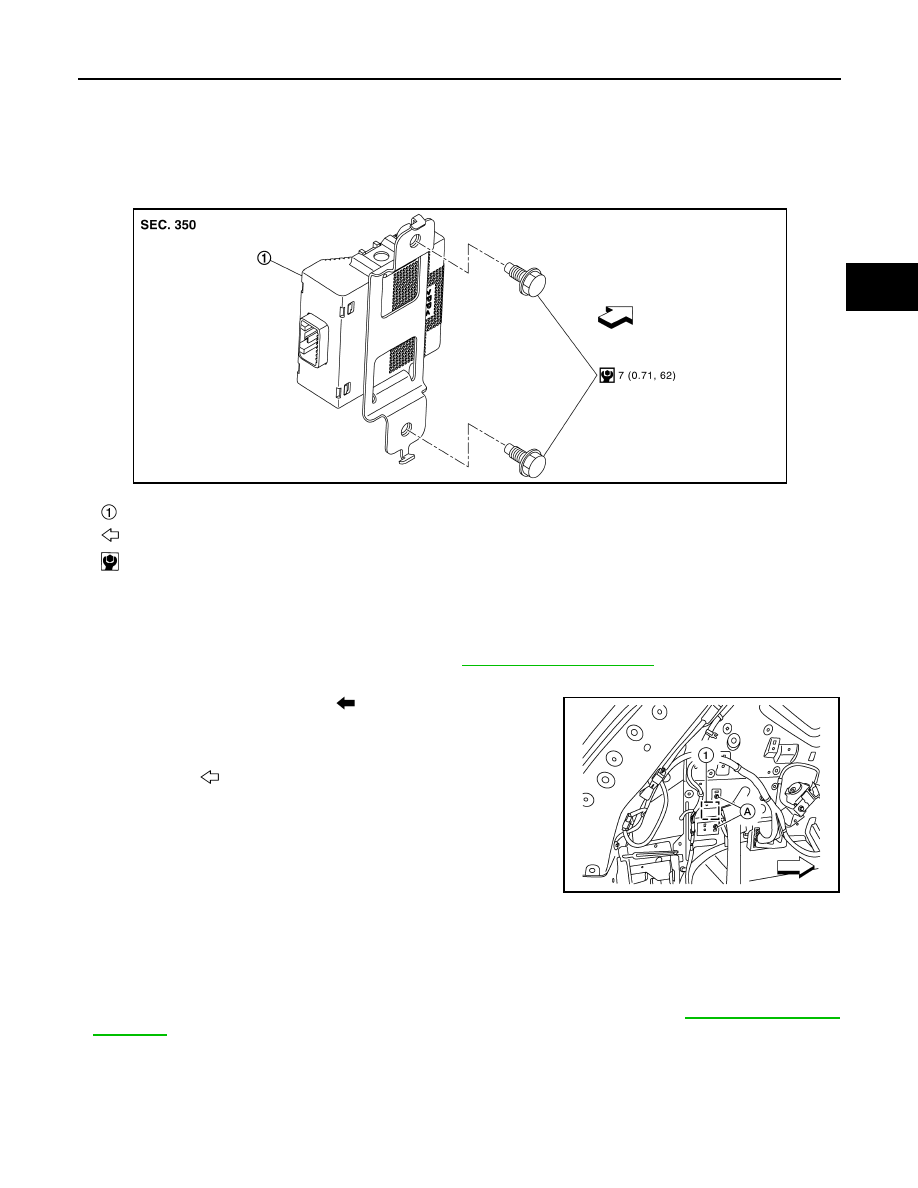

Exploded View

INFOID:0000000010471495

Removal and Installation

INFOID:0000000010471496

REMOVAL

1.

Remove luggage side lower finisher (LH). Refer to

INT-29, "Luggage side trim"

.

2.

Disconnect AWD control unit harness connector.

3.

Remove AWD control unit bolts (

).

NOTE:
AWD control unit is located on the back side of body panel.

4.

Remove AWD control unit.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not drop or shock AWD control unit.
• When replacing AWD control unit, perform writing unit characteristic. Refer to

DLN-109, "CONSULT

Function"

.

AWD control unit

: Vehicle front

: N·m (kg-m, in-lb)

JSDIA5368GB

: Front

AWDIA1154ZZ

DLN-154

< REMOVAL AND INSTALLATION >

[TRANSFER: TY30A]

AWD MODE SWITCH

AWD MODE SWITCH

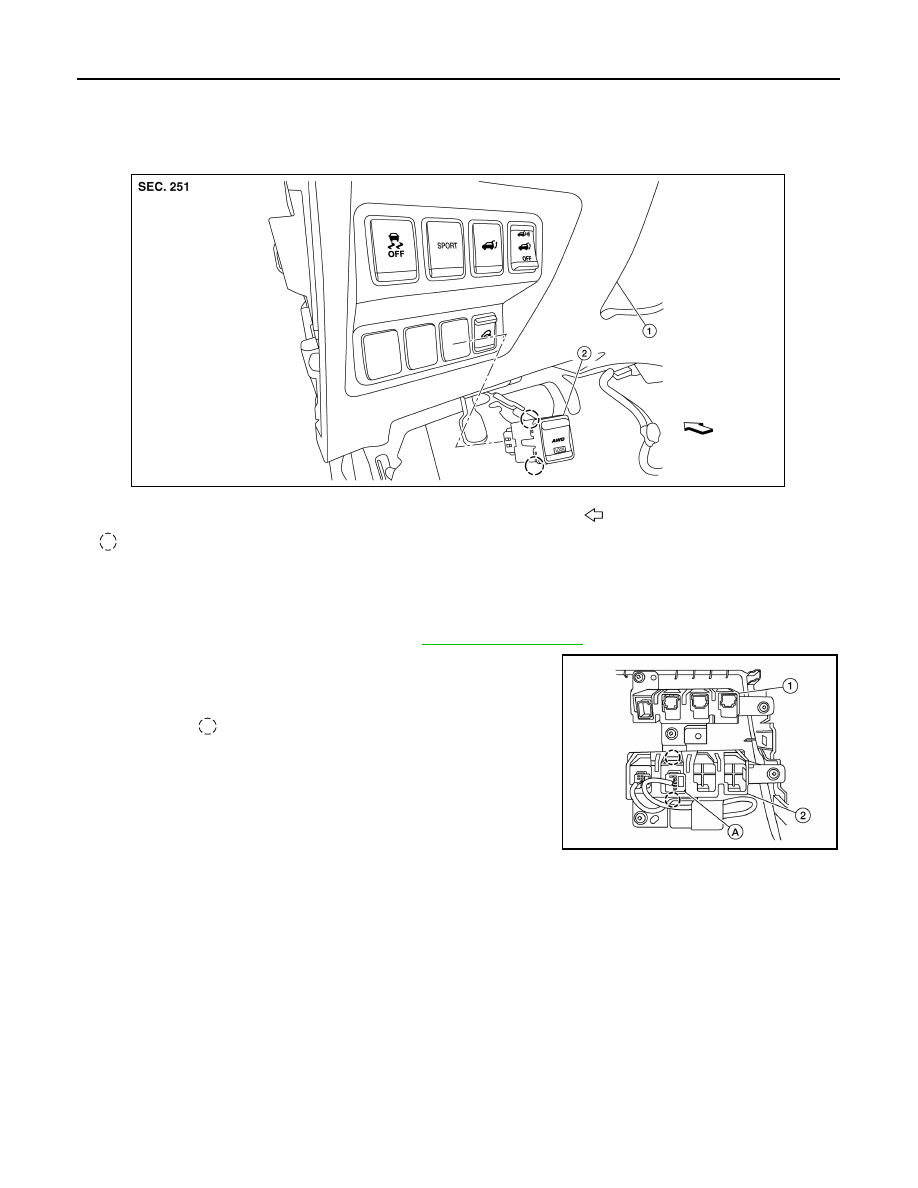

Exploded View

INFOID:0000000010464154

Removal and Installation

INFOID:0000000010464155

REMOVAL

1.

Remove instrument lower panel LH. Refer to

IP-12, "Exploded View"

.

2.

Disconnect AWD lock switch harness connector (A).

3.

Remove AWD lock switch from lower switch bracket (2).

INSTALLATION

Install in the reverse order of removal.

1.

Instrument lower panel LH

2.

AWD lock switch

Front

Pawl

ALDIA0506ZZ

: Pawls

AWDIA1151ZZ

TRANSFER ASSEMBLY

DLN-155

< UNIT REMOVAL AND INSTALLATION >

[TRANSFER: TY30A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

UNIT REMOVAL AND INSTALLATION

TRANSFER ASSEMBLY

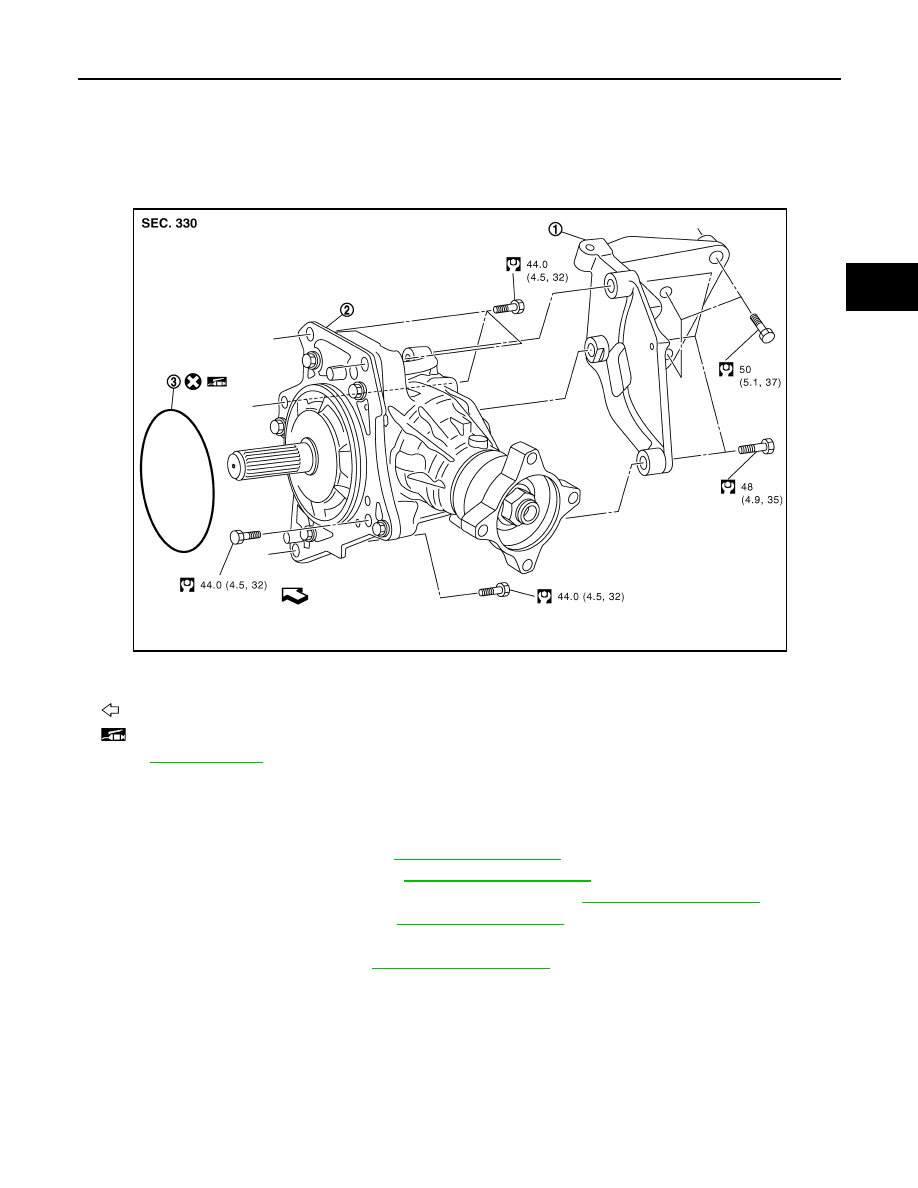

Exploded View

INFOID:0000000010288345

Removal and Installation

INFOID:0000000010288346

REMOVAL

1.

Remove the exhaust front tube. Refer to

EX-22, "Exploded View"

.

2.

Separate the rear propeller shaft. Refer to

DLN-186, "Exploded View"

.

3.

Remove right side drive shaft and support bearing bracket. Refer to

RAX-14, "Exploded View"

.

4.

Remove the diesel particle filter. Refer to

EX-24, "Exploded View"

.

5.

Remove the gusset.

6.

Remove the rear torque rod. Refer to

EM-429, "Exploded View"

.

1.

Gusset

2.

Transfer assembly

3.

O-ring (outer)

: Vehicle front

: Apply multi-purpose grease.

Refer to

GI-4, "Components"

 for symbols not described on the above.

JSDIA0267GB
