DIFFERENTIAL SIDE OIL SEAL

TM-403

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

DIFFERENTIAL SIDE OIL SEAL

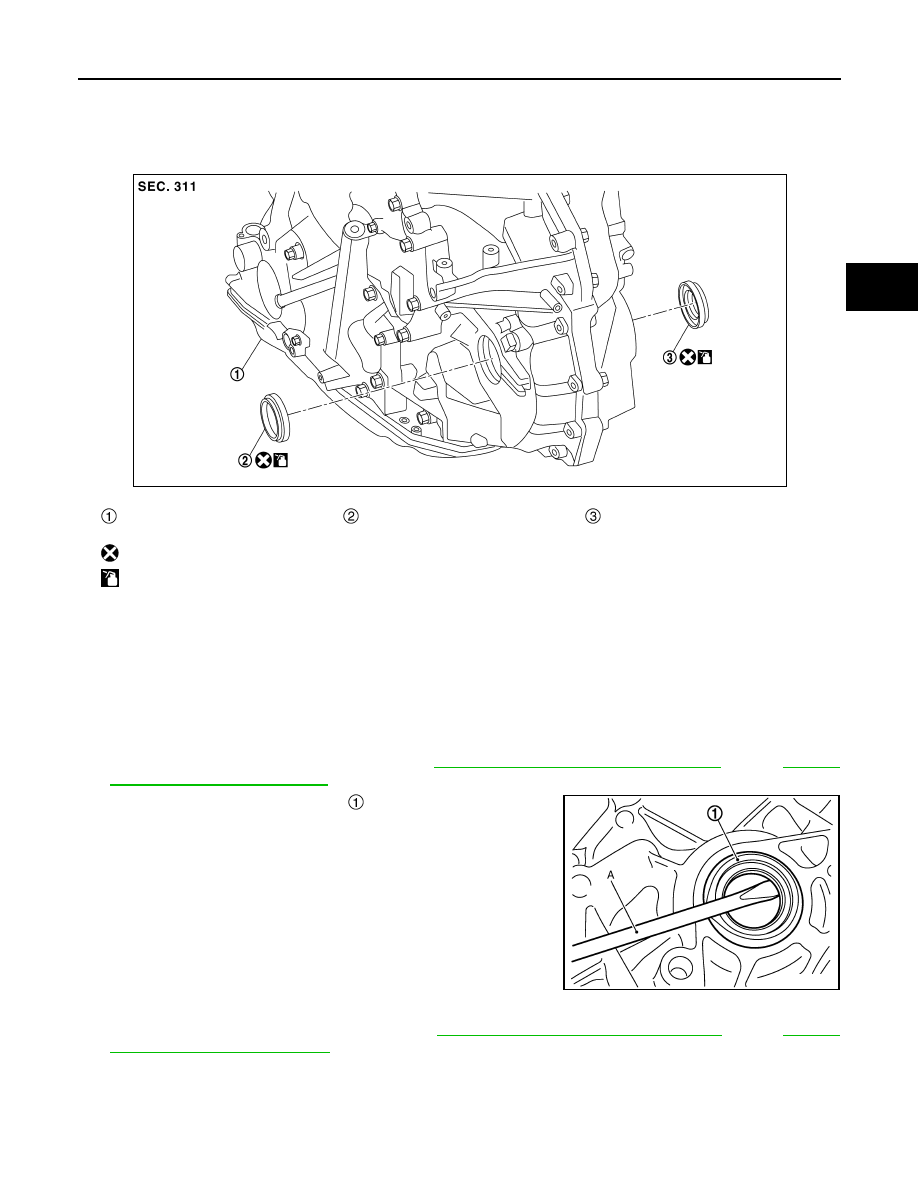

Exploded View

INFOID:0000000010589391

Removal and Installation

INFOID:0000000010589392

NOTE:
When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-
ing.

REMOVAL

Differential Side Oil Seal (Left Side)

1.

Remove front drive shaft (left side). Refer to

FAX-22, "Removal and Installation (LH)"

 (2WD),

FAX-60,

"Removal and Installation (LH)"

 (4WD).

2.

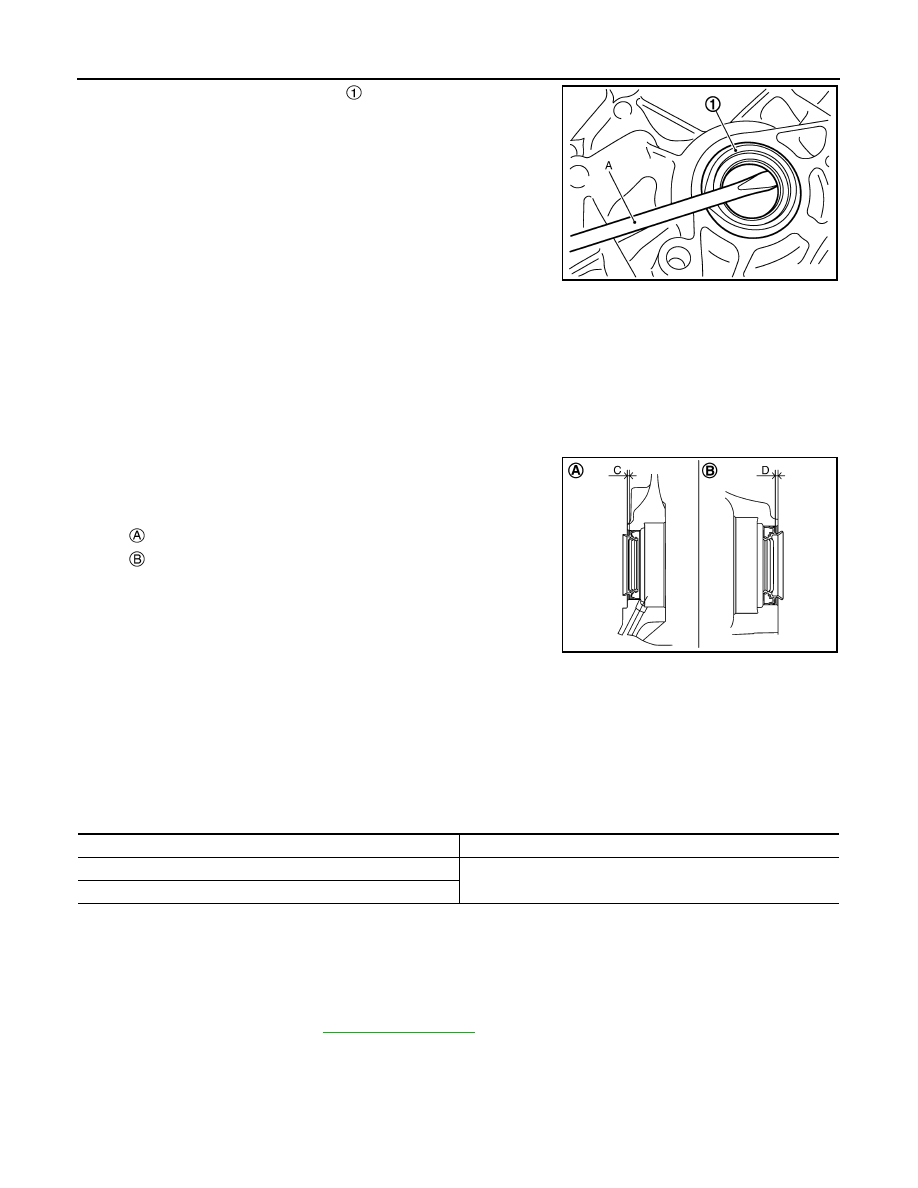

Remove differential side oil seal

 using an oil seal remover

(commercial service tool) (A).

CAUTION:

Be careful not to scratch transaxle case and converter
housing.

Differential Side Oil Seal (Right Side) (2WD Models Only)

1.

Remove front drive shaft (right side). Refer to

FAX-26, "Removal and Installation (RH)"

 (2WD),

FAX-63,

"Removal and Installation (RH)"

 (4WD).

Transaxle assembly

Differential side oil seal (left side)

Differential side oil seal (right side)
(2WD models only)

: Always replace after every disassembly.

: Apply CVT fluid

JSDIA3729GB

JPDIA0118ZZ

TM-404

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

DIFFERENTIAL SIDE OIL SEAL

2.

Remove differential side oil seal

 using an oil seal remover

(commercial service tool) (A).

CAUTION:

Be careful not to scratch transaxle case and converter
housing.

INSTALLATION

Note the followings and installation is in the reverse order of removal.

CAUTION:

• Never reuse differential side oil seal.
• Apply CVT fluid to differential side oil seals.
• When inserting the drive shaft, be sure to use Tool.

Install each differential side oil seal evenly using Tool so that differ-
ential side oil seal protrudes by the dimension (C) and (D) respect-
fully.

NOTE:

The reference is the installation direction of the differential side oil seal.

Drift to be used:

Inspection and Adjustment

INFOID:0000000010589393

INSPECTION AFTER INSTALLATION

Drive the vehicle and check visually that there is no leakage of CVT fluid.

ADJUSTMENT AFTER INSTALLATION

Adjust the CVT fluid level. Refer to

TM-380, "Adjustment"

.

JPDIA0118ZZ

Tool number

: KV38107900

: Differential side oil seal (left side)

: Differential side oil seal (right side) (2WD models only)

JPDIA0520ZZ

Dimension (C)

:Height difference from case end surface is within 1.8

±

 0.5 mm (0.071

±



0.020 in).

Dimension (D)

:Height difference from case end surface is within 2.2

±

 0.5 mm (0.087

±



0.020 in).

Location

Commercial Service Tools

Transaxle case side

Commercial service tool with outer dia. 56 mm (2.20 in) and in-
ner dia. 50 mm (1.97 in)

Converter housing side

WATER HOSE

TM-405

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

WATER HOSE

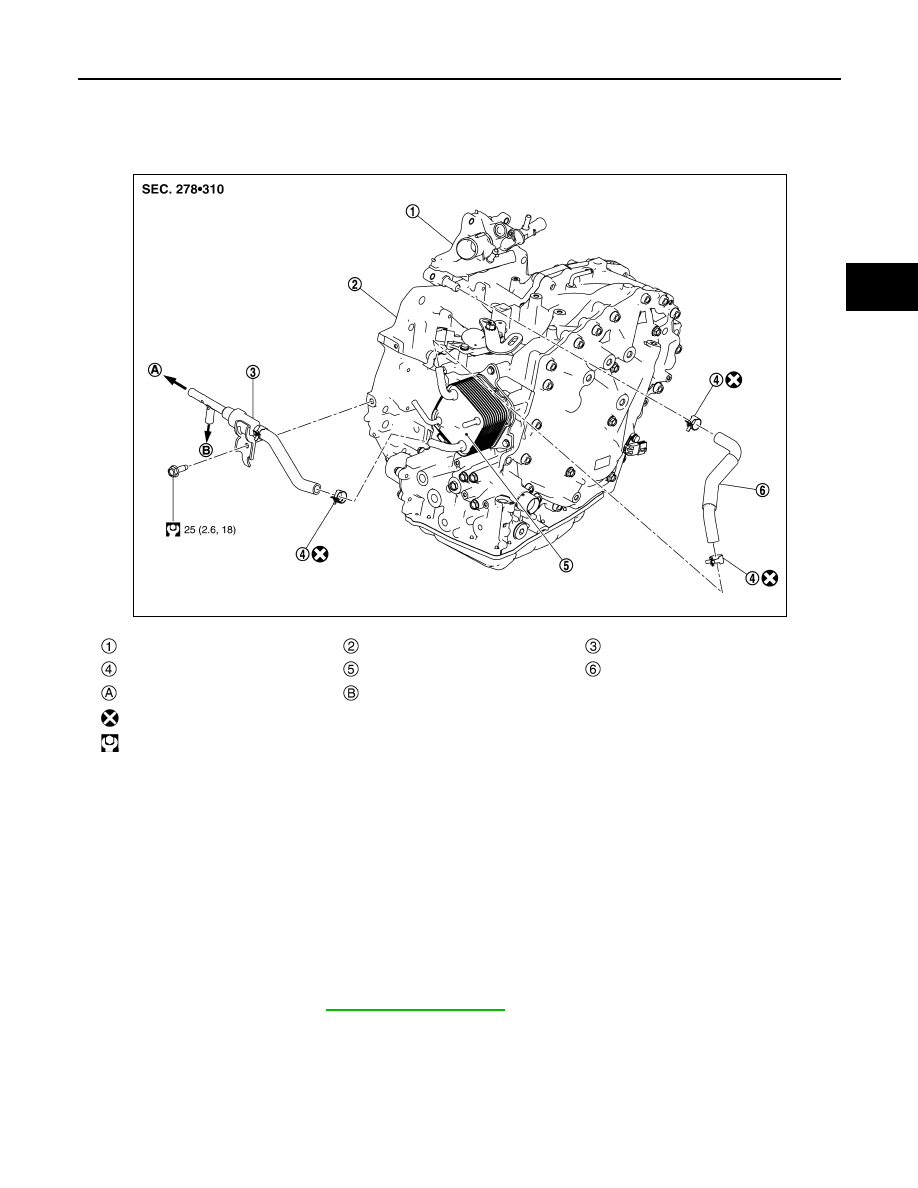

Exploded View

INFOID:0000000010589394

Removal and Installation

INFOID:0000000010589395

REMOVAL

WARNING:

Never remove the radiator cap when the engine is hot. Serious burns could occur from high pressure
coolant escaping from the radiator. Wrap a thick cloth around the cap. Slowly turn it a quarter turn to
allow built-up pressure to escape. Carefully remove the cap by turning it all the way.

CAUTION:

Perform when the engine is cold.
NOTE:
When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-
ing.
1.

Remove air duct inlet. Refer to

EM-147, "Exploded View"

.

2.

Remove water hose and heater thermostat assembly.

INSTALLATION

Note the followings and installation is in the reverse order of removal.

CAUTION:

• Never reuse hose clamps.
• Securely install the water hose clip to the converter housing.

Water outlet

Transaxle assembly

Heater thermostat assembly

Hose clamp

CVT oil warmer

Water hose

To thermostat housing

To engine oil cooler

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

JSDIA5317GB

TM-406

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

WATER HOSE

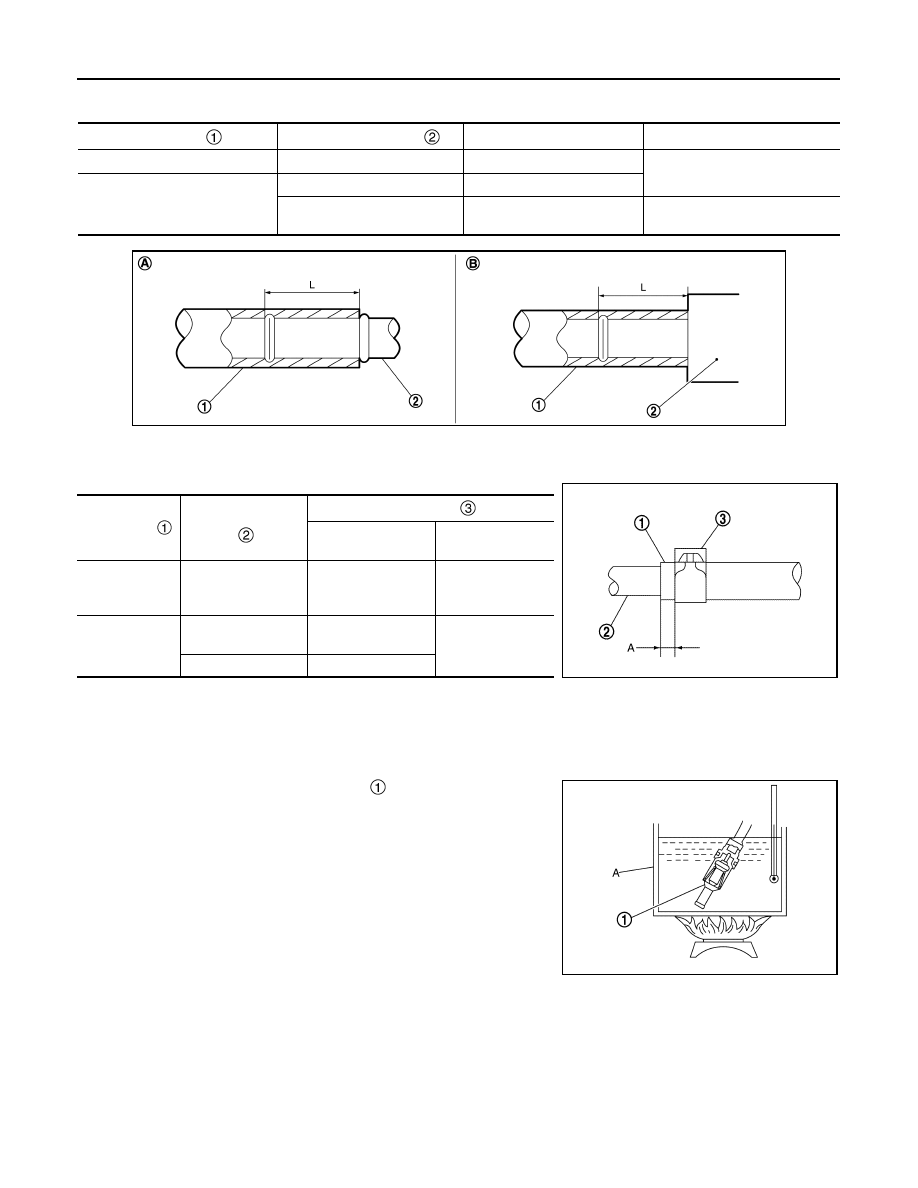

• Refer to the following when installing water hoses.

• Refer to the followings when installing hose clamp.

CAUTION:

Hose clamp should not interfere with the bulge of tube.

Inspection

INFOID:0000000010589396

INSPECTION AFTER REMOVAL

Heater Thermostat

1.

Fully immerse the heater thermostat

 in a container (A) filled

with water. Continue heating the water while stirring.

2.

Continue heating the heater thermostat for 5 minutes or more
after bringing the water to a boil.

3.

Quickly take the heater thermostat out of the hot water, measure the heater thermostat within 10 seconds.

Water hose

Installation side tube

Direction of paint mark

Hose insertion depth (L)

Heater thermostat assembly

CVT oil warmer

Frontward

Hose end reaches the 2-stage
bulge.

Water hose

CVT oil warmer

Frontward

Water outlet

Frontward

Hose end reaches the end of
tube.

JSDIA3579ZZ

Water hose

Installation side tube

Hose clamp

Direction of tab

Clamping position

(A)

Heater thermo-
stat assembly

CVT oil warmer

Frontward

5 – 9 mm (0.20 –
0.35 in) from hose
end

Water hose

CVT oil warmer

Upward and 30

°



frontward

5 – 7 mm (0.20 –
0.28 in) from hose
end

Water outlet

Frontward

JSDIA2424ZZ

JSDIA3661ZZ
