Nissan Qashqai J11. Manual - part 660

PREPARATION

TM-215

< PREPARATION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

PREPARATION

PREPARATION

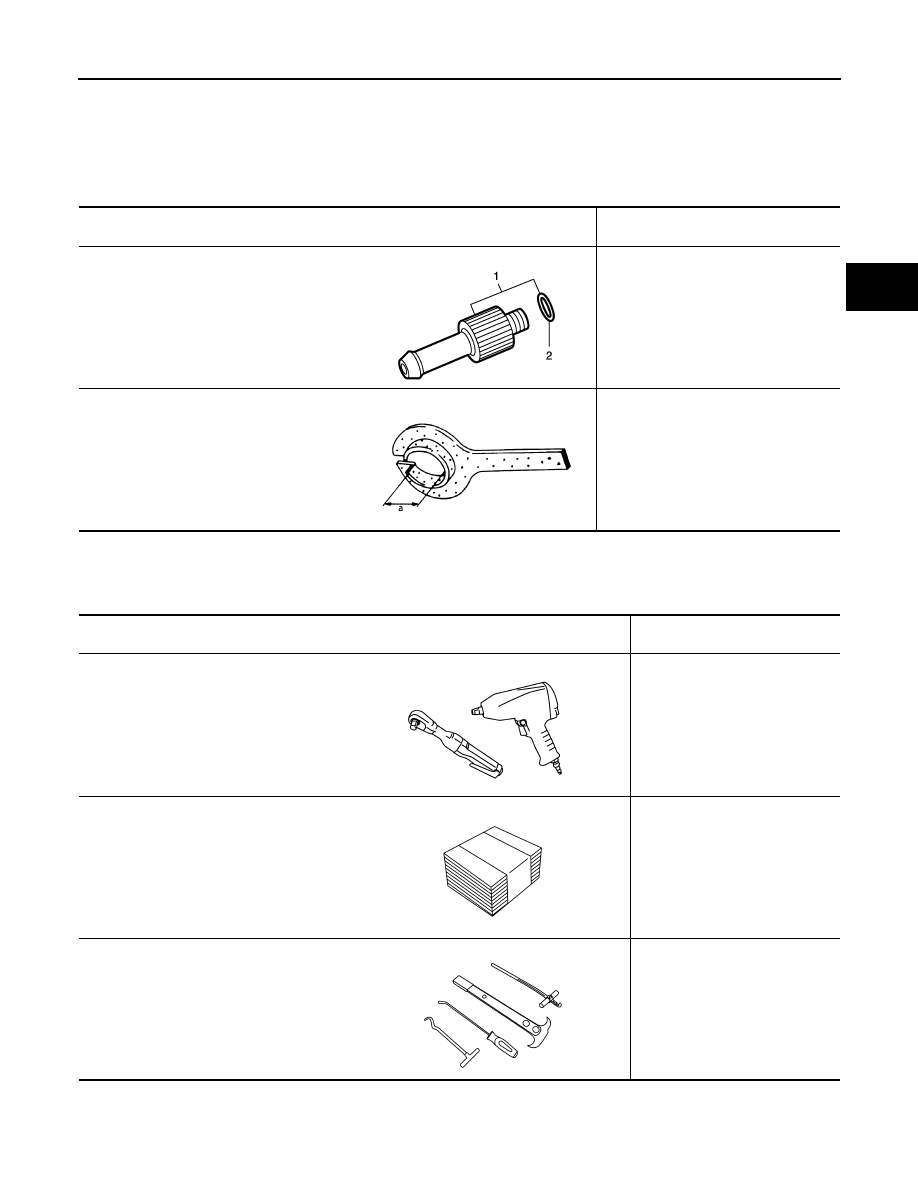

Special Service Tools

INFOID:0000000010589206

*: The O-ring as a unit part is set as a SST.

Commercial Service Tools

INFOID:0000000010589207

Tool number
Tool name

Description

1.

KV311039S0
Charging pipe set

2.

KV31103920*
O-ring

CVT fluid changing and adjustment

KV38107900
Protector
a: 32 mm (1.26 in) dia.

Installing drive shaft

JSDIA1844ZZ

PDIA1183J

Tool number
Tool name

Description

Power tool

Loosening nuts and bolts

Lint-free paper

Cleaning transaxle

Oil seal remover

Removing each oil seal

PBIC0190E

JSDIA4746ZZ

JSDIA4998ZZ

TM-216

< PREPARATION >

[CVT: RE0F10D]

PREPARATION

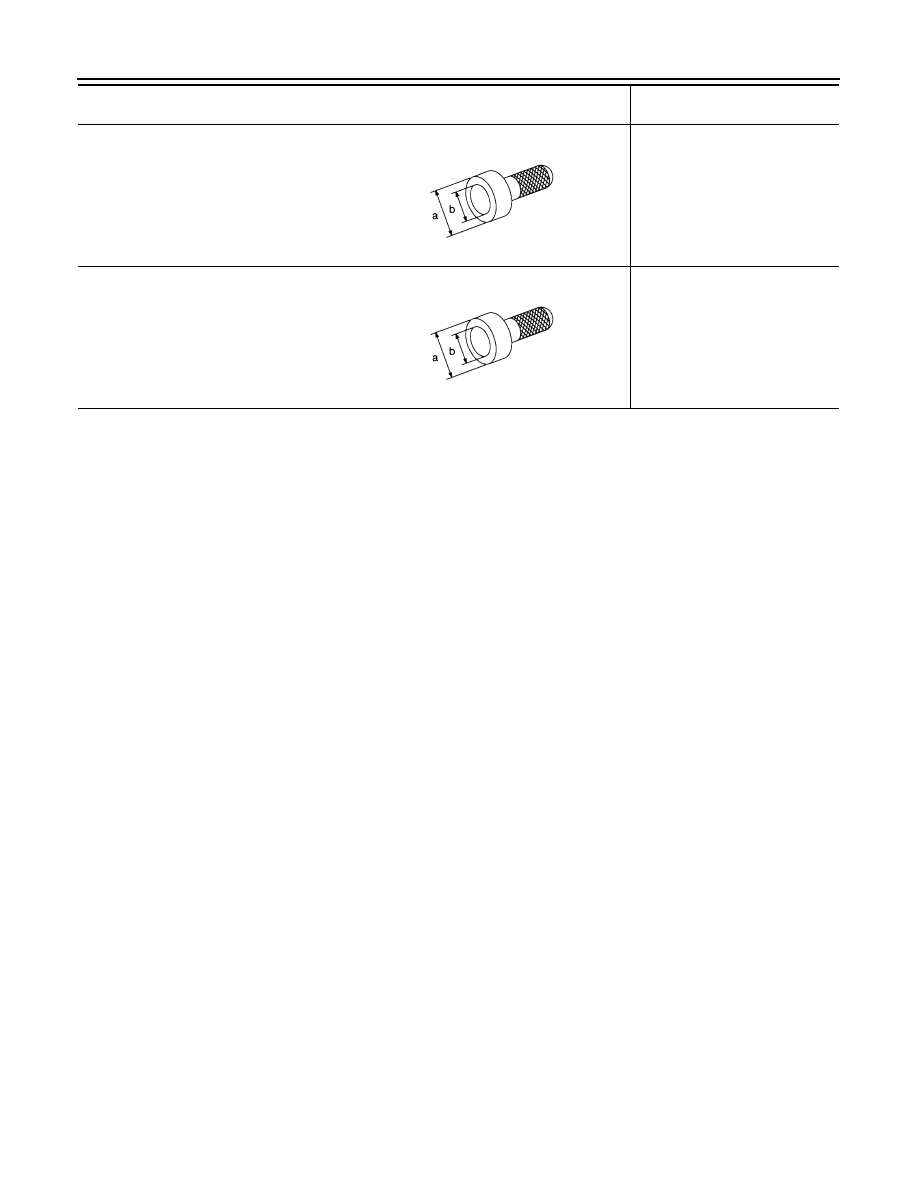

Drift
a: 56 mm (2.20 in) dia.
b: 50 mm (1.97 in) dia.

Installing differential side oil seal

Drift
a: 65 mm (2.56 in) dia.
b: 60 mm (2.36 in) dia.

Installing converter housing oil
seal

Tool number
Tool name

Description

NT115

NT115

COMPONENT PARTS

TM-217

< SYSTEM DESCRIPTION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

SYSTEM DESCRIPTION

COMPONENT PARTS

CVT CONTROL SYSTEM

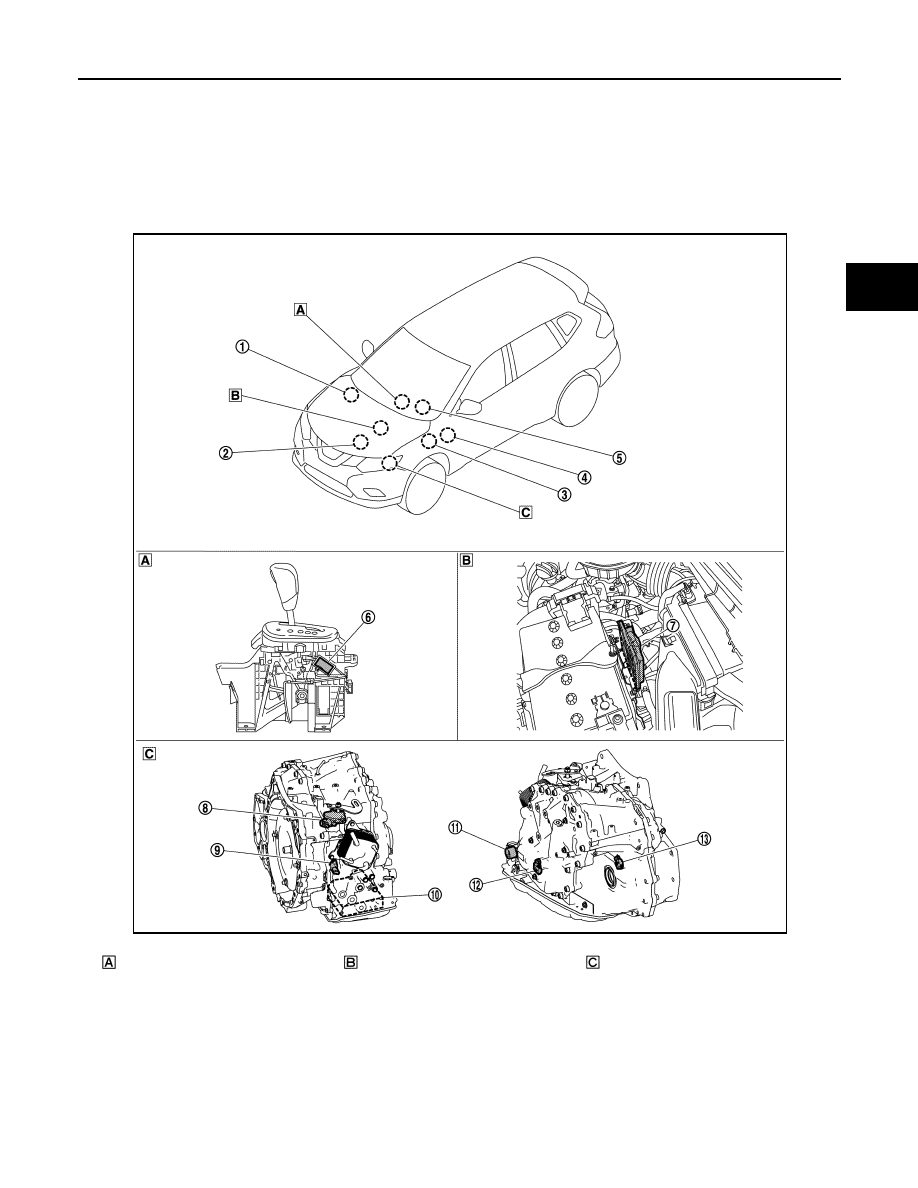

CVT CONTROL SYSTEM : Component Parts Location

INFOID:0000000010589208

Engine room, LH

Transaxle assembly

CVT shift selector assembly

JSDIA5307ZZ

TM-218

< SYSTEM DESCRIPTION >

[CVT: RE0F10D]

COMPONENT PARTS

No.

Component

Function

ABS actuator and electric unit (control unit)

Mainly transmits the following signal to TCM via CAN communication.
• ABS operation signal
• TCS operation signal
• VDC operation signal
• ABS malfunction signal
• Vehicle speed signal
• Decel G signal
Refer to

BRC-8, "Component Parts Location"

 for detailed installation loca-

tion.

ECM

Mainly transmits the following signal to TCM via CAN communication.
• Engine and CVT integrated control signal

NOTE:
General term for the communication (torque-down permission, torque-
down request, etc.) exchanged between the ECM and TCM.

• Engine speed signal
• Engine coolant temperature signal
• Accelerator pedal position signal
• Closed throttle position signal
Mainly receives the following signals from TCM via CAN communication.
• Malfunctioning indicator lamp signal

• ECO mode signal

*1

Refer to

ECM-14, "ENGINE CONTROL SYSTEM : Component Parts Lo-

cation"

 for detailed installation location.

BCM

Mainly transmits the following signal to TCM via CAN communication.
• Stop lamp switch signal
Refer to

BCS-7, "BODY CONTROL SYSTEM : Component Parts Location"



for detailed installation location.

ECO mode switch

*1

DMS-5, "ECO Mode Switch"

Combination meter

Mainly transmits the following signal to TCM via CAN communication.
• Manual mode signal
• Non-manual mode signal
• Manual mode upshift signal
• Manual mode downshift signal

• ECO mode switch signal

*1

Mainly receives the following signals from TCM via CAN communication.
• Shift position signal
• Manual mode shift refusal signal
Refer to

MWI-6, "Component Parts Location"

 for detailed installation loca-

tion.

Manual mode switch

TM-224, "CVT CONTROL SYSTEM : Manual Mode Switch"

TCM

TM-219, "CVT CONTROL SYSTEM : TCM"

Transmission range switch

TM-219, "CVT CONTROL SYSTEM : Transmission Range Switch"

Input speed sensor

TM-221, "CVT CONTROL SYSTEM : Input Speed Sensor"

Control
valve

CVT fluid temperature sensor

*2

TM-221, "CVT CONTROL SYSTEM : CVT Fluid Temperature Sensor"

Primary pressure sensor

*2

TM-222, "CVT CONTROL SYSTEM : Primary Pressure Sensor"

Secondary pressure sensor

*2

TM-222, "CVT CONTROL SYSTEM : Secondary Pressure Sensor"

Line pressure solenoid valve

*2

TM-224, "CVT CONTROL SYSTEM : Line Pressure Solenoid Valve"

Primary pressure solenoid valve

*2

TM-222, "CVT CONTROL SYSTEM : Primary Pressure Solenoid Valve"

Secondary pressure solenoid valve

*2

TM-223, "CVT CONTROL SYSTEM : Secondary Pressure Solenoid Valve"

Torque converter clutch solenoid

valve

*2

TM-223, "CVT CONTROL SYSTEM : Torque Converter Clutch Solenoid

Valve"

Select solenoid valve

*2

TM-223, "CVT CONTROL SYSTEM : Select Solenoid Valve"

CVT unit connector

—
