IDLE SPEED

PERIODIC MAINTENANCE

IDLE SPEED

Inspection

INFOID:0000000010290073

1.

CHECK IDLE SPEED

With CONSULT

Check “ENGINE SPEED” in “DATA MONITOR” mode with CONSULT.

>> INSPECTION END

Idle speed:

Refer to

ECK-405, "Idle Speed"

.

VACUUM LINES

ECK-397

< REMOVAL AND INSTALLATION >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

ECK

N

P

O

REMOVAL AND INSTALLATION

VACUUM LINES

Vacuum Layout

INFOID:0000000010501141

CAUTION:

Do not use soapy water or any type of solvent while installing vacuum hose.

1.

TC boost control solenoid valve

2.

Vacuum pump

3.

TC boost control actuator

JSBIA4849ZZ

ECK-398

< REMOVAL AND INSTALLATION >

[K9K]

ECM

ECM

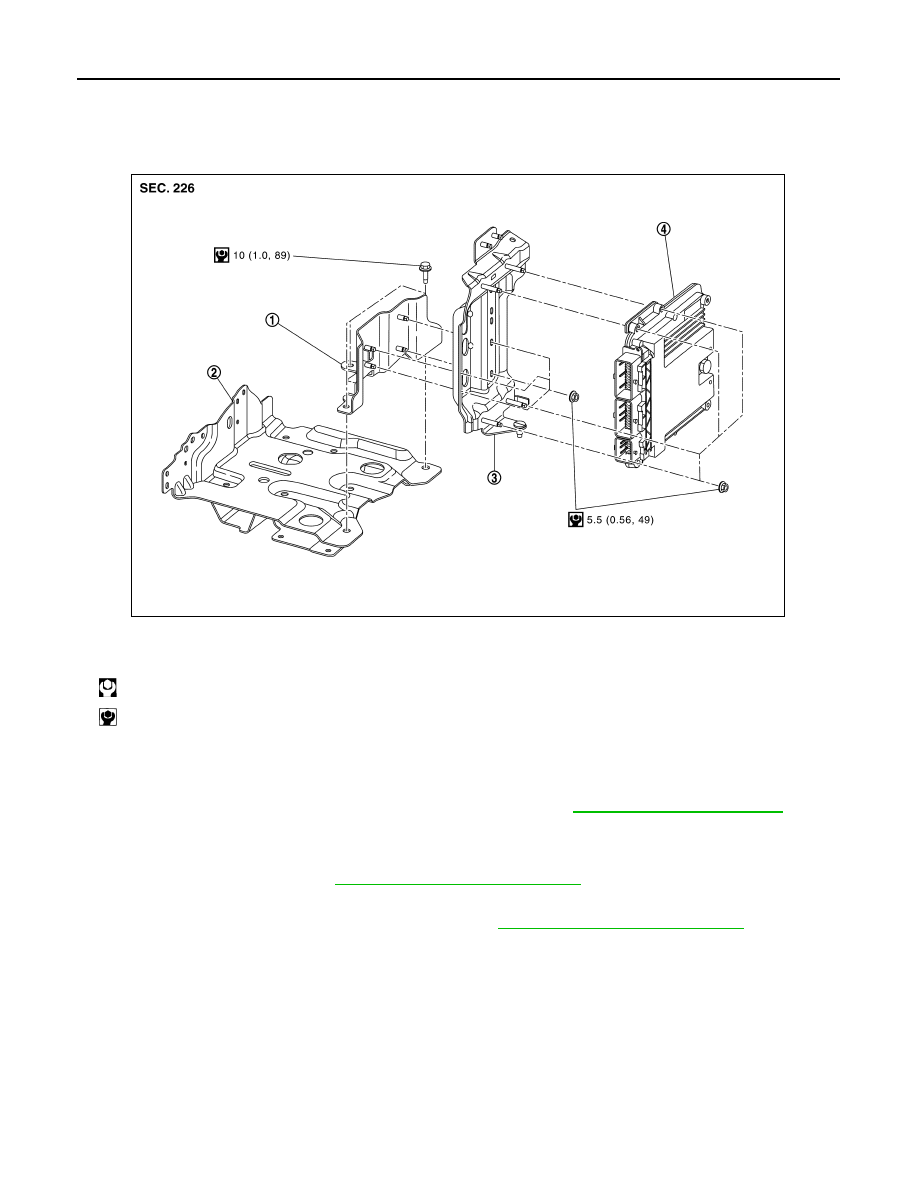

Exploded View

INFOID:0000000010501142

Removal and Installation

INFOID:0000000010501143

CAUTION:

Perform ADDITIONAL SERVICE WHEN REPLACING ECM. Refer to

ECK-131, "Work Procedure"

.

REMOVAL

1.

Disconnect battery negative terminal.

2.

Remove air duct (inlet). Refer to

EM-380, "Removal and Installation"

.

3.

Disconnect ECM harness connectors.

4.

Remove battery, battery cover and battery tray. Refer to

PG-155, "Removal and Installation"

.

5.

Remove bracket A with ECM.

6.

Remove ECM from bracket B.

INSTALLATION

Install in the reverse order of removal.

1.

Battery mounting bracket

2.

Bracket A

3.

Bracket B

4.

ECM

: N·m (kg-m, ft-lb)

: N·m (kg-m, in-lb)

JSBIA5191GB

GLOW CONTROL UNIT

ECK-399

< REMOVAL AND INSTALLATION >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

ECK

N

P

O

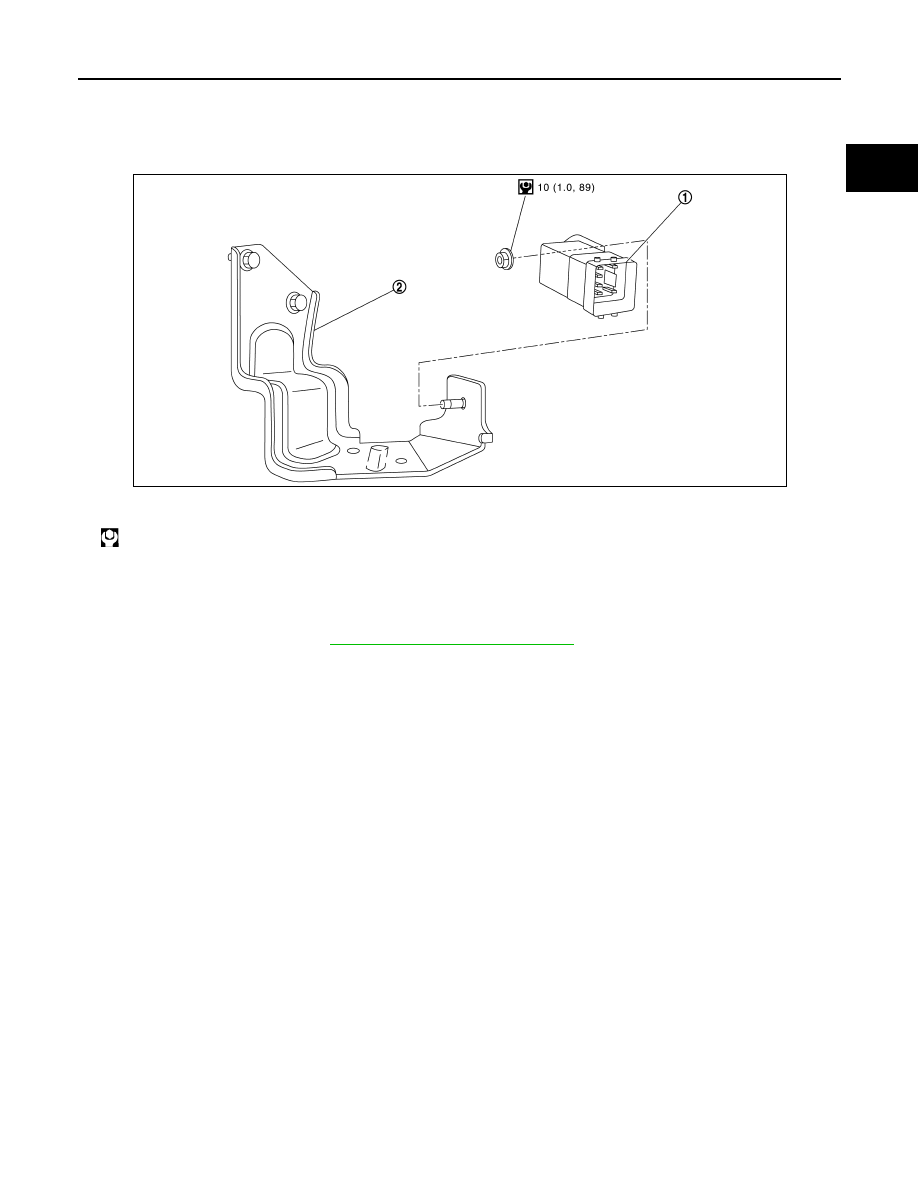

GLOW CONTROL UNIT

Exploded View

INFOID:0000000010501144

Removal and Installation

INFOID:0000000010501145

REMOVAL

1.

Remove front bumper. Refer to

EXT-19, "Removal and Installation"

.

2.

Disconnect glow control unit harness connector.

3.

Remove glow control unit from bracket.

INSTALLATION

Install in the reverse order of removal.

1.

Glow control unit

2.

Bracket

: N·m (kg-m, ft-lb)

JSBIA5215GB
