MWI-8

< SYSTEM DESCRIPTION >

COMPONENT PARTS

Component Description

INFOID:0000000010329938

13. Fuel level sensor unit

14. Front seat belt buckle switch RH

15. Front seat belt buckle switch LH

16. Occupant detection unit (under pas-

senger seat cushion pad)

17. Rear seat buckle switch RH and cen-

ter

18. Parking brake switch

19. Rear seat buckle switch LH

A.

Lower right side of rear seat

B.

Left side of engine room

C.

Over the glove box

D.

Left side of engine room

E.

Behind of front bumper center

F.

Right side of engine room

G.

Right side of engine room

H.

Lower left side of rear seat

Unit

Description

Combination meter

Controls the following with the signals received from each unit via CAN communication and the sig-
nals from switches and sensors.
• Speedometer
• Tachometer
• Engine coolant temperature gauge
• Fuel gauge
• Warning lamps
• Indicator lamps
• Meter illumination control
• Information display

ECM

Transmits the following signals to the combination meter via CAN communication.
• Engine speed signal
• Engine coolant temperature signal
• Fuel consumption monitor signal
• Fuel filler cap warning display signal

ABS actuator and electric unit
(control unit)

Transmits the vehicle speed signal to the combination meter via CAN communication.

IPDM E/R

Transmits the engine oil pressure switch signal to the BCM via CAN communication.

BCM

Transmits the following signals to the combination meter via CAN communication.
• Engine oil pressure switch signal
• Position light request signal
• Door switch signal
• Low tire pressure warning lamp signal

TCM

Transmits the shift position signal to the combination meter via CAN communication.

CVT shift selector (with manual
mode)

Transmits the following signals to the combination meter.
• Manual mode signal
• Non-manual mode signal
• Manual mode shift up signal
• Manual mode shift down signal

Fuel level sensor unit

Transmits the fuel level sensor signal to the combination meter.

Engine oil pressure switch

Transmits the oil pressure switch signal to the IPDM E/R.

Ambient sensor

Transmits the ambient sensor signal to the combination meter.

Parking brake switch

Transmits the parking brake switch signal to the combination meter via EHS/PKB control unit.

MWI

SYSTEM (METER SYSTEM)

MWI-9

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SYSTEM (METER SYSTEM)

METER SYSTEM

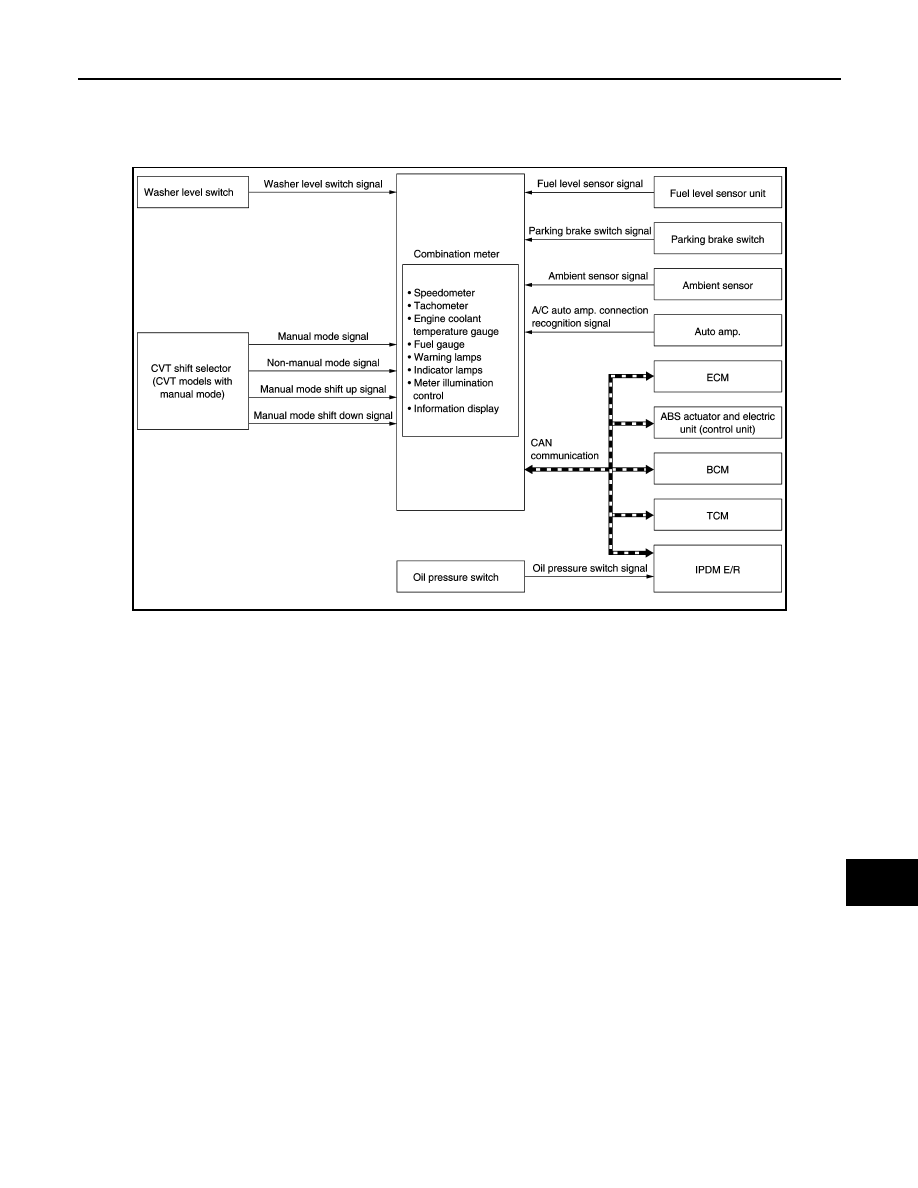

METER SYSTEM : System Diagram

INFOID:0000000010329939

JSNIA3486GB

MWI-10

< SYSTEM DESCRIPTION >

SYSTEM (METER SYSTEM)

METER SYSTEM : System Description

INFOID:0000000010483061

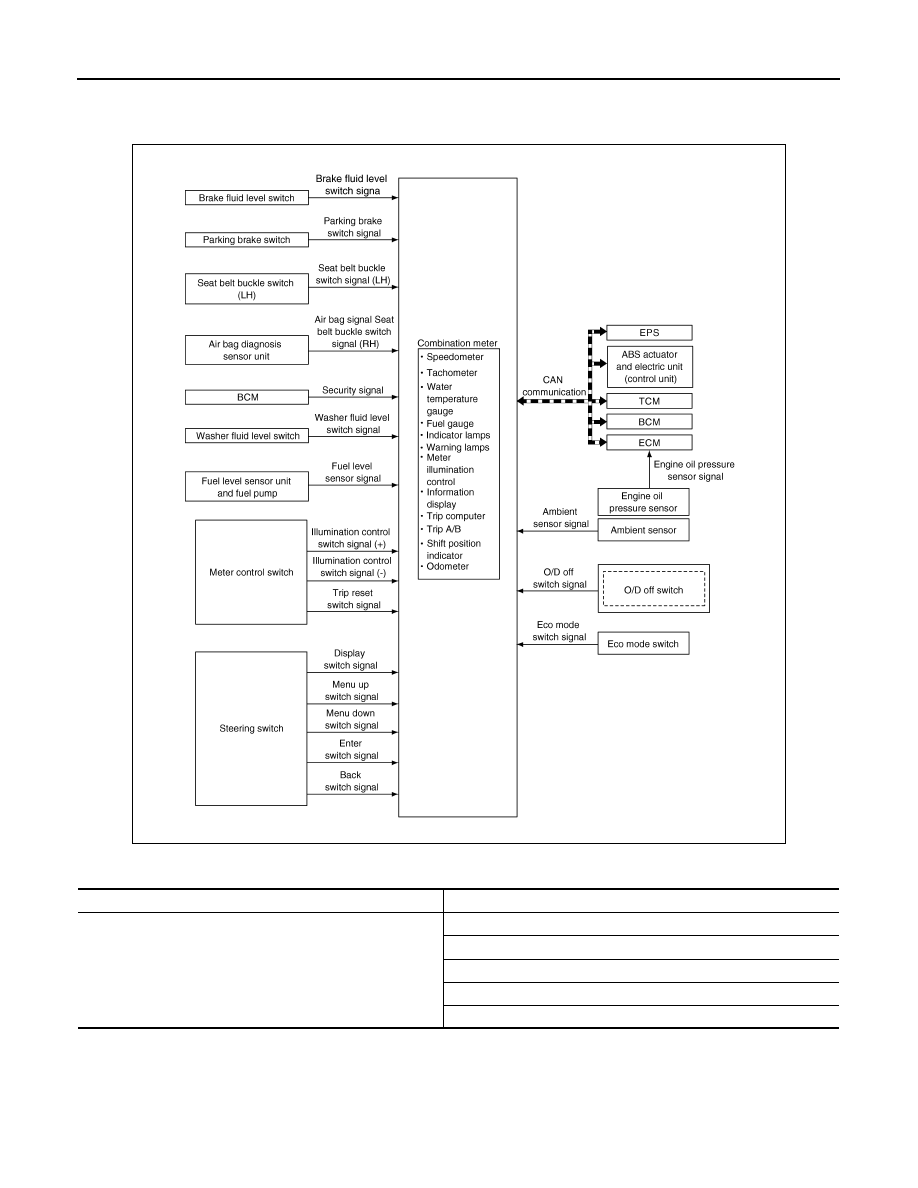

SYSTEM DIAGRAM

Combination Meter Input Signal (CAN Communication Signal)

E1NIA0079GB

Transmit unit

Signal name

ABS actuator and electric unit (control unit)

Vehicle speed signal

ABS warning lamp signal

VDC warning lamp signal

VDC OFF indicator lamp signal

Brake warning lamp signal

MWI

SYSTEM (METER SYSTEM)

MWI-11

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DESCRIPTION

Combination Meter

• The combination meter controls the following items according to the signals received from each unit via CAN

communication and the signals from switches and sensors.

- Measuring instruments
• Speedometer
• Tachometer
• Engine coolant temperature gauge
• Fuel gauge
- Warning lamps
- Indicator lamps
- Meter illumination control
- Meter effect function
- Information display
• The combination meter incorporates a buzzer function that sounds an audible alarm with the integrated

buzzer. Refer to

MWI-10, "METER SYSTEM : System Description"

 for further details.

• The combination meter includes an on board diagnosis function.
• The combination meter can be diagnosed with CONSULT.

METER CONTROL FUNCTION LIST

BCM

Dimmer signal

Position light request signal

Door switch signal

Front fog light request signal

High beam request signal

Meter display signal

Sleep wake up signal

Buzzer output signal

Tire pressure data signal

Key ID signal

Turn indicator signal

TPMS malfunction warning lamp signal

Starter relay status signal

Low tire pressure warning lamp signal

Turn indicator signal

TCM

Shift position signal

CVT warning lamp signal

ECM

Engine speed signal

ASCD status signal

Engine coolant temperature signal

Fuel consumption monitor signal

Malfunctioning indicator lamp signal

Engine status signal

Engine oil pressure sensor signal

Fuel filler cap warning display signal

AWD control unit

AWD warning lamp signal

Transmit unit

Signal name
