Nissan Qashqai J11. Manual - part 1954
PCS-88
< SYSTEM DESCRIPTION >

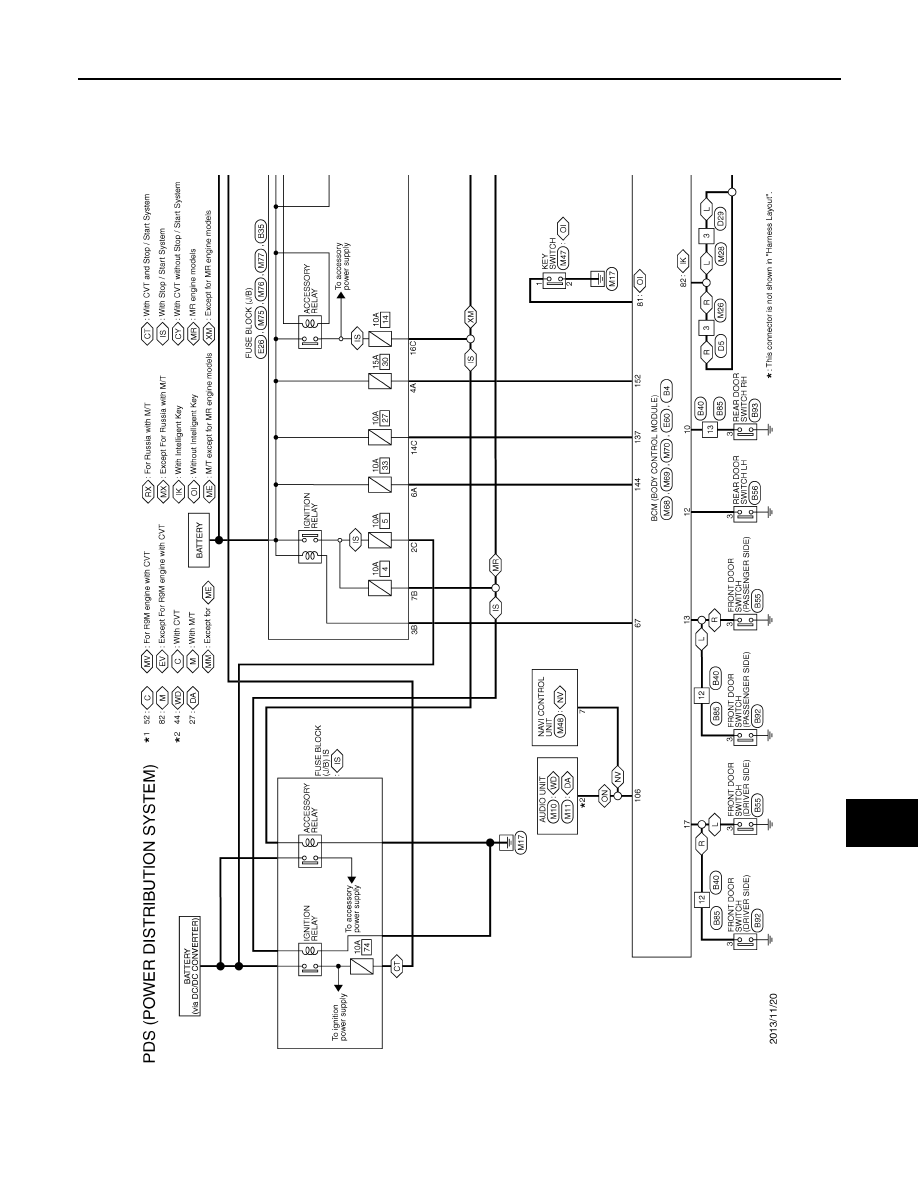

[POWER DISTRIBUTION SYSTEM]
DIAGNOSIS SYSTEM (BCM)
*
1
: It is displayed but does not operate on CVT models.
*
2
: OFF is displayed when brake pedal is depressed while brake switch power supply is OFF.
ACTIVE TEST
RKE-PANIC
NOTE:
This item is displayed, but cannot be monitored
RKE-MODE CHG
Indicates [On/Off] condition of MODE CHANGE signal from Intelligent Key
RKE PBD
NOTE:
This item is displayed, but cannot be monitored
KEY SW
NOTE:
This item is displayed, but cannot be monitored
IGN SW
NOTE:
This item is displayed, but cannot be monitored
START SW
NOTE:
This item is displayed, but cannot be monitored
Monitor Item
Condition
Test item
Description
OUTSIDE BUZZER
This test is able to check Intelligent Key warning buzzer operation
• On: Operate
• Off: Non-operation
INSIDE BUZZER
This test is able to check warning chime in combination meter operation
• Buzzer 1: Combination meter buzzer sounds (pipipi...) when CONSULT screen is touched
• Buzzer 2: Combination meter buzzer sounds (pipi-pipi-...) when CONSULT screen is
touched
• Buzzer 3: Combination meter buzzer sounds (pipipipi-pipipipi-...) when CONSULT screen is
touched
• Off: Non-operation
INDICATOR
This test is able to check warning lamp operation
• KEY ON:[ Intelligent key system malfunction] displays when CONSULT screen is touched
• KEY IND: “KEY” Warning lamp blinks when CONSULT screen is touched
• Off: Non-operation
FLASHER
This test is able to check security hazard lamp operation
The hazard lamps are activated after “LH/RH/Off” on CONSULT screen is touched
HORN
NOTE:
This item is displayed, but cannot be used
IGN CONT2
This test is able to operate the blower relay in fuse block (J/B)
• On: Operates
• Off: Non-operation
MIRROR +5
NOTE:
This item is displayed, but cannot be used
ENGINE SW ILLUMI
This test is able to check push-ignition switch illumination operation
Push-ignition switch illumination illuminates when “ON” on CONSULT screen is touched
PUSH SWITCH INDICATOR
This test is able to check LOCK indicator in push-ignition switch operation
LOCK indicator in push-ignition switch illuminates when “ON” on CONSULT screen is touched
ENGINE START REQUEST
This test is able to check BCM sends starter request signal to IPDM E/R via CAN communi-
cation
• MODE 1: IGN ON, START request OFF
• MODE 2: IGN OFF, START request ON
• MODE 3: IGN ON, START request ON
• Off: Non-operation
IGNITION RELAY
NOTE:
This item is displayed, but cannot be used
STARTER CUT RELAY
This test is able to operate the starter control relay
• On: Operates
• Off: Non-operation
