PCS-76

< SYSTEM DESCRIPTION >

[POWER DISTRIBUTION SYSTEM]

SYSTEM

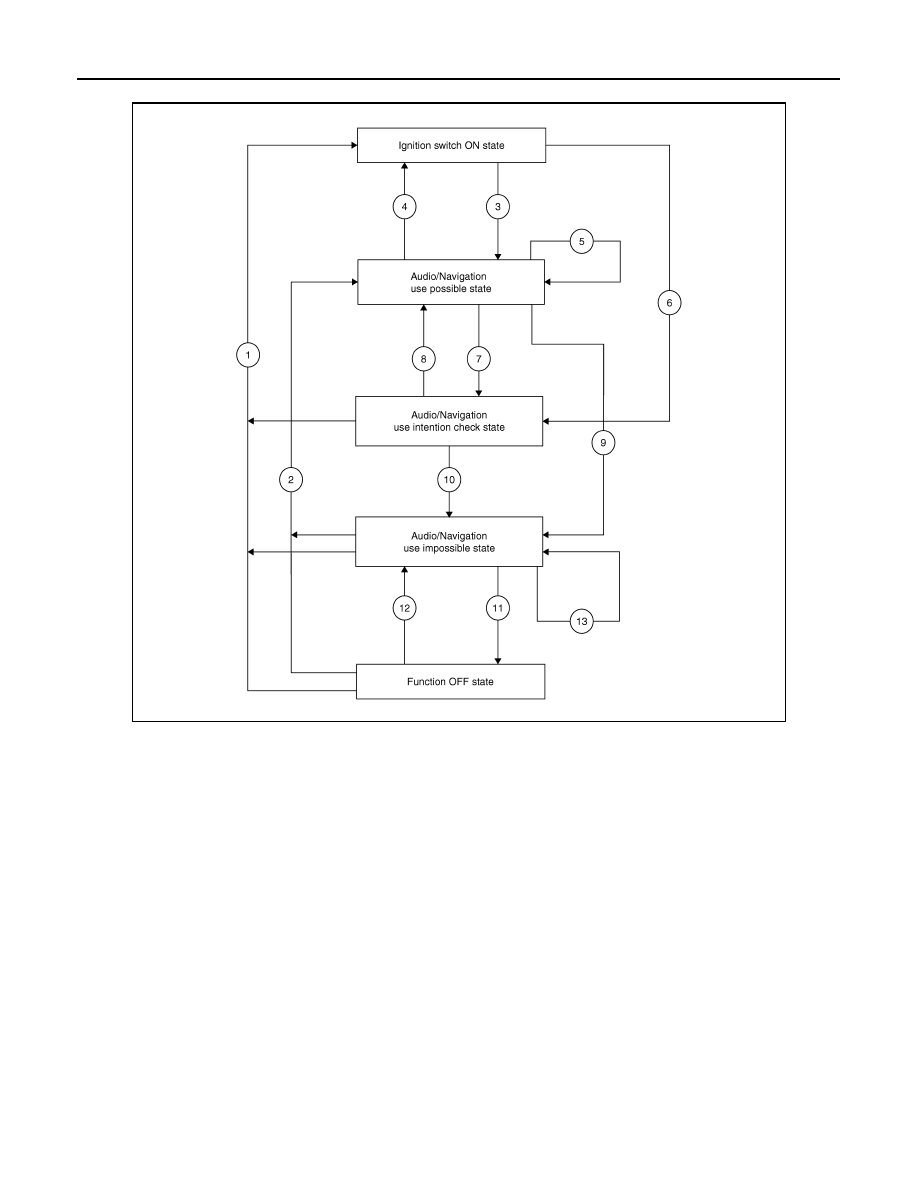

OPERATION FLOW

Ignition Switch On Status

In this status the ignition switch is operated and turned ON.

Audio / Navigation Available Status

• In this status the audio, navigation, and each switch and unit that is activated by the accessory power source

can be operated.

• When 10 minutes pass after conditions are satisfied while and audio and navigation are not operated, audio

and navigation turn OFF.

• When audio or navigation is operated within 10 minutes after conditions are satisfied, operation time is

extended for 10 minutes. Audio and navigation can be operated for a maximum of 30 minutes after the sta-
tus is satisfied.

Audio / navigation use intention check status

This is a status for checking the intention of using audio and navigation again after audio and navigation are
stopped.

Audio / navigation unavailable status

In this status audio and navigation become unavailable, but the switches and units other than those for audio
or navigation that can operate by using the accessory power source are available until the accessory power
source turns OFF.

OFF status

In this status the AUTO ACC function stops and power to the accessories is not supplied.

JMMIA1784GB

PCS

SYSTEM

PCS-77

< SYSTEM DESCRIPTION >

[POWER DISTRIBUTION SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

No.

Function status

Shifting condition

Accessory power

source

• Shifting from "OFF status" to "Ignition switch ON

status"

• Shifting from "Audio / navigation unavailable

status" to "Ignition switch ON status"

• Shifting from "Audio / navigation use intention

confirmation status" to "Ignition switch ON sta-
tus"

Turn the ignition switch ON from OFF.

OFF

→

 ON

• Shifting from "OFF status" to "Audio / navigation

available status"

• Shifting from "Audio / navigation unavailable

status" to "Audio / navigation available status"

• Models with Intelligent Key: Operate either the

door request switch or the unlock button of the
Intelligent Key to unlock the door.

• Models without Intelligent Key: Operate the un-

lock button of remote controller button to unlock
the door.

OFF

→

 ON

Shifting from "Ignition switch ON status" to "Audio
/ navigation available status"

Turn the ignition switch OFF from ON while driver
door is closed.

ON

Shifting from "Audio / navigation available status"
to "Ignition switch ON status"

Turn the ignition switch ON from OFF.

ON

"Audio / navigation available status" Time exten-
sion (10 minutes)

Operate audio or navigation.

ON

Shifting from "Ignition switch ON status" to "Audio
/ navigation use intention confirmation status"

Turn the ignition switch OFF from ON while driver
door is open.

ON

Shifting from "Audio / navigation available status"
to "Audio / navigation use intention confirmation
status"

• For models with Intelligent Key, any of the fol-

lowing conditions is satisfied.

- Close all doors, and lock all doors with the Intel-

ligent Key or door request switch.

- Ten minutes pass from "Audio / navigation avail-

able status."

- When ignition switch has been shifted from ON

to OFF, open the driver door.

• For models without Intelligent Key, any of the

following conditions is satisfied.

- Close all doors, and lock all doors with the re-

mote controller button.

- Remove the key from the ignition key cylinder.
- Ten minutes pass from "Audio / navigation avail-

able status."

- When ignition switch has been shifted from ON

to OFF, open the driver door.

ON

Shifting from "Audio / navigation use intention con-
firmation status" to "Audio / navigation available
status"

Any of the following conditions is satisfied.
• Models with Intelligent Key: Operate either the

door request switch or the unlock button of the
Intelligent Key to unlock the door.

• Models without Intelligent Key: Operate the un-

lock button of remote controller button to unlock
the door.

• Operate audio or navigation power switch

ON

Shifting from "Audio / navigation available status"
to "Audio / navigation unavailable status"

Thirty minutes pass from "Audio / navigation avail-
able status."

ON

Shifting from "Audio / navigation use intention con-
firmation status" to "Audio / navigation unavailable
status"

Any of the following conditions is satisfied.
• Two minutes pass from "Audio / navigation use

intention confirmation status."

• In "Audio / navigation use intention confirmation

status," 30 minutes pass after "Audio / naviga-
tion available status" is satisfied.

ON

Shifting from "Audio / navigation unavailable sta-
tus" to "OFF status"

One minute passes from "Audio / navigation un-
available status."

ON

→

 OFF

PCS-78

< SYSTEM DESCRIPTION >

[POWER DISTRIBUTION SYSTEM]

SYSTEM

Fail-safe

INFOID:0000000010434042

FAIL-SAFE CONTROL BY DTC

BCM performs fail-safe control when any DTC are detected.

Shifting from "OFF status" to "Audio / navigation
unavailable status"

Any of the following conditions is satisfied.
• Driver door is opened or closed.
• The steering lock operates.

OFF

→

 ON

"Audio / navigation unavailable status" Time ex-
tension (1 minute)

Any of the following conditions is satisfied.
• Driver door is opened or closed.
• The steering lock operates.

ON

No.

Function status

Shifting condition

Accessory power

source

Display contents of CONSULT

Fail-safe

Cancellation

B2013: ID DISCORD BCM-S/L

Inhibit engine cranking

When communication between BCM and steering lock unit are commu-
nicated normally.

B2014: CHAIN OF S/L-BCM

Inhibit engine cranking

When communication between BCM and steering lock unit are commu-
nicated normally.

B2192: ID DISCORD BCM-ECM

Inhibit engine cranking

Erase DTC

B2193: CHAIN OF BCM-ECM

Inhibit engine cranking

Erase DTC

B2195: ANTI-SCANNING

Inhibit engine cranking

Ignition switch ON

→

 OFF

B2196: DONGLE NG

Inhibit engine cranking

Erase DTC

B2198: NATS ANTENNA AMP

Inhibit engine cranking

Erase DTC

B25A0: LIN COMM ERROR
PWD MAIN SW

Operation with power
window main switch oth-
er than driver seat

When any of the following specified malfunctioning parts is replaced.
• LIN communication line
• Power window main switch

B25A1: LIN COMM ERR DRIVER
PWD ACTR

• Retained power func-

tion

• Keyless power win-

dow up/down function

When any of the following specified malfunctioning parts is replaced.
• LIN communication line
• Front power window motor (driver side)

B25A2: LIN COMM ERR ASSIST
PWD ACTR

• Operation with power

window main switch

• Retained power func-

tion

• Keyless power win-

dow up/down function

When any of the following specified malfunctioning parts is replaced.
• LIN communication line
• Front power window motor (passenger side)

B25A3: LIN COMM ERR REAR
PWD ACTR

• Operation with power

window main switch

• Retained power func-

tion

• Keyless power win-

dow up/down function

When any of the following specified malfunctioning parts is replaced.
• LIN communication line
• Rear power window motor

B25A4: DR PWR WNDW ACTR
MALFUNC

• Auto-up operation
• Anti-pinch function
• Keyless power win-

dow up/down function

Replace front power window motor (driver side)

B25A5: DR PWR WNDW ACTR
MALFUNC

• Auto-up operation
• Anti-pinch function
• Keyless power win-

dow up/down function

Replace front power window motor (driver side)

B25A6: DR PWR WNDW ACTR
MALFUNC

• Auto-up operation
• Anti-pinch function
• Keyless power win-

dow up/down function

Replace front power window motor (driver side)

PCS

SYSTEM

PCS-79

< SYSTEM DESCRIPTION >

[POWER DISTRIBUTION SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

B25A7: DR PWR WNDW ACTR
MALFUNC

• Auto-up operation
• Anti-pinch function
• Keyless power win-

dow up/down function

Replace front power window motor (driver side)

B25A8: DR PWR WNDW ACTR
MALFUNC

• Auto-up operation
• Anti-pinch function
• Keyless power win-

dow up/down function

Replace front power window motor (driver side)

B25A9: DR PWR WNDW ACTR
MALFUNC

• Auto-up operation
• Anti-pinch function
• Keyless power win-

dow up/down function

When any of the following specified operations are performed.
• system initialization
• Replace front power window motor (driver side)

B25AA: DR PWR WNDW ACTR
MALFUNC

• Auto-up operation
• Anti-pinch function
• Keyless power win-

dow up/down function

When any of the following specified malfunctioning parts is replaced.
• Harness or connectors
• Front power window motor (driver side)

B25B6: DR PWR WNDW ACTR
MALFUNC

• Auto-up operation
• Anti-pinch function
• Keyless power win-

dow up/down function

When any of the following specified malfunctioning parts is replaced.
• Power window main switch
• Front power window motor (driver side)

B25B7: DR PWR WNDW ACTR
MALFUNC

• Auto-up operation
• Anti-pinch function
• Keyless power win-

dow up/down function

When any of the following specified malfunctioning parts is replaced.
• Power window main switch
• Front power window motor (driver side)

B25B8: DR PWR WNDW ACTR
MALFUNC

• Auto-up operation
• Anti-pinch function
• Keyless power win-

dow up/down function

When any of the following specified malfunctioning parts is replaced.
• Power window main switch
• Front power window motor (driver side)

B25B9: DR PWR WNDW ACTR
MALFUNC

• Auto-up operation
• Anti-pinch function
• Keyless power win-

dow up/down function

When any of the following specified malfunctioning parts is replaced.
• Power window main switch
• Front power window motor (driver side)

B25BA: PASS PWR WNDW
ACTR MALFUNC

• Auto-up operation
• Anti-pinch function
• Keyless power win-

dow up/down function

Replace front power window motor (passenger side)

B25BB: PASS PWR WNDW
ACTR MALFUNC

• Auto-up operation
• Anti-pinch function
• Keyless power win-

dow up/down function

Replace front power window motor (passenger side)

B25BC: PASS PWR WNDW
ACTR MALFUNC

• Auto-up operation
• Anti-pinch function
• Keyless power win-

dow up/down function

Replace front power window motor (passenger side)

B25BD: PASS PWR WNDW
ACTR MALFUNC

• Auto-up operation
• Anti-pinch function
• Keyless power win-

dow up/down function

Replace front power window motor (passenger side)

B25BE: PASS PWR WNDW
ACTR MALFUNC

• Auto-up operation
• Anti-pinch function
• Keyless power win-

dow up/down function

Replace front power window motor (passenger side)

B25BF: PASS PWR WNDW
ACTR MALFUNC

• Auto-up operation
• Anti-pinch function
• Keyless power win-

dow up/down function

When any of the following specified operations are performed.
• system initialization
• Replace front power window motor (passenger side)

Display contents of CONSULT

Fail-safe

Cancellation
