BCS-10

< SYSTEM DESCRIPTION >

SYSTEM

SYSTEM

BODY CONTROL SYSTEM

BODY CONTROL SYSTEM : System Description

INFOID:0000000010377988

OUTLINE

• BCM (Body Control Module) controls the various electrical components. It inputs the information required to

the control from CAN communication and the signal received from each switch and sensor.

• BCM has combination switch reading function for reading the operation status of combination switches (light,

turn signal, wiper and washer) in addition to a function for controlling the operation of various electrical com-
ponents. It also has the signal transmission function as the passed point of signal and the power saving con-
trol function that reduces the power consumption with the ignition switch OFF.

• BCM is equipped with the diagnosis function that performs the diagnosis with CONSULT and various set-

tings.

BCM CONTROL FUNCTION LIST

System

Reference

Combination switch reading system

BCS-13, "COMBINATION SWITCH READING SYSTEM : Sys-
tem Description"

Signal buffer system

BCS-17, "SIGNAL BUFFER SYSTEM : System Description"

Power consumption control system

BCS-18, "POWER CONSUMPTION CONTROL SYSTEM : Sys-
tem Description"

Shipping mode control system

BCS-20, "SHIPPING MODE CONTROL SYSTEM : System De-
scription"

Headlamp system

•

EXL-17, "HEADLAMP SYSTEM : System Description"

 (LED

headlamp)

•

EXL-190, "HEADLAMP SYSTEM : System Description"

 (Halo-

gen headlamp)

Auto light system

•

EXL-19, "AUTO LIGHT SYSTEM : System Description"

 (LED

headlamp)

•

EXL-192, "AUTO LIGHT SYSTEM : System Description"



(Halogen headlamp)

High beam assist system

EXL-21, "HIGH BEAM ASSIST SYSTEM : System Description"

Daytime running light system

•

EXL-22, "DAYTIME RUNNING LIGHT SYSTEM : System De-
scription"

 (LED headlamp)

•

EXL-193, "DAYTIME RUNNING LIGHT SYSTEM : System De-
scription"

 (Halogen headlamp)

Turn signal and hazard warning lamp system

•

EXL-25, "TURN SIGNAL AND HAZARD WARNING LAMP
SYSTEM : System Description"

 (LED headlamp)

•

EXL-194, "TURN SIGNAL AND HAZARD WARNING LAMP
SYSTEM : System Description"

 (Halogen headlamp)

Parking, license plate and tail lamps system

•

EXL-26, "PARKING, LICENSE PLATE AND TAIL LAMP SYS-
TEM : System Description"

 (LED headlamp)

•

EXL-195, "PARKING, LICENSE PLATE AND TAIL LAMP SYS-
TEM : System Description"

 (Halogen headlamp)

Stop lamp system

•

EXL-28, "STOP LAMP SYSTEM : System Description"

 (LED

headlamp)

•

EXL-198, "STOP LAMP SYSTEM : System Description"

 (Halo-

gen headlamp)

Front fog lamp system

•

EXL-29, "FRONT FOG LAMP SYSTEM : System Description"



(LED headlamp)

•

EXL-198, "FRONT FOG LAMP SYSTEM : System Descrip-
tion"

 (Halogen headlamp)

Rear fog lamp system

•

EXL-30, "REAR FOG LAMP SYSTEM : System Description"



(LED headlamp)

•

EXL-200, "REAR FOG LAMP SYSTEM : System Description"



(Halogen headlamp)

BCS

SYSTEM

BCS-11

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

Exterior lamp battery saver system

•

EXL-31, "EXTERIOR LAMP BATTERY SAVER SYSTEM :
System Description"

 (LED headlamp)

•

EXL-200, "EXTERIOR LAMP BATTERY SAVER SYSTEM :
System Description"

 (Halogen headlamp)

Interior room lamp control system

INL-8, "INTERIOR ROOM LAMP CONTROL SYSTEM : System
Description"

Interior room lamp battery saver system

INL-10, "INTERIOR ROOM LAMP BATTERY SAVER SYSTEM :
System Description"

Illumination control system

INL-12, "ILLUMINATION CONTROL SYSTEM : System Descrip-
tion"

Spicy illumination control system

INL-13, "SPICY ILLUMINATION CONTROL SYSTEM : System
Description"

Front wiper and washer system

•

WW-10, "FRONT WIPER AND WASHER SYSTEM (WITH
LIGHT & RAIN SENSOR) : System Description"

 (With rain sen-

sor)

•

WW-13, "FRONT WIPER AND WASHER SYSTEM (WITH-
OUT LIGHT & RAIN SENSOR) : System Description"

 (Without

rain sensor)

Rear wiper and washer system

WW-17, "REAR WIPER AND WASHER SYSTEM : System De-
scription"

Headlamp washer system

WW-19, "HEADLAMP WASHER SYSTEM : System Description"

Rear window defogger system

DEF-7, "System Description"

Warning chime system

WCS-7, "WARNING CHIME SYSTEM : System Description"

Power door lock system

•

DLK-31, "System Diagram"

 (Type 1)

•

DLK-205, "System Diagram"

 (Type 2)

•

DLK-387, "System Diagram"

 (Type 3)

•

DLK-512, "System Diagram"

 (Type 4)

•

DLK-654, "System Diagram"

 (Type 5)

•

DLK-836, "System Diagram"

 (Type 6)

NOTE:
Refer to

DLK-24, "Information"

 for details of type.

Intelligent Key system

•

DLK-33, "INTELLIGENT KEY SYSTEM : System Diagram"



(Type 1)

•

DLK-207, "INTELLIGENT KEY SYSTEM : System Diagram"



(Type 2)

•

DLK-657, "INTELLIGENT KEY SYSTEM : System Diagram"



(Type 5)

NOTE:
Refer to

DLK-24, "Information"

 for details of type.

Remote keyless entry system

•

DLK-389, "REMOTE KEYLESS ENTRY FUNCTION : System
Diagram"

 (Type 3)

•

DLK-514, "System Diagram"

 (Type 4)

•

DLK-838, "System Diagram"

 (Type 6)

NOTE:
Refer to

DLK-24, "Information"

 for details of type.

Back door opener system

•

DLK-45, "System Description"

 (Type 1)

•

DLK-219, "System Description"

 (Type 2)

•

DLK-392, "System Description"

 (Type 3)

•

DLK-516, "System Description"

 (Type 4)

•

DLK-661, "BACK DOOR OPEN FUNCTION : System Dia-
gram"

 (Type 5)

•

DLK-840, "System Description"

 (Type 6)

NOTE:
Refer to

DLK-24, "Information"

 for details of type.

Engine start system

SEC-15, "INTELLIGENT KEY SYSTEM/ENGINE START FUNC-
TION : System Description"

System

Reference

BCS-12

< SYSTEM DESCRIPTION >

SYSTEM

BODY CONTROL SYSTEM : Fail-safe

INFOID:0000000010506757

FAIL-SAFE CONTROL BY DTC

BCM performs fail-safe control when any DTC are detected.

Nissan Vehicle Immobilizer System-NATS

•

SEC-19, "NISSAN ANTI-THEFT SYSTEM : System Descrip-
tion"

 (With Intelligent Key)

•

SEC-190, "NISSAN ANTI-THEFT SYSTEM : System Descrip-
tion"

 (Without Intelligent Key)

Vehicle security system

•

SEC-22, "VEHICLE SECURITY SYSTEM : System Descrip-
tion"

 (With Intelligent Key)

•

SEC-191, "VEHICLE SECURITY SYSTEM : System Descrip-
tion"

 (Without Intelligent Key)

Power window system

PWC-10, "System Description"

CAN gateway

LAN-107, "System Description"

System

Reference

Display contents of CONSULT

Fail-safe

B2190–00: NATS ANTENNA AMP

Inhibit engine cranking

B2191–00: DIFFERENCE OF KEY

Inhibit engine cranking

B2192–00: ID DISCORD BCM-ECM

Inhibit engine cranking

B2193–00: CHAIN OF BCM-ECM

Inhibit engine cranking

B2195–00: ANTI-SCANNING

Inhibit engine cranking

B2196–00: DONGLE NG

Inhibit engine cranking

B2198–00: NATS ANTENNA AMP

Inhibit engine cranking

B2557–00: VEHICLE SPEED

Inhibit steering lock

B2602–00: SHIFT POSITION

Inhibit steering lock

B2604–00: PNP/CLUTCH SW

Inhibit steering lock

B2608–00: STARTER RELAY

Inhibit engine cranking

B260F–00: ENG STATE SIG LOST

Inhibit engine cranking

B26F1–00: IGN RELAY OFF

Inhibit engine cranking

B26F2–00: IGN RELAY ON

Inhibit engine cranking

B27D4–00: BCM - S/L SENSOR CIRCUIT

Inhibit steering unlock

B27D5–00: S/L SENSOR TEST OUTPUT

Inhibit steering unlock

B27D6–00: S/L CAN COMM CIRCUIT

Inhibit steering lock

B27D7–00: S/L PWR RELAY

Inhibit steering lock

B27D8–00: S/L VEHICLE SPEED MALFUNCTION

Inhibit steering lock

B27D9–00: S/L IGN MALFUNCTION

Inhibit steering lock/unlock

B27DA–00: IPDM CAN COMM CIRCUIT

Inhibit steering lock

B27DC–00: S/L POWER SUPPLY

Inhibit steering lock

B27DD–00: BCM - S/L ID DISCORD

Inhibit steering lock

B27DE–00: S/L MECHANICAL MALFUNCTION

Inhibit steering lock

B27DF–00: S/L HIGH LEVEL MALFUNCTION

Inhibit steering lock/unlock

B27E0–00: S/L LOW LEVEL MALFUNCTION

Inhibit steering lock

B27E1–00: S/L SAFETY CIRCUIT

Inhibit steering lock

B27E5–00: S/L IGN OFF POSITION

Inhibit steering lock

B27E6–00: S/L ANTI-SCAN MODE

Inhibit steering lock

B27E8–00: S/L UNDETERMINED LOCK POS

Inhibit steering lock

U0415: VEHICLE SPEED

Inhibit steering lock

BCS

SYSTEM

BCS-13

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

REAR WIPER MOTOR PROTECTION

BCM detects the rear wiper stopping position according to the rear wiper stop position signal.
When the rear wiper stop position signal does not change for more than 5 seconds while driving the rear
wiper, BCM stops power supply to protect the rear wiper motor.

Condition of cancellation

1.

More than 1 minute is passed after the rear wiper stop.

2.

Turn rear wiper switch OFF.

3.

Operate the rear wiper switch or rear washer switch.

FAIL-SAFE CONTROL OF COMBINATION SWITCH READING FUNCTION CAUSED BY LOW
POWER SUPPLY VOLTAGE

If voltage of battery power supply lower, BCM maintains combination switch reading to the status when input
voltage is less than approximately 9 V.
NOTE:
When voltage of battery power supply is approximately 9 V or more, combination switch reading function
returns to normal operation.

COMBINATION SWITCH READING SYSTEM

COMBINATION SWITCH READING SYSTEM : System Description

INFOID:0000000010377990

SYSTEM DIAGRAM

OUTLINE

• BCM reads the status of the combination switch (light, turn signal, wiper and washer) and recognizes the

status of each switch.

• BCM has a combination of 5 output terminals (OUTPUT 1 - 5) and 5 input terminals (INPUT 1 - 5). It reads a

maximum of 20 switch status.

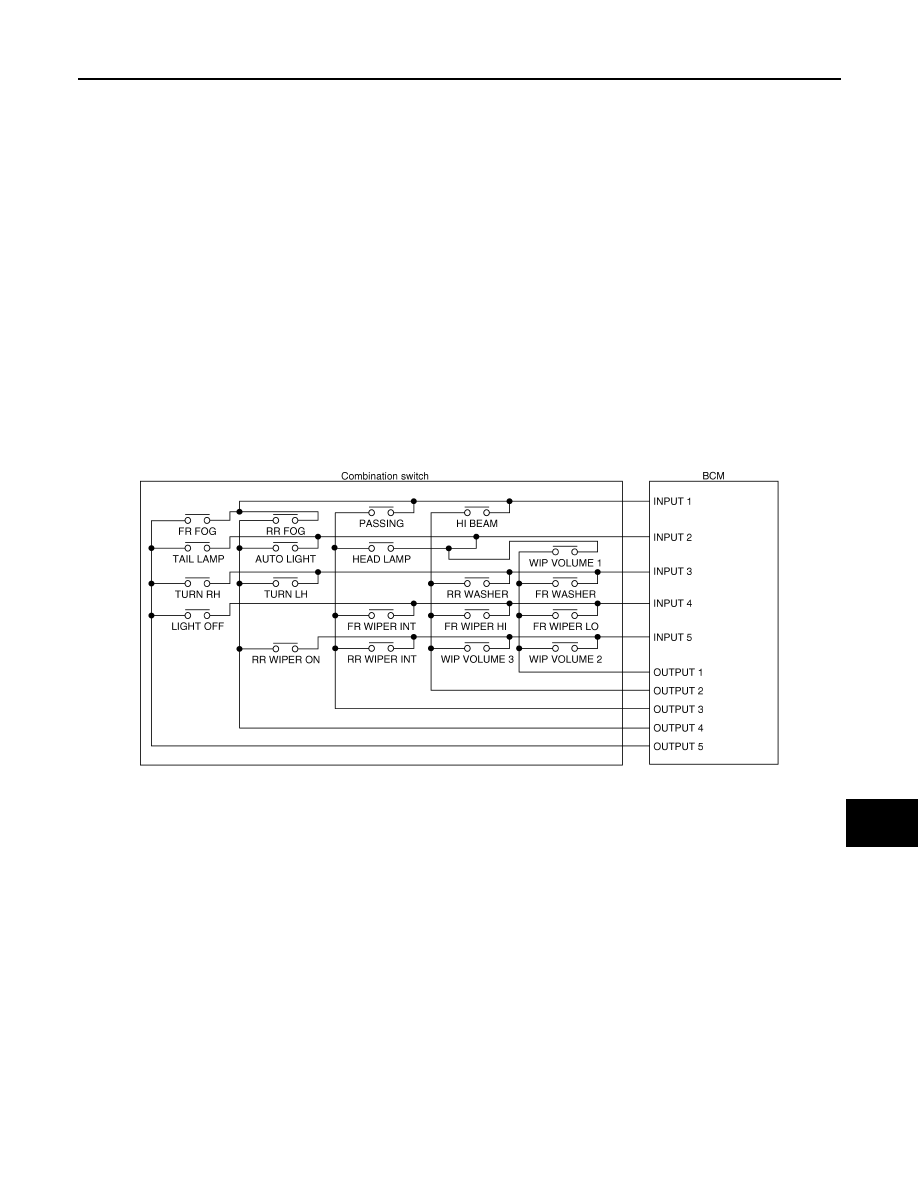

COMBINATION SWITCH MATRIX

JMMIA1753GB
