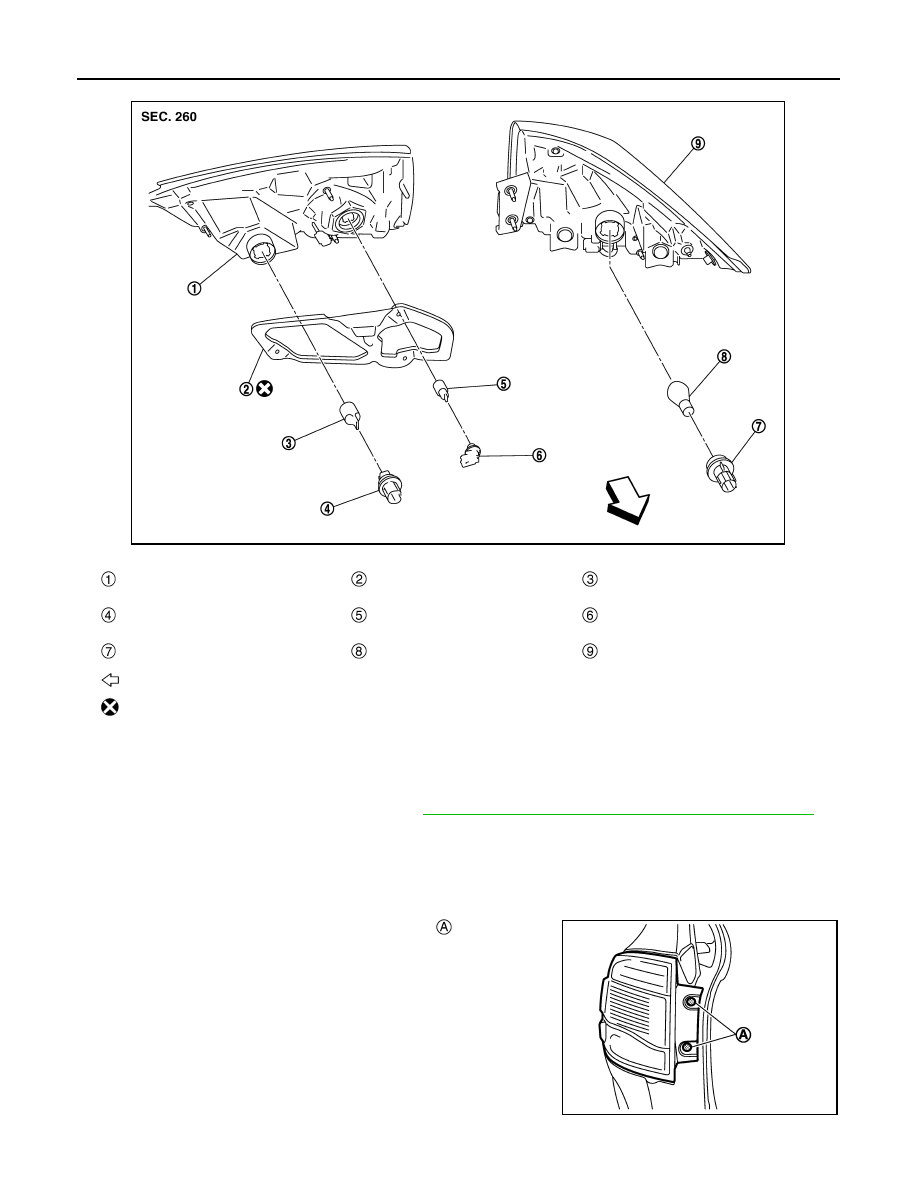

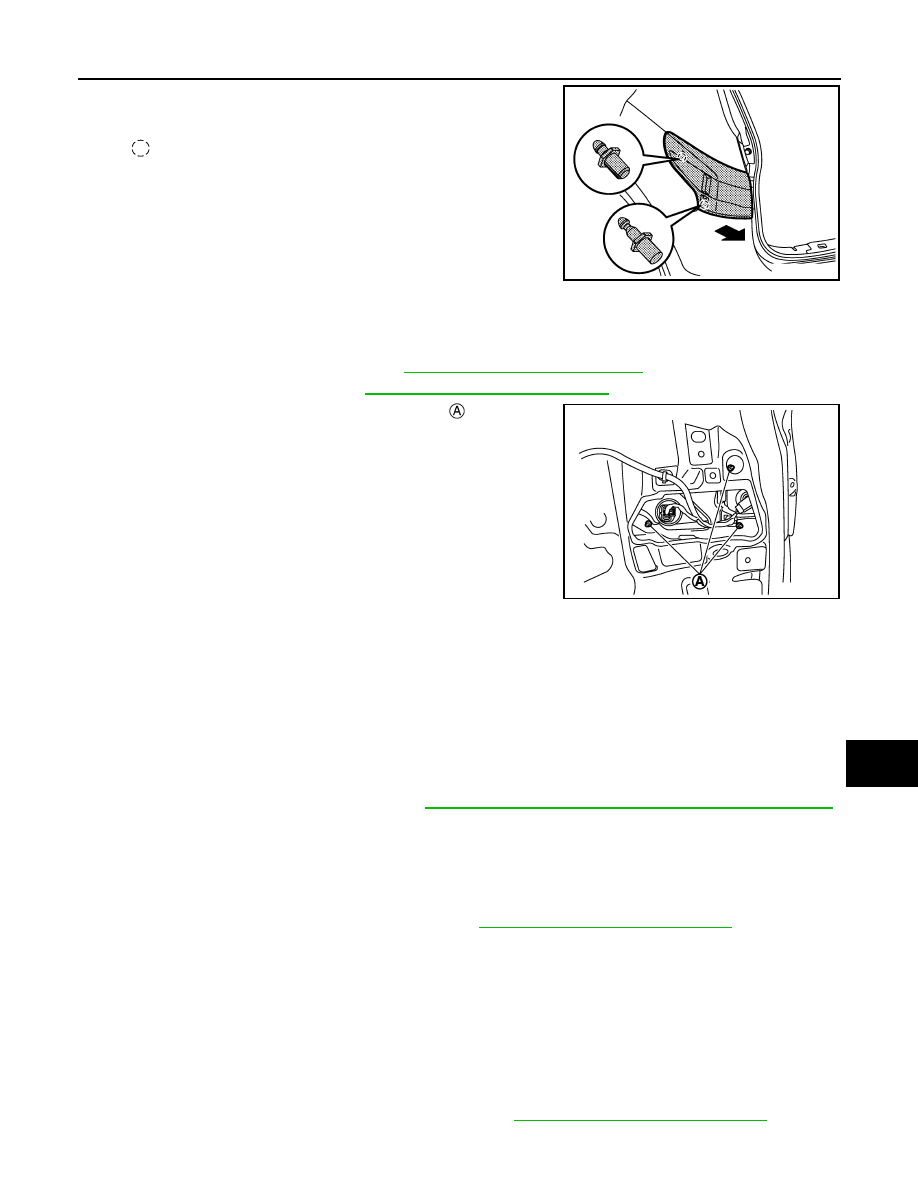

EXL-330 < REMOVAL AND INSTALLATION > [HALOGEN HEADLAMP] REAR COMBINATION LAMP Removal and Installation INFOID:0000000010437155 CAUTION: • Disconnect the battery negative terminal or remove power circuit fuse when performing the opera- tion for preventing electric leakage. Refer to EXL-8, "Precautions for Removing Battery Terminal" . • When removing, always use a remover tool that is made of plastic. REMOVAL Rear Combination Lamp (body side) 1. Fully open trunk lid. 2. Remove rear combination lamp mounting bolts . Rear combination lamp housing Seal packing Rear fog lamp bulb Rear fog lamp bulb socket Back-up lamp bulb Back-up lamp bulb socket Rear turn signal lamp bulb socket Rear turn signal lamp bulb Rear combination lamp housing : Vehicle front : Always replace after every disassembly JMLIA5407ZZ JMLIA5137ZZ |
