SYSTEM

EXL-197

< SYSTEM DESCRIPTION >

[HALOGEN HEADLAMP]

EXL

- Ignition switch: OFF
- Door open/close status: All door close
• When any of the following conditions is satisfied while the signature light function is operating, the signature

light function stops.

- Ignition switch: ON
- Door open/close status: Any door open
- Door lock status: Any door unlock or all door unlock (This only occurs when door unlock operation is per-

formed using the door lock and unlock switch etc. When door unlock operation is performed with the Intelli-
gent Key, door request switch or back door opener switch, the system changes to operation when doors are
unlocked.)

- Door open/close status: All door close
NOTE:
ON/OFF of signature light function can be changed using CONSULT. Refer to

DLK-47, "DOOR LOCK : CON-

SULT Function (BCM - DOOR LOCK) (Type 1)"

DLK-221, "DOOR LOCK : CONSULT Function (BCM - DOOR

LOCK) (Type 2)"

DLK-394, "DOOR LOCK : CONSULT Function (BCM - DOOR LOCK) (Type 3)"

DLK-518,

"DOOR LOCK : CONSULT Function (BCM - DOOR LOCK) (Type 4)"

DLK-671, "DOOR LOCK : CONSULT

Function (BCM - DOOR LOCK) (Type 5)"

DLK-842, "DOOR LOCK : CONSULT Function (BCM - DOOR

LOCK) (Type 6)"

. Regarding to the vehicle type, refer to

DLK-24, "Information"

PARKING, LICENSE PLATE AND TAIL LAMP SYSTEM : Fail-safe

INFOID:0000000010469900

FAIL-SAFE CONTROL BY DTC

IPDM E/R performs fail-safe control when any DTC are detected.

CAN COMMUNICATION CONTROL

When CAN communication with BCM is impossible, IPDM E/R performs fail-safe control. After CAN communi-
cation recovers normally, it also returns to normal control.

If No CAN Communication Is Available With BCM

STOP LAMP SYSTEM

DTC

CONSULT display description

Fail-safe

B20D2

PARKING LAMP PWR SPLY CIRC

[CIRC
SHORT TO
GRND]

Shuts off the power supply to the parking lamp (LH/RH)
power supply circuit until the parking lamp, license plate
lamp, and tail lamp ON conditions are no longer satisfied.

B20D4

TAIL LAMP LH PWR SPLY CIRC

[CIRC
SHORT TO
GRND]

Shuts off the power supply to the following power supply
circuits until the parking lamp, license plate lamp, and tail
lamp ON conditions are no longer satisfied.
• Tail lamp LH (body side)
• Tail lamp LH (back door side)
• License plate lamp LH
• License plate lamp RH

B20D5

TAIL LAMP RH PWR SPLY CIRC

[CIRC
SHORT TO
GRND]

Shuts off the power supply to the following power supply
circuits until the parking lamp, license plate lamp, and tail
lamp ON conditions are no longer satisfied.
• Tail lamp RH (body side)
• Tail lamp RH (back door side)

Control part

Fail-safe operation

• Parking lamp
• License plate lamp
• Tail lamp

• Turns ON the tail lamp, parking lamp and license plate lamp when the ignition switch is turned

ON.

• Turns OFF the tail lamp, parking lamp and license plate lamp when the ignition switch is turned

OFF.

EXL-198

< SYSTEM DESCRIPTION >

[HALOGEN HEADLAMP]

SYSTEM

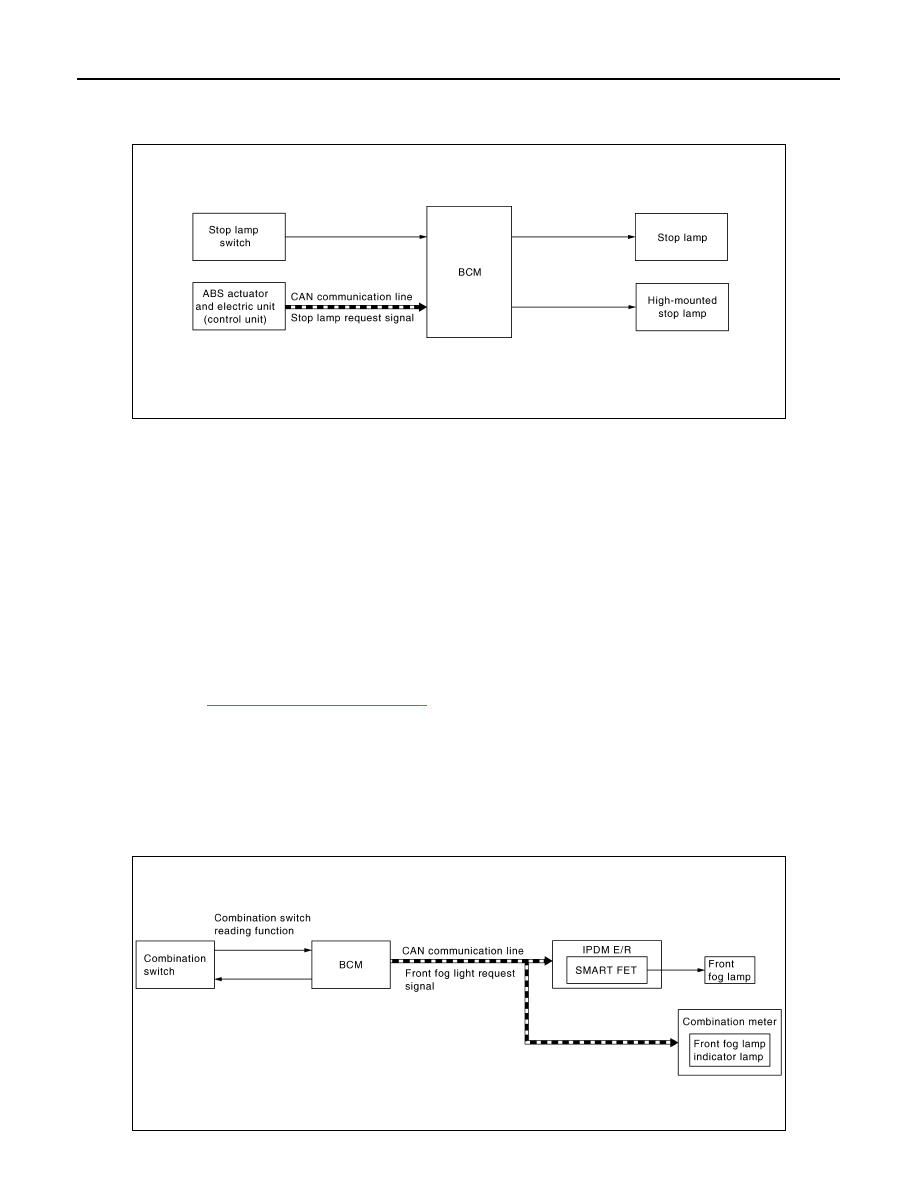

STOP LAMP SYSTEM : System Description

INFOID:0000000010469901

SYSTEM DIAGRAM

OUTLINE

Stop lamp and high-mounted stop lamp is controlled by combination switch reading function and the stop lamp
and high-mounted stop lamp control function of BCM, and forward emergency braking function of ABS actua-
tor and electric unit (control unit).

STOP LAMP AND HIGH-MOUNTED STOP LAMP OPERATION

• BCM detects the brake pedal position status from stop lamp switch.
• BCM supplies voltage to stop lamp and high-mounted stop lamp according to the stop lamp and high-

mounted stop lamp ON condition.

Stop lamp and high-mounted stop lamp ON condition

- Brake pedal is depressed

FORWARD EMERGENCY BRAKING FUNCTION

• When the Forward Emergency Braking operates, the ABS actuator and electric unit (control unit) transmits

the stop lamp request signal to BCM via CAN communication. (For details about the Forward Emergency
Braking, refer to

BRC-150, "System Description"

• When BCM receives the stop lamp request signal from the ABS actuator and electric unit (control unit), it

supplies power to the stop lamp and high-mounted stop lamp systems, turning ON the stop lamp and high-
mounted stop lamp.

FRONT FOG LAMP SYSTEM

FRONT FOG LAMP SYSTEM : System Description

INFOID:0000000010469902

SYSTEM DIAGRAM

JMLIA5234GB

JMLIA5239GB

SYSTEM

EXL-199

< SYSTEM DESCRIPTION >

[HALOGEN HEADLAMP]

EXL

OUTLINE

Front fog lamp is controlled by combination switch reading function and front fog lamp control function of BCM,
and smart FET control function of IPDM E/R.

FRONT FOG LAMP OPERATION

• BCM detects the combination switch condition by the combination switch reading function.
• BCM transmits the front fog light request signal to IPDM E/R and the combination meter via CAN communi-

cation according to the front fog lamp ON condition.

Front fog lamp ON condition (when any of the following conditions are satisfied) (without rear fog lamp)

- Lighting switch 1ST with the front fog lamp switch ON
- Lighting switch 2ND with the front fog lamp switch ON
- Lighting switch AUTO with the front fog lamp switch ON (Only when the illumination judgment by auto light

system is ON. For details, refer to

EXL-192, "AUTO LIGHT SYSTEM : System Description"

Front fog lamp ON condition (with rear fog lamp)

- Front fog lamp switch is turned from OFF to ON, and any of the following conditions are satisfied.
• Lighting switch 1ST
• Lighting switch 2ND
• Lighting switch AUTO (Only when the illumination judgment by auto light system is ON. For details, refer to

EXL-192, "AUTO LIGHT SYSTEM : System Description"

• IPDM E/R turns the integrated smart FET ON, and turns the front fog lamp ON according to the front fog light

request signal.

• Combination meter turns the front fog lamp indicator lamp ON according to the front fog light request signal.

FRONT FOG LAMP SYSTEM : Fail-safe

INFOID:0000000010469903

FAIL-SAFE CONTROL BY DTC

IPDM E/R performs fail-safe control when any DTC are detected.

CAN COMMUNICATION CONTROL

When CAN communication with BCM is impossible, IPDM E/R performs fail-safe control. After CAN communi-
cation recovers normally, it also returns to normal control.

If No CAN Communication Is Available With BCM

REAR FOG LAMP SYSTEM

DTC

CONSULT display description

Fail-safe

B121A

FR FOG LAMP LH PWR SPLY CIRC

[CIRC
SHORT TO
GRND]

Shuts off the power supply to the front fog lamp LH power
supply circuit until the front fog lamp ON conditions are no
longer satisfied.

B1256

FR FOG LAMP RH PWR SPLY CIRC

[CIRC
SHORT TO
GRND]

Shuts off the power supply to the front fog lamp RH power
supply circuit until the front fog lamp ON conditions are no
longer satisfied.

Control part

Fail-safe operation

Front fog lamp

Front fog lamp: OFF

EXL-200

< SYSTEM DESCRIPTION >

[HALOGEN HEADLAMP]

SYSTEM

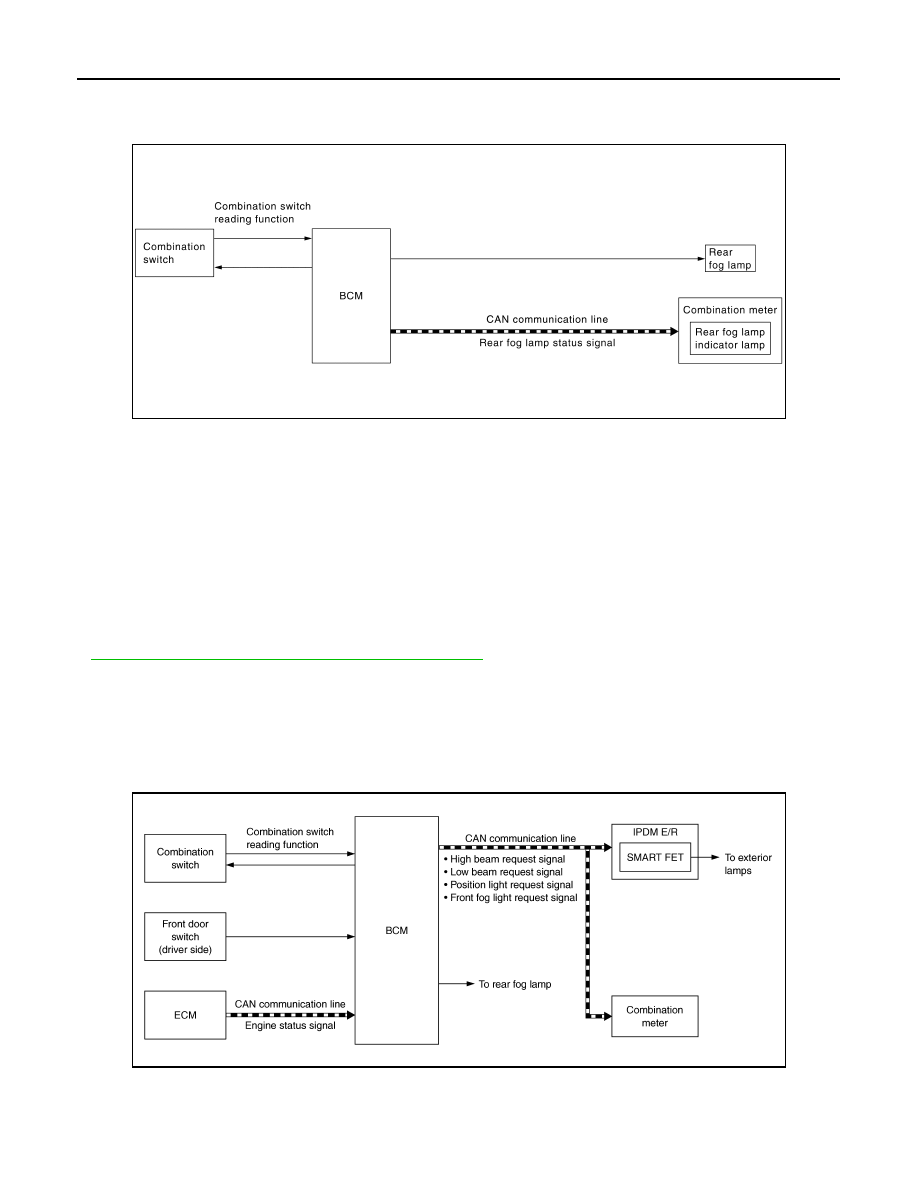

REAR FOG LAMP SYSTEM : System Description

INFOID:0000000010469904

SYSTEM DIAGRAM

OUTLINE

Rear fog lamp is controlled with the combination switch reading function and the rear fog lamp control function
of BCM.

REAR FOG LAMP OPERATION

• BCM detects the condition of the combination switch by the combination switch reading function.
• BCM supplies voltage to rear fog lamp according to the rear fog lamp ON condition.

Rear fog lamp ON condition

- Rear fog lamp switch is turned from OFF to ON, and any of the following conditions are satisfied.
• Lighting switch 1ST
• Lighting switch 2ND
• Lighting switch AUTO (Only when the illumination judgment by auto light system is ON. For details, refer to

EXL-192, "AUTO LIGHT SYSTEM : System Description"

• BCM transmits the rear fog lamp status signal to the combination meter using CAN communication.
• Combination meter turns the rear fog lamp indicator lamp ON according to the rear fog lamp status signal.

EXTERIOR LAMP BATTERY SAVER SYSTEM

EXTERIOR LAMP BATTERY SAVER SYSTEM : System Description

INFOID:0000000010469905

SYSTEM DIAGRAM

OUTLINE

• Exterior lamp battery saver system is controlled by combination switch reading function and exterior lamp

battery saver function of BCM, and smart FET control function of IPDM E/R.

JMLIA3188GB

JMLIA5240GB
