Nissan Qashqai J11. Manual - part 1651

BRM-432

< REMOVAL AND INSTALLATION >

[EXCEPT FOR EUROPE AND RUSSIA (RHD)]

REPLACEMENT OPERATIONS

Rear Panel

INFOID:0000000010313765

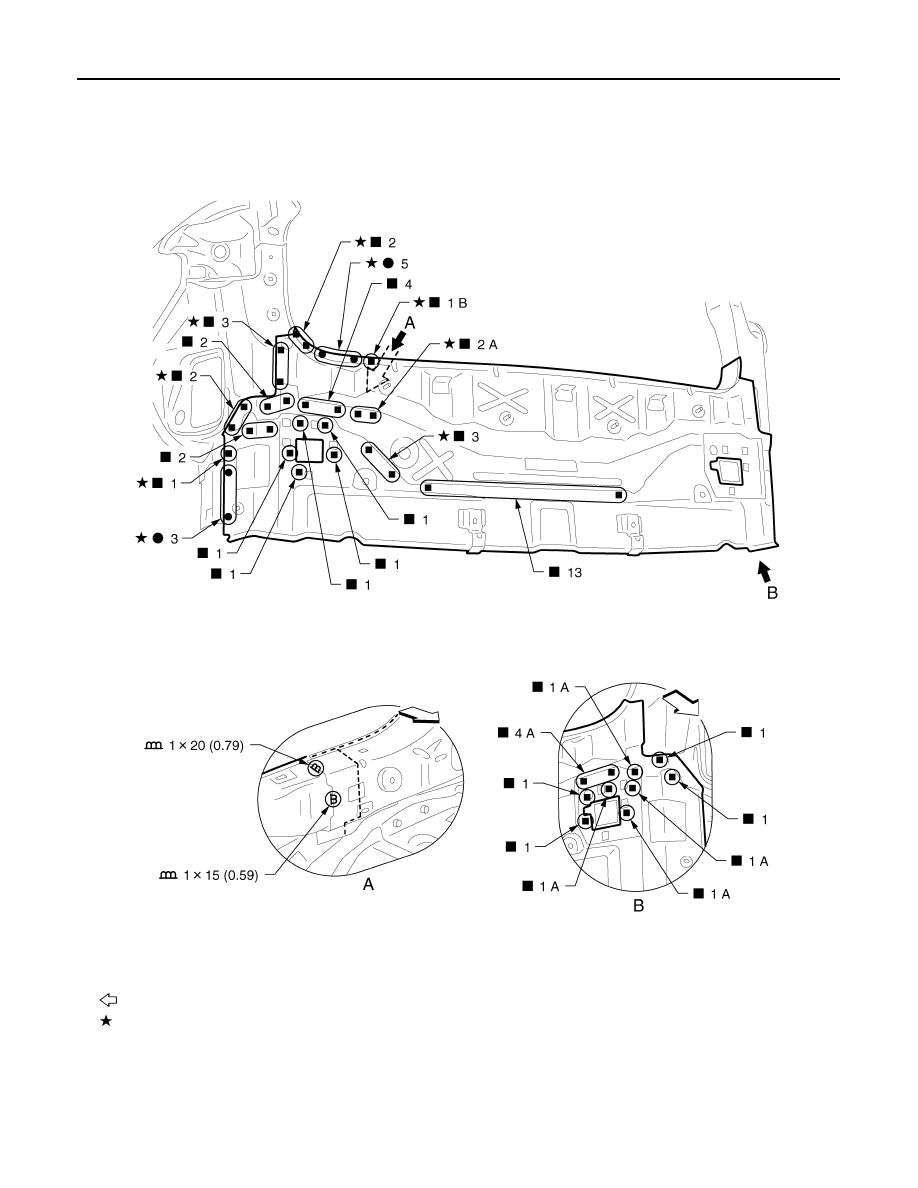

Rear Floor Rear

INFOID:0000000010313766

Work after rear panel is removed.

Unit: mm (in)

: Vehicle front

: Welding method and the number of welding points apply to both side of the vehicle.

Replacement part

z

Upper rear panel assembly

JSKIA4029GB

REPLACEMENT OPERATIONS

BRM-433

< REMOVAL AND INSTALLATION >

[EXCEPT FOR EUROPE AND RUSSIA (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

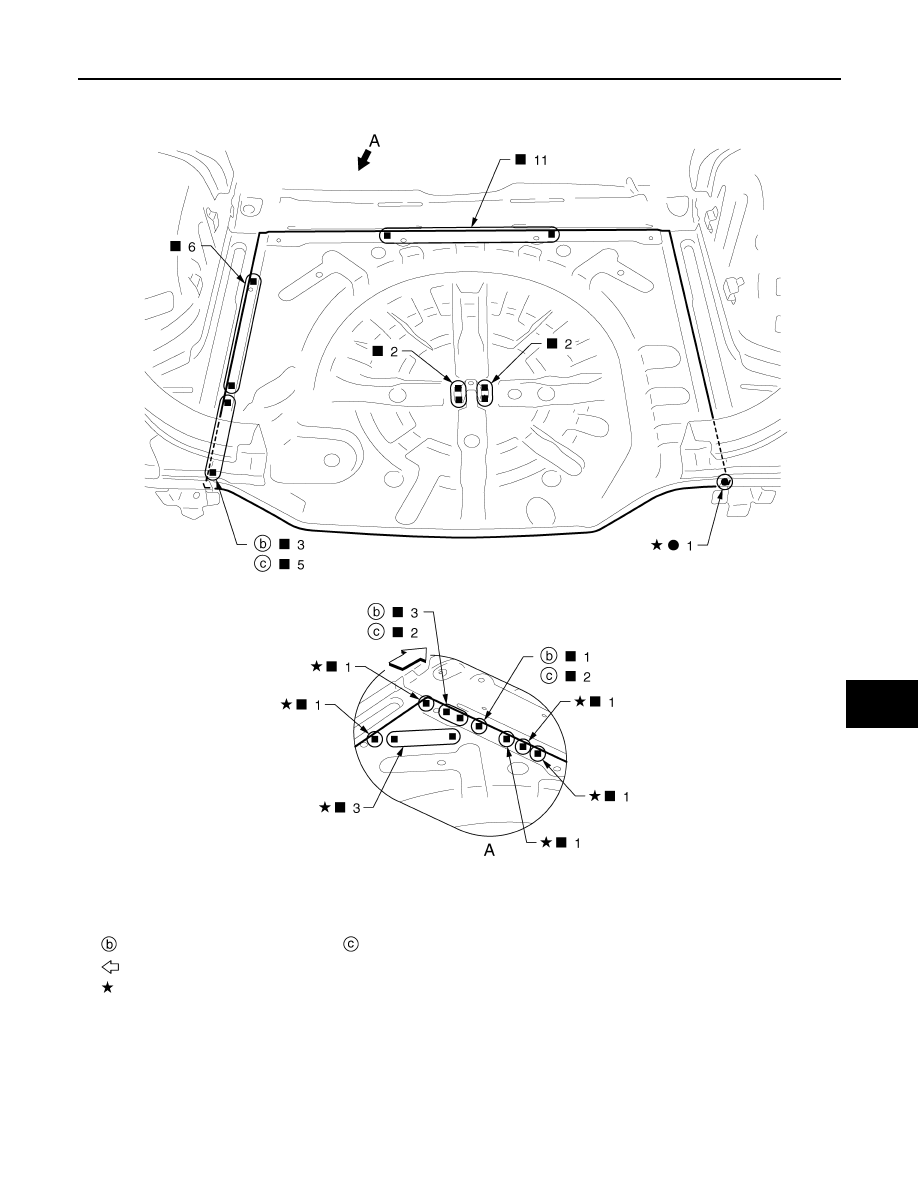

Rear Side Member Extension

INFOID:0000000010313767

Work after rear panel is removed.

Left side

Right side

: Vehicle front

: Welding method and the number of welding points apply to both side of the vehicle.

Replacement part

z

Rear floor rear

z

Spare wheel clamp bracket assem-
bly

JSKIA4030ZZ

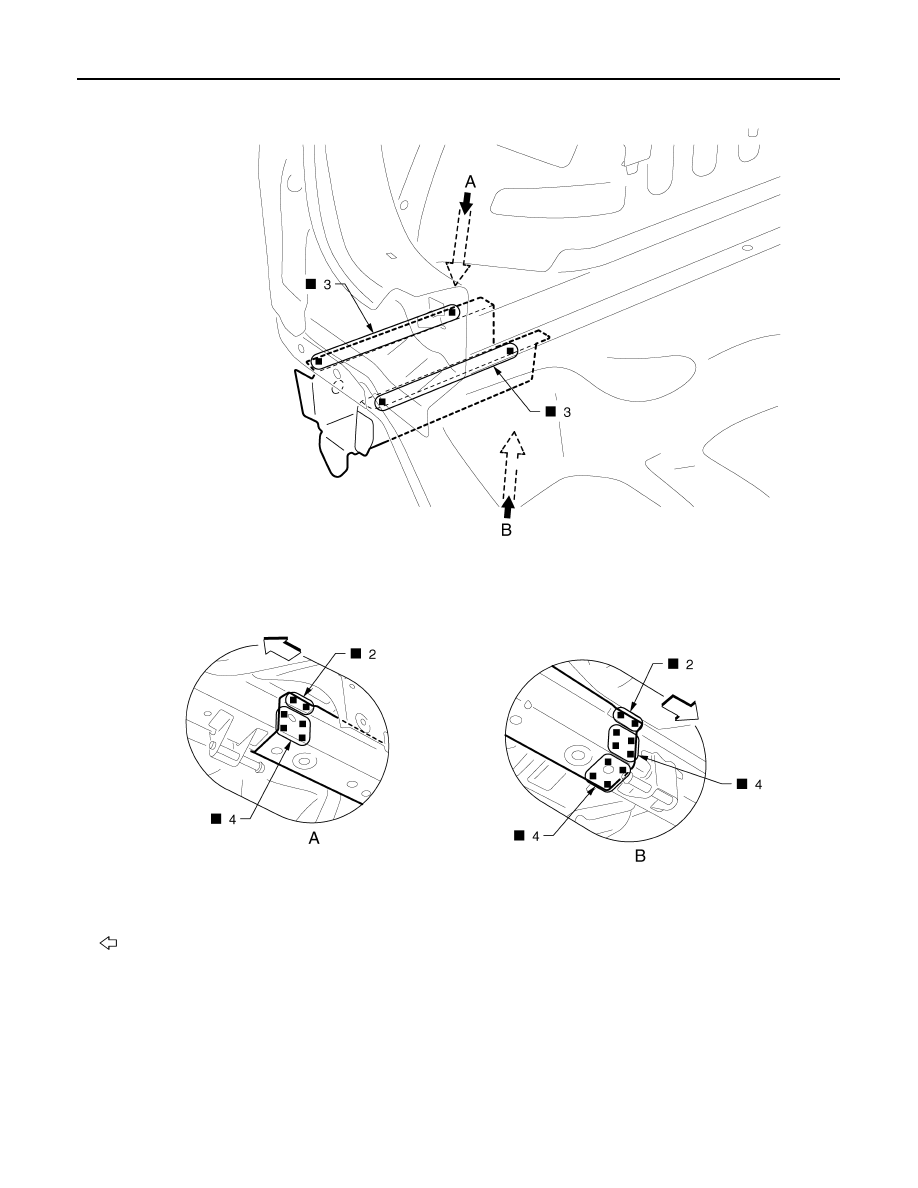

BRM-434

< REMOVAL AND INSTALLATION >

[EXCEPT FOR EUROPE AND RUSSIA (RHD)]

REPLACEMENT OPERATIONS

: Vehicle front

Replacement part

z

Rear side member extension assem-
bly

JSKIA4031ZZ

BODY ALIGNMENT

BRM-435

< SERVICE DATA AND SPECIFICATIONS (SDS)

[EXCEPT FOR EUROPE AND RUSSIA (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

BODY ALIGNMENT

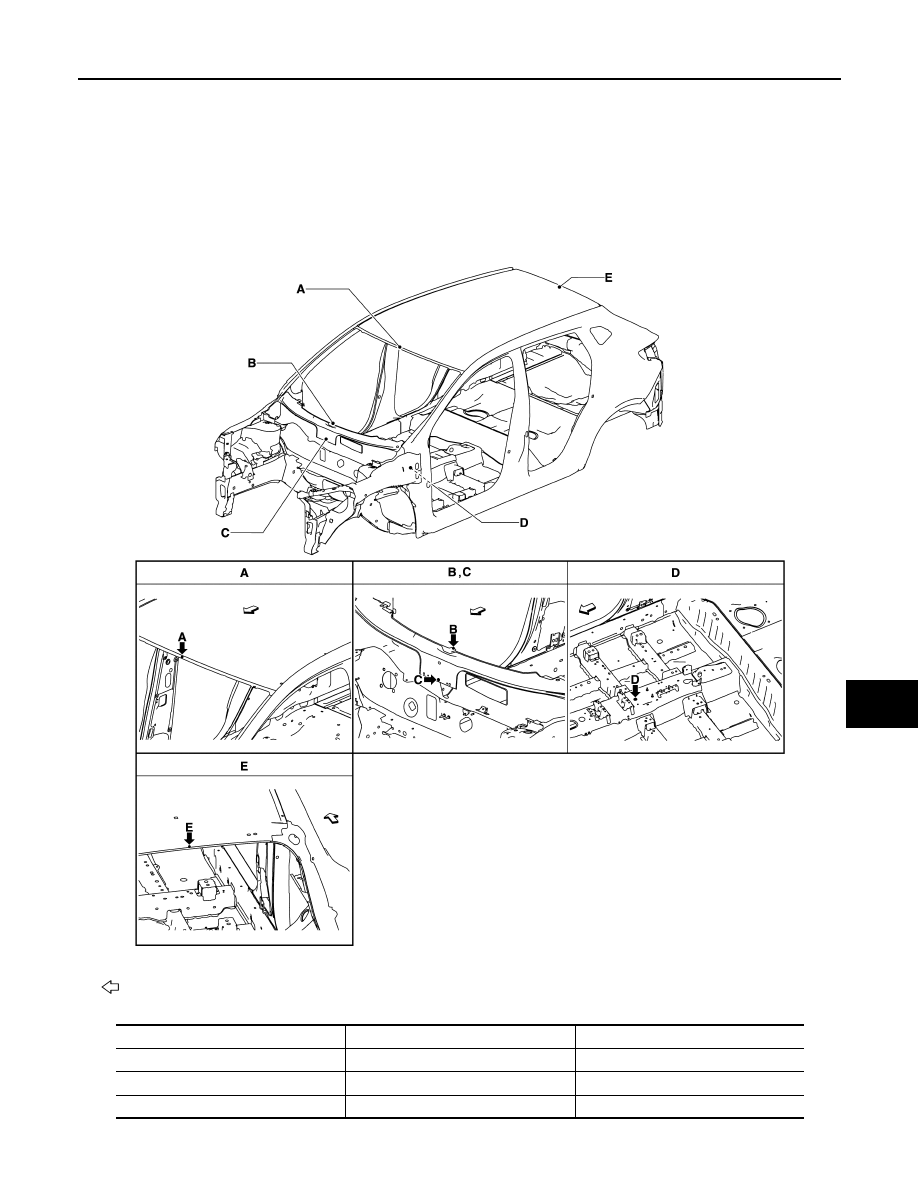

Body Center Marks (Without Sunroof Models)

INFOID:0000000010500049

A mark is placed on each part of the body to indicate the vehicle center. When repairing the vehicle frame
(members, pillars, etc.) damaged by an accident which it enables more accurate and effective repair by using
these marks together with body alignment specifications.

Unit: mm (in)

: Vehicle front

Points

Portion

Marks

A

Front roof

Embossment

B

Cowl top

indent

C

Cowl top

Hole

φ

8 (0.31)

JSKIA3956ZZ
