Nissan Qashqai J11. Manual - part 1560

BRM-68

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

REPLACEMENT OPERATIONS

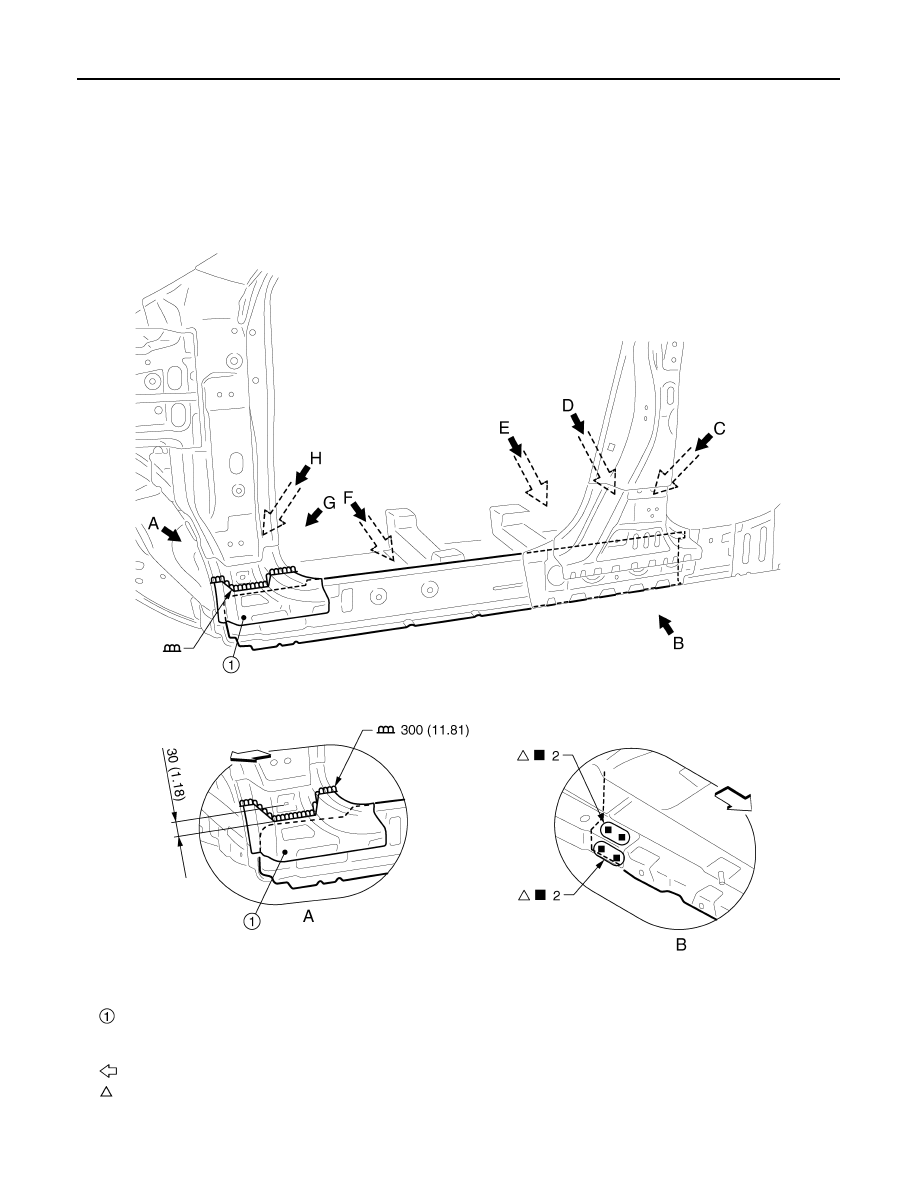

Inner Sill

INFOID:0000000010287992

Work after outer sill and outer sill reinforcement are removed.
Cut the lower front pillar hinge brace (reusable) for easier installation.

Lower front pillar hinge brace (reus-
able)

Unit: mm (in)

: Vehicle front

: Drill

φ

8 mm (0.31 in) hole for the plug welding hole (ultra high strength steel).

Replacement part

z

Inner sill assembly

JSKIA4018GB

REPLACEMENT OPERATIONS

BRM-69

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

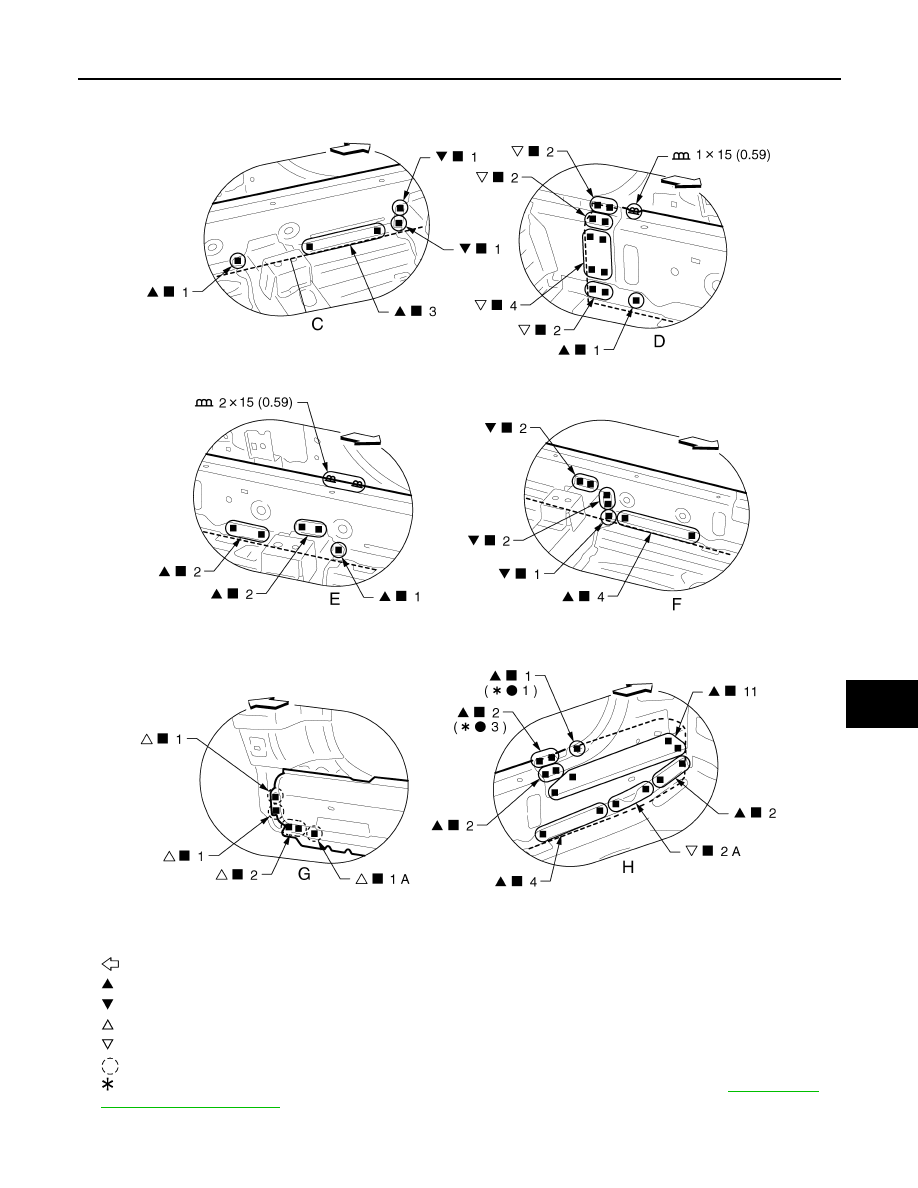

View G: Before installing lower front pillar hinge brace (reusable)

Unit: mm (in)

: Vehicle front

: Drill

φ

6 mm (0.24 in) hole for the plug welding hole (ultra high strength steel).

: Drill

φ

7 mm (0.28 in) hole for the plug welding hole (ultra high strength steel).

: Drill

φ

8 mm (0.31 in) hole for the plug welding hole (ultra high strength steel).

: Drill

φ

98 mm (0.35 in) hole for the plug welding hole (ultra high strength steel).

: Weld the parts onto the back of the component part.

: For spot welding of steel plate of tensile strength 980 MPa, observe the indicated welding conditions. Refer to

BRM-48, "Weld-

ing of Ultra High Strength Steel"

JSKIA4019GB

BRM-70

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

REPLACEMENT OPERATIONS

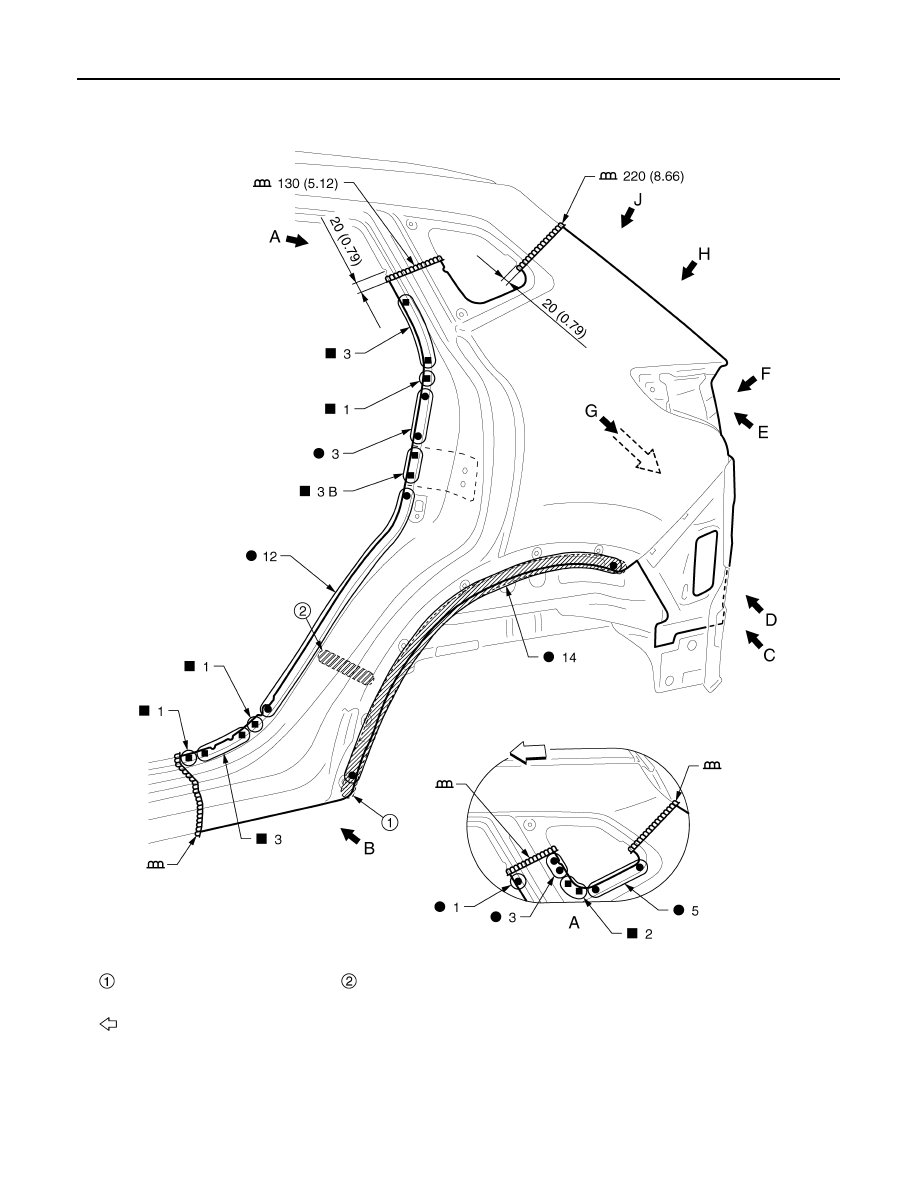

Rear Fender

INFOID:0000000010287993

Body sealing

Urethane foam

Unit: mm (in)

: Vehicle front

Replacement part

z

Rear fender assembly

z

Rear fender extension complete

z

Striker retainer assembly

JSKIA4020GB

REPLACEMENT OPERATIONS

BRM-71

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

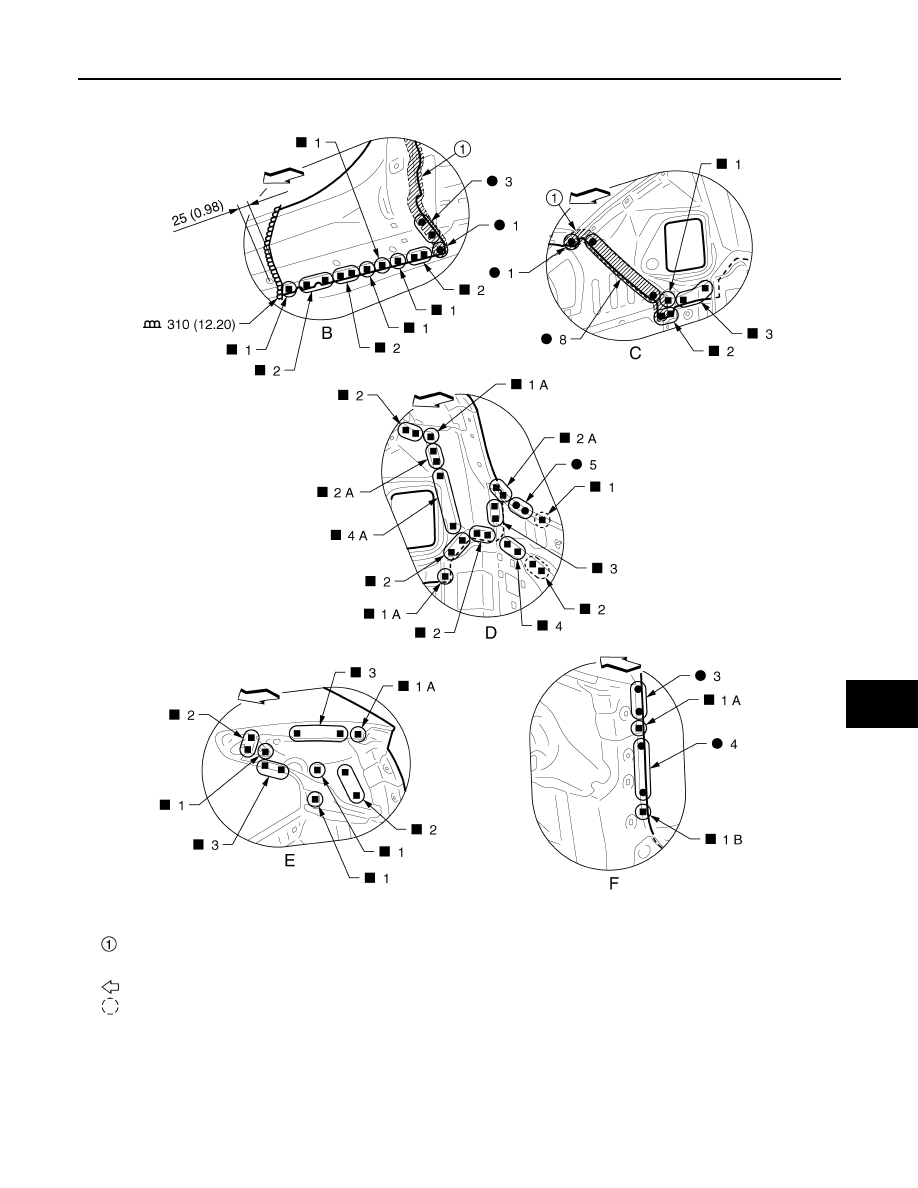

Body sealing

Unit: mm (in)

: Vehicle front

: Weld the parts onto the back of the component part.

JSKIA4021GB
