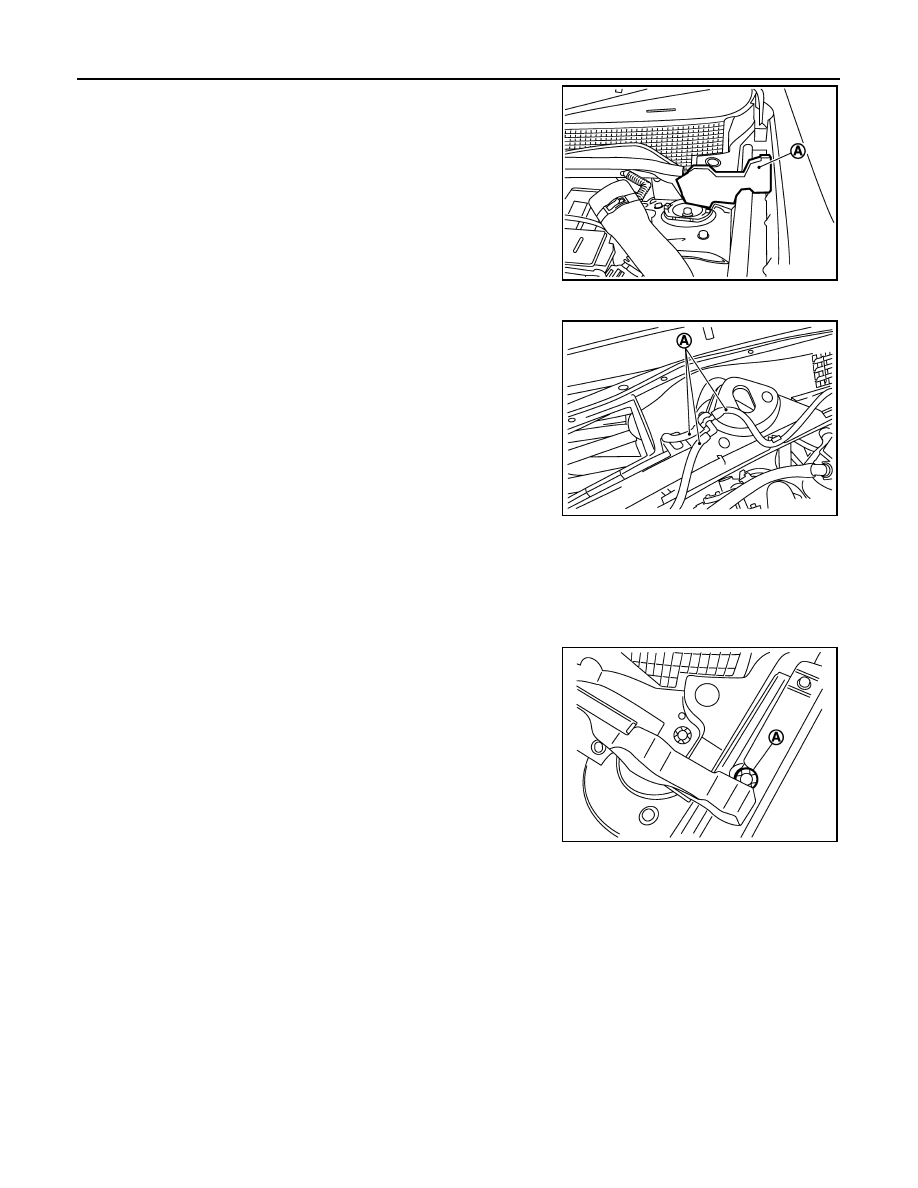

EXT-30

< REMOVAL AND INSTALLATION >

COWL TOP

5.

Release foam insulator (A) from front fender (LH/RH).

6.

Remove cowl top cover fixing clips, then pull forward to release cowl top cover from windscreen.

7.

Turn cowl top cover upside down to access main windscreen
washer tubes (A).

8.

Release main windscreen washer tubes. Remove main windscreen washer tubes.

CAUTION:

Fit cap on washer nozzle tube to avoid spills and contamination.

9.

Remove cowl top cover.
• Remove washer tube nozzles.
• Remove cowl top seal (LHD).

10. Remove front fender cover fixing clip (A).

• Push foam insulator to side to release double-adhesive tape.
• Release front fender cover pawl from front pillar.

INSTALLATION

Install in the reverse order of removal.

E1KIA0020ZZ

E1KIA0021ZZ

E1KIA0022ZZ

FENDER PROTECTOR

EXT-31

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

FENDER PROTECTOR

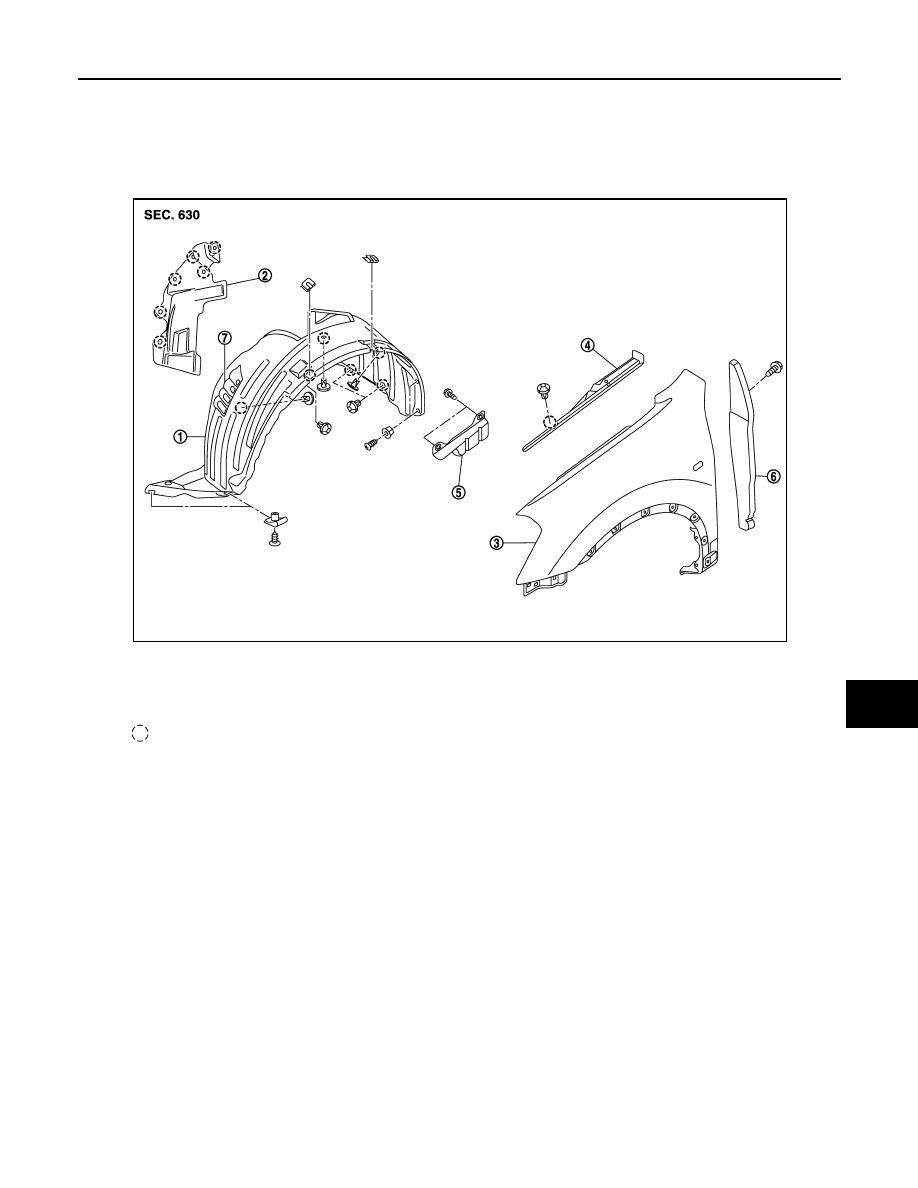

Exploded View

INFOID:0000000010377911

FENDER PROTECTOR

REAR WHEEL HOUSE PROTECTOR

1.

Front fender protector

2.

Hoodledge splashguard

3.

Front fender

4.

Front fender cover

5.

Front fender bracket

6.

Front fender seal

7.

Louvered cover

Clip

E1KIA0082ZZ

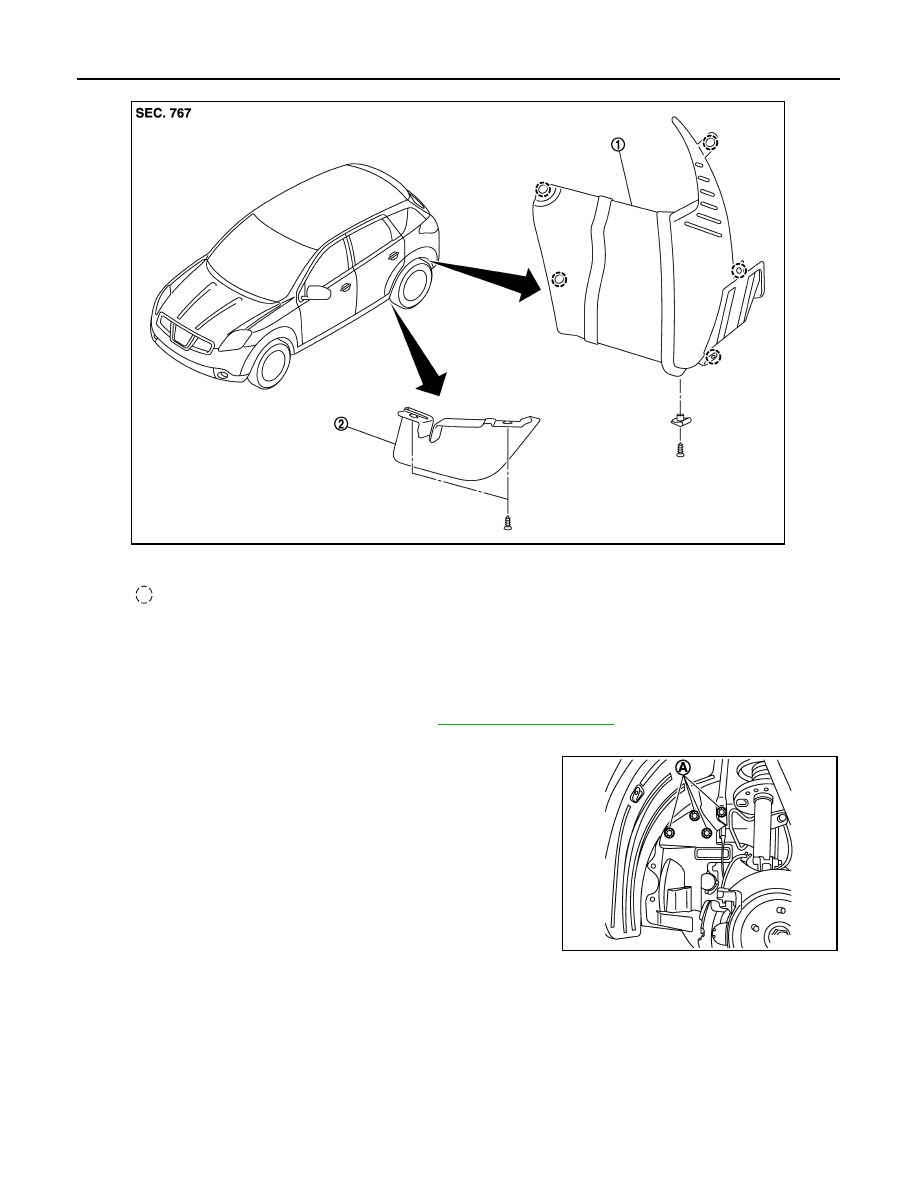

EXT-32

< REMOVAL AND INSTALLATION >

FENDER PROTECTOR

Removal and Installation

INFOID:0000000010377912

REMOVAL

FRONT FENDER PROTECTOR

1.

Remove front mudguard (if equipped). Refer to

EXT-34, "Exploded View"

.

2.

Remove front fender protector fixing screw and fixing bolt.

3.

Remove hoodledge splashguard fixing clips (A). Remove hoo-
dledge splashguard.

4.

Remove front fender protector fixing clips.

5.

Remove front fender protector fixing screws.

6.

Release front fender protector upper fixing clip from under, then remove front fender protector.

REAR WHEEL HOUSE PROTECTOR

1.

Remove rear wheel house protector lower fixing screw.

2.

Remove rear wheel house protector fixing clips.

3.

Remove rear wheel house protector.

1.

Rear fender protector

2.

Wind deflector

Clip

E1KIA0031GB

E1KIA0023ZZ

FENDER PROTECTOR

EXT-33

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

INSTALLATION

Install in the reverse order of removal.
