FRONT DOOR

DLK-165

< REMOVAL AND INSTALLATION >

[TYPE 1]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Fitting Adjustment Standard

Check the clearance and surface height between front door and each part by visually and touching.
If the clearance and the surface height are out of specification, adjust them according to the procedures
shown below.

Unit: mm [in]

Fitting Adjustment Procedure

1.

Remove front fender. Refer to

DLK-161, "Removal and Installation"

.

2.

Loosen door hinge mounting nuts on door side.

3.

Adjust the surface height of front door according to the fitting standard dimension.

4.

Temporarily tighten door hinge mounting nuts on door side.

5.

Loosen door hinge mounting bolts on vehicle body side.

6.

Raise front door at rear end to adjust clearance of the front door according to the fitting standard dimen-
sion.

7.

After adjustment tighten bolts and nuts to the specified torque.

CAUTION:

• After installation, apply touch-up paint (the body color) onto the head of hinge mounting bolts

and nuts.

• Check door hinge rotating part for poor lubrication. Apply body grease if necessary. Refer to

DLK-166, "DOOR HINGE : Inspection"

.

8.

Install front fender. Refer to refer to

DLK-161, "Removal and Installation"

.

DOOR STRIKER ADJUSTMENT

Adjust door striker so that it becomes parallel with door lock insertion direction.

DOOR STRIKER

DOOR STRIKER : Removal and Installation

INFOID:0000000010434695

REMOVAL

Remove TORX bolts, and then remove door striker.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Never reuse mounting TORX bolt. Always replace it with a new one when it is removed.
• Check front door open/close, lock/unlock operation after installation.
• After installation, perform the fitting adjustment. Refer to

DLK-164, "DOOR ASSEMBLY : Adjust-

ment"

.

DOOR HINGE

DOOR HINGE : Removal and Installation

INFOID:0000000010434696

REMOVAL

: N·m (kg-m, ft-lb)

: Body grease

Portion

Standard

Front fender – Front door

A – A

H

Clearance

3.3 – 5.3

[0.130 – 0.209]

I

Surface

height

(

−

1.0) – (+1.0)

[(

−

0.039) – (+0.039)]

Front door – Rear door

B – B

J

Clearance

3.3 – 5.3

[0.130 – 0.209]

K

Surface

height

(

−

1.0) – (+1.0)

[(

−

0.039) – (+0.039)]

DLK-166

< REMOVAL AND INSTALLATION >

[TYPE 1]

FRONT DOOR

CAUTION:

• Perform work with 2 workers, because of its heavy weight.
• When removing and installing front door assembly, support door with a jack and shop cloth to pro-

tect door and body.

1.

Remove front fender. Refer to

DLK-161, "Removal and Installation"

.

2.

Remove front door assembly. Refer to

DLK-163, "DOOR ASSEMBLY : Removal and Installation"

.

3.

Remove front door hinge mounting bolts (body side), and then remove front door hinge.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Apply anticorrosive agent onto the mounting surface.
• Check front door open/close, lock/unlock operation after installation.
• After installation, perform the fitting adjustment. Refer to

DLK-164, "DOOR ASSEMBLY : Adjust-

ment"

.

• After installation, apply touch-up paint (the body color) onto the head of door hinge mounting nuts.
• After installation, check door hinge rotating part for poor lubrication. Refer to

DLK-166, "DOOR

HINGE : Inspection"

.

DOOR HINGE : Inspection

INFOID:0000000010434697

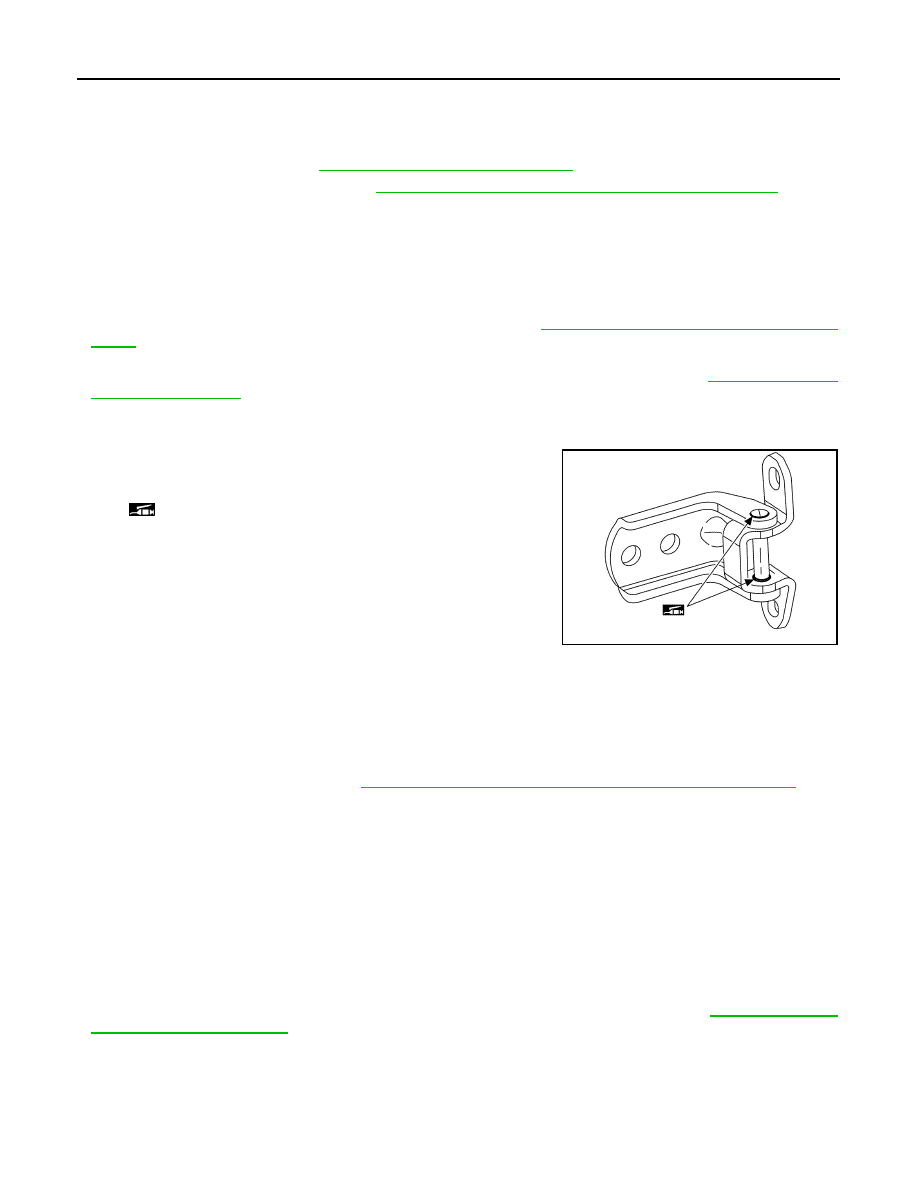

Check door hinge rotating part for poor lubrication. Apply body
grease if necessary.

DOOR CHECK LINK

DOOR CHECK LINK : Removal and Installation

INFOID:0000000010434698

REMOVAL

1.

Fully close the front door glass.

2.

Remove front door finisher. Refer to

INT-12, "FRONT DOOR FINISHER : Removal and Installation"

.

3.

Remove front door speaker.

a.

Disconnect front door speaker harness connector.

b.

Remove front door speaker mounting bolts, and then remove front door speaker.

4.

Remove check link mounting bolts of vehicle body side.

5.

Remove check link mounting bolts of door side.

6.

Take door check link out from the hole of door panel.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Check front door open/close operation after installation.
• After installation, check door check link rotating part for poor lubrication. Refer to

DLK-167, "DOOR

CHECK LINK : Inspection"

.

: Body grease

JMKIB0321ZZ

FRONT DOOR

DLK-167

< REMOVAL AND INSTALLATION >

[TYPE 1]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

DOOR CHECK LINK : Inspection

INFOID:0000000010434699

Check door hinge rotating part for poor lubrication. Apply body
grease if necessary.

: Body grease

JMKIB0322ZZ

DLK-168

< REMOVAL AND INSTALLATION >

[TYPE 1]

REAR DOOR

REAR DOOR

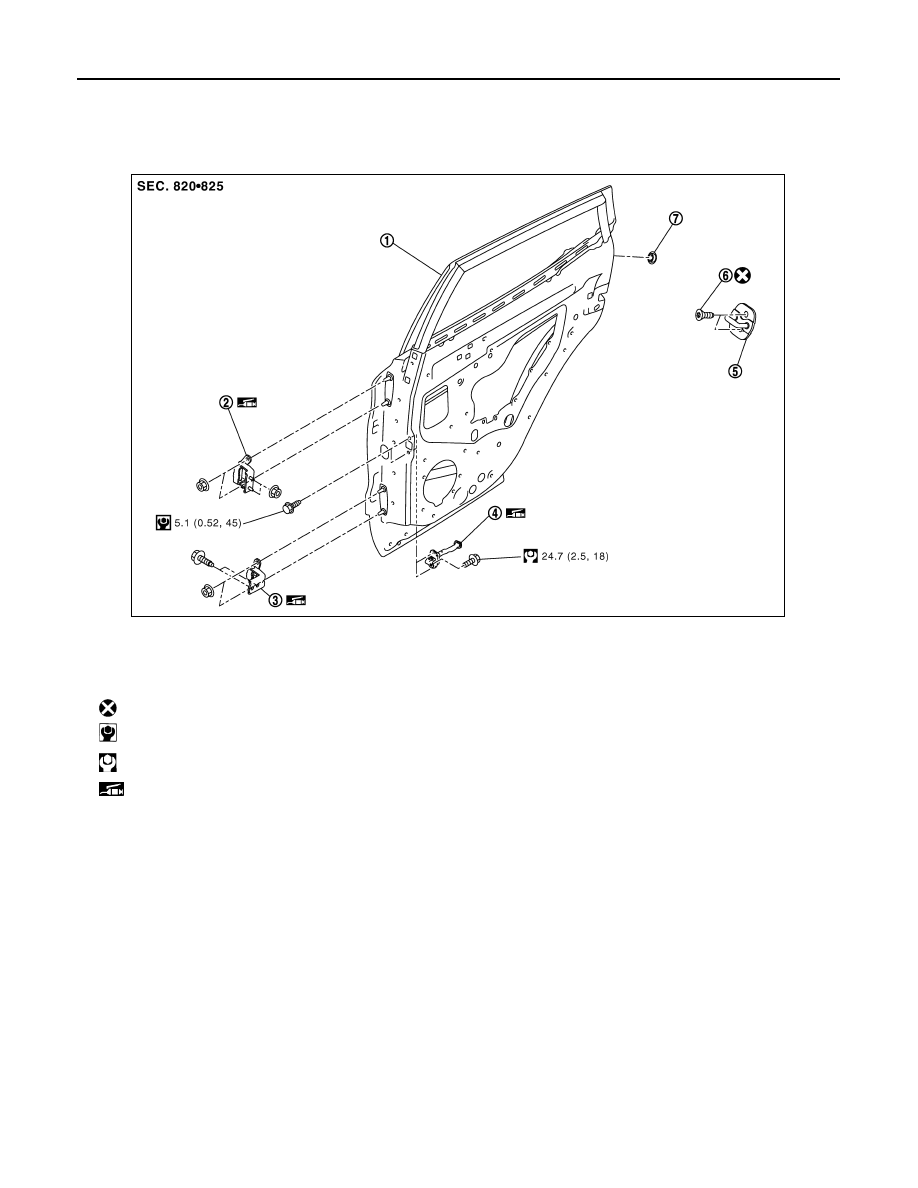

Exploded View

INFOID:0000000010434701

DOOR ASSEMBLY

DOOR ASSEMBLY : Removal and Installation

INFOID:0000000010434702

CAUTION:

• Perform work with 2 workers, because of its heavy weight.
• When removing and installing rear door assembly, support door with a jack and shop cloth to pro-

tect door and body.

REMOVAL

1.

Remove rear door harness grommet from vehicle body side, and then pull out rear door harness.

2.

Disconnect rear door harness connector.

3.

Remove mounting bolt of door check link on the vehicle.

4.

Remove door hinge mounting nuts of door side, and then remove rear door assembly.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

1.

Rear door panel

2.

Door hinge (upper)

3.

Door hinge (lower)

4.

Door check link

5.

Door striker

6.

TORX bolt

7.

Grommet

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

: Body grease

JMKIB3249GB
